Plan 365020PED

Exclusive

New American House Plan with Smart Layout and Bonus Expansion - 2574 Sq Ft

Heated S.F.

2,574

Beds

3 - 4

Baths

3 - 4

Stories

1

Cars

3

Floor Plan

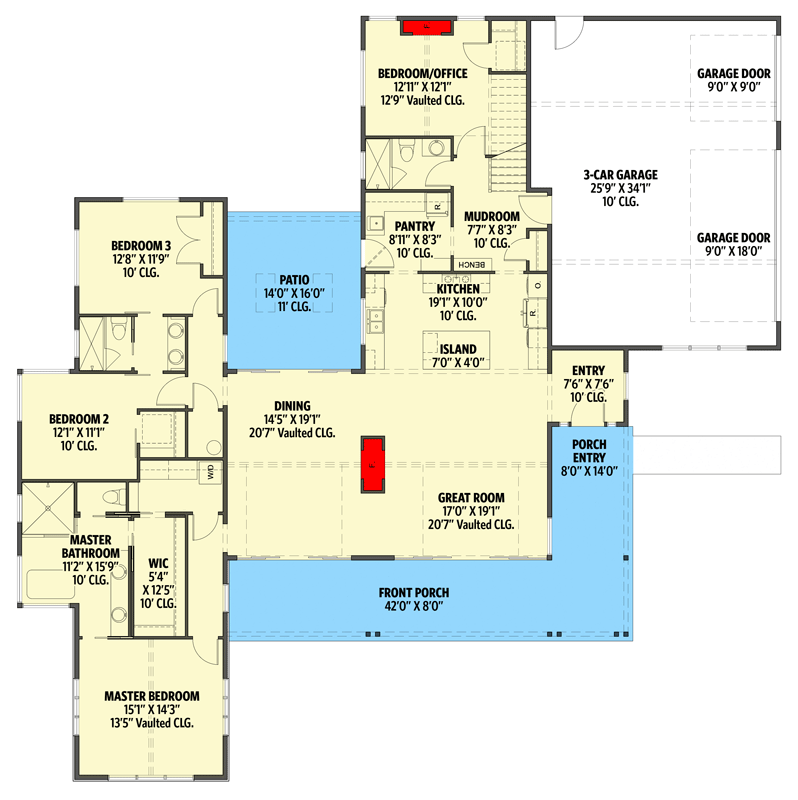

Main Level

floor plan image Main Level

2nd Floor

floor plan image 2nd Floor

Plan Details

The smart layout of this New American house plan highlights outdoor living and includes 4 bedrooms on one level.

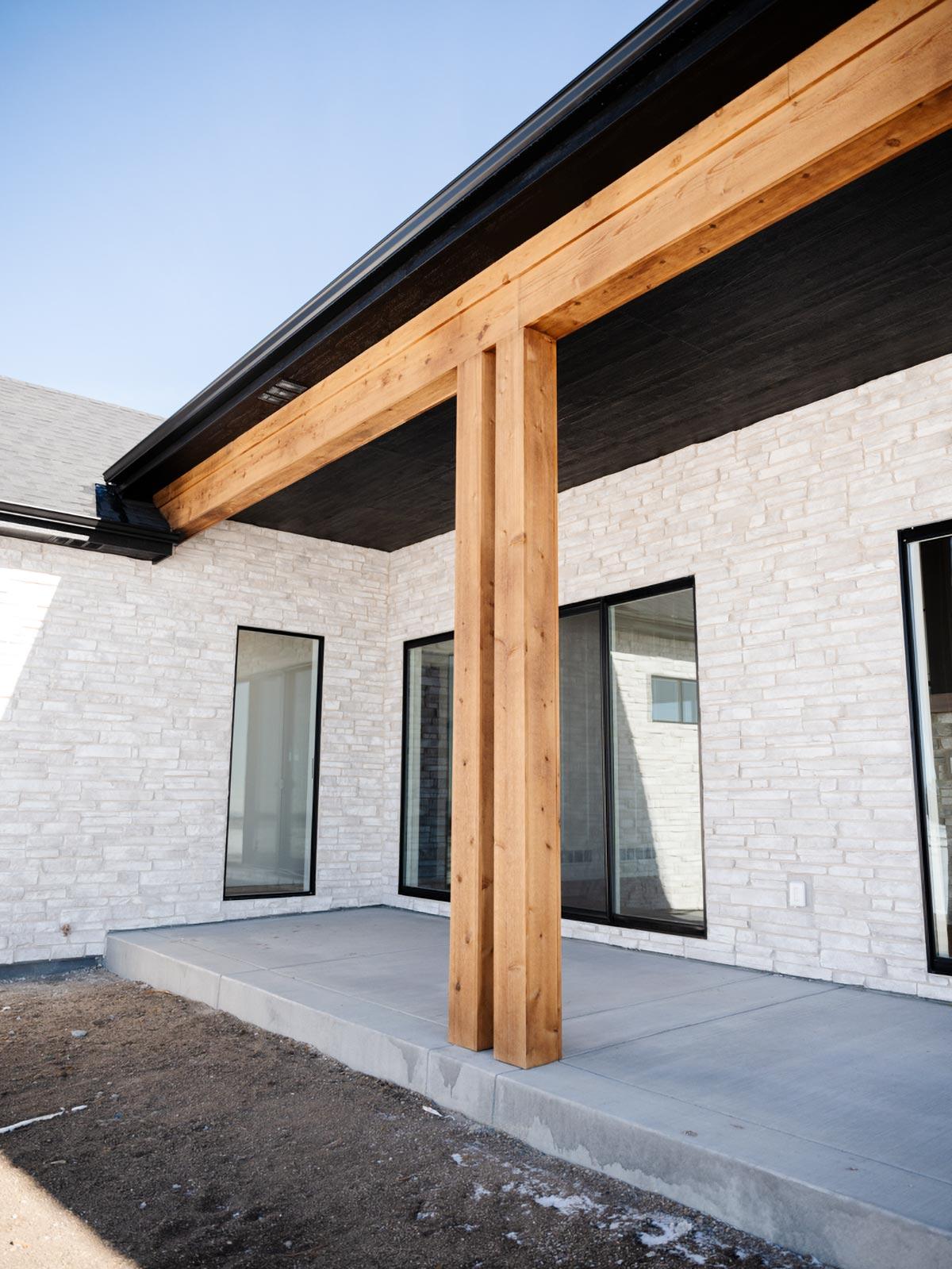

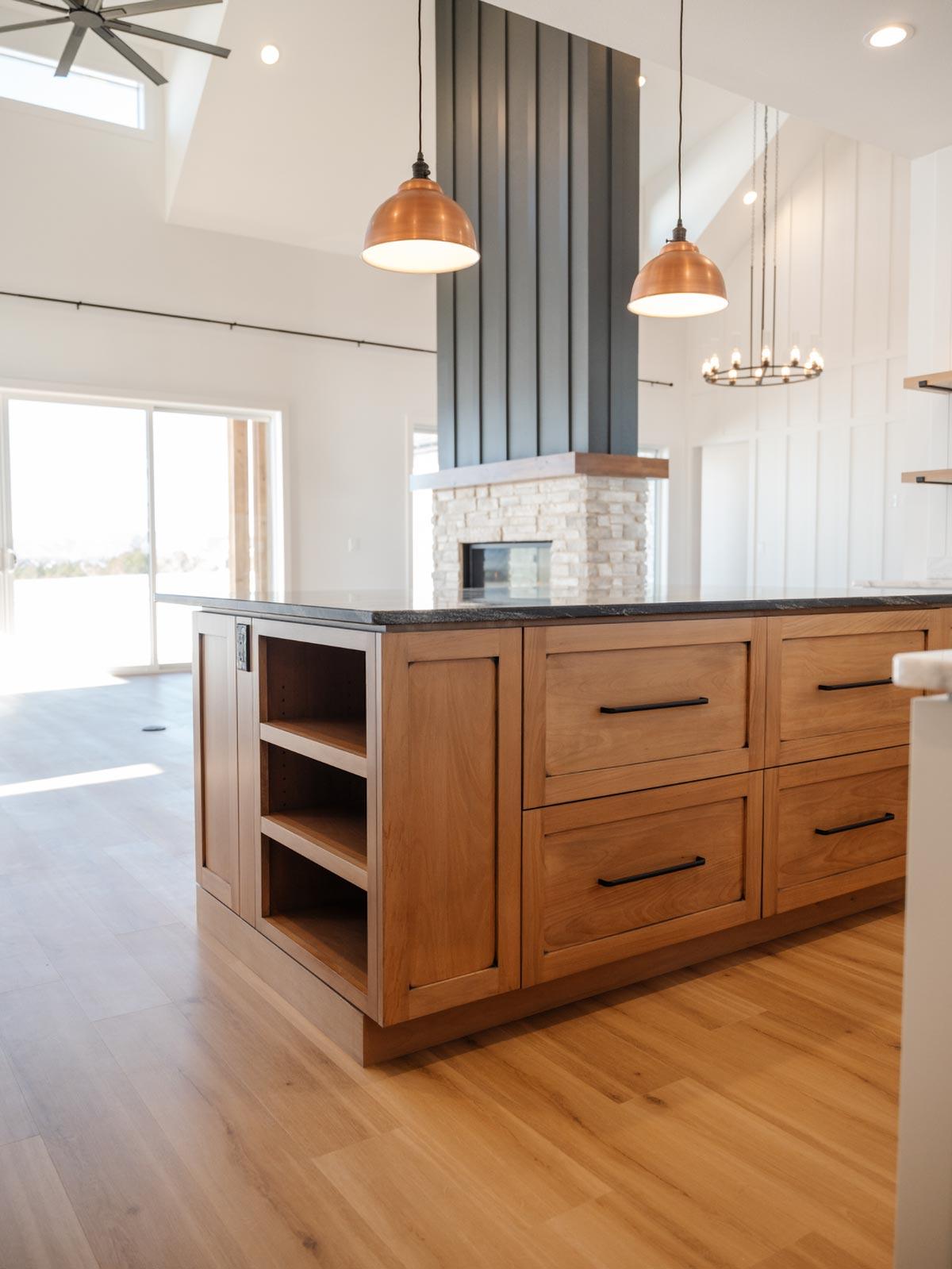

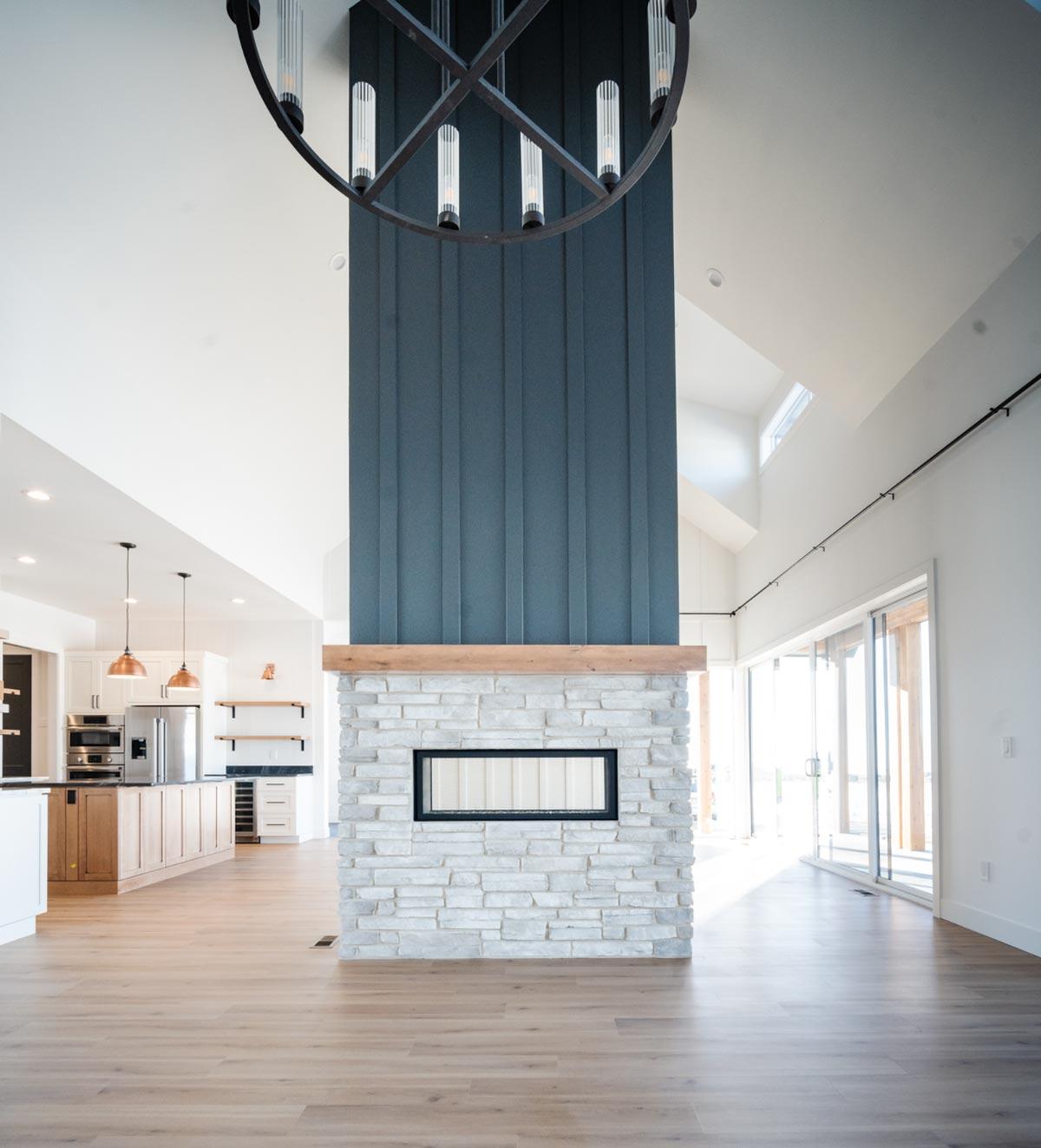

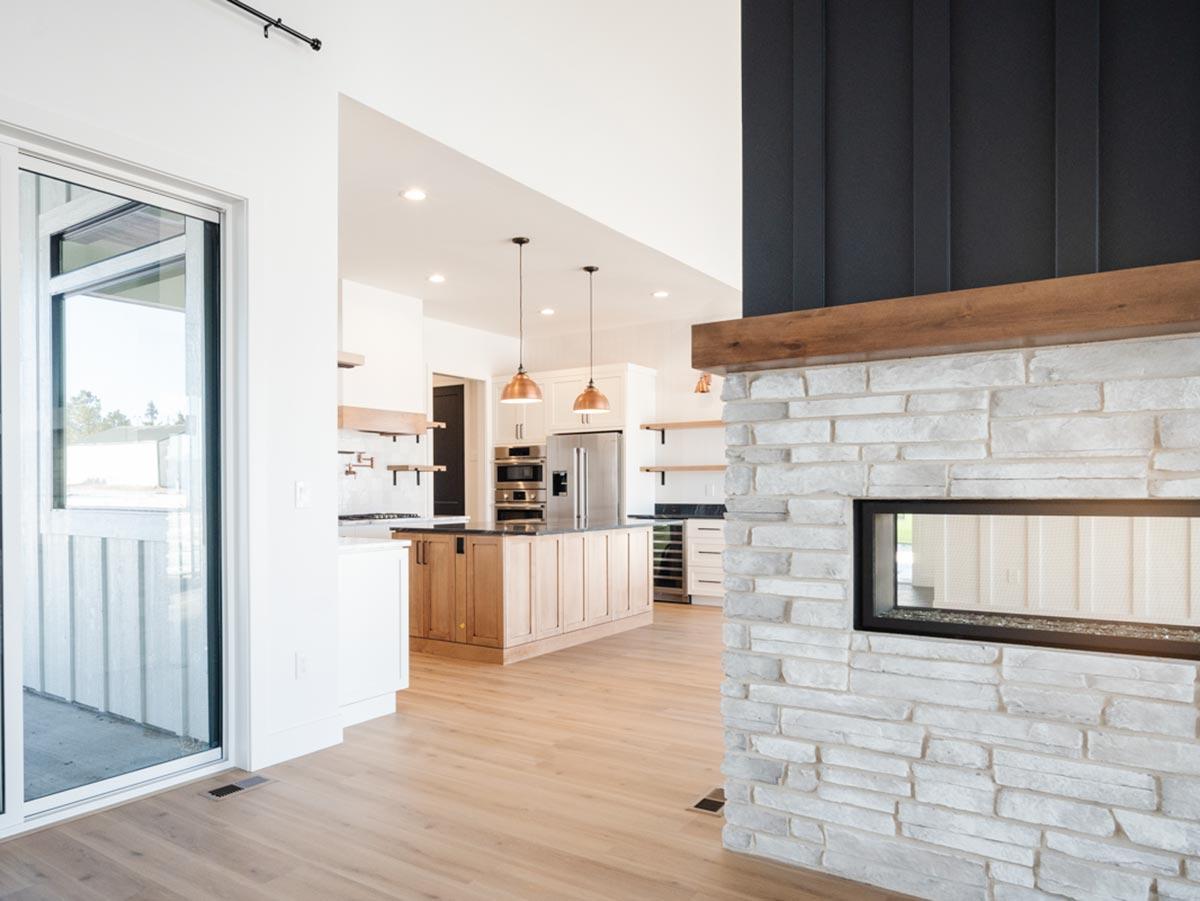

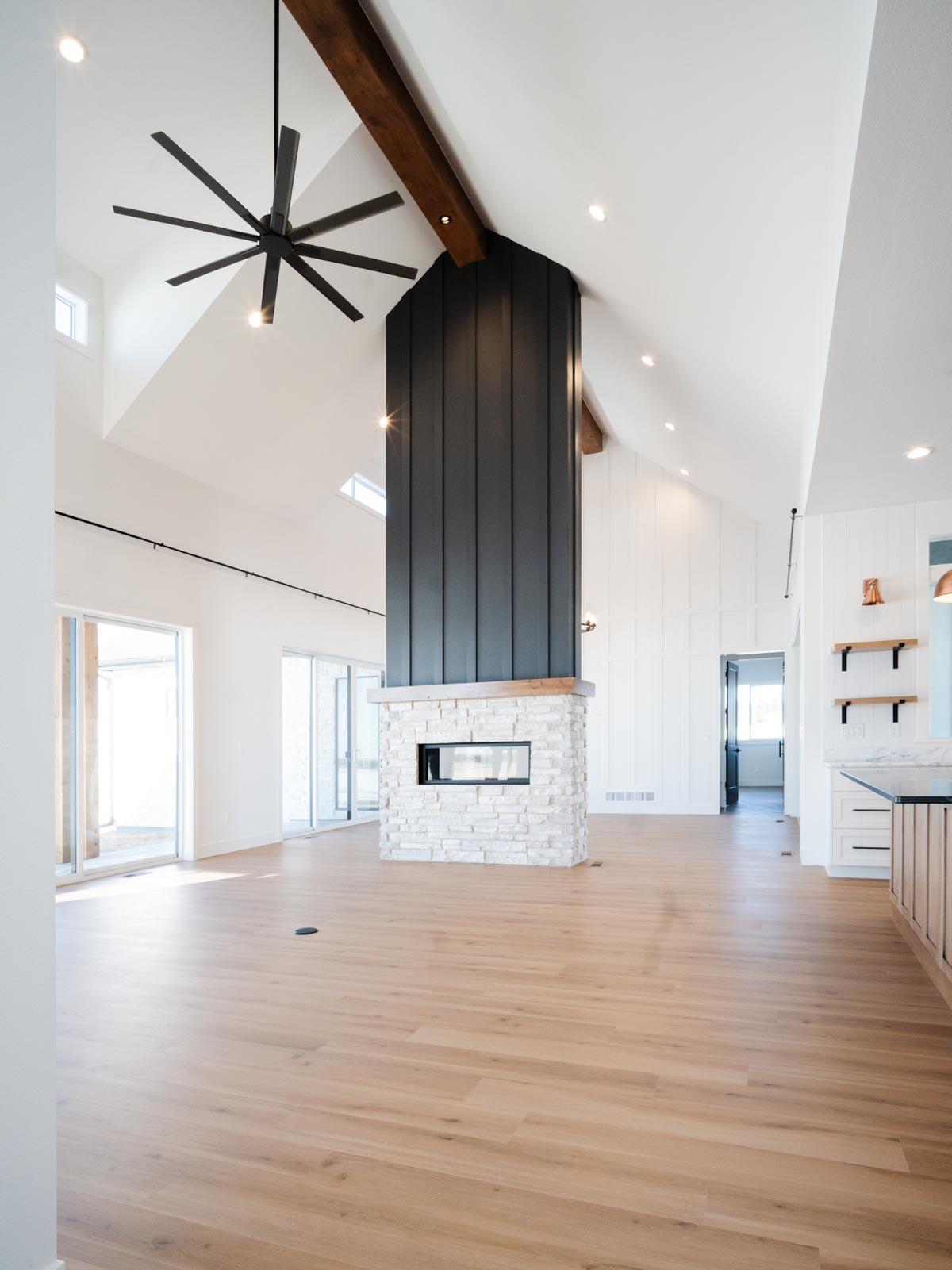

A vaulted ceiling combines the great room and dining area, separated only by a statement fireplace, and sliding doors part to grant access to a covered patio with a raised ceiling and skylights.

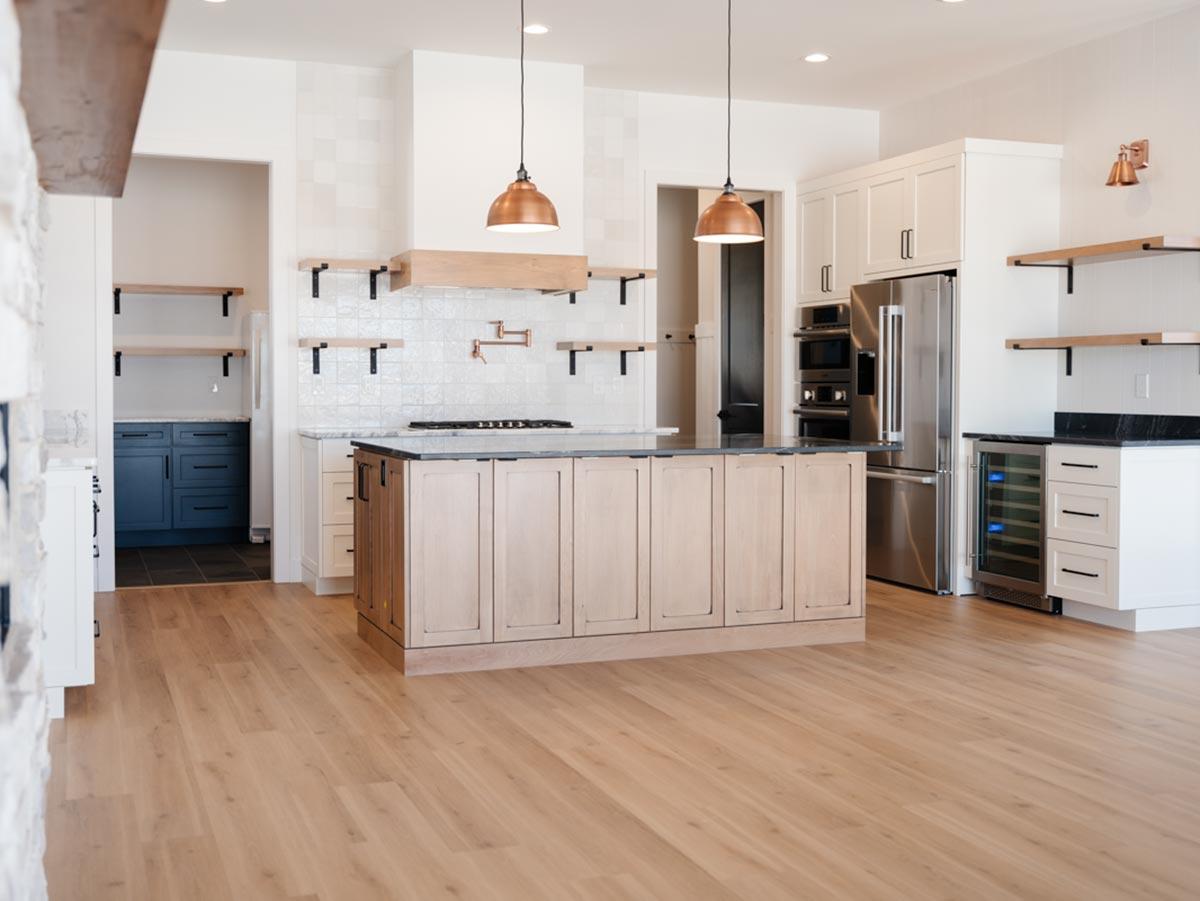

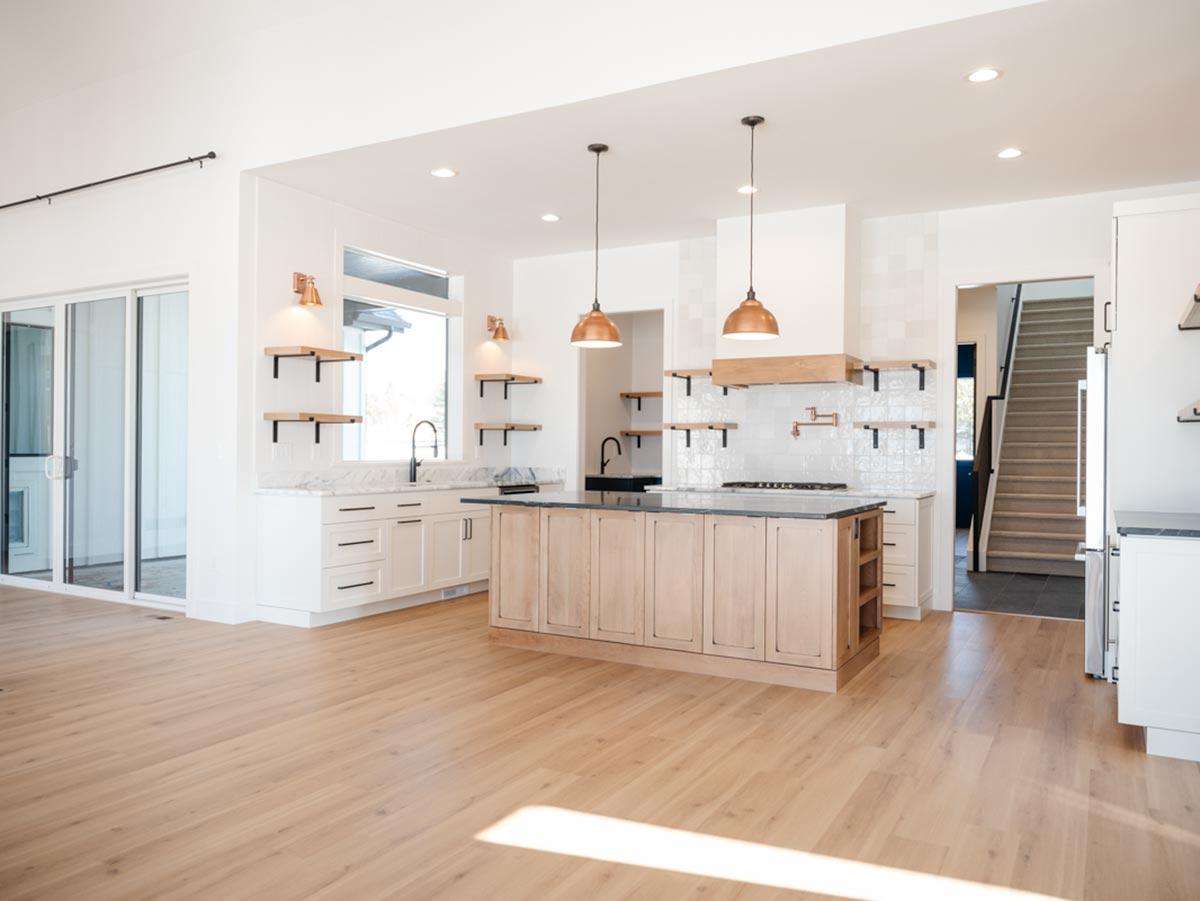

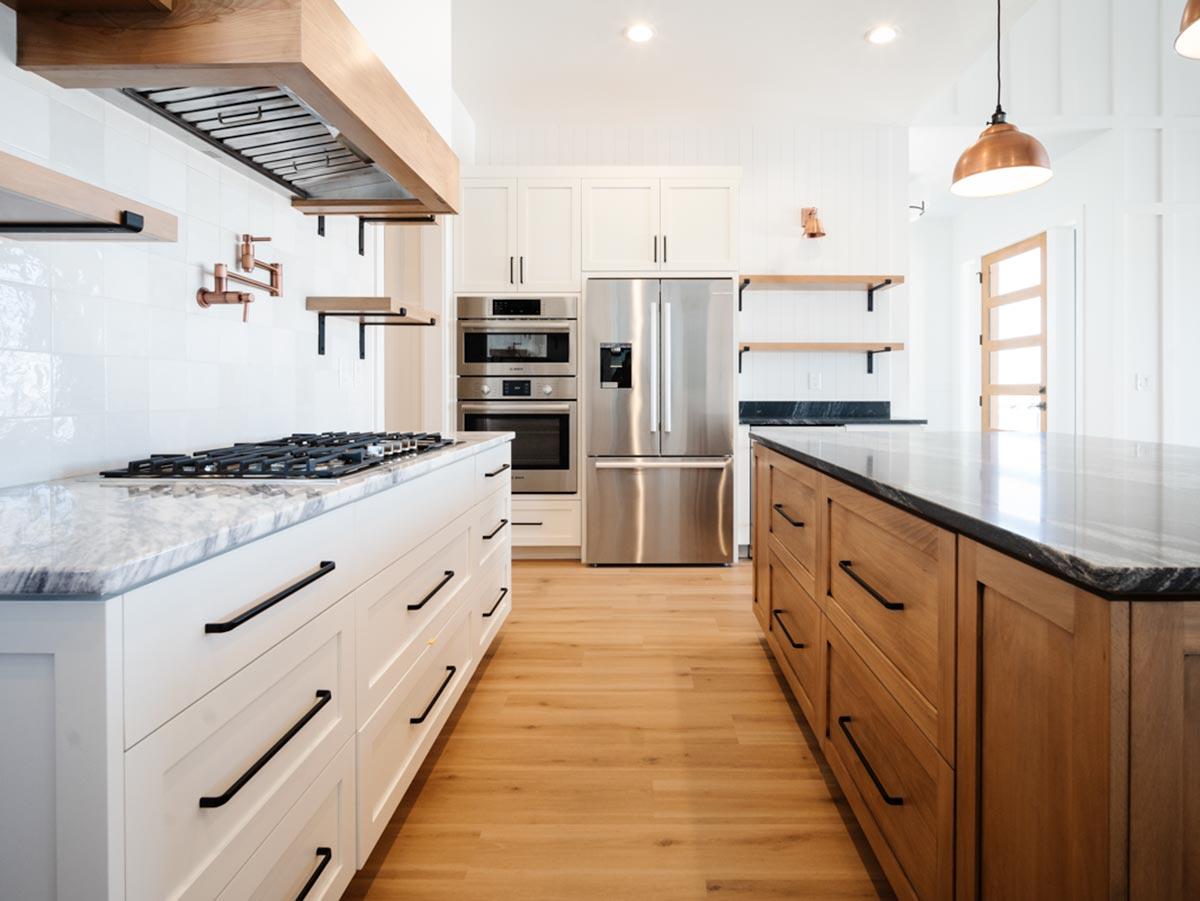

The adjacent pantry doubles as a spice kitchen with its veggie sink and second refrigerator, and provides access to the patio and mudroom.

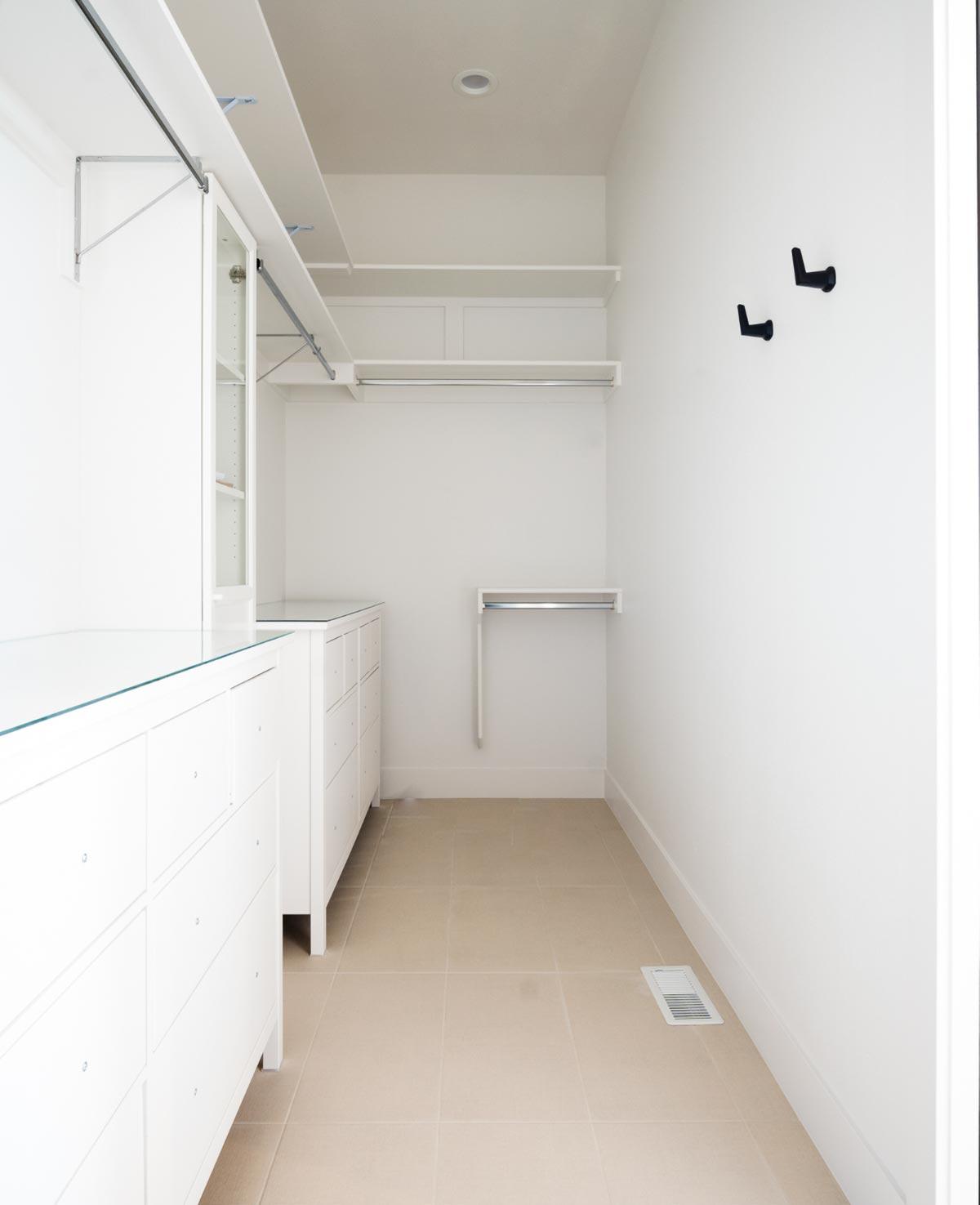

The master bedroom boasts a vaulted ceiling and spa-like bathroom with a pass-thru closet that leads to the laundry room.

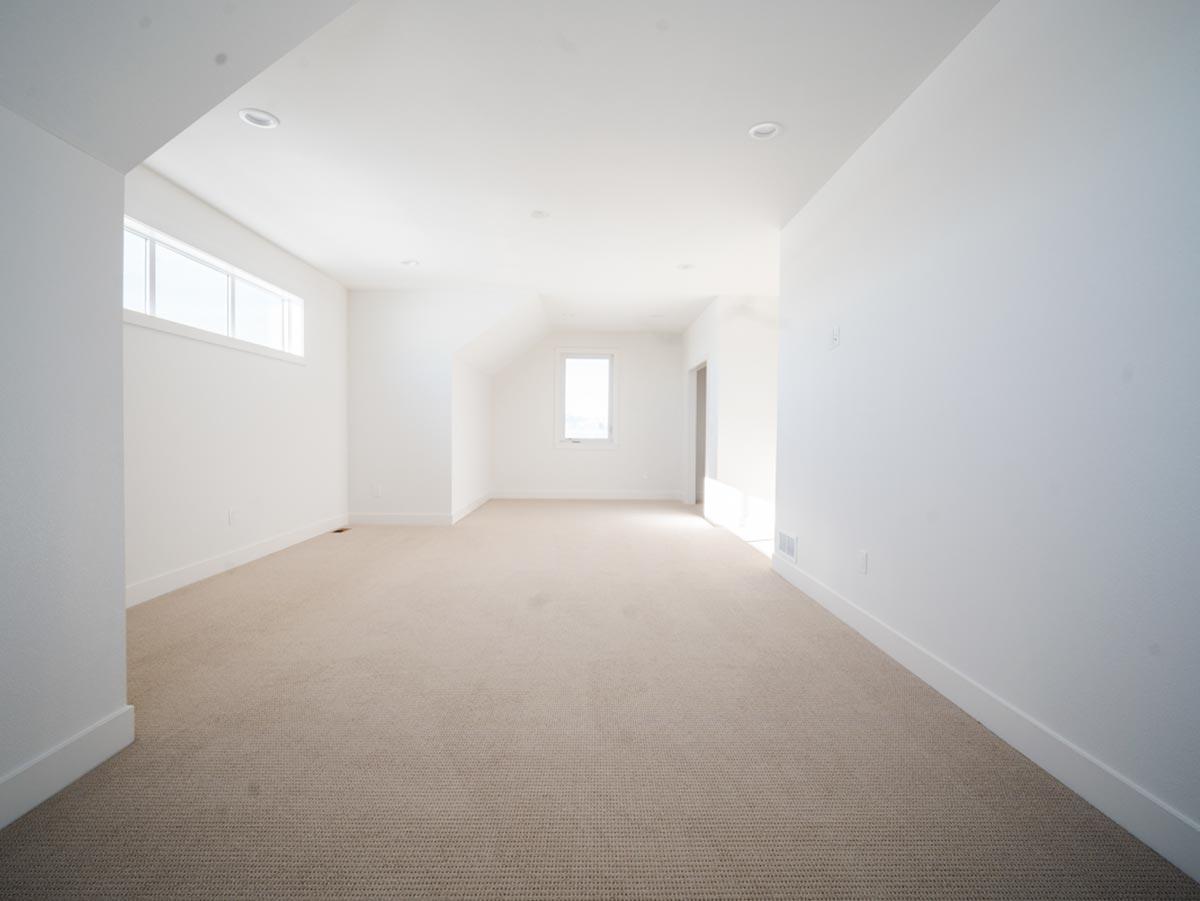

The opposite wing of the home is where you'll find access to the 3-car garage, as well as a flex room that can serve as a home office or guest bedroom. Finish the upstairs bonus room for an extra 565 square feet of living space.

What's Included

Cover sheet with general information
Detailed floor plans for each floor

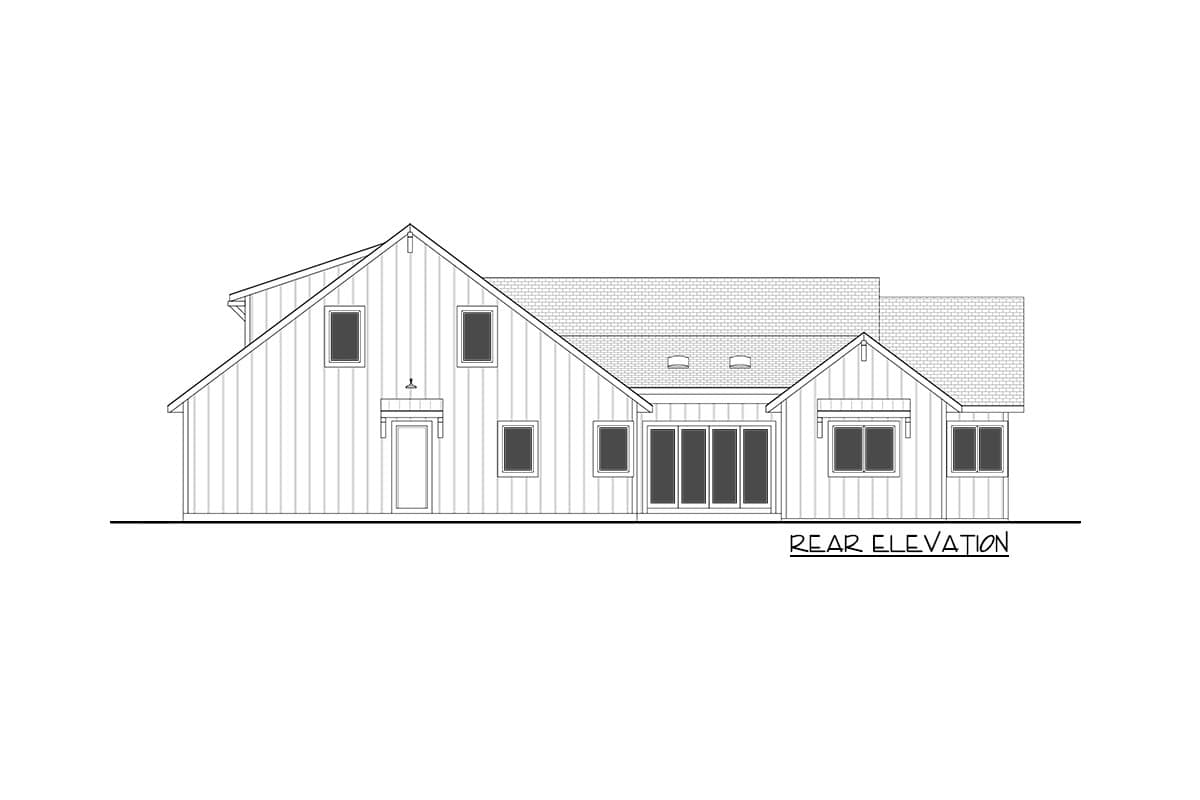

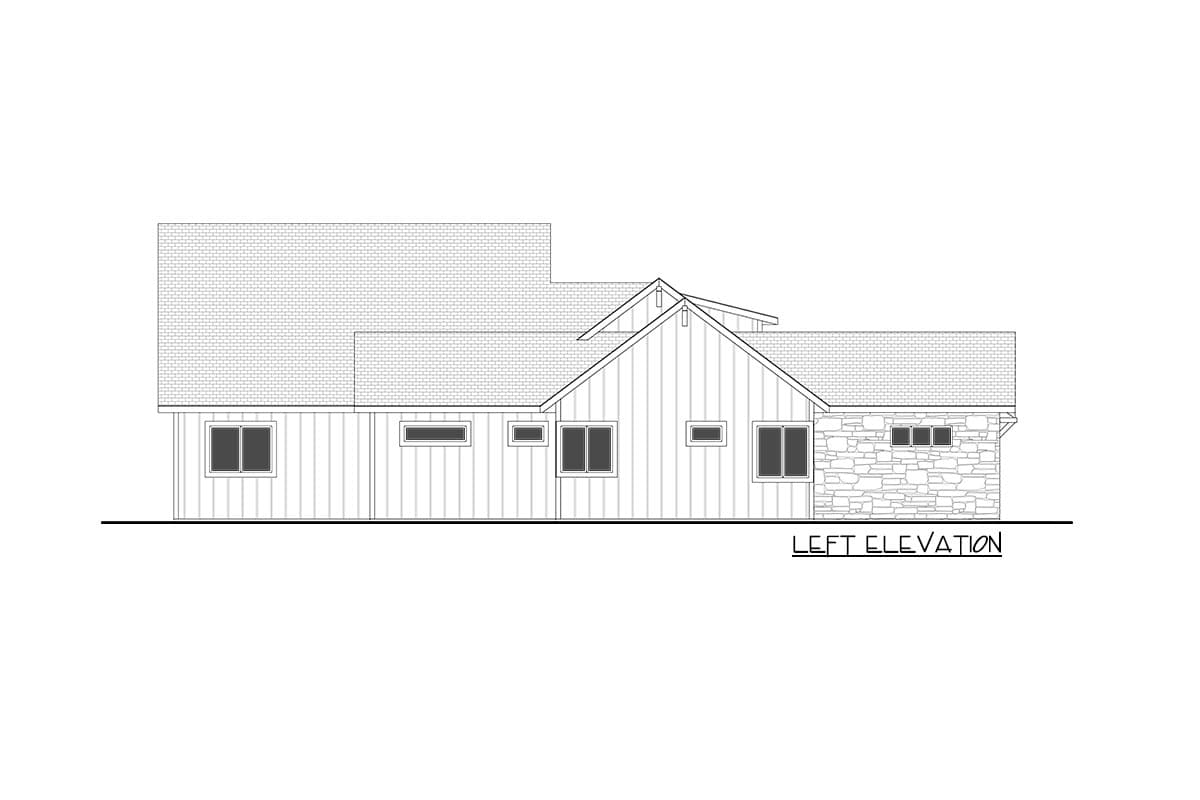

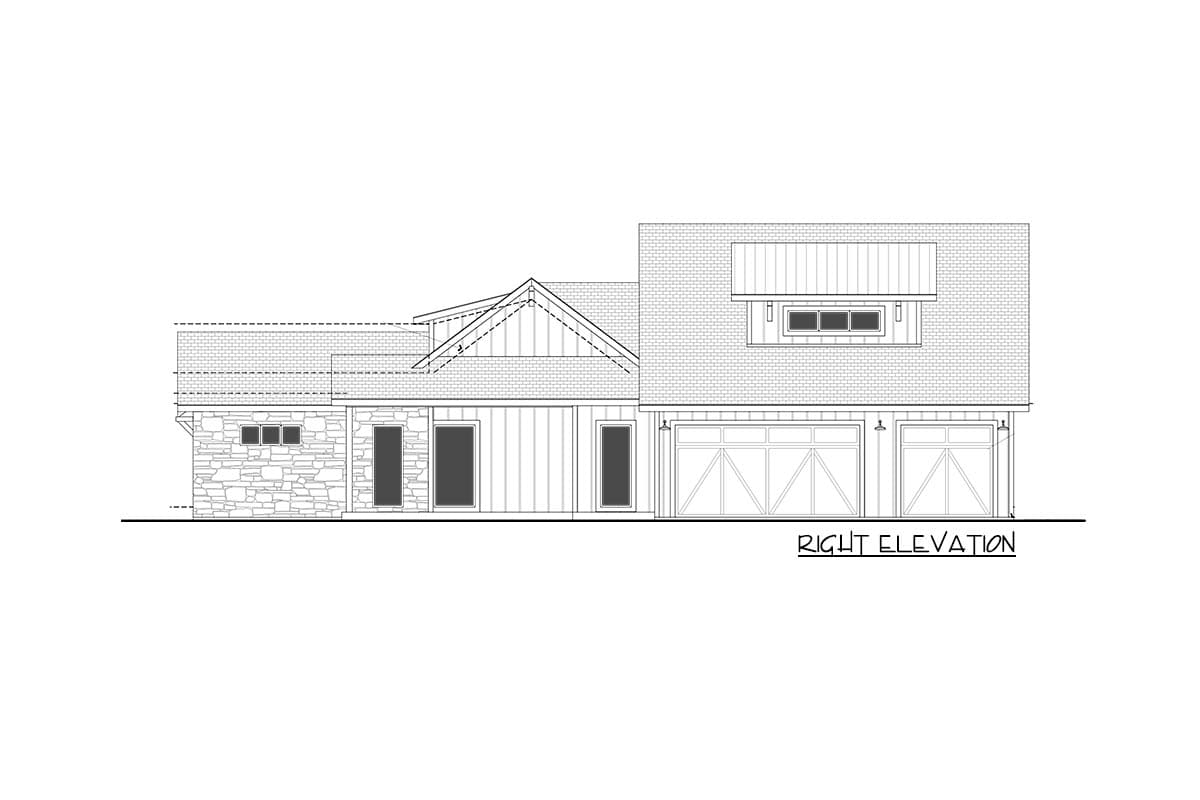

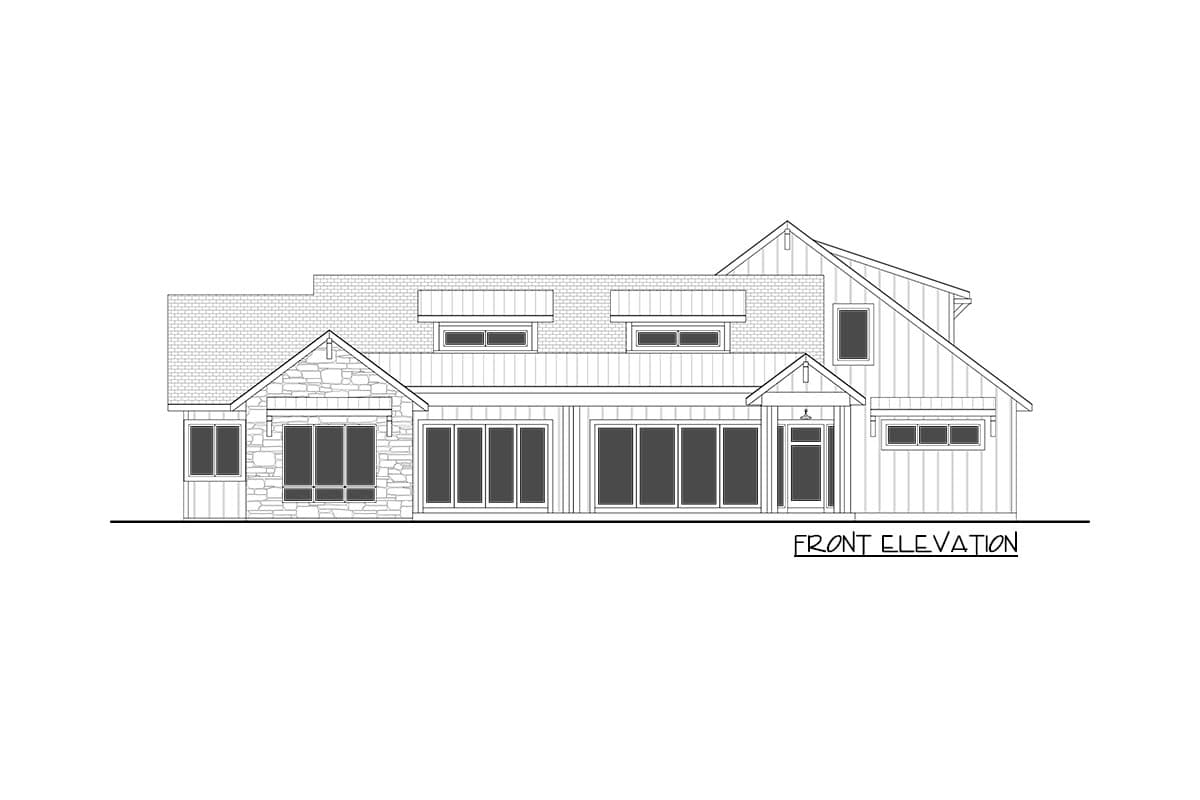

Elevations for each side of the home
Roof plan
Building section and details
Electrical schematic plans for each floor
Foundation plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,574 sq. ft.

1st Floor

2,574 sq. ft.

Bonus

565 sq. ft.

Porch, Front

448 sq. ft.

Covered Patio

224 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3 or 4

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

80' 0"

Depth

80' 0"

Max Ridge Height

28' 10"

Garage

Type

Attached

Area

876 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

4 on 12

Framing Type

Stick And Truss

Architectural Style

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room

Wrap Around Porch

Plan Collections

Premium Collection

Square Footage Breakdown

Total Heated Area

2,574 sq. ft.

1st Floor

2,574 sq. ft.

Bonus

565 sq. ft.

Porch, Front

448 sq. ft.

Covered Patio

224 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3 or 4

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

80' 0"

Depth

80' 0"

Max Ridge Height

28' 10"

Garage

Type

Attached

Area

876 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

4 on 12

Framing Type

Stick And Truss

Architectural Style

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room

Wrap Around Porch

Plan Collections

Premium Collection
