Plan 24406TW

New American House Plan with Walk-Out Lower Level - 3794 Sq Ft

Heated S.F.

3,794

Beds

3 - 4

Baths

4.5

Stories

1

Cars

3

Floor Plan

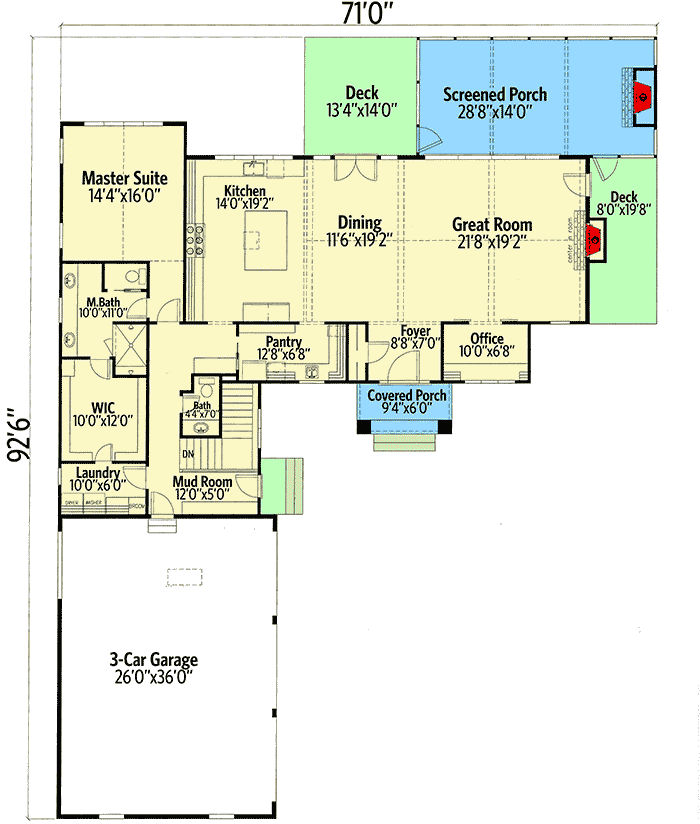

Main Level

floor plan image Main Level

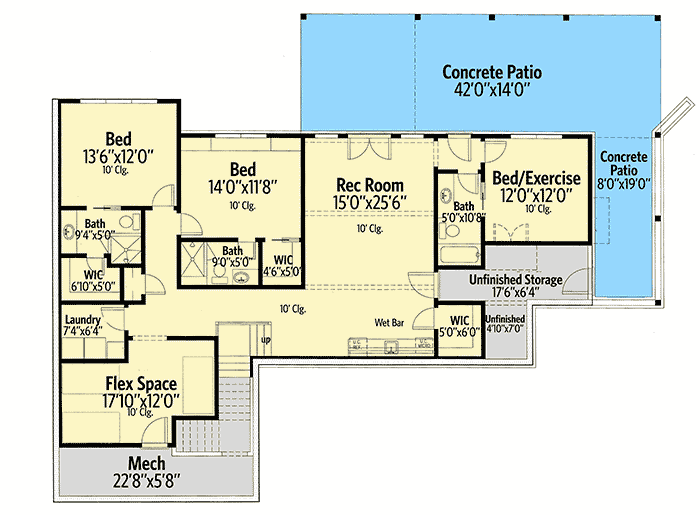

Lower Level

floor plan image Lower Level

Plan Details

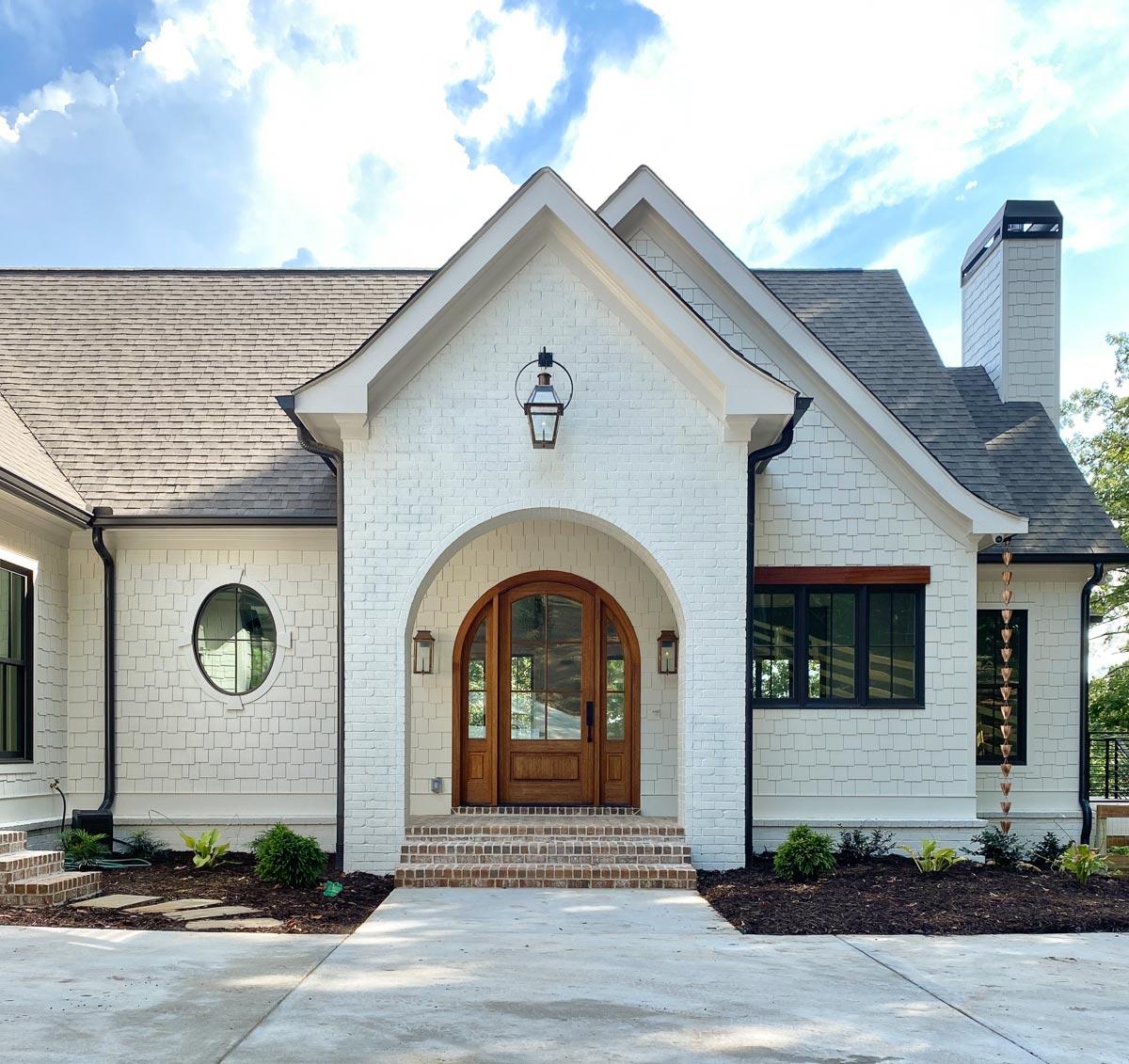

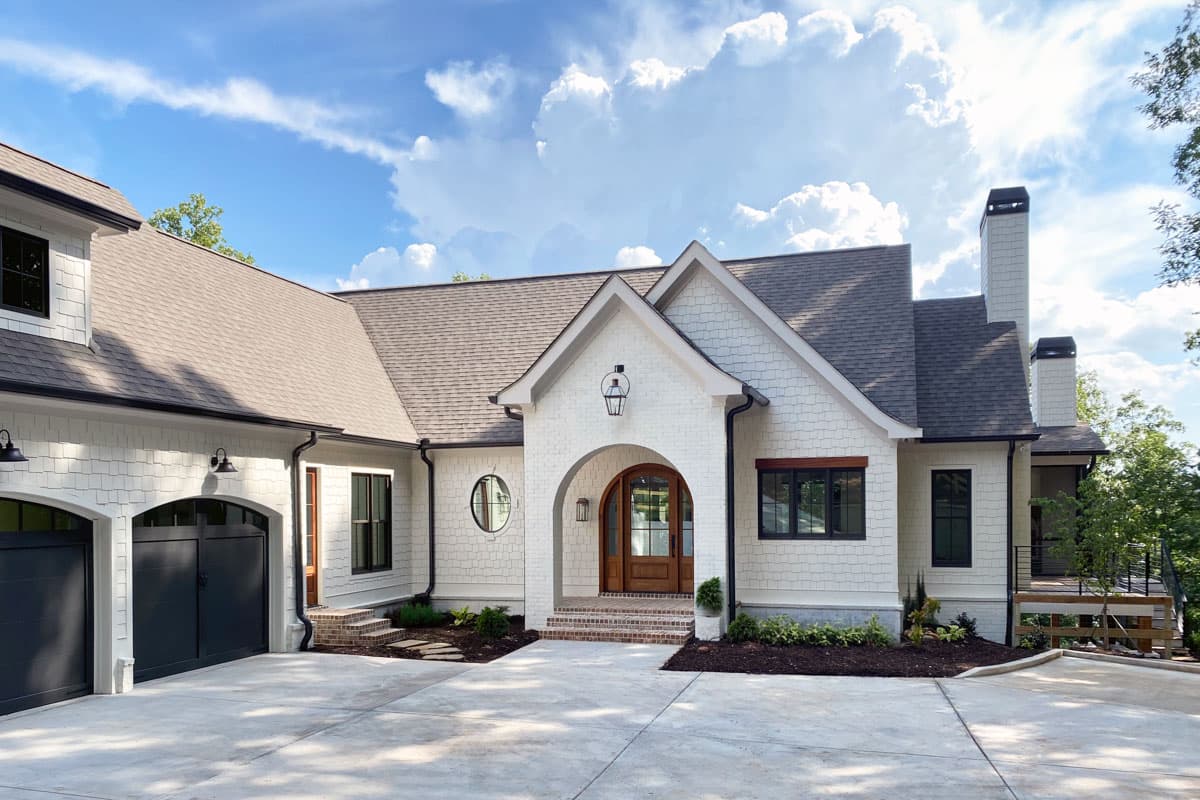

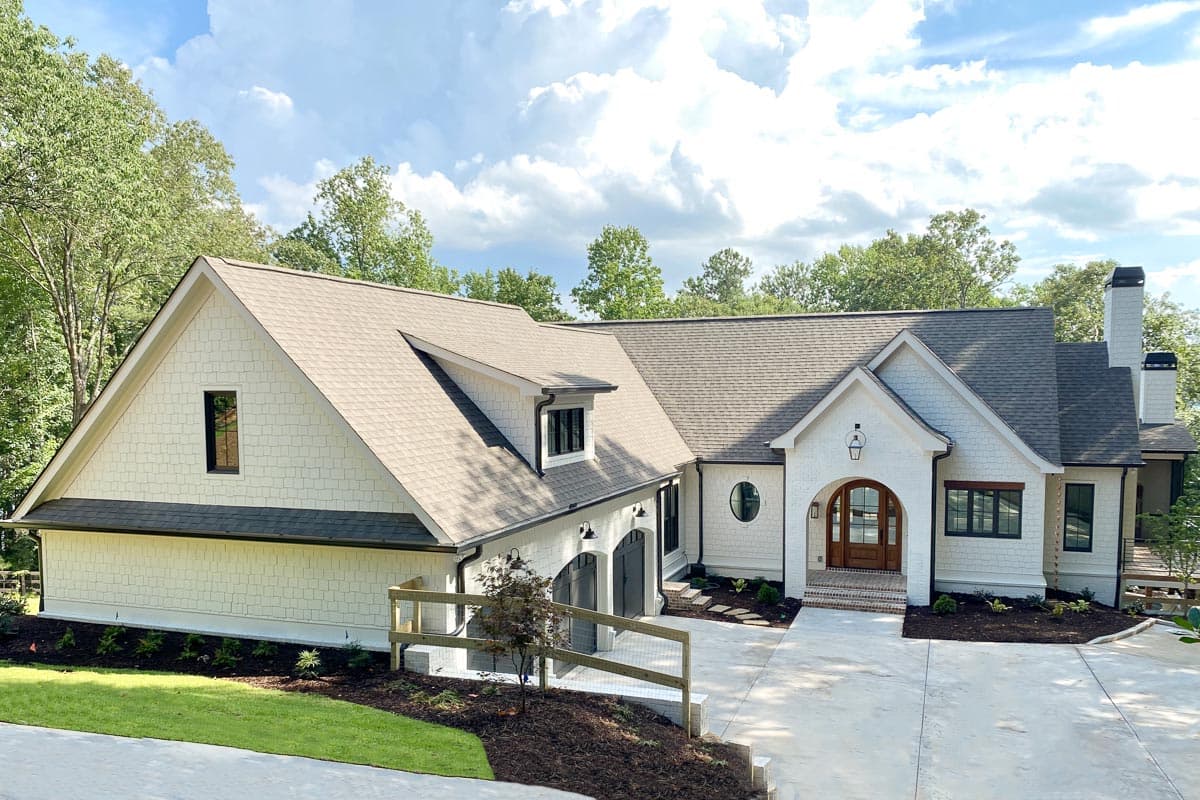

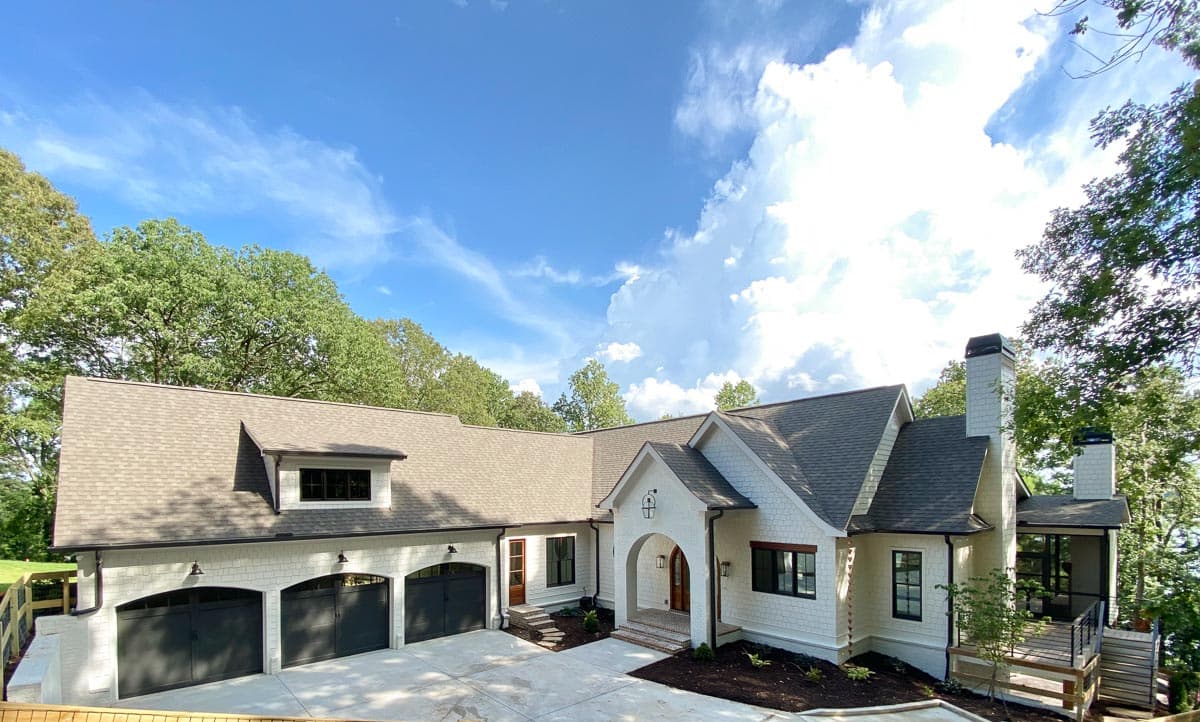

The cross-gable roof on this 4-bedroom New American house plan creates an L-shape footprint, with a 3-garage protruding from the front of the home. Flared eaves above the front porch boost character and complete the design.

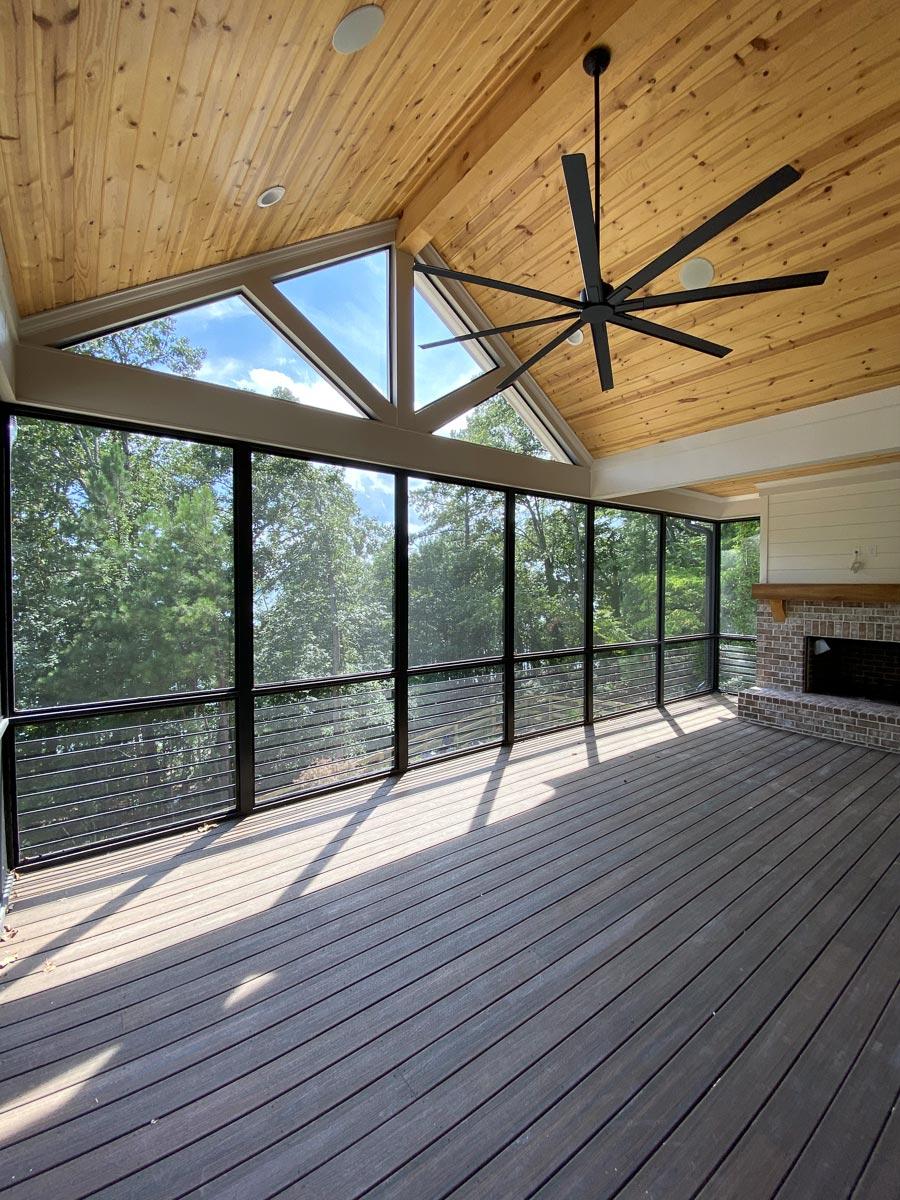

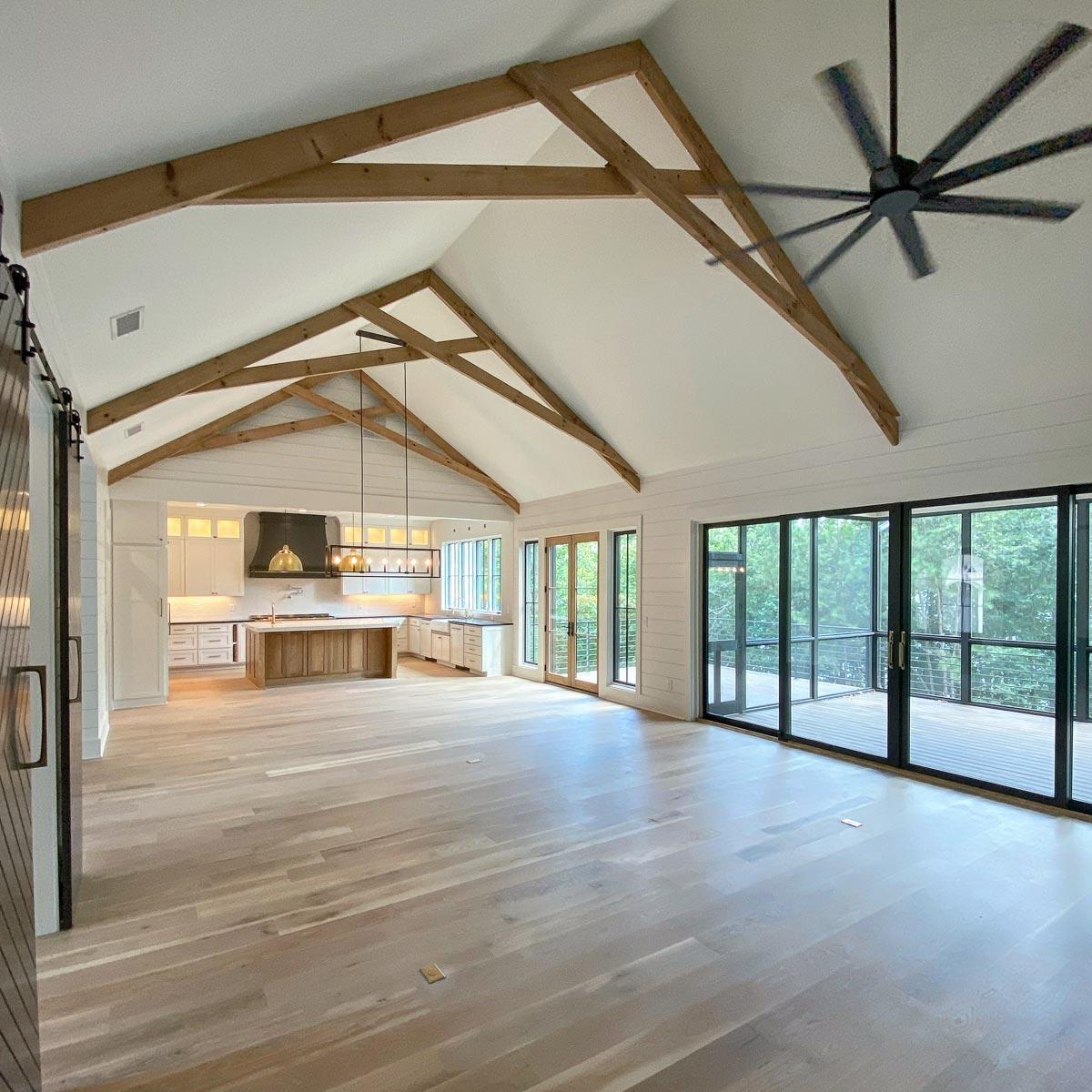

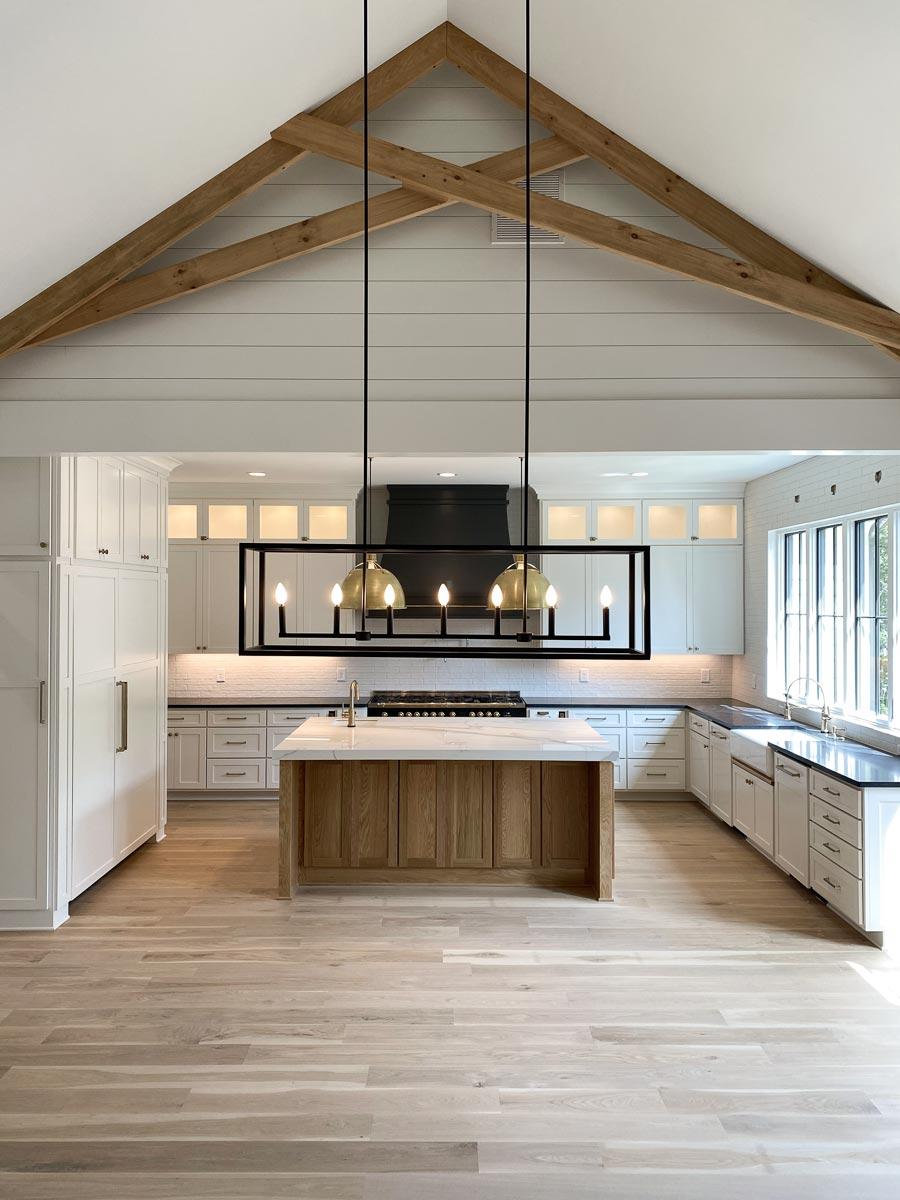

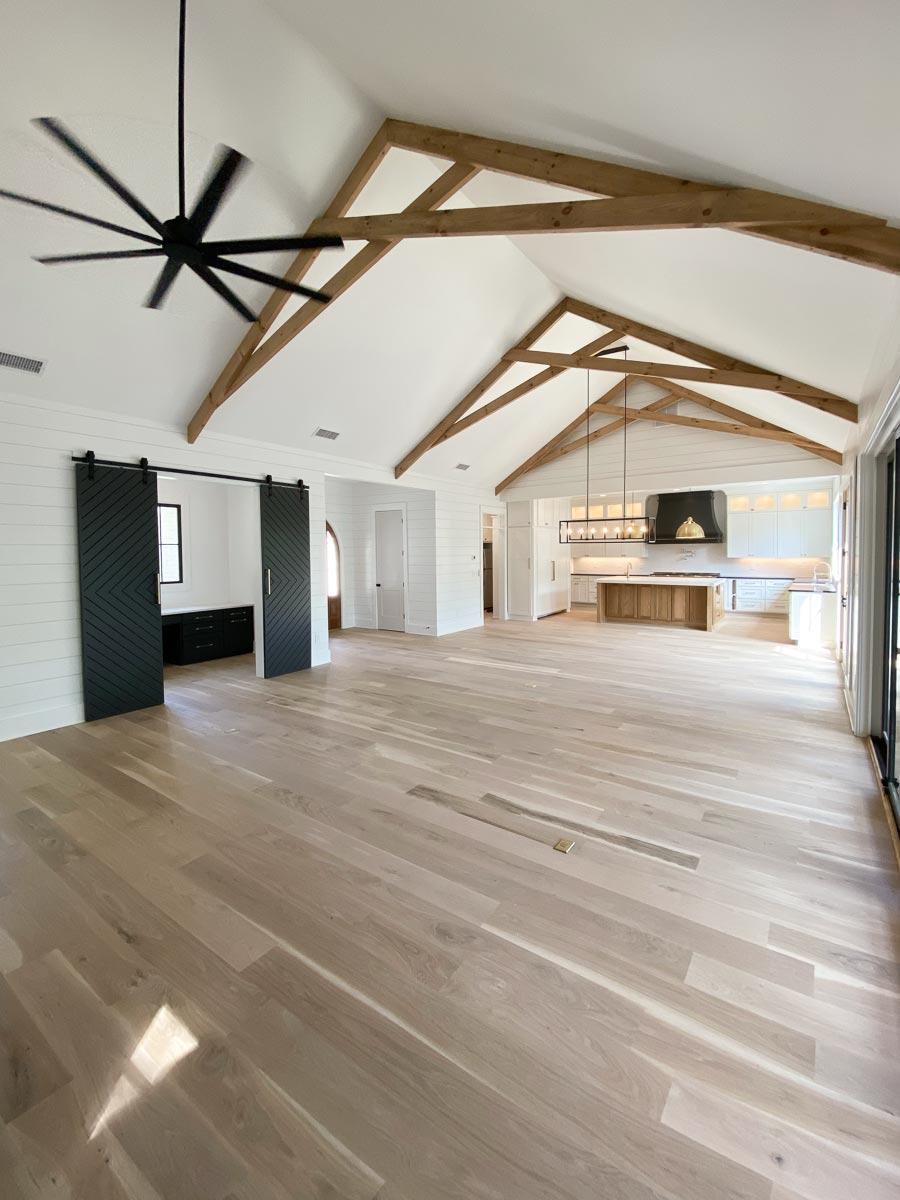

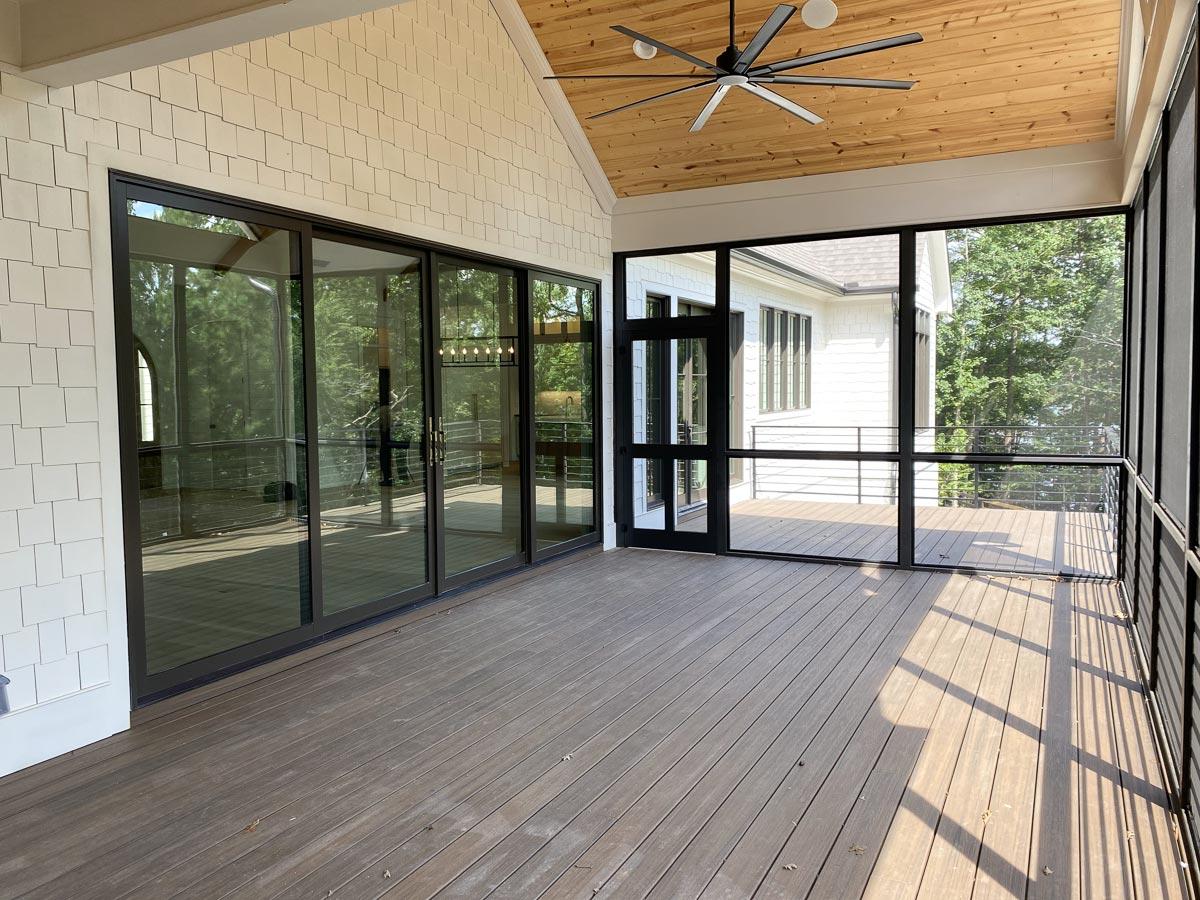

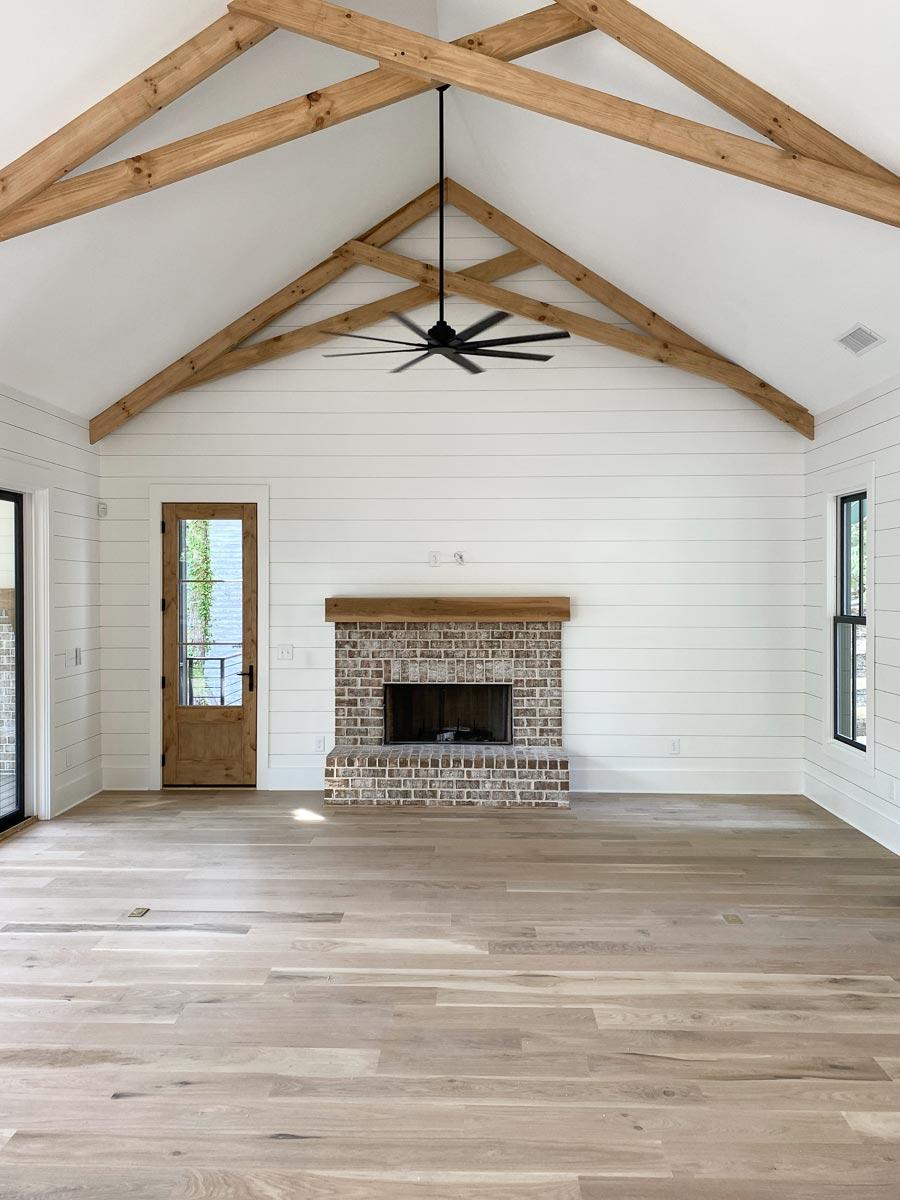

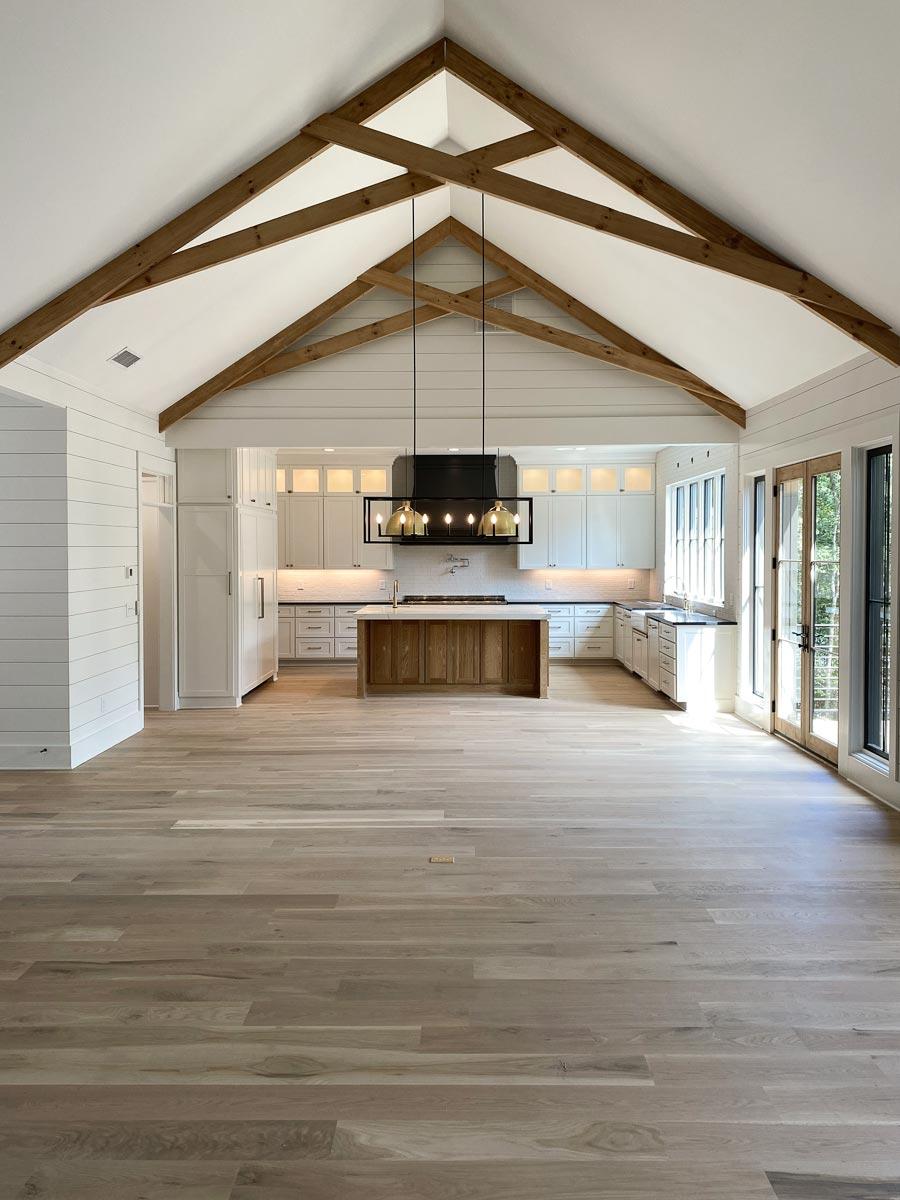

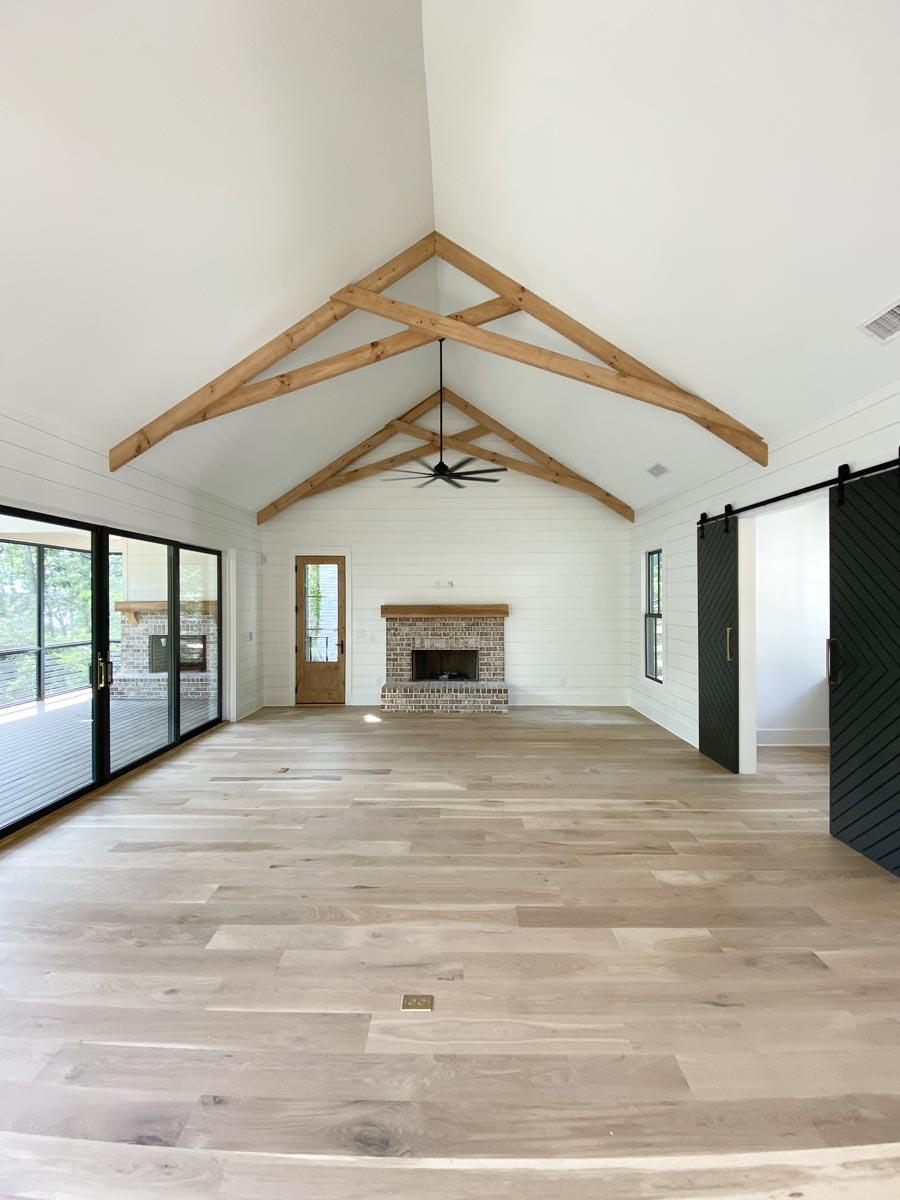

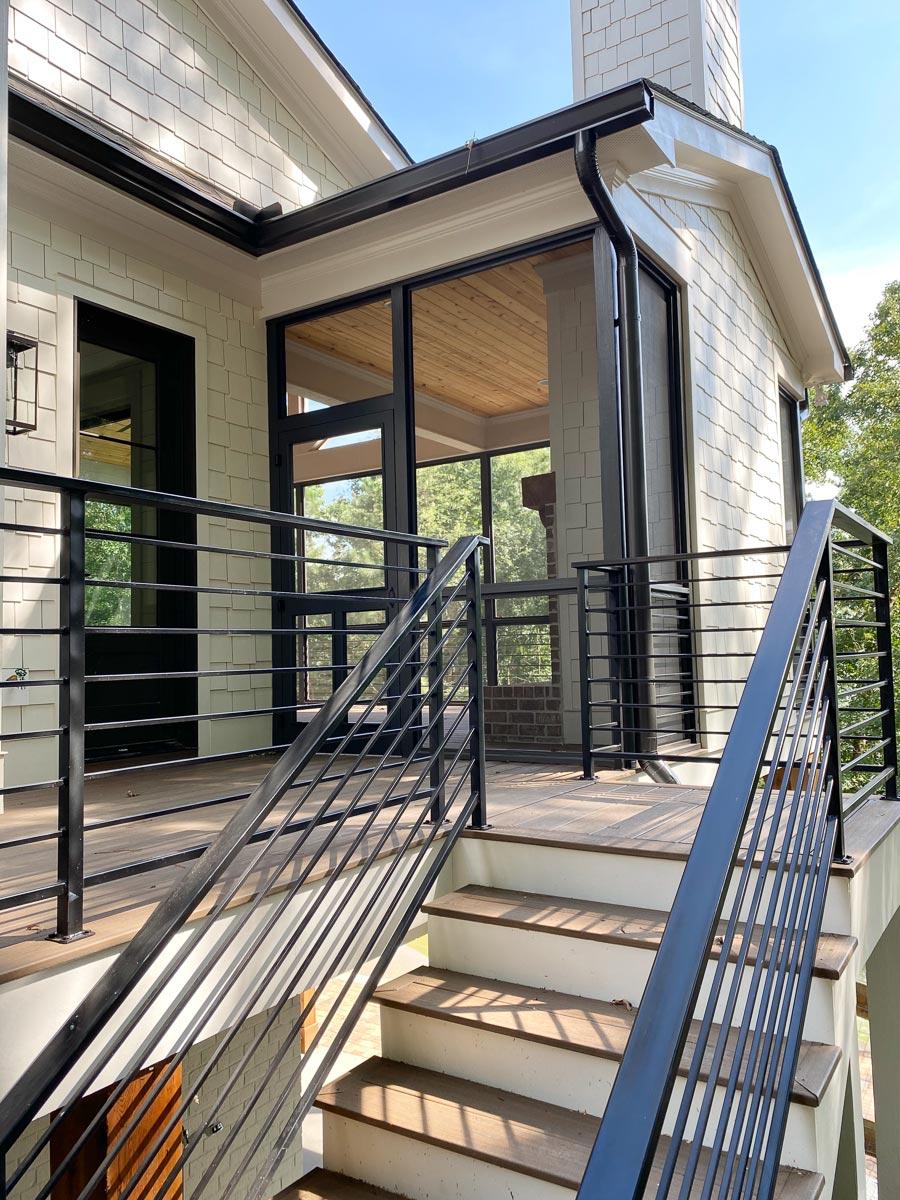

A spacious, open floor plan greets you upon entering, combining the great room, dining area, and kitchen, and exposed beams add a cohesive element throughout the space. The adjacent deck is ideal for grilling, while the screened porch offers a bug-free dining option.

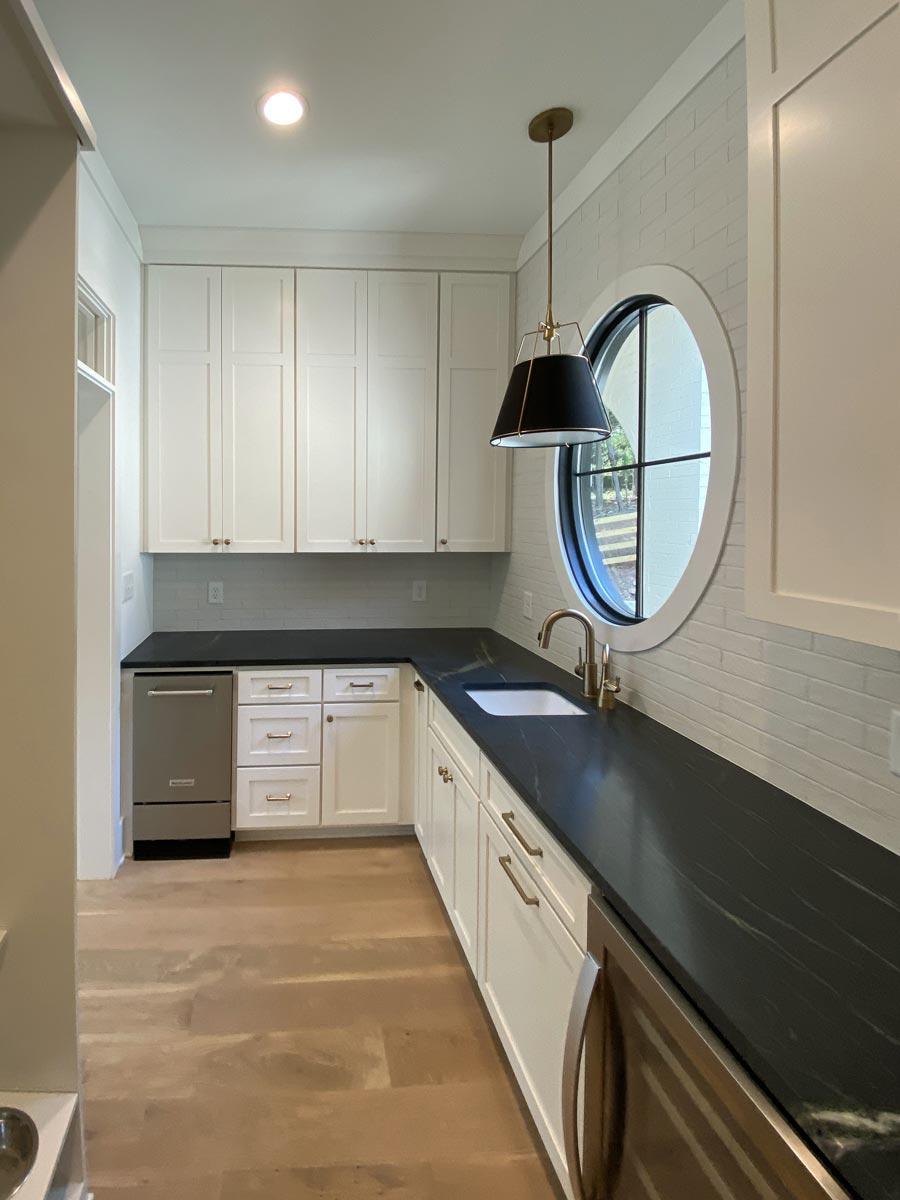

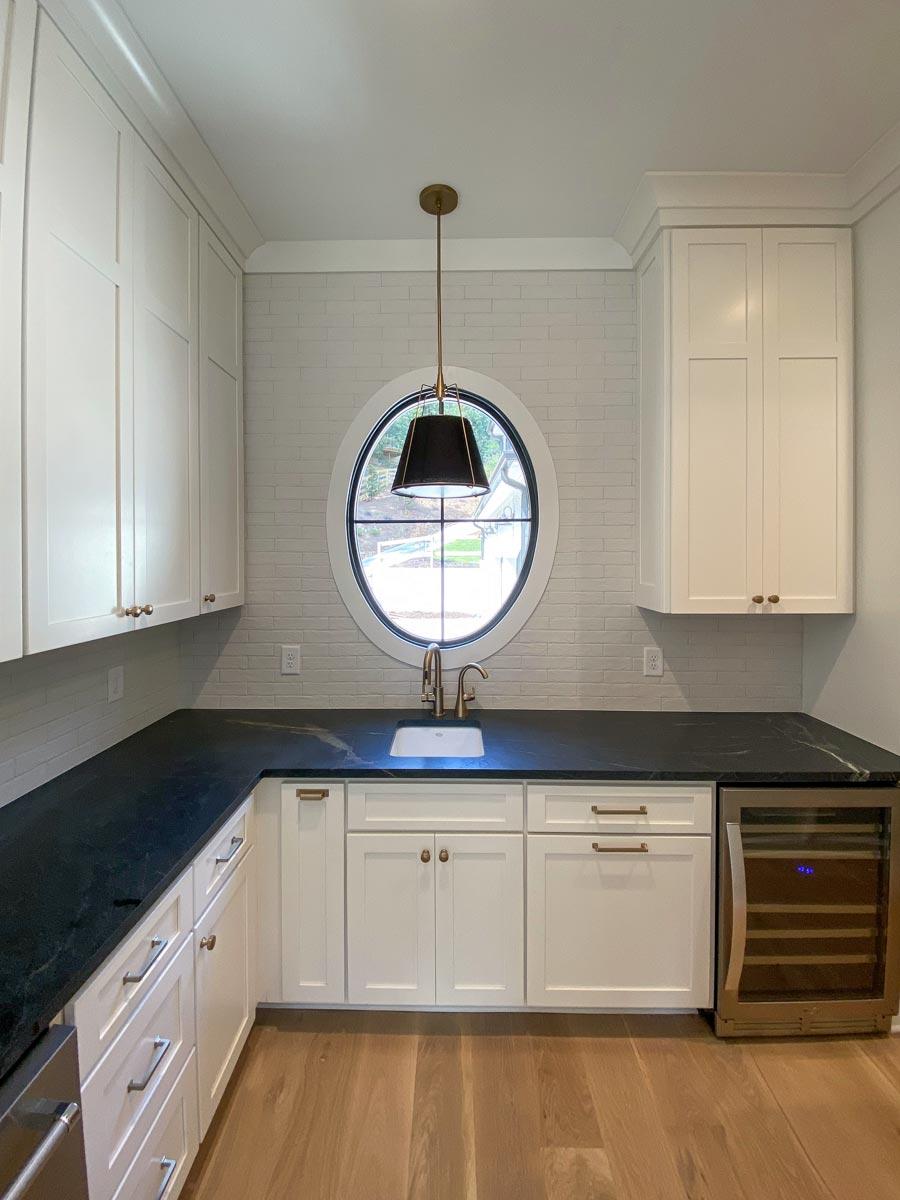

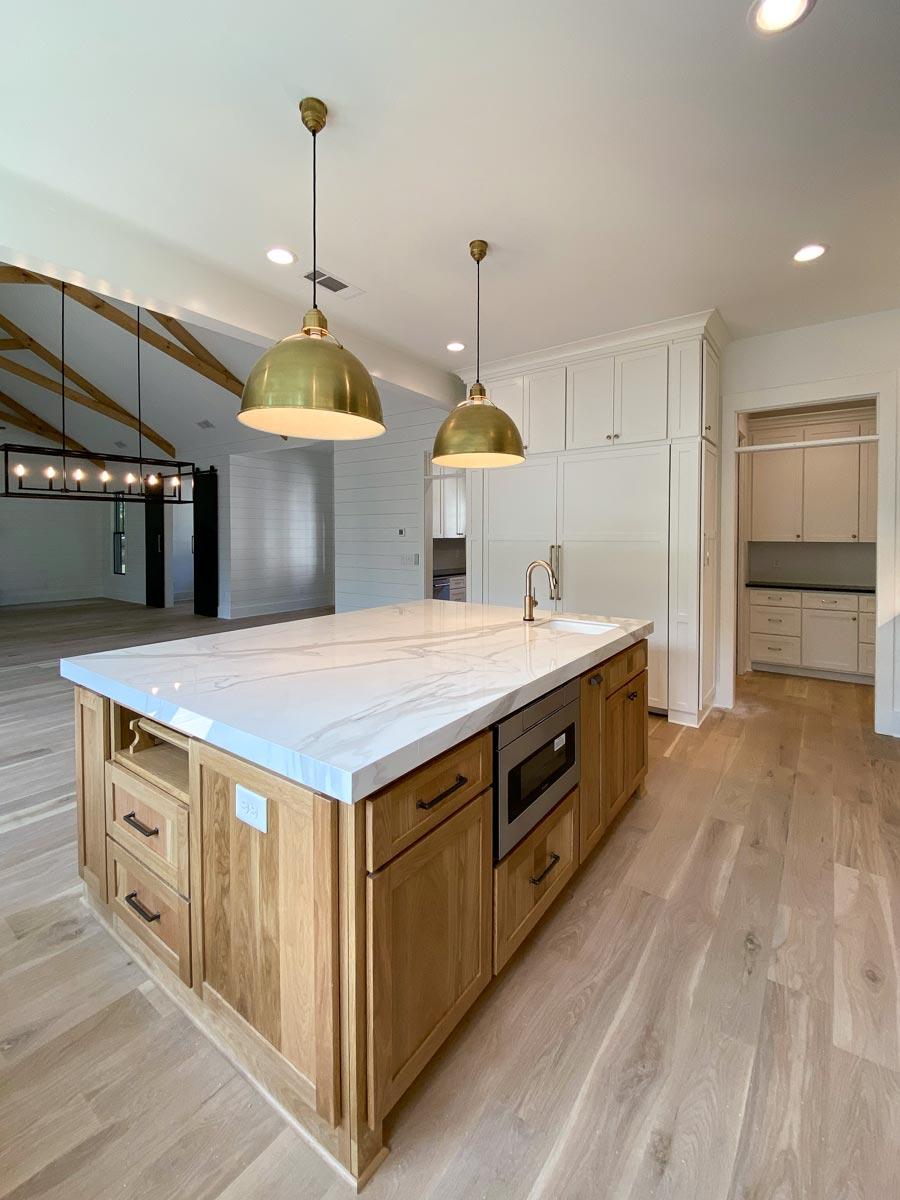

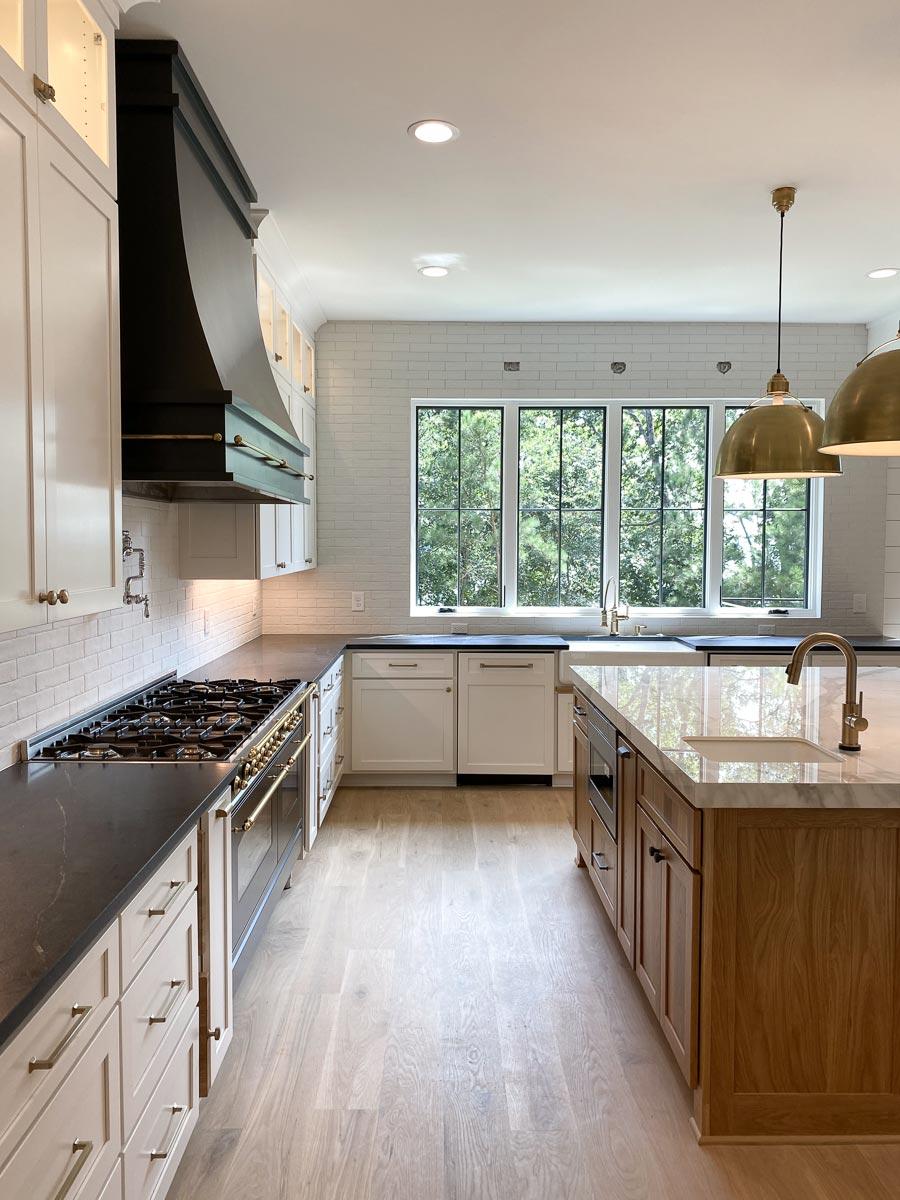

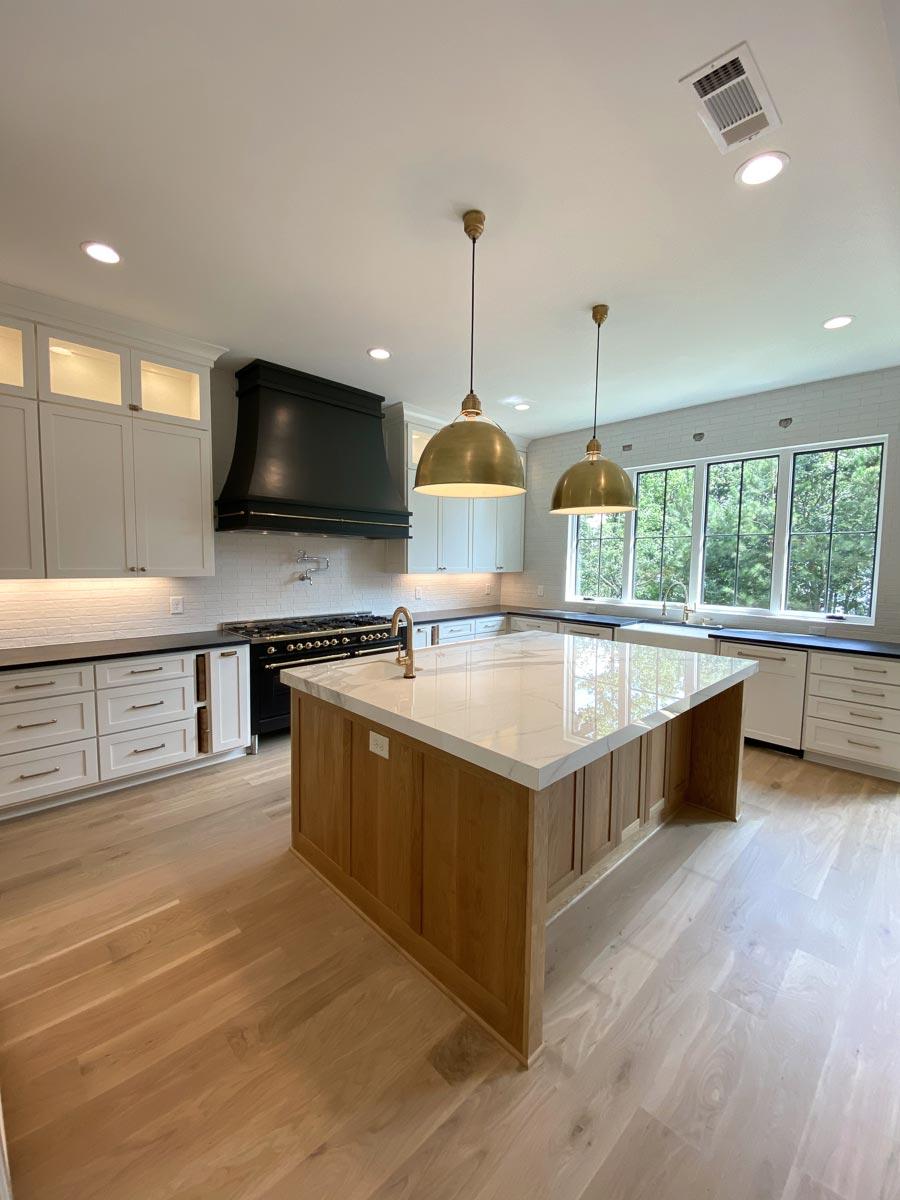

The chef's kitchen boasts a massive, prep island, and a butler's pantry includes a bar sink and additional workspace to help when entertaining.

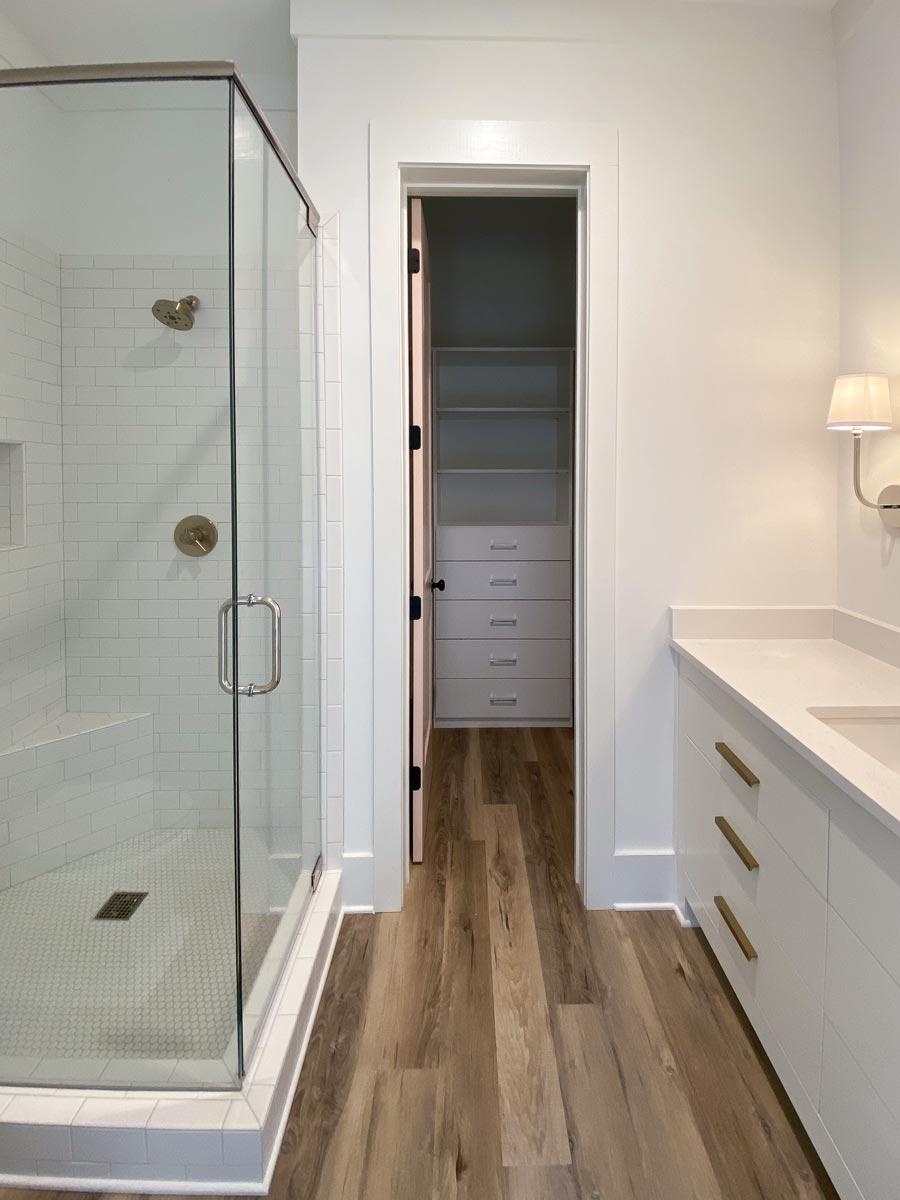

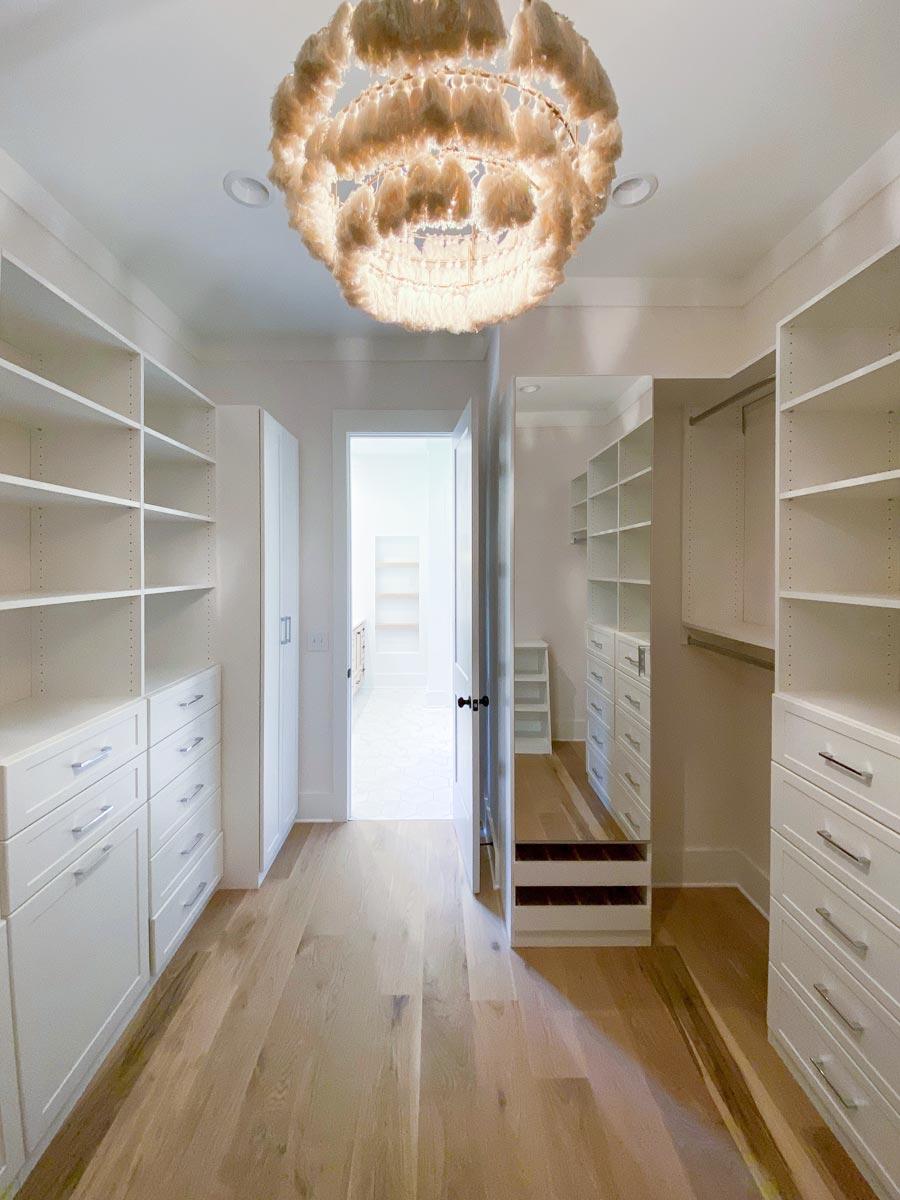

The main-level, master suite considers the homeowner's future needs. The 4-fixture en suite includes a pass-through closet that opens to the laundry room for added convenience.
The sprawling lower level gives you an additional 1,698 sq. ft. of living space. Each bedroom includes a full bath, and a second laundry room reduces time spent on the chore.

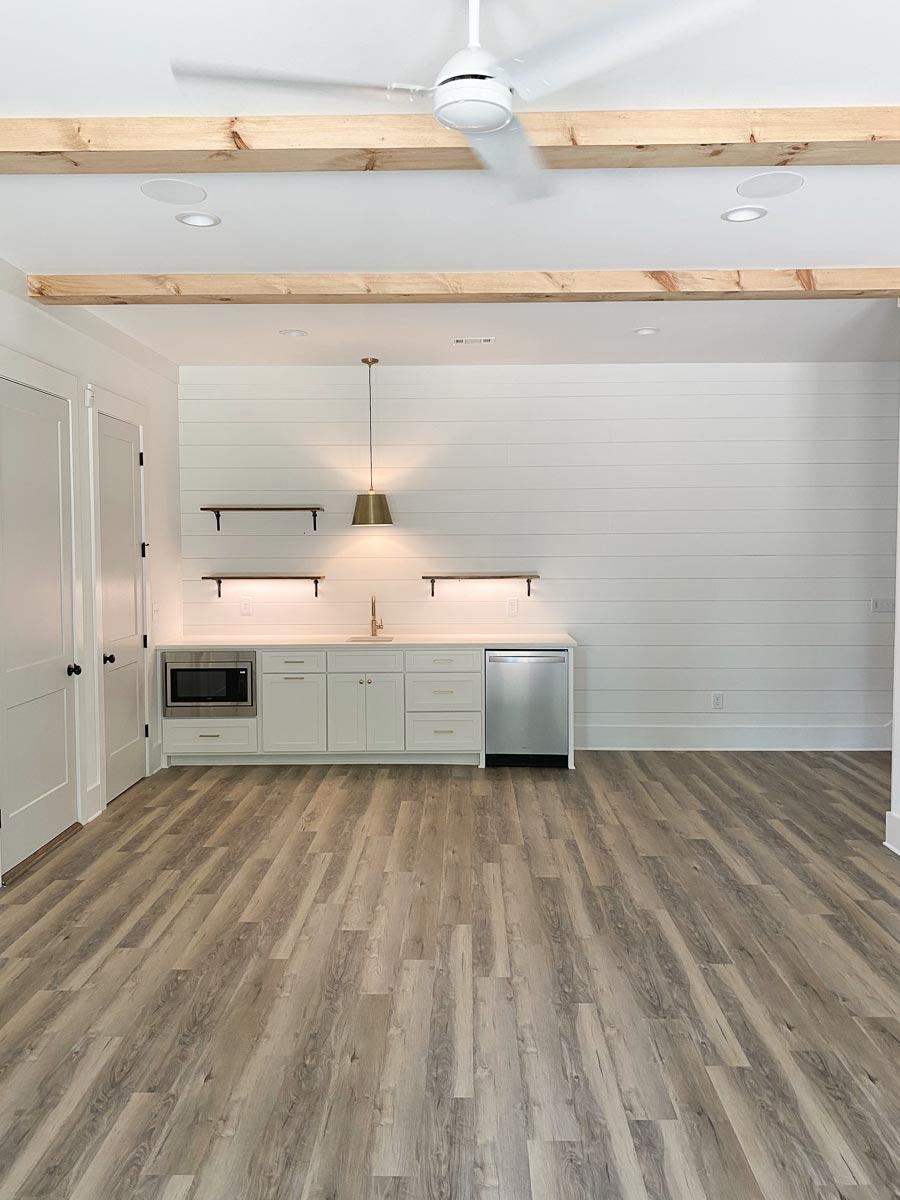

The recreation room features a wet bar and a flex space adds versatility to the design.

What's Included

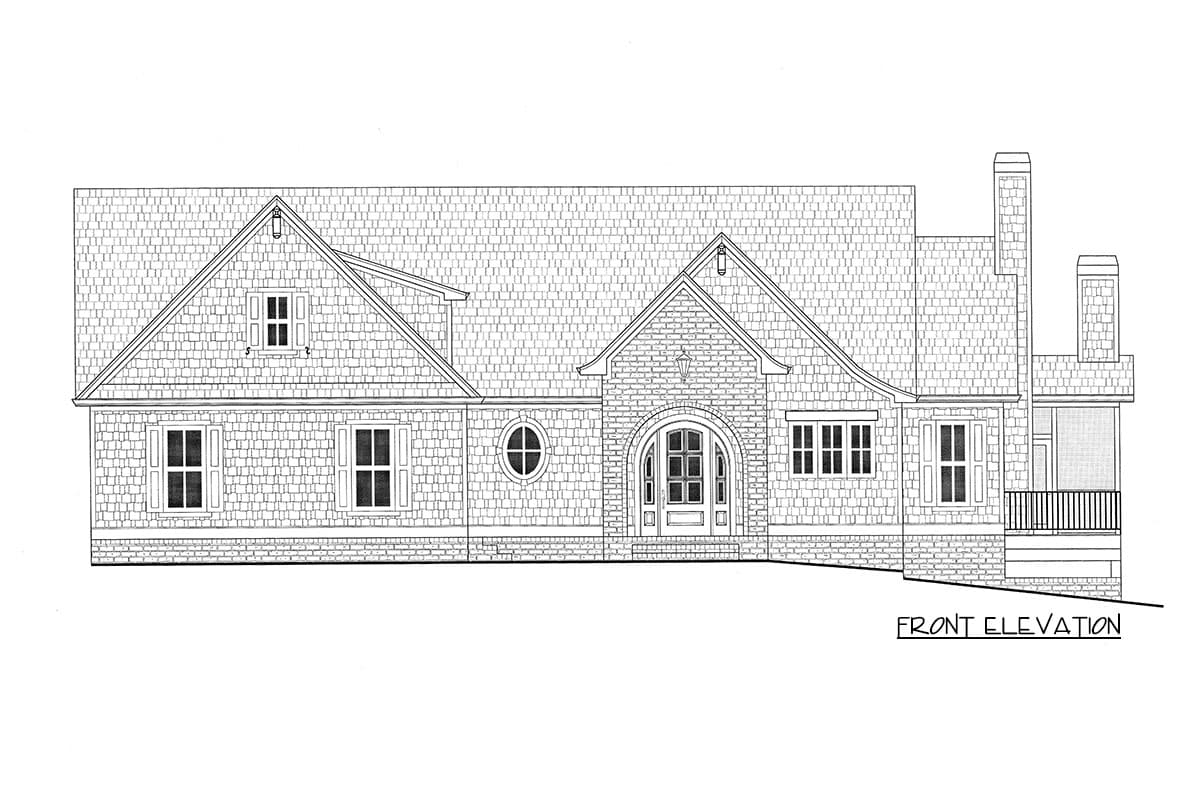

Four elevations (front, rear, right & left) with finish details
Fully dimensioned floor plans which include window and door sizes
Foundation plan with footing details
Roof plan with cornice details
General framing details
Floor joists layout
Electrical layout

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

3,794 sq. ft.

Lower Level

1,698 sq. ft.

1st Floor

2,096 sq. ft.

Basement Unfinished

398 sq. ft.

Porch, Combined

472 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

71' 0"

Depth

92' 6"

Max Ridge Height

24' 3"

Garage

Type

Attached

Area

924 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

Lower Level

12'

First Floor

10'

Garage

12' 0''

Room

Ceiling Type

Height

Dining Room

Vaulted

16' 0''

Great Room

Vaulted

16' 0''

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

8 on 12

Framing Type

Stick And Truss

Architectural Style

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Laundry Access from Master Suite

Laundry - Lower Level

Laundry - Main Level

Master Suite - 1st Floor

Outdoor Fireplace

Two Story Great Room

Plan Collections

Lake House Plans

Premium Collection

Square Footage Breakdown

Total Heated Area

3,794 sq. ft.

Lower Level

1,698 sq. ft.

1st Floor

2,096 sq. ft.

Basement Unfinished

398 sq. ft.

Porch, Combined

472 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

71' 0"

Depth

92' 6"

Max Ridge Height

24' 3"

Garage

Type

Attached

Area

924 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

Lower Level

12'

First Floor

10'

Garage

12' 0''

Room

Ceiling Type

Height

Dining Room

Vaulted

16' 0''

Great Room

Vaulted

16' 0''

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

8 on 12

Framing Type

Stick And Truss

Architectural Style

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Laundry Access from Master Suite

Laundry - Lower Level

Laundry - Main Level

Master Suite - 1st Floor

Outdoor Fireplace

Two Story Great Room

Plan Collections

Lake House Plans

Premium Collection
