Plan 290017IY
New American Lake House Plan with Amazing Rear-Facing Views - 3868 Sq Ft
Heated S.F.
3,868
Beds
5 - 6
Baths
4.5 - 5.5
Stories
2
Cars
4
Photos
Floor Plan

Plan 290017IY

Main Level
slide image 0
2nd Floor
slide image 1
Optional Finished Lower Level
slide image 2

Plan 290017IY

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Optional Finished Lower Level
floor plan image Optional Finished Lower Level
Plan Details
  • This 5 bedroom house plan gives you incredible views out the back with covered and open decks spanning the entire first floor. A covered porch with a barrel arch over the entry greets everyone to your beautiful home.
  • Step into the foyer and you'll enjoy those views looking all the way through the great room with 2-story ceilings and across the deck beyond. A barn-style door opens on your right to reveal your own private study.

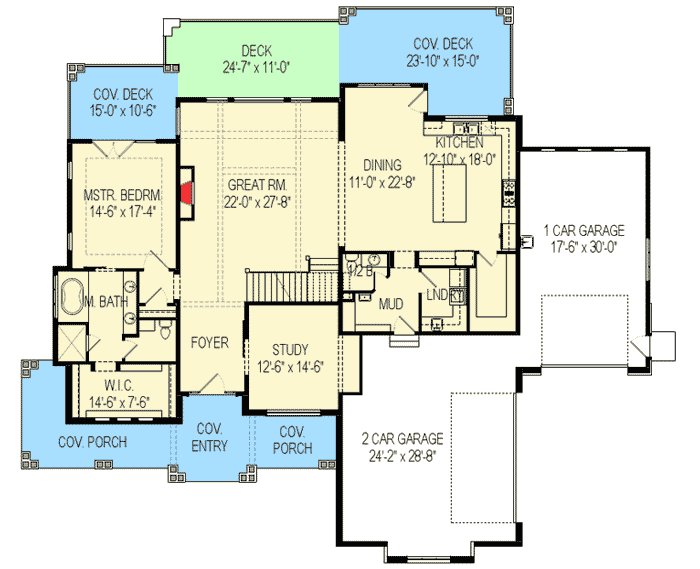

  • The main floor plan is open concept from the fireplace in the great room to the back of the kitchen. In the kitchen, a large island gives you room for casual seating and great workspace. An oversized walk-in pantry gives you loads of storage. And proximity to the mudroom and the garage makes bringing in groceries a breeze.
  • The master bedroom has french doors that open to the covered deck and a large walk-in closet.

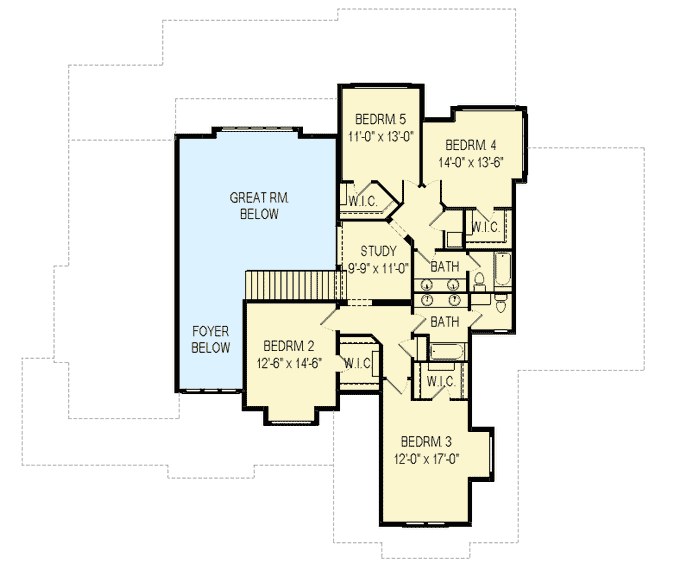

  • Upstairs you'll find four bedrooms, each with walk-in closets, a study with an overlook to below and two baths.

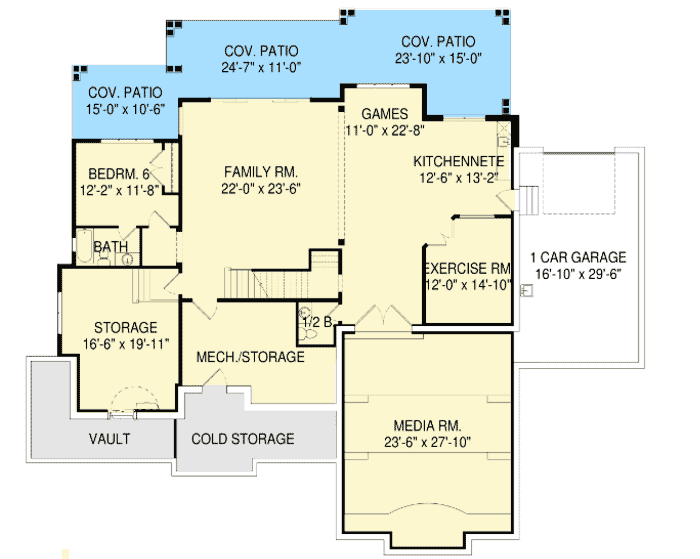

  • The fun-filled optional lower level has a large family room, kitchenette, outdoor access and an enclosed exercise room and large media room. You'll also enjoy storage and access to the outdoors. And as an added bonus there is a rear-access garage as well.
  • NOTE: Contact us if building in Utah as these plans may not be available for construction in certain areas in that state.
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.
build gallery item - House Plan 290017IY Comes to Life in Tennessee

House Plan 290017IY Comes to Life in Tennessee

42

Photos

What's Included
This plan set includes the following:
  • Cover sheet (with rendering)
  • Notes page
  • Complete schedule page
  • Foundation plan
  • Floor plans
  • Dimension plans
  • Elevations
  • Sections
  • Architectural details
  • 3D perspective views (not included with all plans)
  • Floor finish plans
  • Roof plan
  • Lighting plans, and power plans.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,868 sq. ft.

1st Floor

2,388 sq. ft.

2nd Floor

1,480 sq. ft.

Optional Lower Level

2,768 sq. ft.

Porch, Front

370 sq. ft.

Deck

727 sq. ft.

Covered Patio

721 sq. ft.

Storage

1,068 sq. ft.

Beds/Baths

Bedrooms

5 or 6

Full bathrooms

4 or 5

Half bathrooms

1 or 2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

87' 2"

Depth

77' 0"

Max Ridge Height

34' 5"

Garage

Type

Attached

Area

1316 sq. ft.

Count

4 Cars

Entry Location

Front, Side

Ceiling Heights

Lower Level

10'

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

12 on 12

Architectural Style

Coastal

Country

Craftsman

Lake House

New American

Northwest

Traditional

Special Features

Butler Walk-in Pantry

Game/Rec Room

In-Law Suite

Laundry - Main Level

Laundry - Upstairs

Library/Study

Master Suite - 1st Floor

Master Suite - Sitting Area

Media Room

Mudroom

Two Story Great Room

Wet Bar

Wrap Around Porch

Plan Collections

Lake House Plans

Luxury

Photo Gallery

Premium Collection

Square Footage Breakdown

Total Heated Area

3,868 sq. ft.

1st Floor

2,388 sq. ft.

2nd Floor

1,480 sq. ft.

Optional Lower Level

2,768 sq. ft.

Porch, Front

370 sq. ft.

Deck

727 sq. ft.

Covered Patio

721 sq. ft.

Storage

1,068 sq. ft.

Beds/Baths

Bedrooms

5 or 6

Full bathrooms

4 or 5

Half bathrooms

1 or 2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

87' 2"

Depth

77' 0"

Max Ridge Height

34' 5"

Garage

Type

Attached

Area

1316 sq. ft.

Count

4 Cars

Entry Location

Front, Side

Ceiling Heights

Lower Level

10'

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

12 on 12

Architectural Style

Coastal

Country

Craftsman

Lake House

New American

Northwest

Traditional

Special Features

Butler Walk-in Pantry

Game/Rec Room

In-Law Suite

Laundry - Main Level

Laundry - Upstairs

Library/Study

Master Suite - 1st Floor

Master Suite - Sitting Area

Media Room

Mudroom

Two Story Great Room

Wet Bar

Wrap Around Porch

Plan Collections

Lake House Plans

Luxury

Photo Gallery

Premium Collection
