Plan 51892HZ
New American Ranch Home Plan with Master Suite with Direct Laundry Access - 1795 Sq Ft
Heated S.F.
1,795
Beds
4
Baths
2
Stories
1
Cars
2

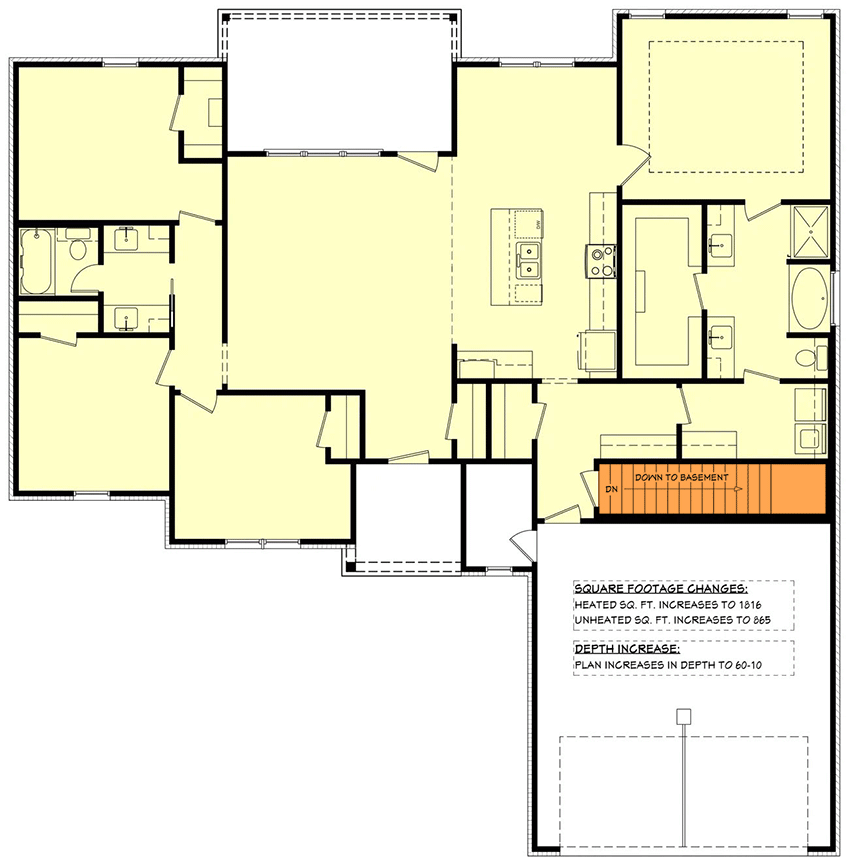

Floor Plan

Plan 51892HZ

Main Level
slide image 0
Main Level - Basement Stairs Location
slide image 1

Plan 51892HZ

1-800-854-7852

1-262-521-4596

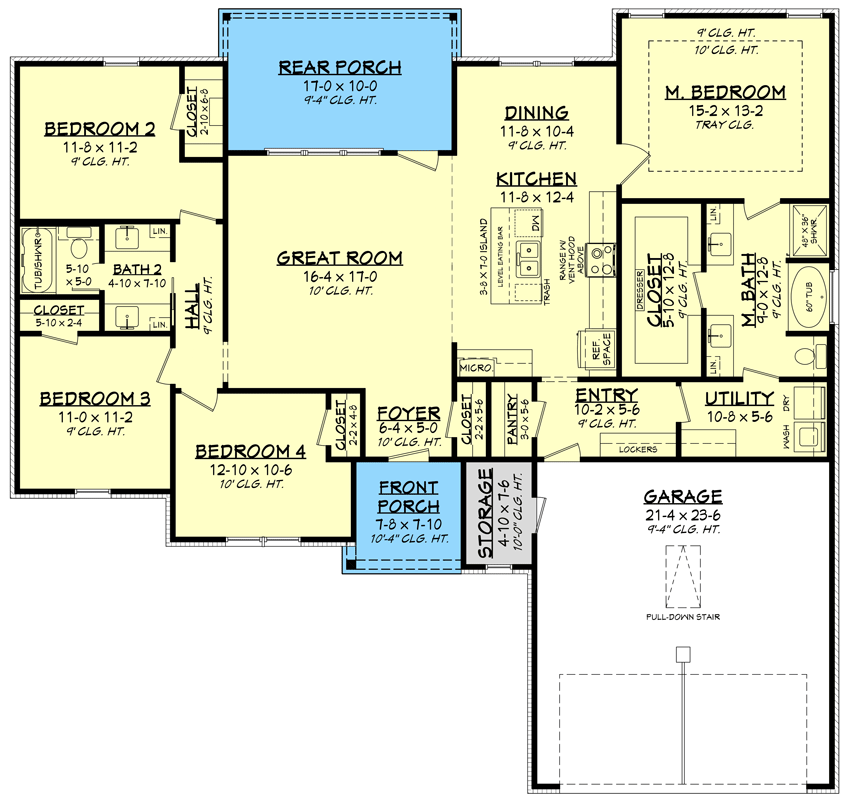

Main Level
floor plan image Main Level
Main Level - Basement Stairs Location
floor plan image Main Level - Basement Stairs Location
Plan Details

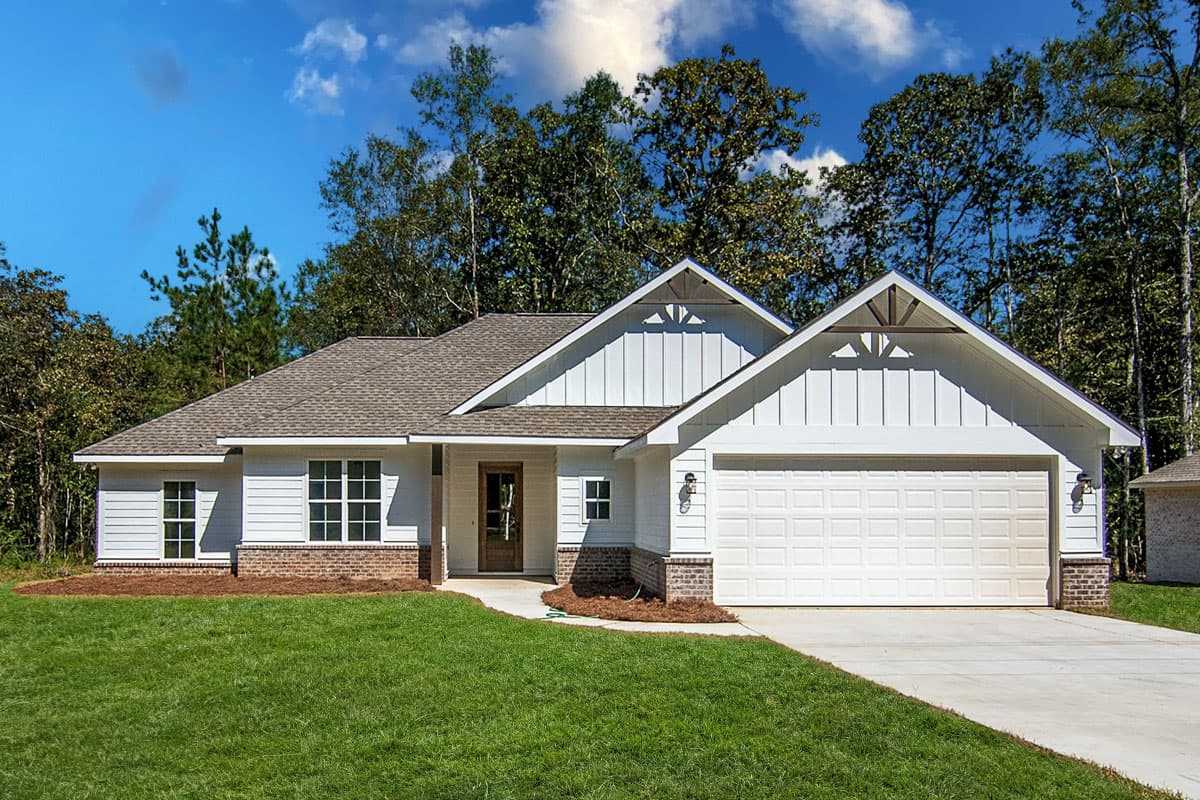

  • Enjoy one level living in this 4 bedroom house plan with a split bedroom layout. The exterior has a blend of board and batten, clapboard, brick and decorative wood brackets in the gable peaks.

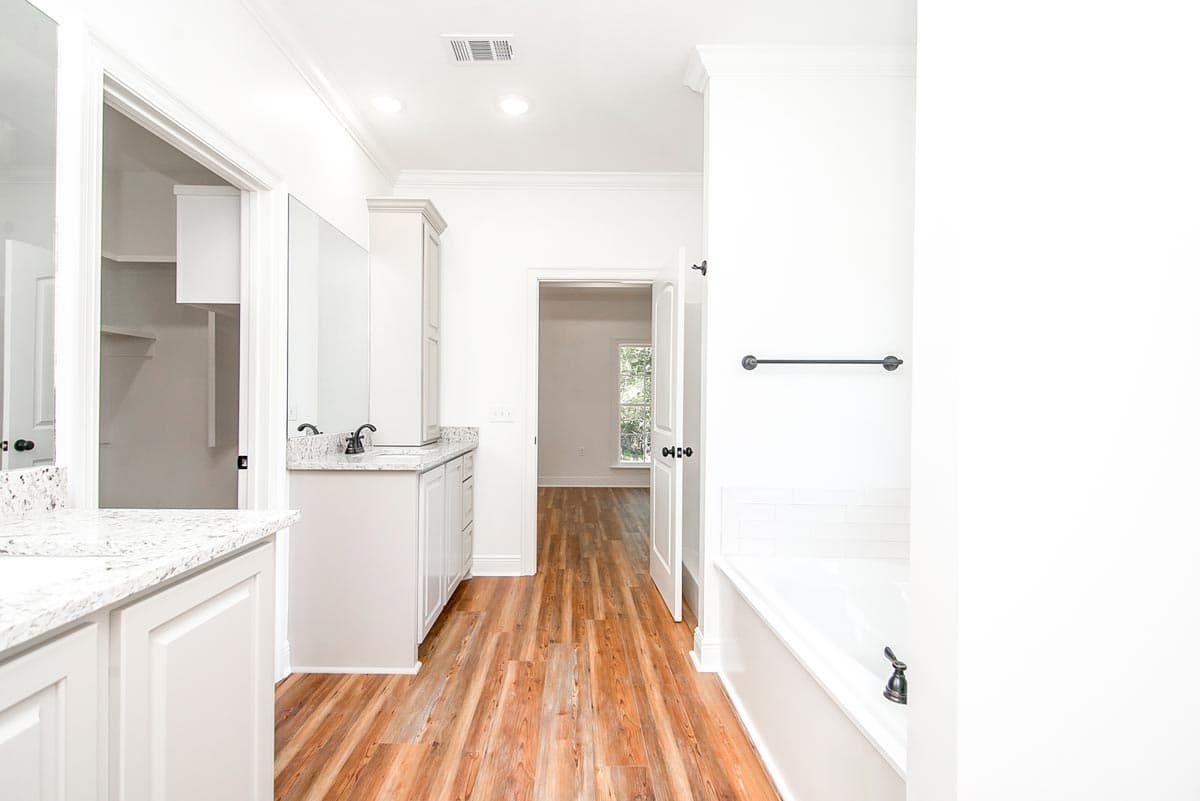

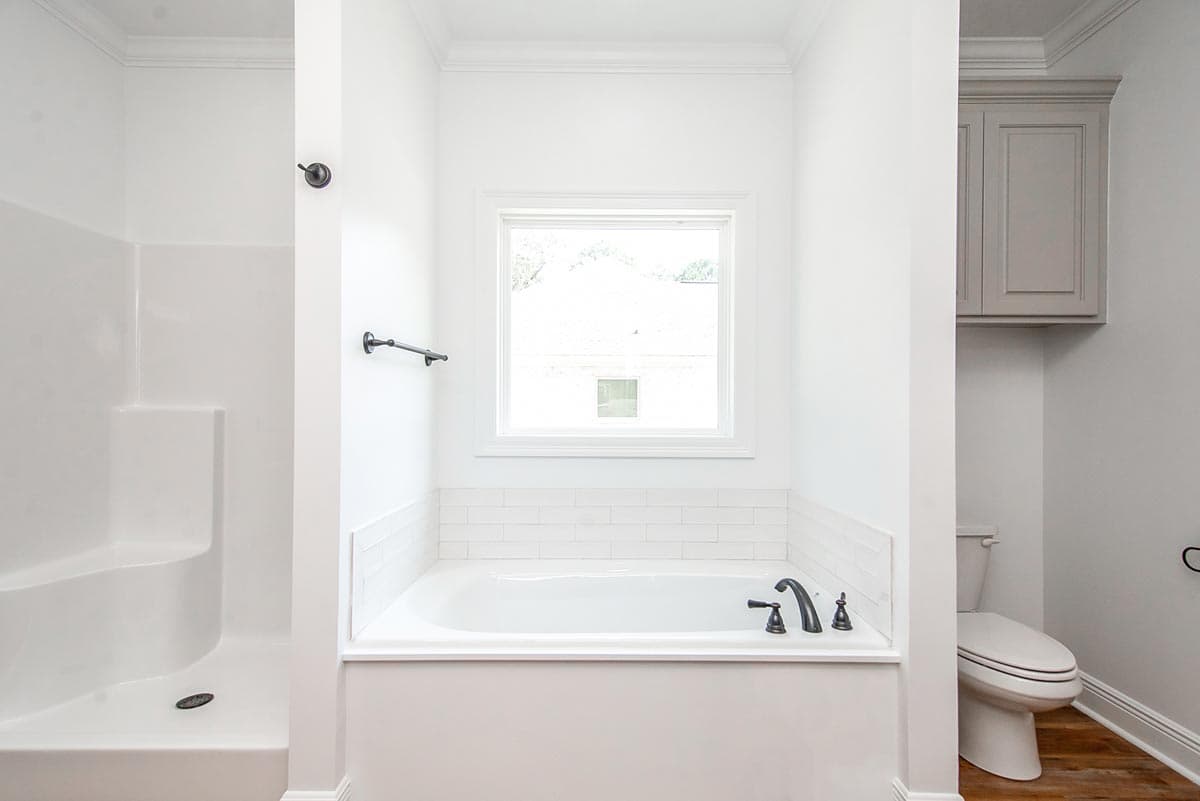

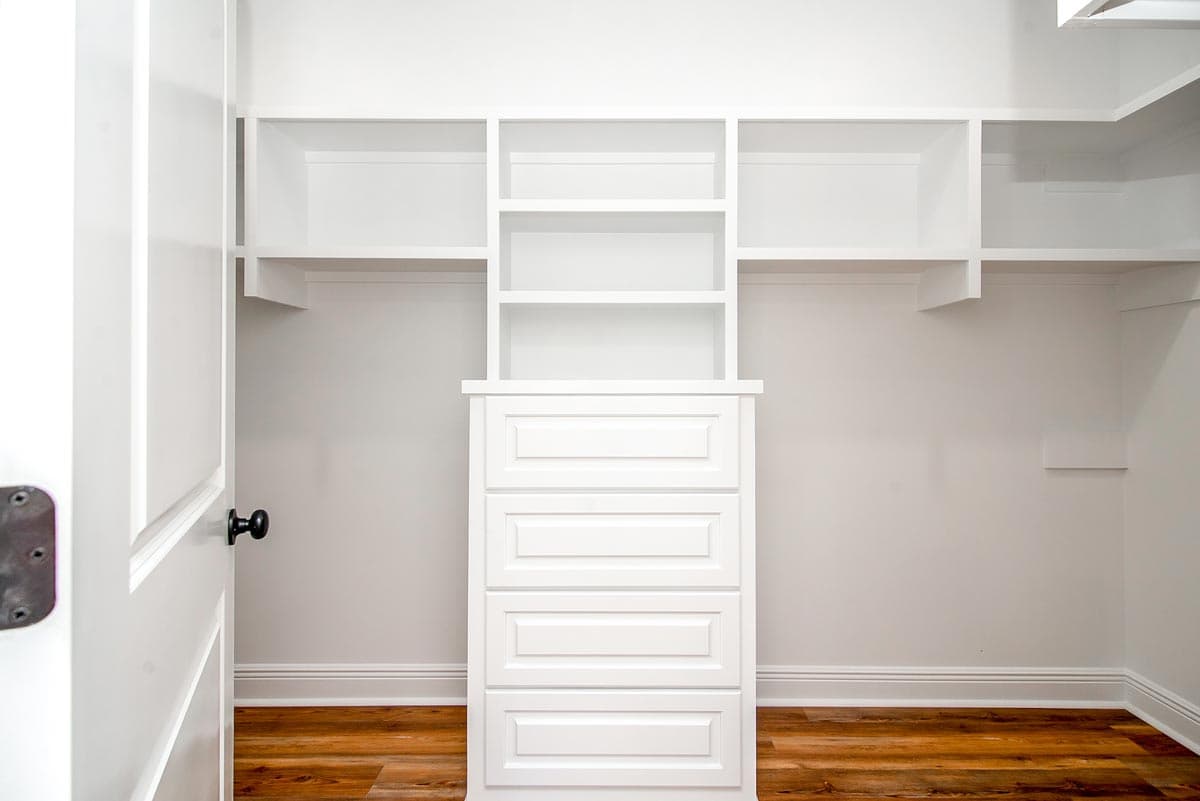

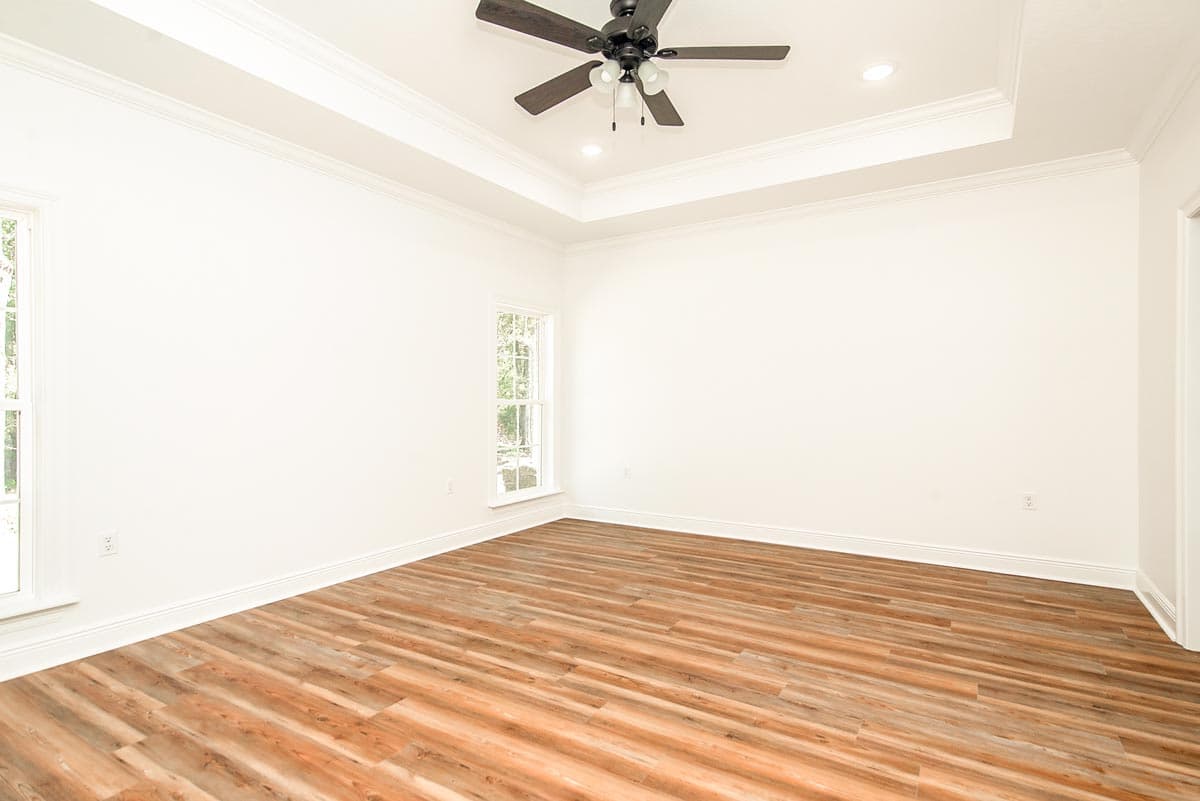

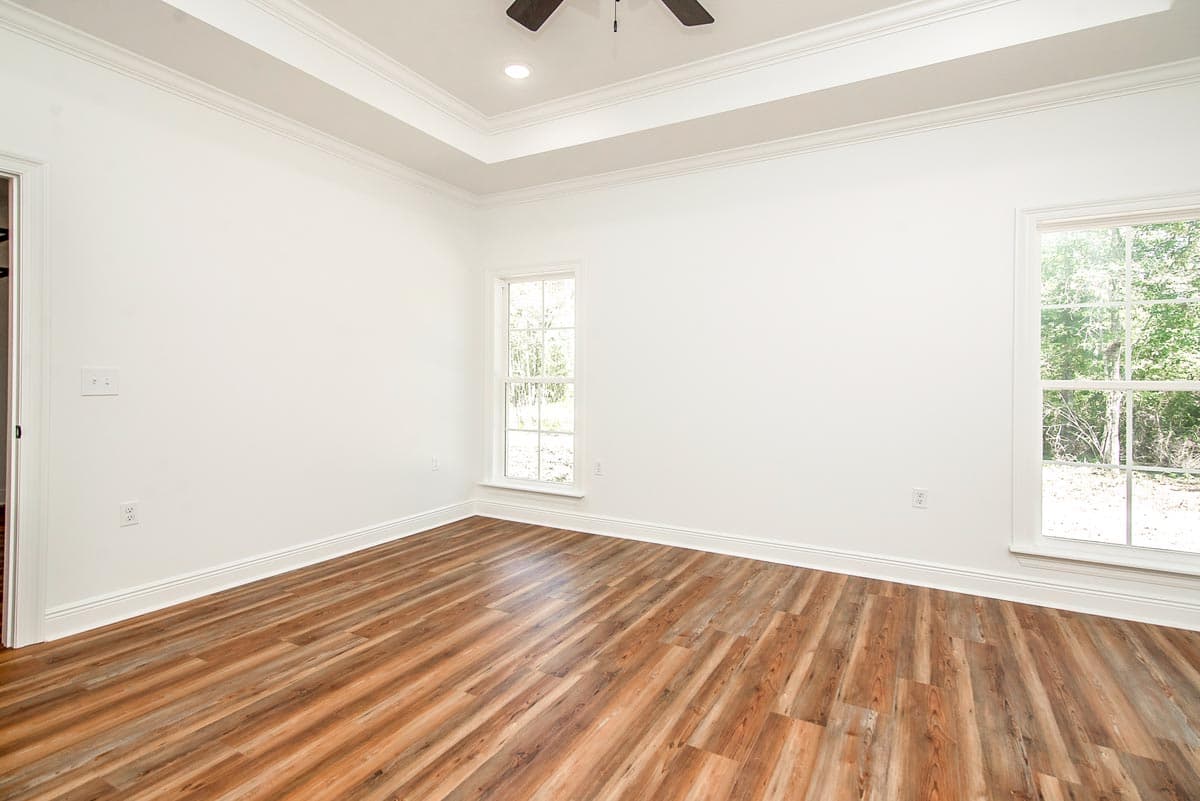

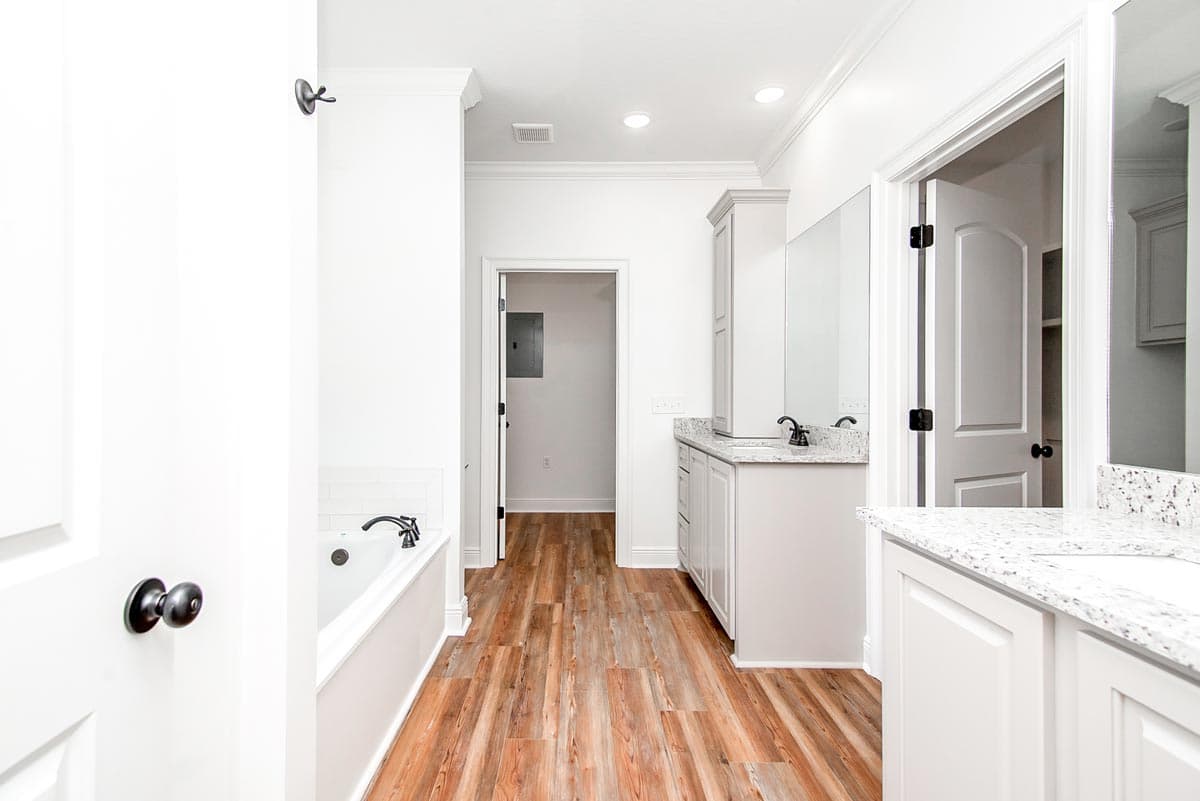

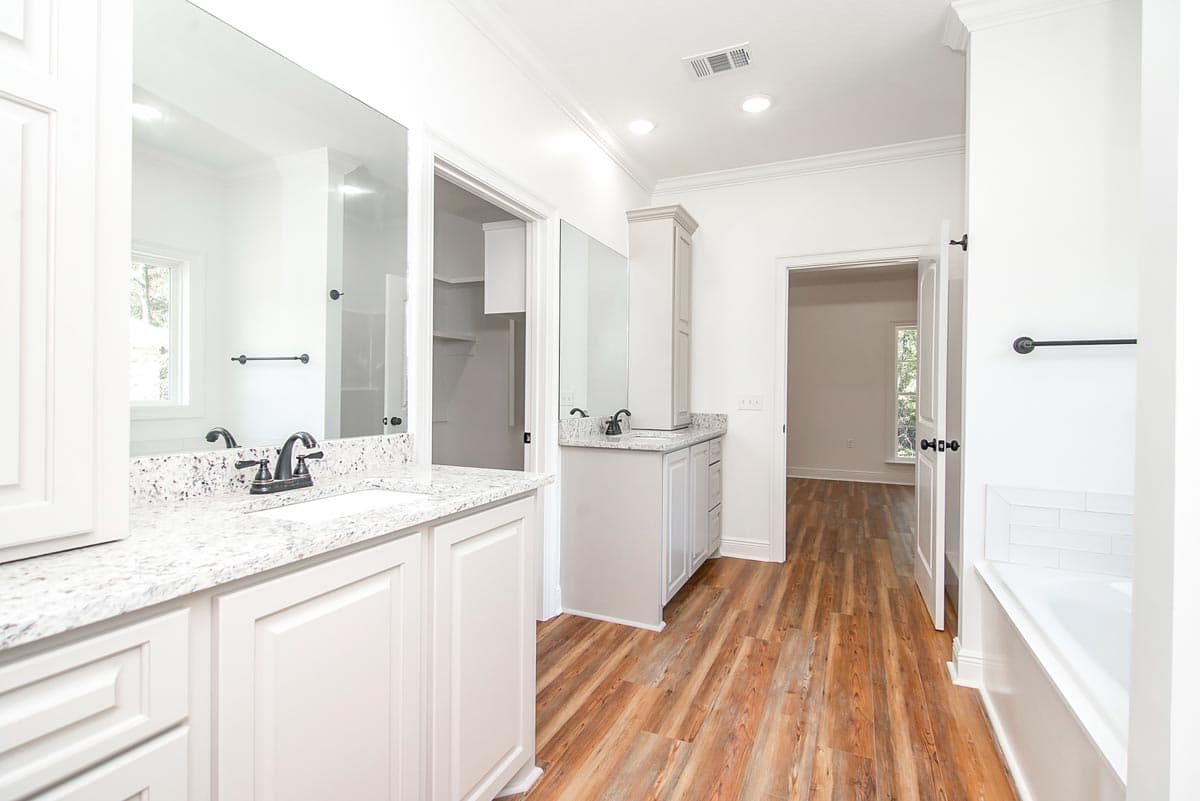

  • The home features an open plan with the large master suite having a walk-in closet and 10' tray ceiling with views to the back. There is direct access to the laundry room from the master bathroom, a great convenience.

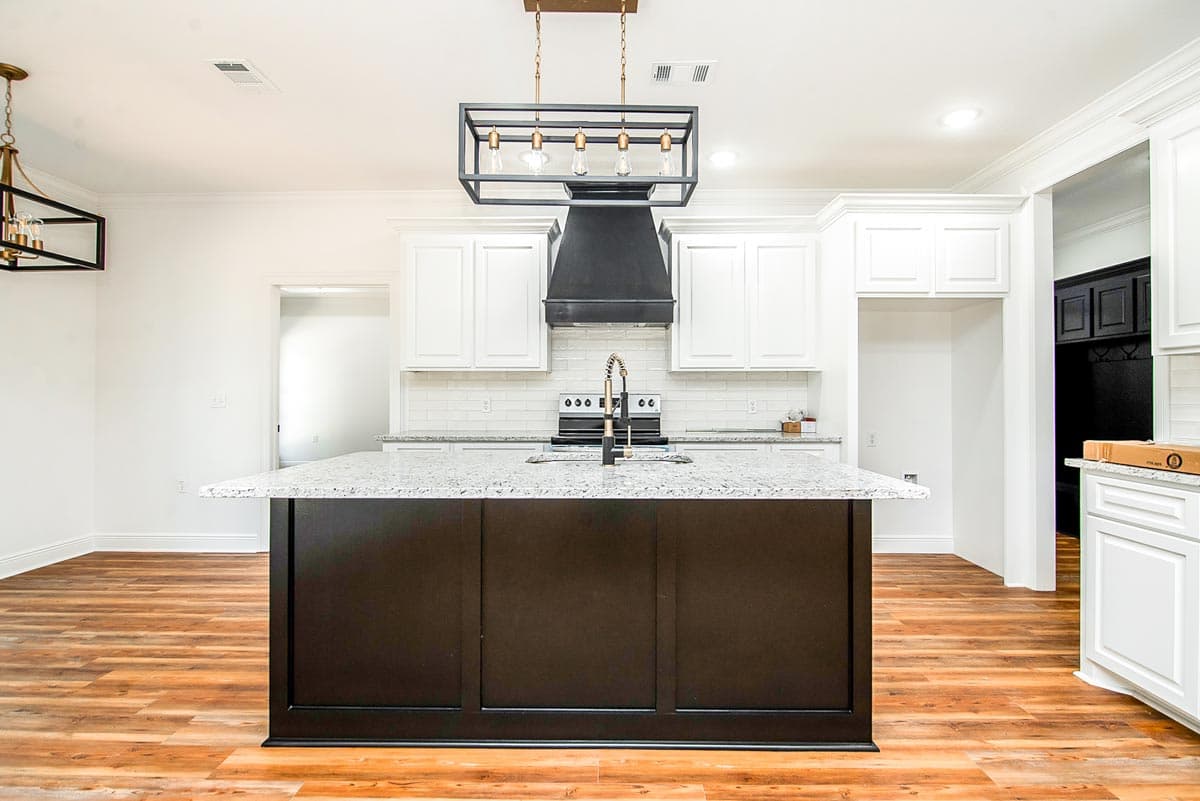

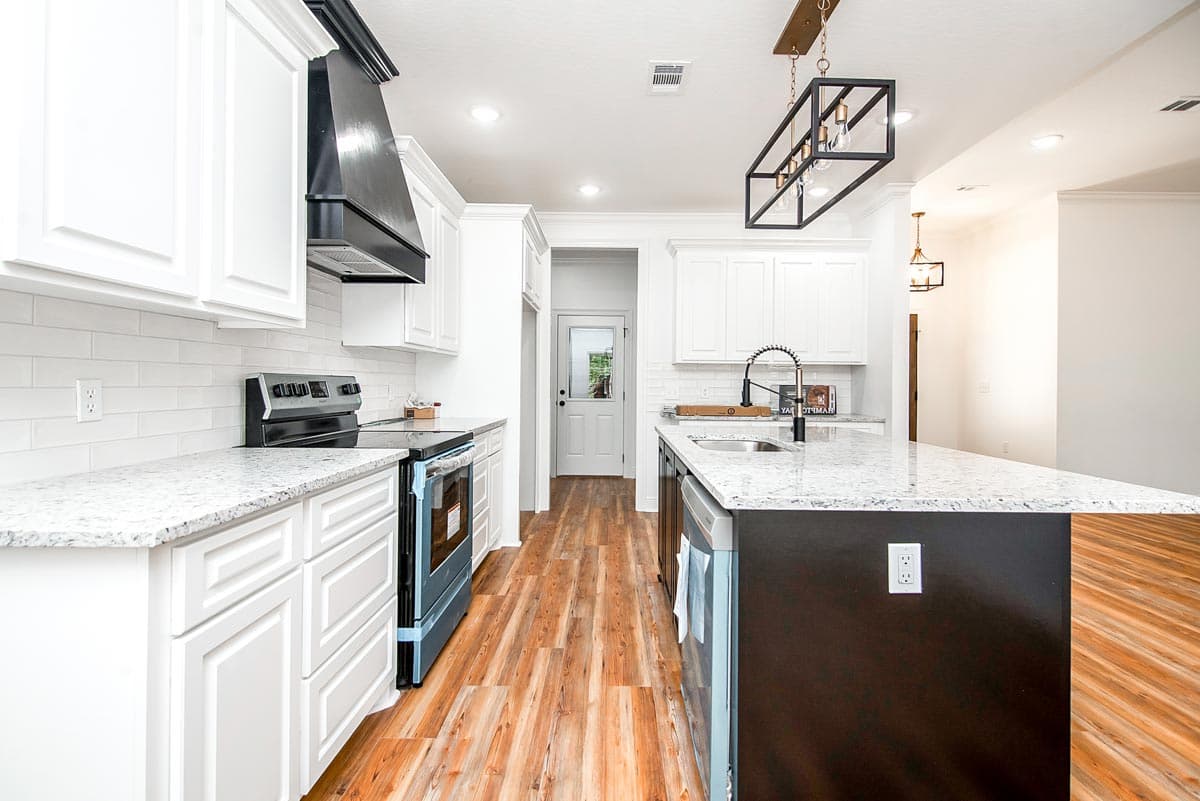

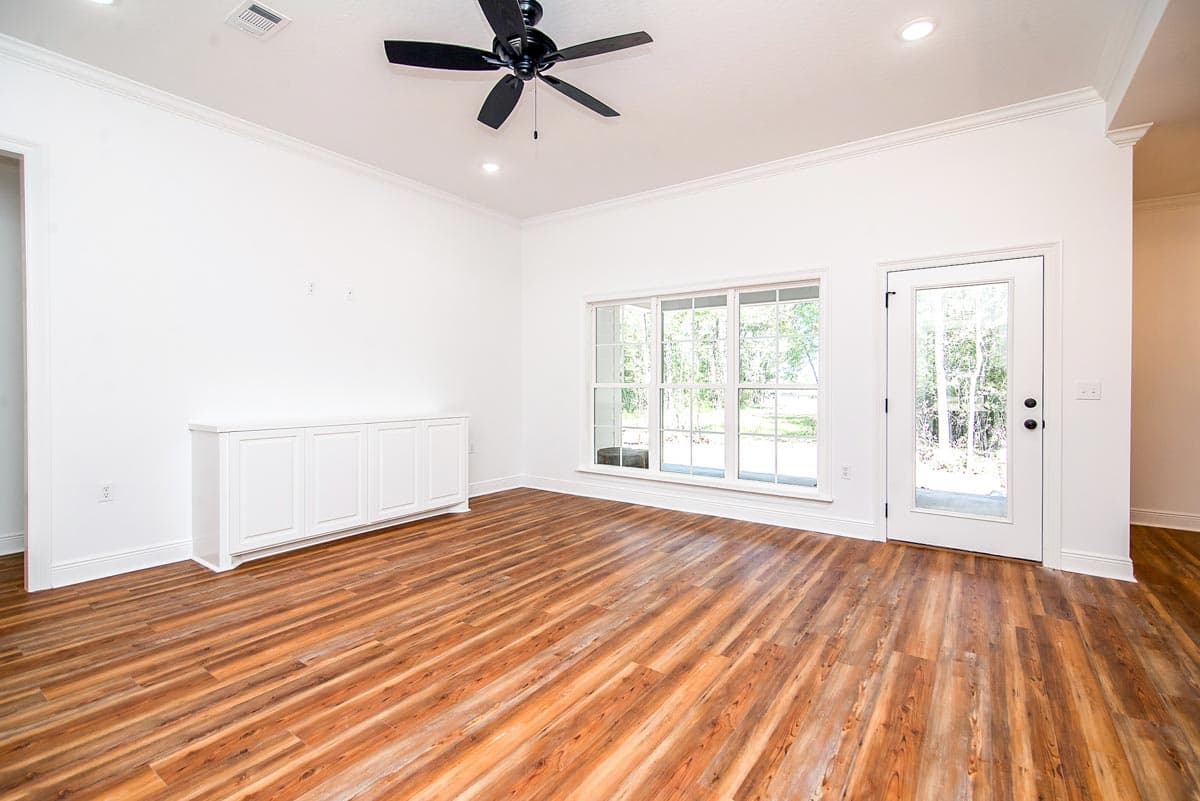

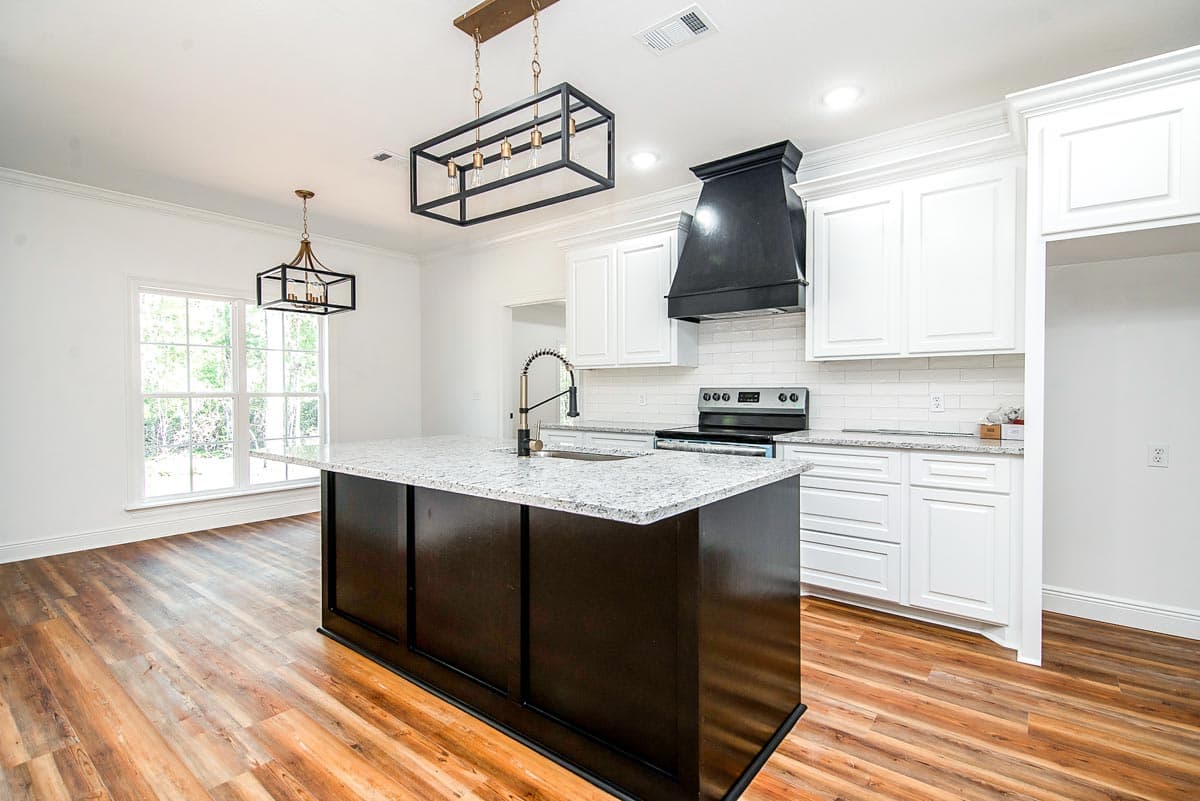

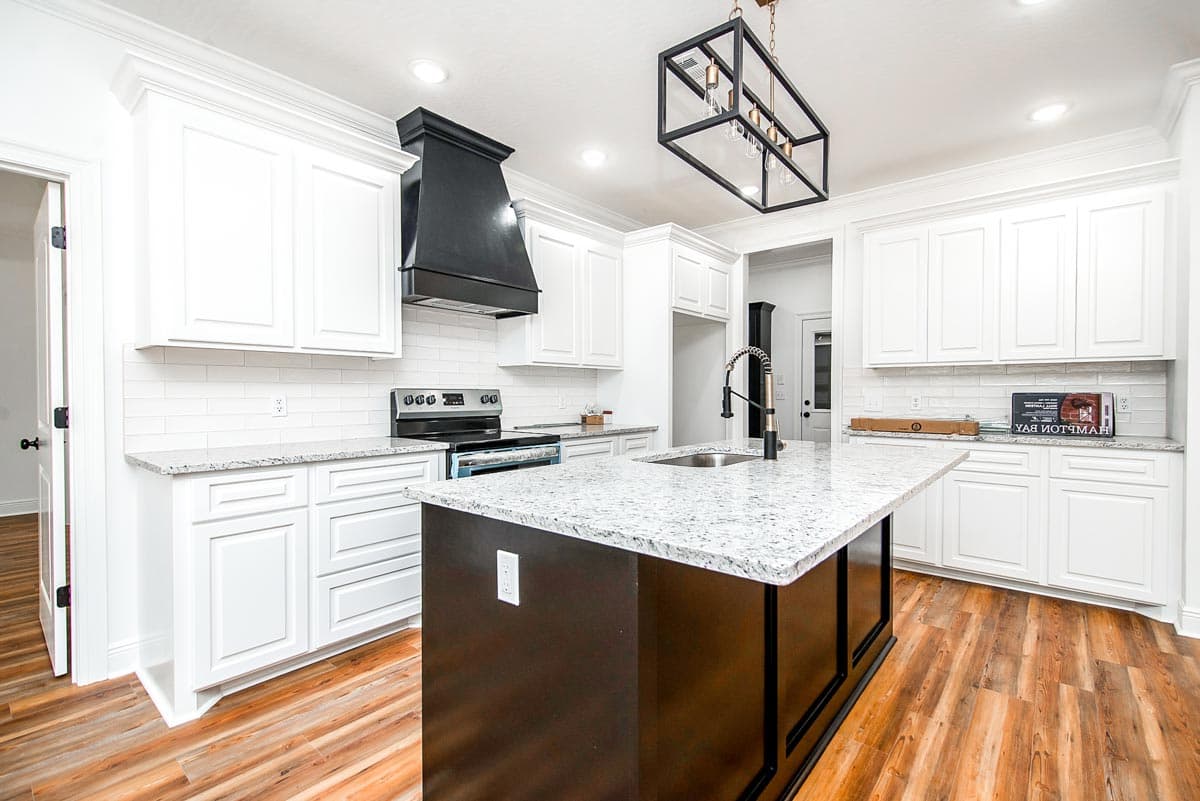

  • The foyer leads you to the large great room which is open to the kitchen and has rear porch access. The room has 10' ceilings and those drop down to 9' in the kitchen and dining area. A large island - 3'8" by 7' - gives you space for casual seating and prep space.

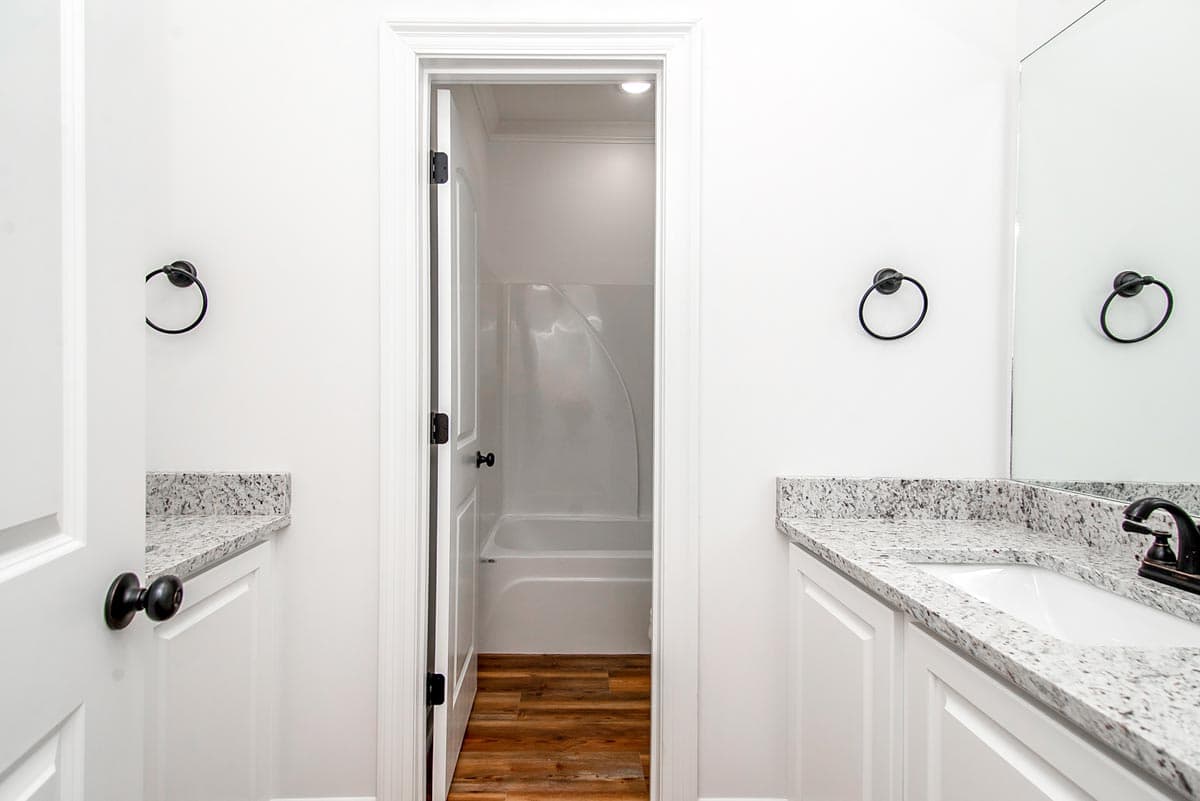

  • Three bedrooms are clustered on the left side of the home and they share a bath. Bed 4 could be repurposed as a home office if needed.

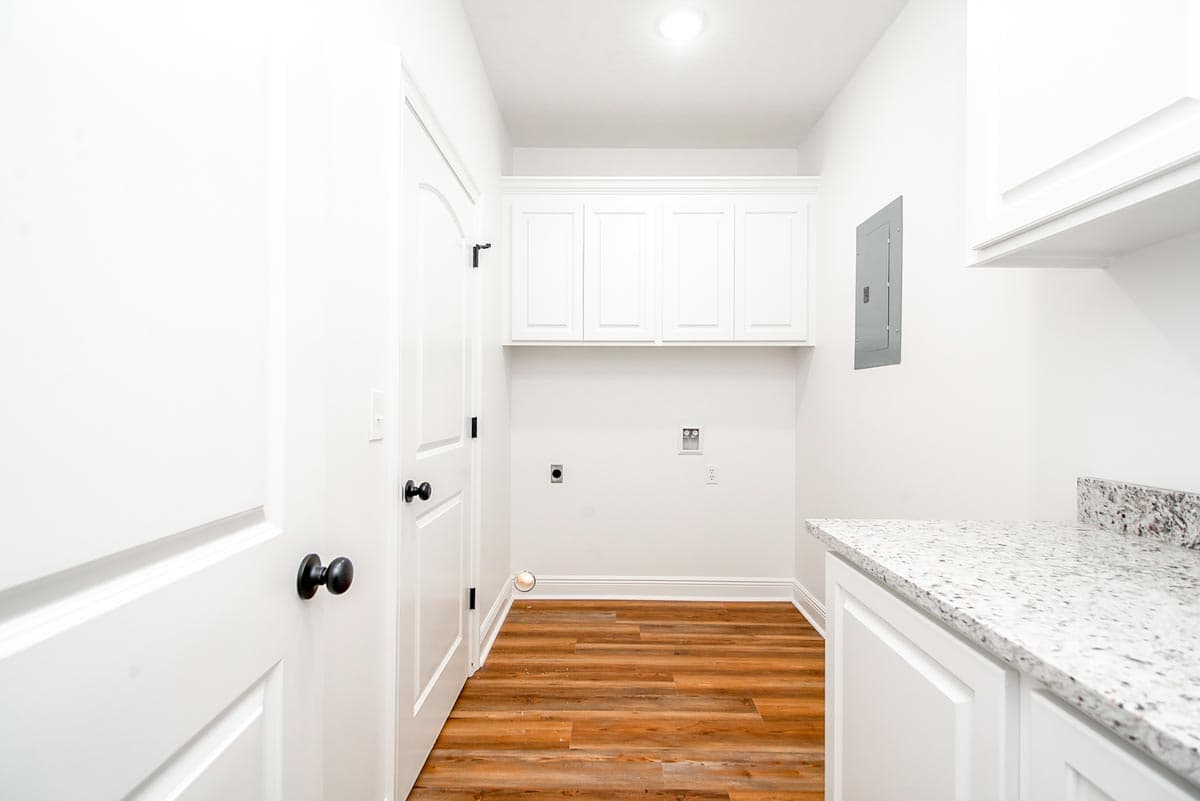

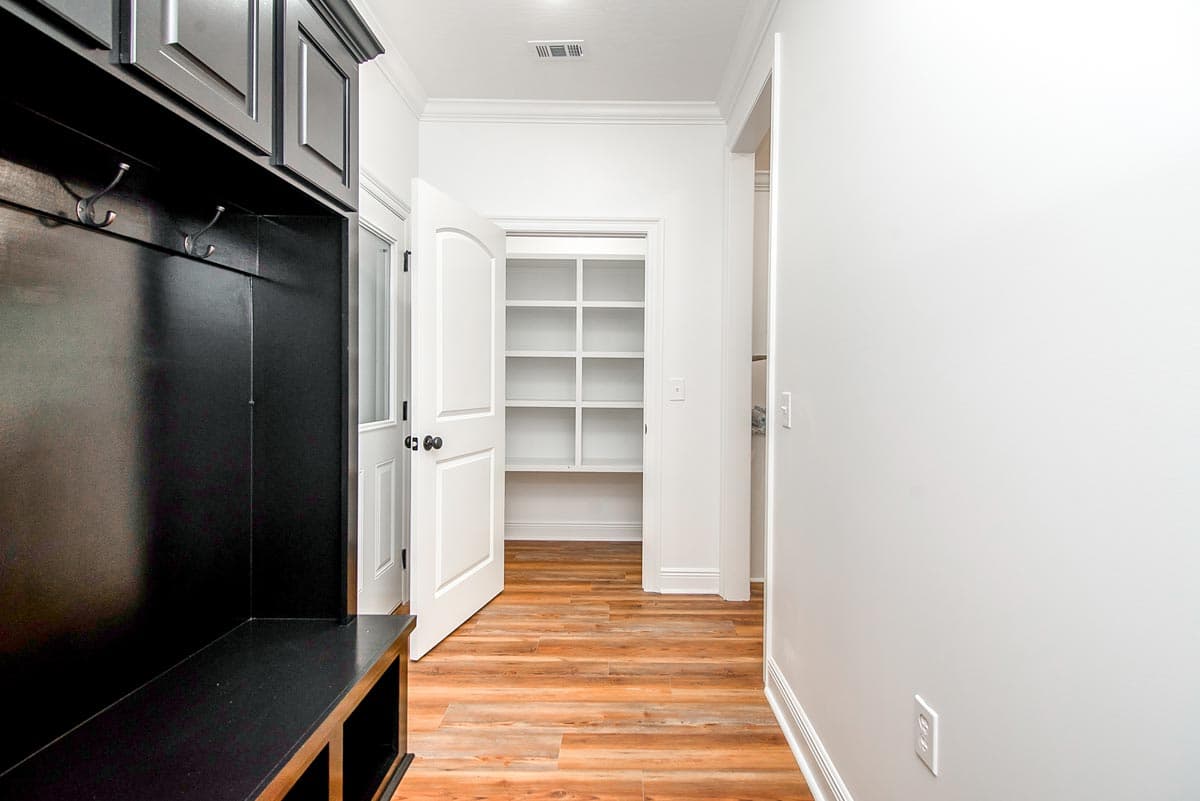

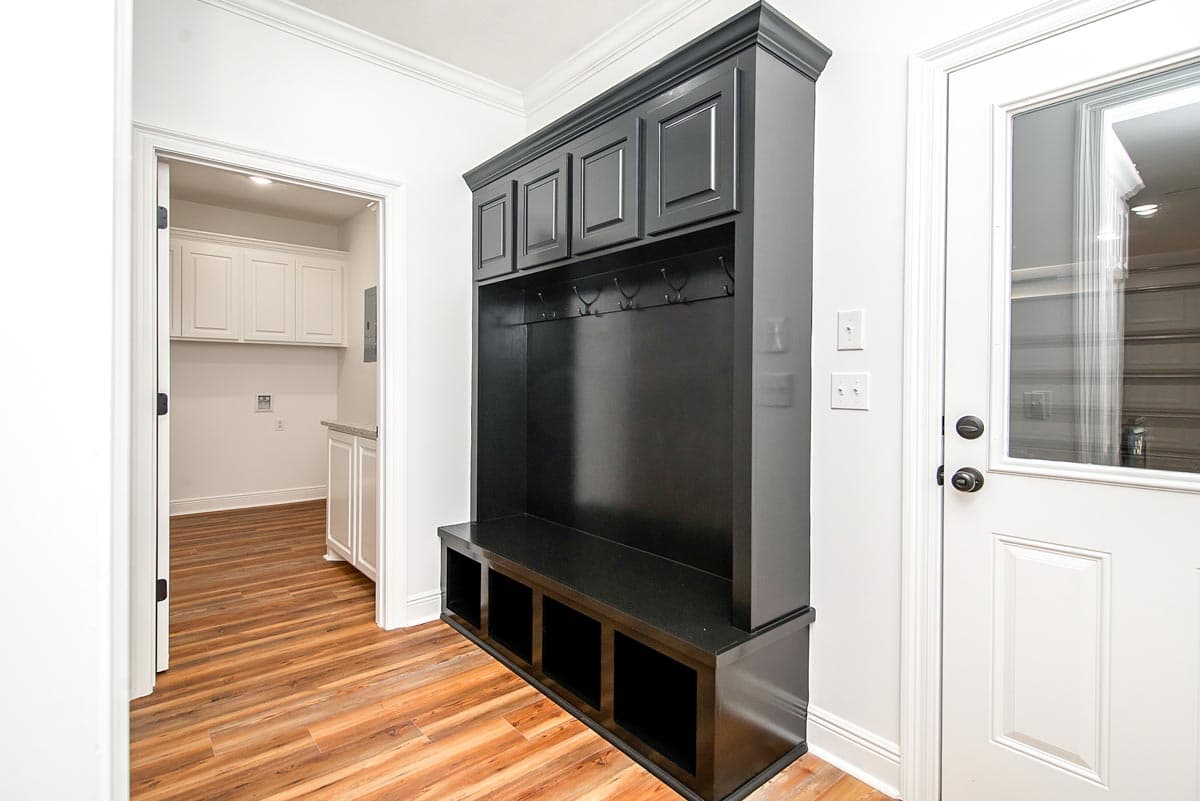

  • The family entry off the garage has lockers helping you control clutter and the large utility room gives you more space.
  • There are two porches that combined give you 227 square feet of covered outdoor space to enjoy.
  • The roof is stick framed with an 8:12 pitch.
  • Related Plans: Get alternate versions with house plans 51787HZ (1,7619 sq. ft.), 51703HZ (1,736 sq. ft.), 11767HZ (1,725 sq. ft.) and 11768HZ (1,750 sq. ft.).
What's Included
Page 1  Cover Sheet with abbreviations, rendering, sheet index
Page 2  Foundation Plan and details
Page 3  Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
Page 4  Exterior views with additional notes and details
Page 5  Cross Section & kitchen cabinet views
Page 6  Roof plan and span charts with additional details
Page 7  Electrical plan
Page N1 Code Information
Page N2 Code Information
Page N3 Code Information
Page N4 Energy Code Information
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,795 sq. ft.

1st Floor

1,795 sq. ft.

2nd Floor

1,795 sq. ft.

Porch, Front

61 sq. ft.

Porch, Rear

166 sq. ft.

Porch, Combined

227 sq. ft.

Storage

40 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

59' 8"

Depth

56' 6"

Max Ridge Height

22' 0"

Garage

Type

Attached

Area

524 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Room

Ceiling Type

Height

Great Room

10' 0''

Master Bedroom

10' 0''

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Country

New American

Ranch

Southern

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Butler Walk-in Pantry

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

1,795 sq. ft.

1st Floor

1,795 sq. ft.

2nd Floor

1,795 sq. ft.

Porch, Front

61 sq. ft.

Porch, Rear

166 sq. ft.

Porch, Combined

227 sq. ft.

Storage

40 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

59' 8"

Depth

56' 6"

Max Ridge Height

22' 0"

Garage

Type

Attached

Area

524 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Room

Ceiling Type

Height

Great Room

10' 0''

Master Bedroom

10' 0''

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Country

New American

Ranch

Southern

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Butler Walk-in Pantry

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Photo Gallery
