Plan 280150JWD

New American Ranch Home with Bonus Room

Heated S.F.

2,405

Beds

3

Baths

2.5

Stories

1-2

Cars

2

Floor Plan

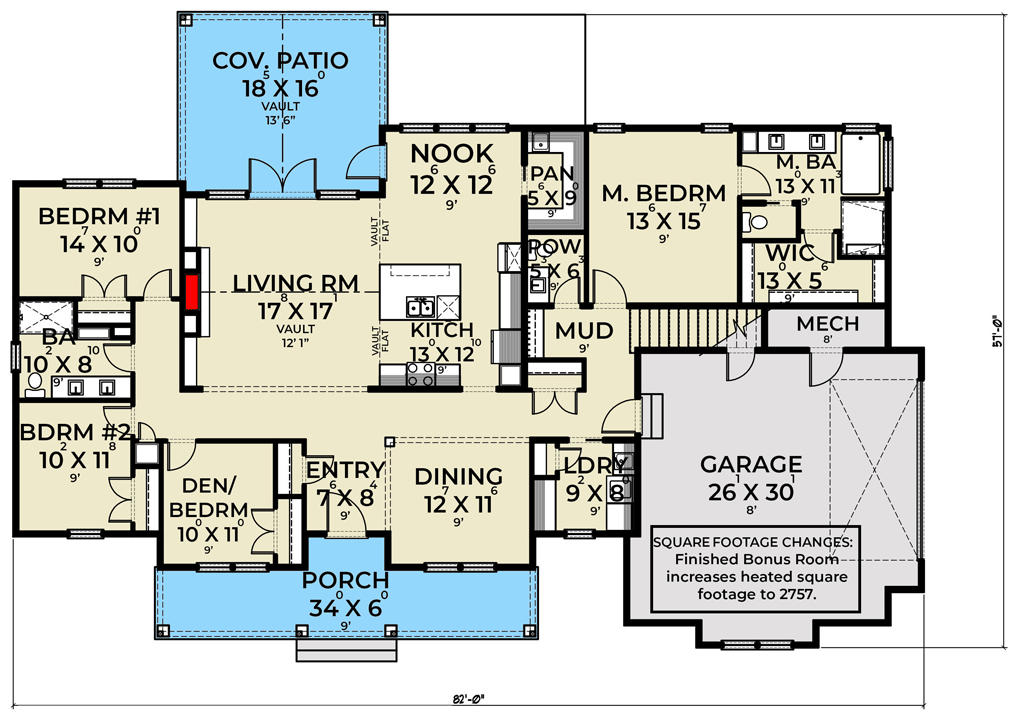

Main Level

floor plan image Main Level

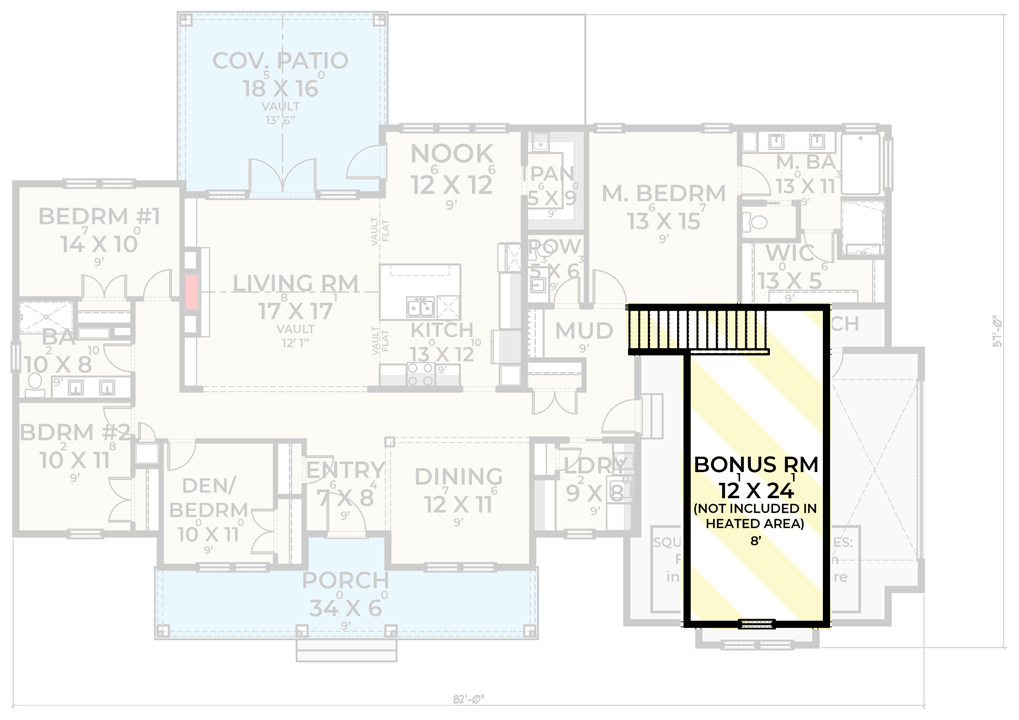

2nd Floor

floor plan image 2nd Floor

Plan Details

Ribbed metal roof accents add a modern edge to this New American ranch home plan, which delivers a 352 sq ft bonus room (included in total square footage) above the double garage.
A vaulted ceiling defines the living room, making the fireplace the focal point, while french doors encourage outdoor enjoyment on the covered patio.
Dine in the breakfast nook or at the eating bar for casual meals, or gather around the table in the formal dining room when entertaining or hosting holidays.
The master bedroom is set apart from the other bedrooms for the utmost privacy and includes a 5-fixture bath with a walk-in closet.
Three family bedrooms are located on the left side of the design, separated by a full bathroom with two sinks.

What's Included

Exterior Elevations
Main Floor Plan
Second level floor plan - if applicable
Bonus Floor Plan - if applicable
Building Sections
Typical Wall Detail
Main Floor Framing Plan & Details
Bonus Room & Roof Framing Plan
Electrical Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,405 sq. ft.

1st Floor

2,405 sq. ft.

Bonus

352 sq. ft.

Porch, Front

225 sq. ft.

Porch, Rear

180 sq. ft.

Covered Patio

292 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

82' 0"

Depth

47' 0"

Max Ridge Height

24' 6"

Garage

Type

Attached

Area

698 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Bonus Room

8' 0''

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Modern Farmhouse

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

2,405 sq. ft.

1st Floor

2,405 sq. ft.

Bonus

352 sq. ft.

Porch, Front

225 sq. ft.

Porch, Rear

180 sq. ft.

Covered Patio

292 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

82' 0"

Depth

47' 0"

Max Ridge Height

24' 6"

Garage

Type

Attached

Area

698 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Bonus Room

8' 0''

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Modern Farmhouse

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor
