Name: Plan 444276GDN: New American Ranch Plan with Bonus Room Above Garage - 1812 Sq Ft
SKU: 444276GDN
Price: 1575.0 USD
Availability: InStock

Plan 444276GDN

New American Ranch Plan with Bonus Room Above Garage - 1812 Sq Ft

Heated S.F.

1,812

Beds

2 - 4

Baths

2 - 3

Stories

Cars

Floor Plan

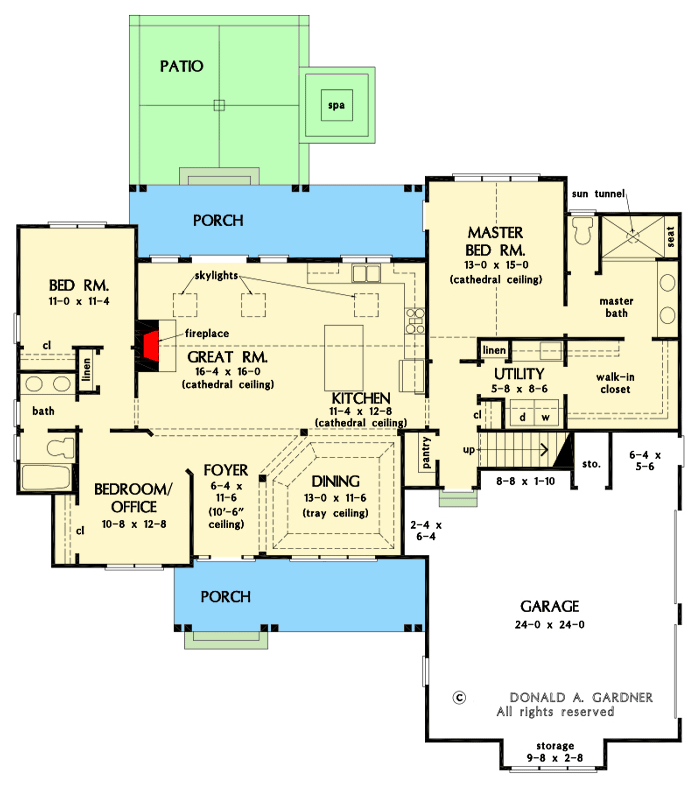

Main Level

Bonus Room

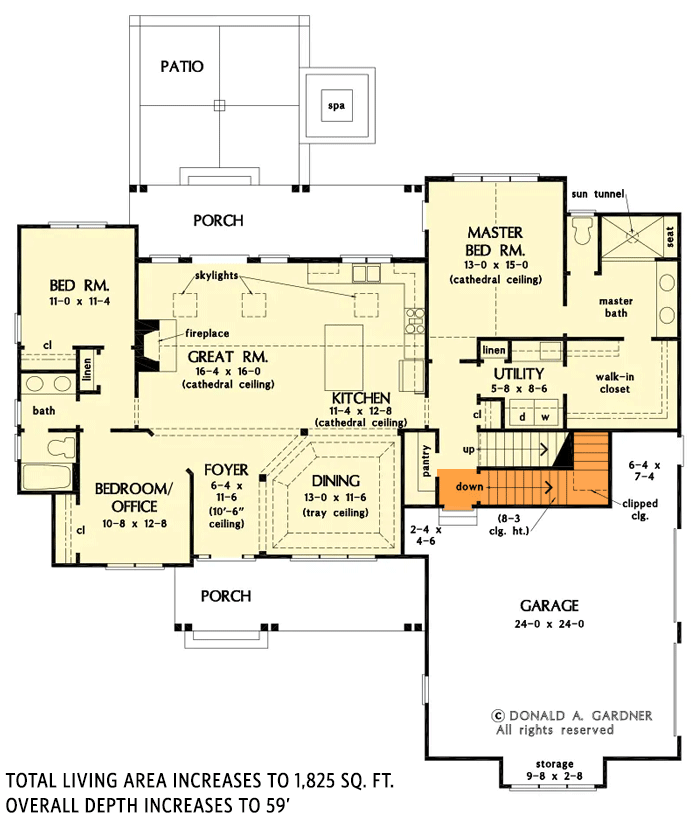

Main Level - Basement Stair Location

Plan Details

Timber frames decorate the gables on the front elevation of this New American Ranch plan, complete with a shed dormer, ribbed metal roof accents and a 24'2"-wide and 7'-deep front porch.
Elegant overhead features include tray and 17'11" cathedral ceilings throughout the home, while three skylights offer additional natural lighting to the open-concept living space. Sliding doors on the back wall of the great room take you to a roomy 28'6"-wide and 7'-deep back porch.
The kitchen hosts a large island surrounded by L-shaped cabinets, counters, and appliances, and a walk-in pantry near the mud hall boosts storage space.
Retreat to the master bedroom to find a large shower in the attached bath, along with access to the laundry room from the master closet.

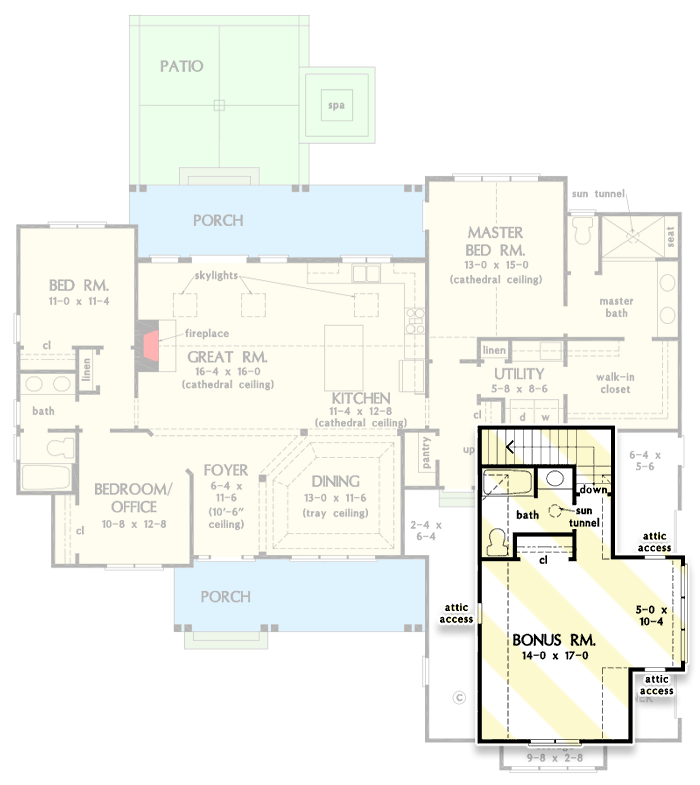

A 414 square foot bonus room with a full bath above the garage lends a flexible space for a future expansion, play room, or media room.

What's Included

Cover Sheet - An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped
Foundation Plan - This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.
Detailed Floor Plans - These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.
Interior Elevations - The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.
Roof Plan - The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.
Exterior Elevations - Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.
Cross-Section / Wall Section Details - Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.
Structural Plan - Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
