New American Ranch Plan with Split-bed Layout - 790125GLV | Architectural Designs - House Plans

plan image 422481

plan image 461780

plan image 422482

plan image 422483

Plan 790125GLV

Exclusive

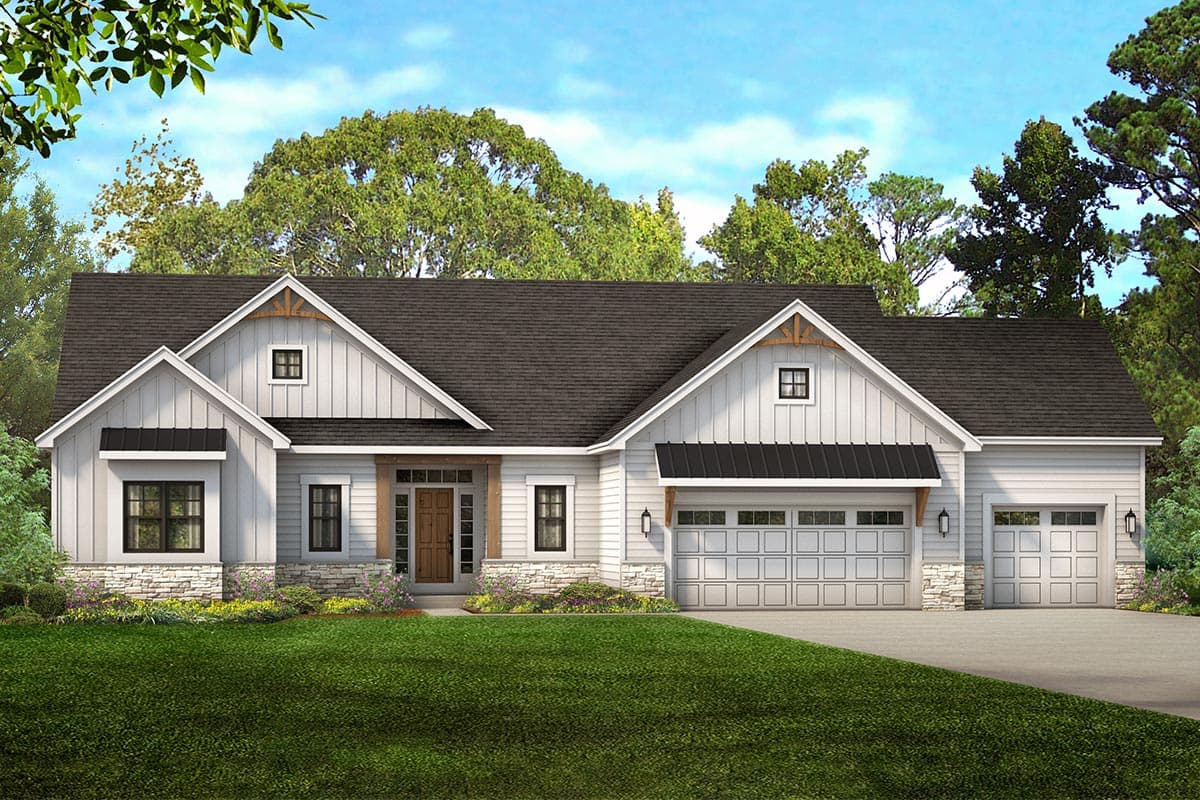

New American Ranch Plan with Split-bed Layout

Heated S.F.

1,796

Beds

3

Baths

2.5

Stories

1

Cars

3

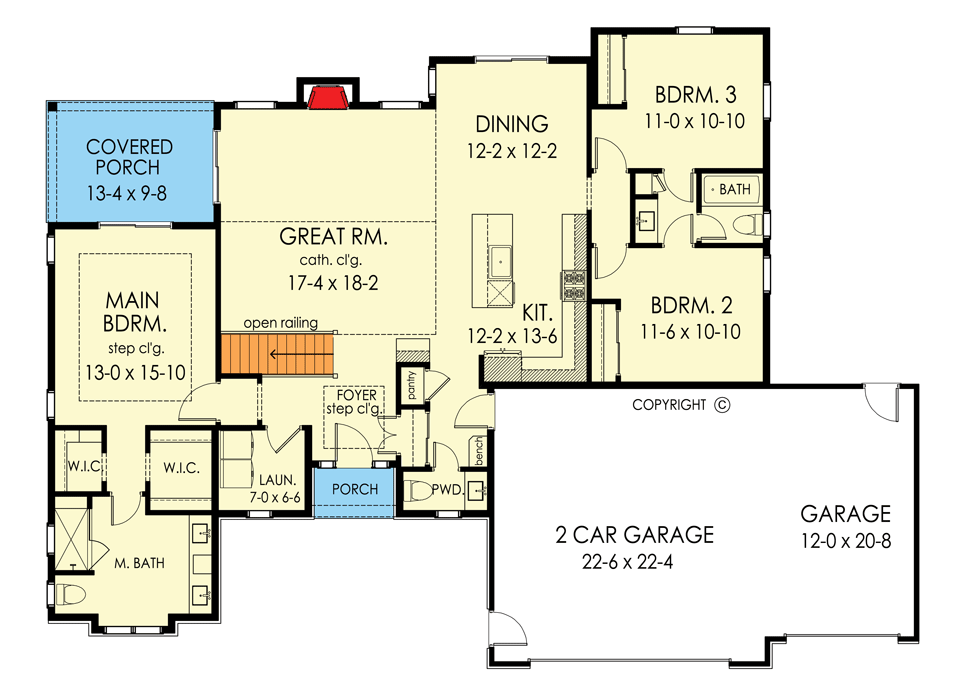

Floor Plan

Main Level

floor plan image Main Level

Plan Details

This New American Ranch plan presents a split-bedroom layout with a central living space crowned by a cathedral ceiling.
Upon entering from the front door or garage, a double-sided coat closet provides access to a single storage spot for coats, shoes, and bags.
The kitchen is home to an island with an eating bar and a pantry near the garage provides additional space for dried foods.
The main bedroom occupies the left side of the design and provides access to the covered porch. Two walk-in closets line the hallway that leads to the 4-fixture ensuite.
Bedrooms 2 and 3 are nearly identical in size and share a Jack-and-Jill bathroom.

Build Gallery

See and hear from existing customers with real photos, videos, and reviews.

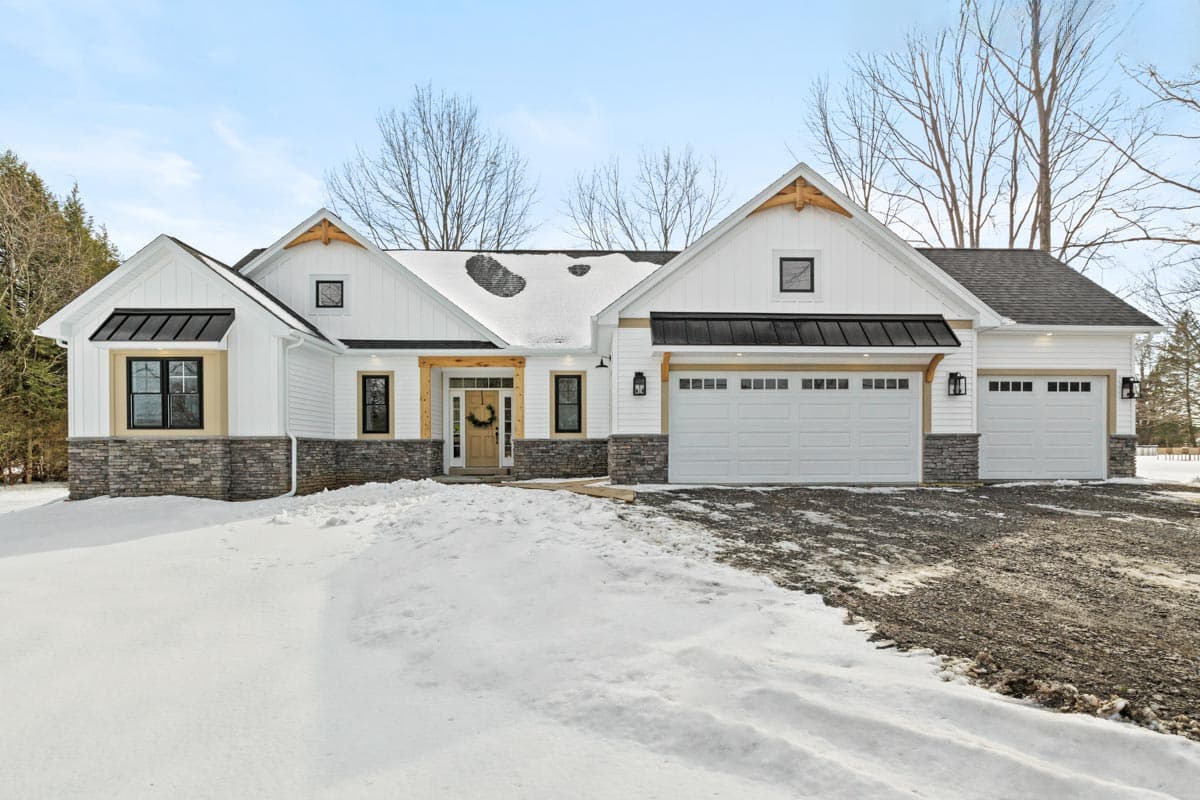

build gallery item - House Plan 790125GLV Comes to Life in New York

House Plan 790125GLV Comes to Life in New York

36

Photos

What's Included

Cover sheet with notes
Elevations
Basement and foundation plan and typical wall section
Detailed floor plans
Sections
Roof plan
Details
Reinforcing notes

What's Not Included

Electrical Plans
Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

1,796 sq. ft.

1st Floor

1,796 sq. ft.

Porch, Front

27 sq. ft.

Porch, Rear

128 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

70' 0"

Depth

51' 4"

Max Ridge Height

24' 0"

Garage

Type

Attached

Area

747 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

9 on 12

Framing Type

Truss

Architectural Style

Special Features

Bedrooms - Split

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room
