Nicely Proportioned Traditional House Plan
Heated S.F.
2,328
Beds
3
Baths
3 - 4
Stories
1
Cars
2
Photos
Floor Plan

Plan 77617FB

Main Level
slide image 0
Lower Level
slide image 1

Plan 77617FB

1-800-854-7852

1-262-521-4596

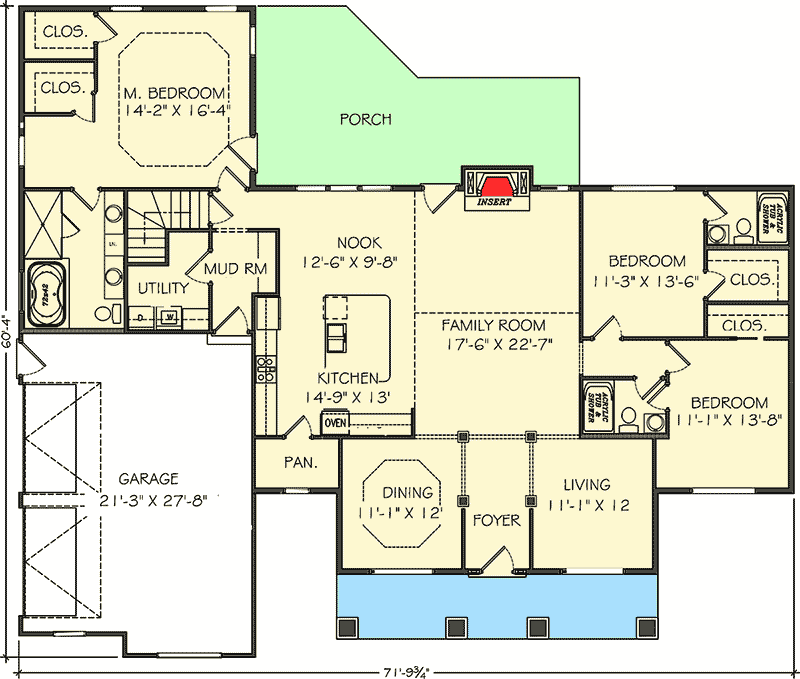

Main Level
floor plan image Main Level

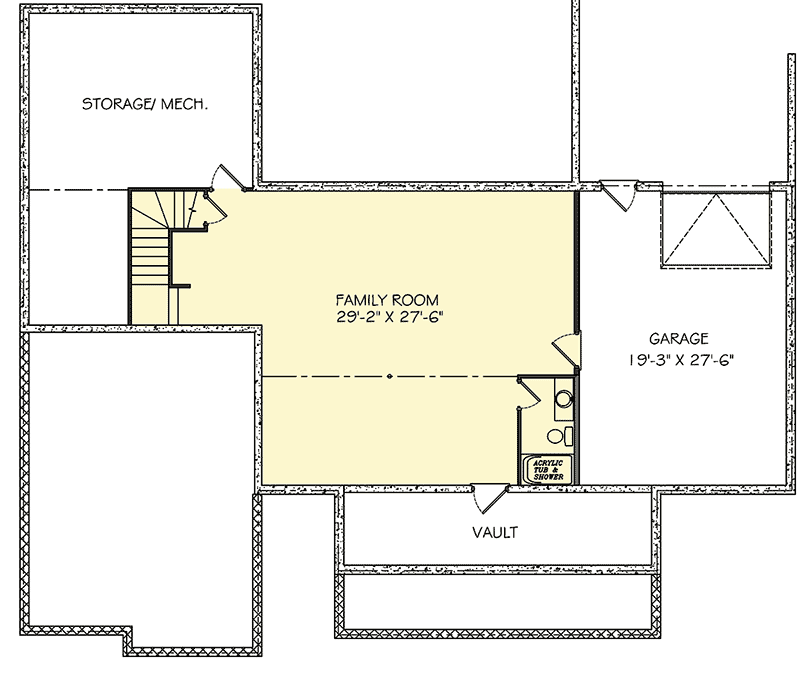

Lower Level
floor plan image Lower Level
Plan Details
  • Perfectly balanced, the formal living and dining rooms of this Traditional house plan are equal in size and lie opposite each other.
  • The interior columns let the views flow between rooms.
  • The main living area of the house is all open concept with the kitchen facing the giant vaulted family room.
  • Split bedrooms create an isolated master suite off by itself where you can step out onto the rear porch in minutes.
  • Each family bedroom has access to a bathroom.
  • Finish the lower level and gain a massive family room with a nearby full bathroom.
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.

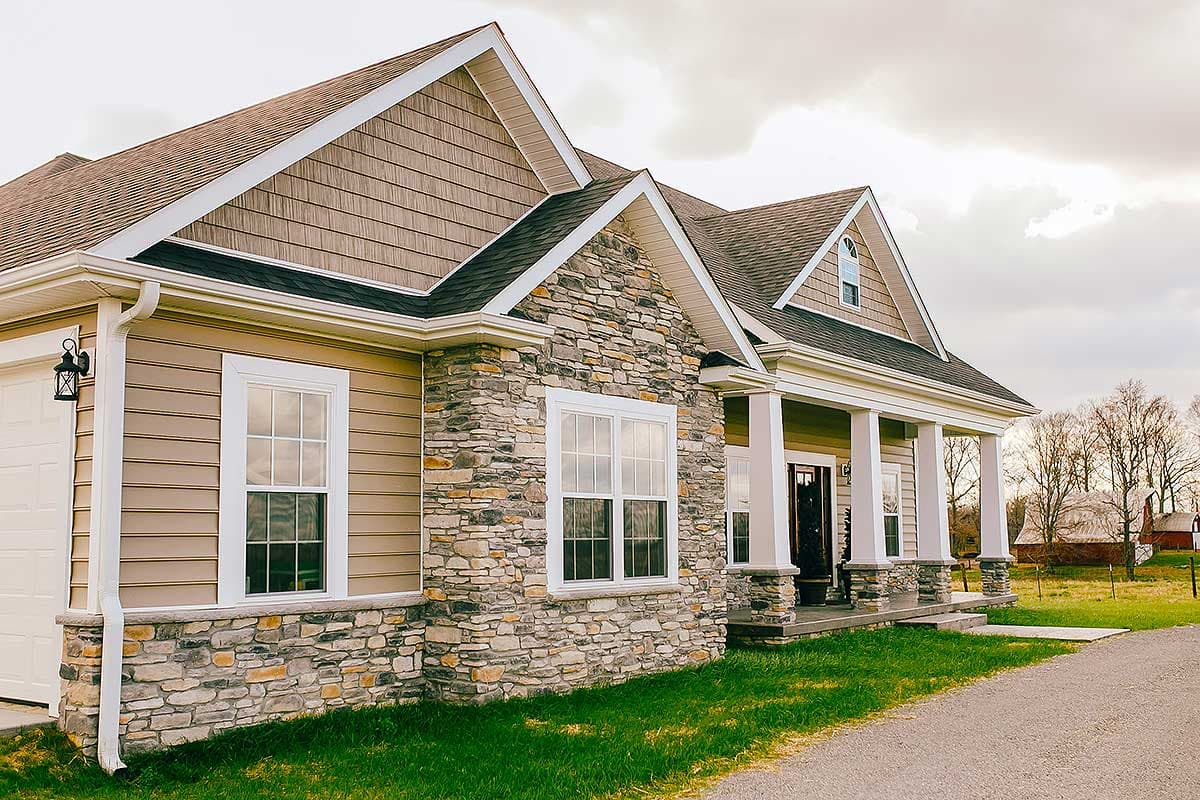

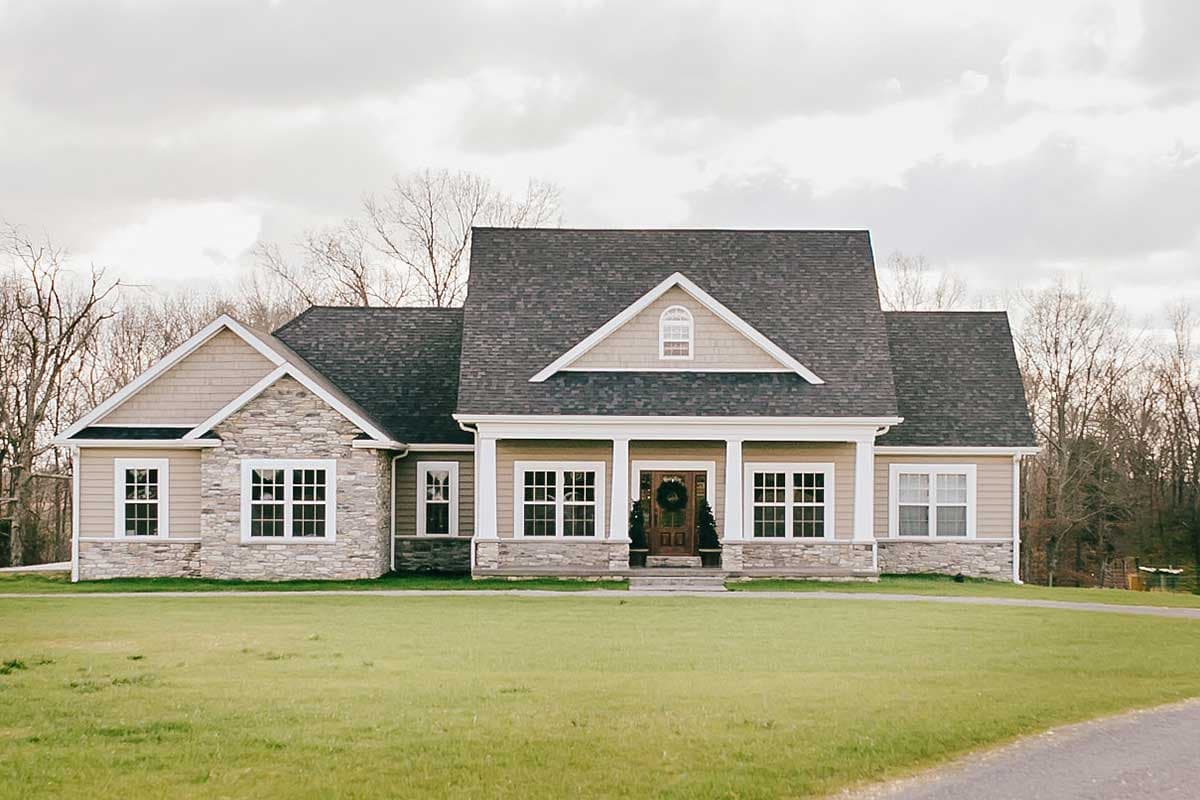

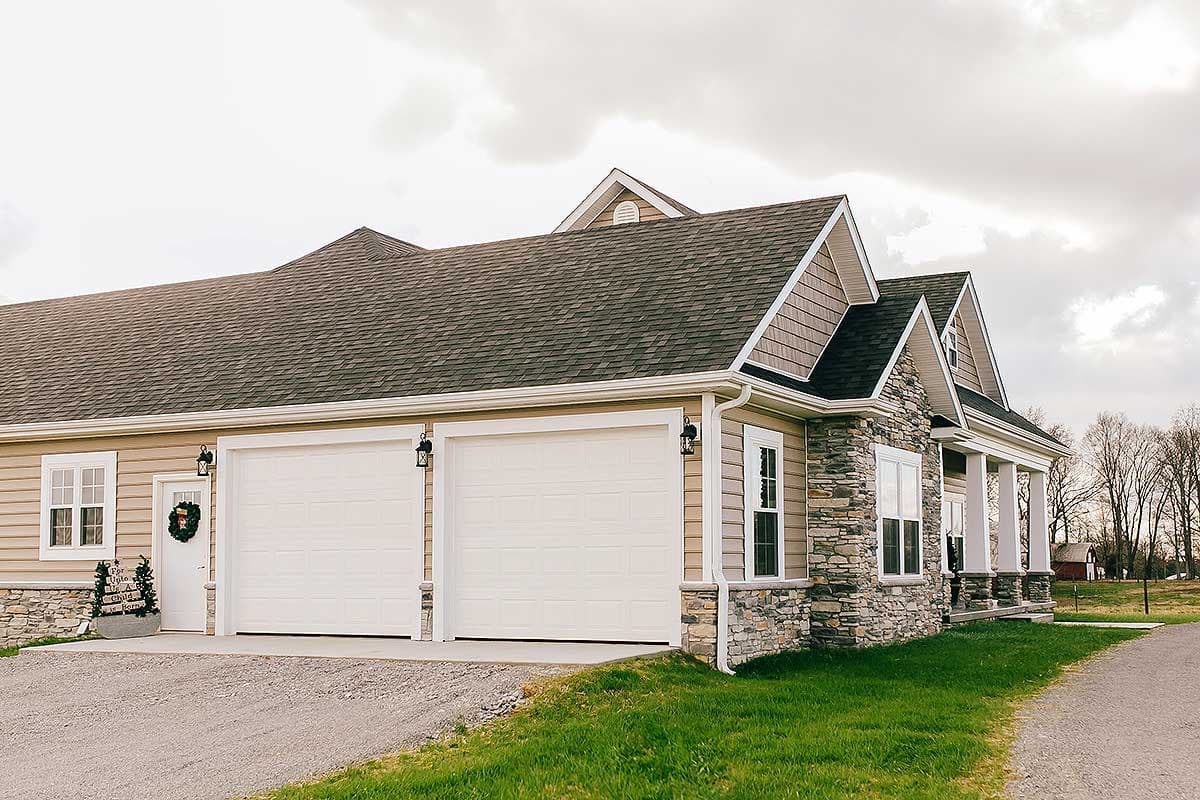

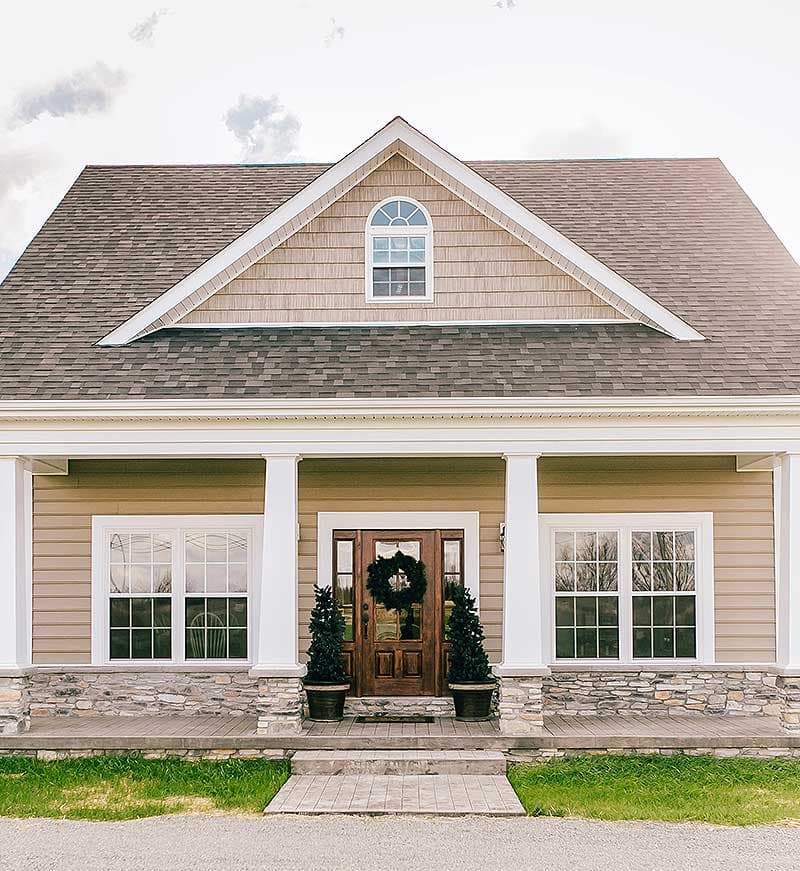

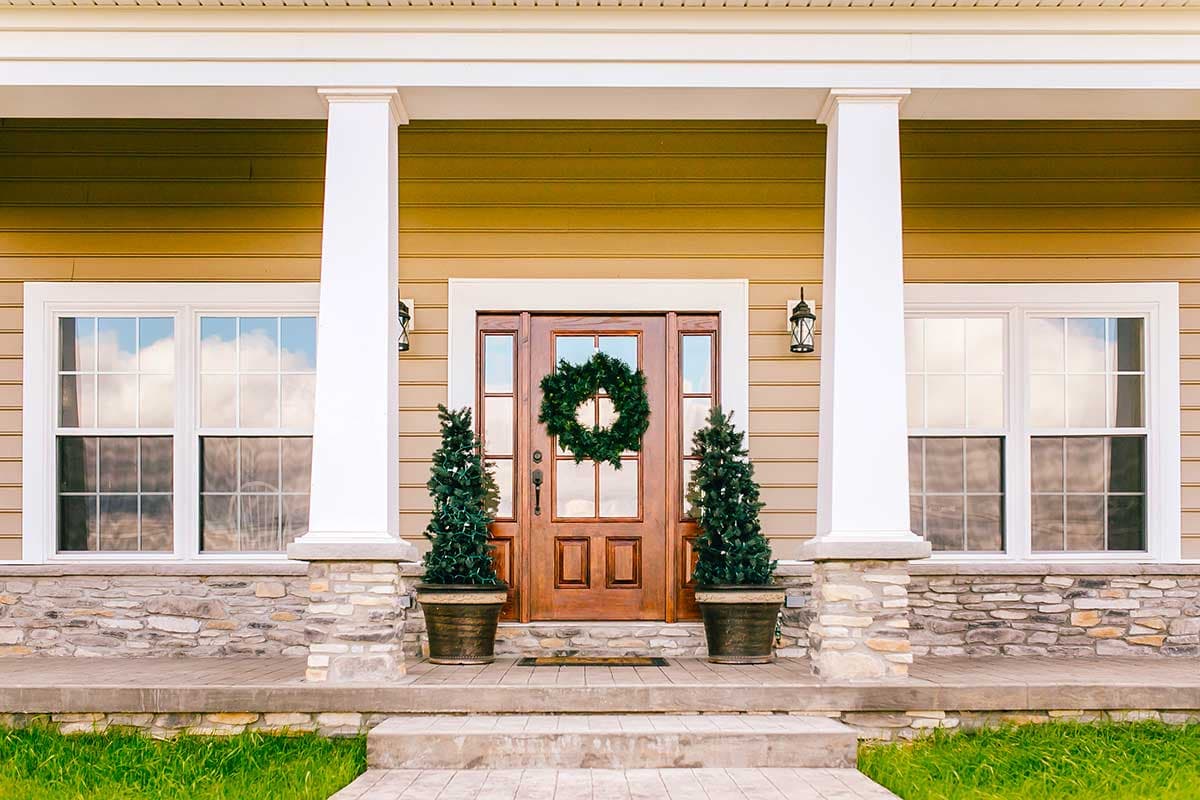

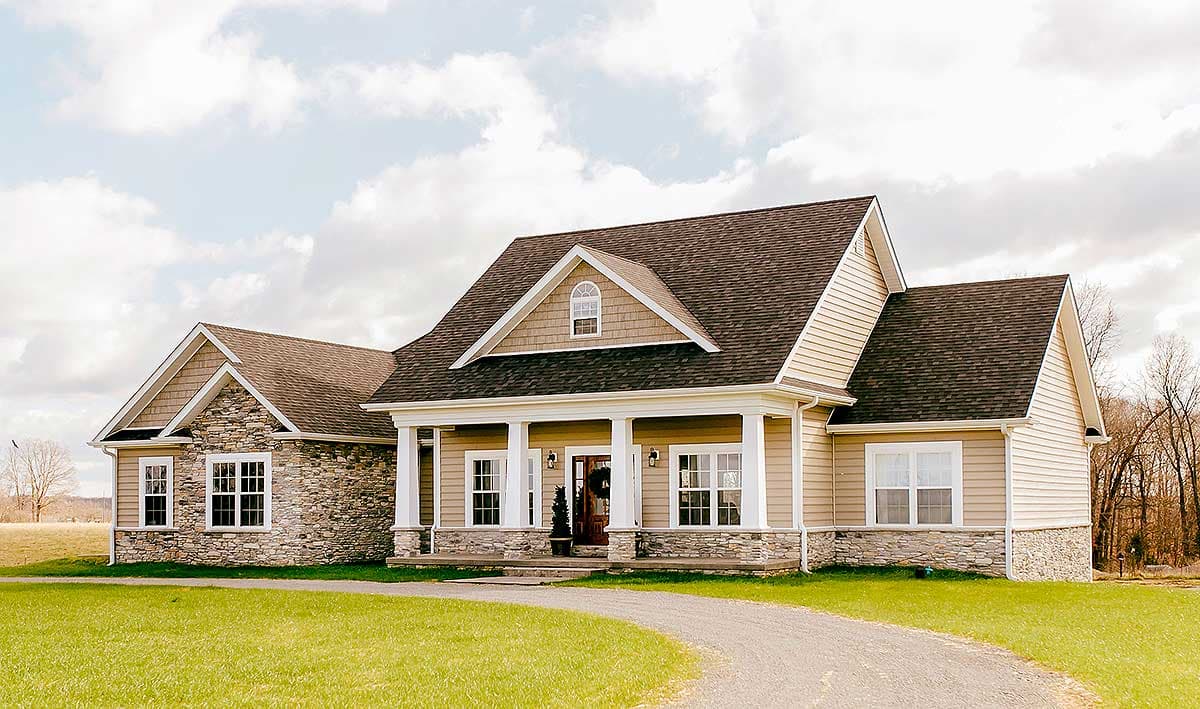

build gallery item - House Plan 77617FB comes to life in Tennessee

House Plan 77617FB comes to life in Tennessee

9

Photos

What's Included
This plan set includes the following:
  • Covered page
  • Foundation page
  • Fully dimensioned floor plan

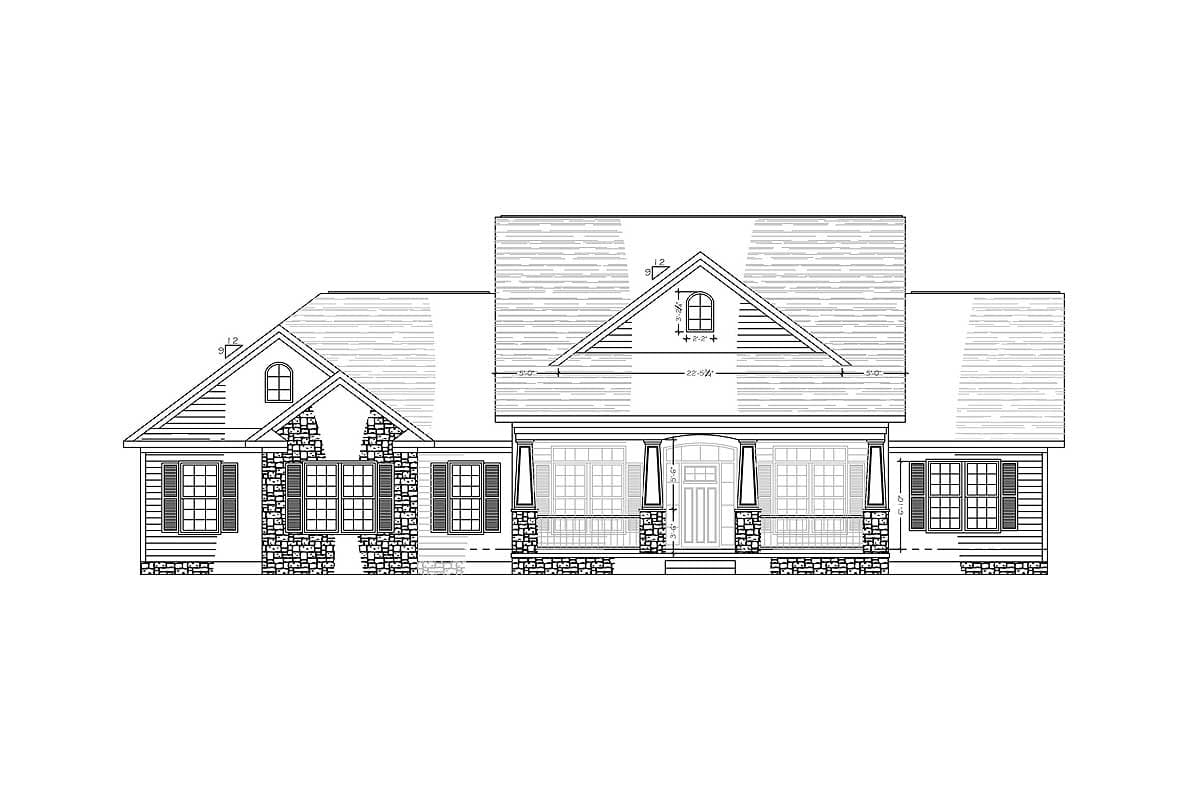

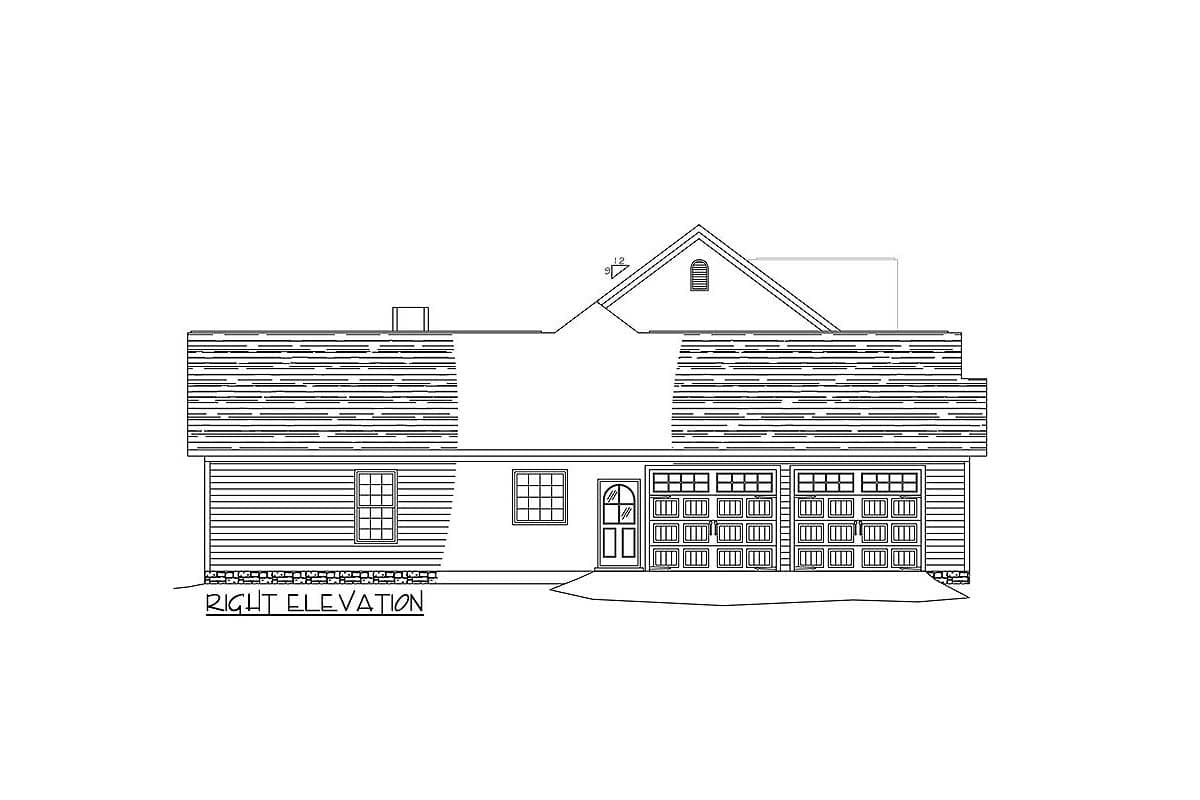

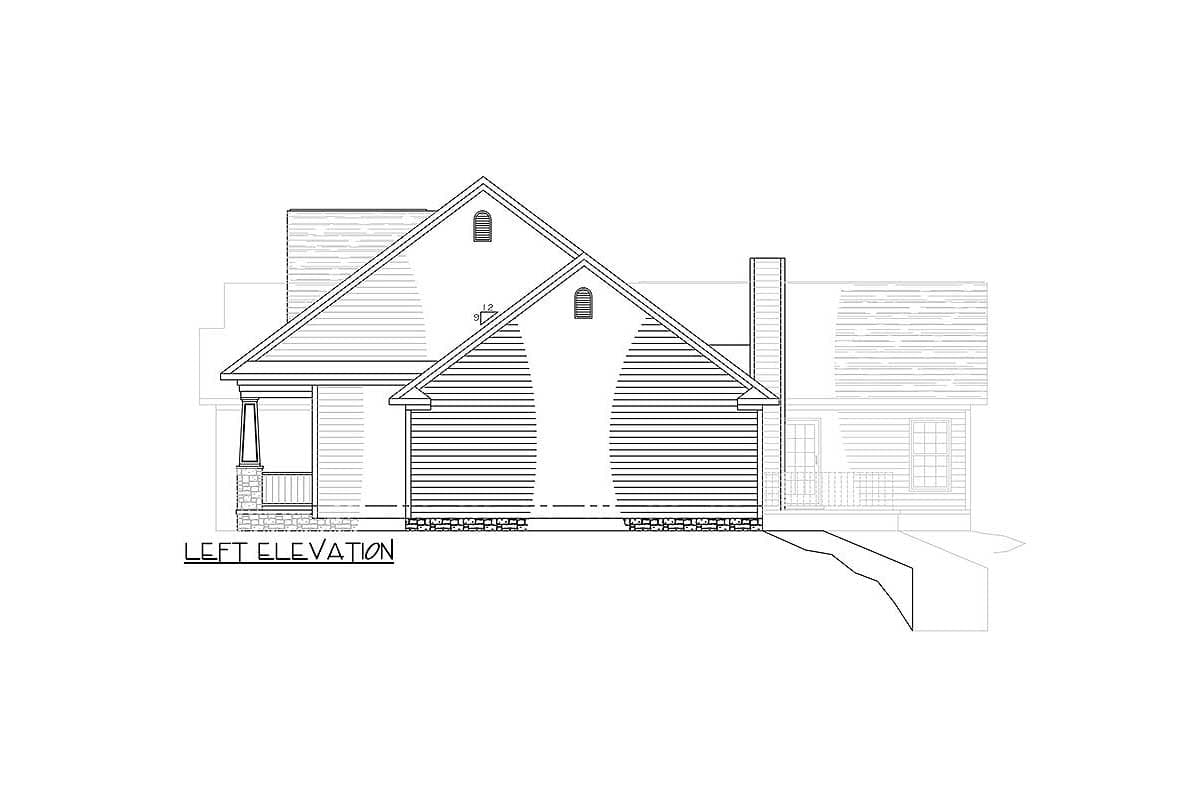

  • All four elevations

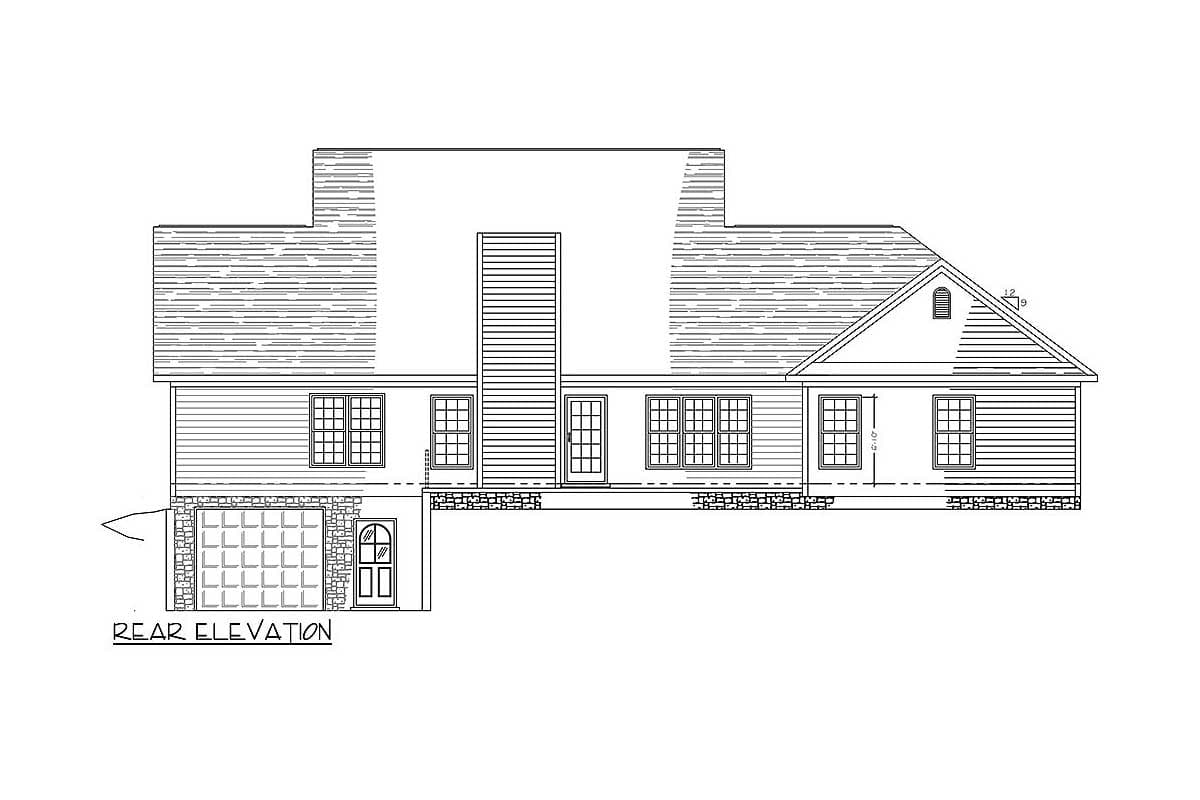

  • Building section
  • Enlarged details
  • Generic details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,328 sq. ft.

1st Floor

2,328 sq. ft.

Porch, Combined

179 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3 or 4

Foundation Type

Standard Foundations

Basement, Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

71' 10"

Depth

58' 4"

Max Ridge Height

27' 3"

Garage

Type

Attached, Drive Under

Area

634 sq. ft.

Count

2 Cars

Entry Location

Side, Rear

Ceiling Heights

First Floor

9'

Room

Ceiling Type

Height

Family Room

Vaulted

0' 0''

Kitchen

Tray

0' 0''

Roof Details

Primary Pitch

9 on 12

Framing Type

Stick And Truss

Architectural Style

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Butler Walk-in Pantry

Formal Dining

Master Suite - 1st Floor

Mudroom

Plan Collections

Exclusive

Photo Gallery

Square Footage Breakdown

Total Heated Area

2,328 sq. ft.

1st Floor

2,328 sq. ft.

Porch, Combined

179 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3 or 4

Foundation Type

Standard Foundations

Basement, Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

71' 10"

Depth

58' 4"

Max Ridge Height

27' 3"

Garage

Type

Attached, Drive Under

Area

634 sq. ft.

Count

2 Cars

Entry Location

Side, Rear

Ceiling Heights

First Floor

9'

Room

Ceiling Type

Height

Family Room

Vaulted

0' 0''

Kitchen

Tray

0' 0''

Roof Details

Primary Pitch

9 on 12

Framing Type

Stick And Truss

Architectural Style

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Butler Walk-in Pantry

Formal Dining

Master Suite - 1st Floor

Mudroom

Plan Collections

Exclusive

Photo Gallery
