Plan 666086RAF
Northwest Contemporary Home Plan with Second-Level Bedrooms
Heated S.F.
5,156
Beds
5
Baths
5.5
Stories
2
Cars
3
Floor Plan

Plan 666086RAF

Main Level
slide image 0
2nd Floor
slide image 1

Plan 666086RAF

1-800-854-7852

1-262-521-4596

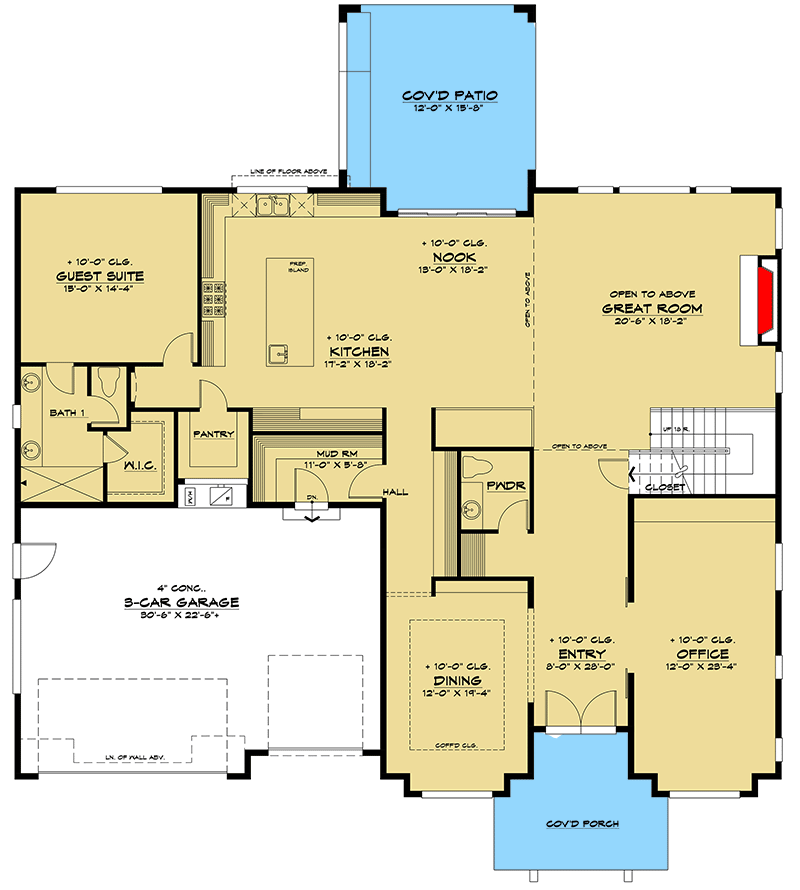

Main Level
floor plan image Main Level

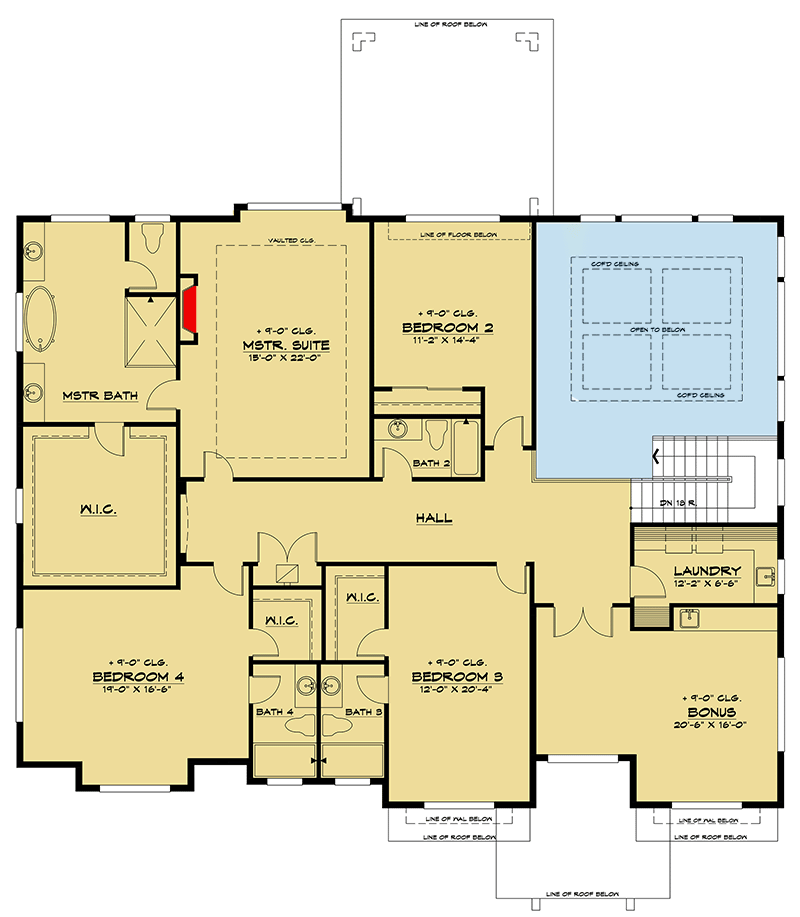

2nd Floor
floor plan image 2nd Floor
Plan Details
  • Oversized windows and flat rooflines compliment the modern design features offered by this Northwest, contemporary home plan.
  • Step inside, and discover a formal dining room and home office on either side of the foyer, while an open-concept living space can be found straight ahead. A fireplace anchors the right wall of the great room, with tall ceilings opening it to the second level.
  • The roomy prep island in the heart of the kitchen lends ample workspace, and the rear covered patio encourages outdoor enjoyment when entertaining.
  • A guest suite completes the main floor, and includes a compartmentalized bath.
  • The largest of the second level bedrooms is reserved for the homeowner, which features a fireplace, 5-fixture bath, and oversized closet. The laundry room, located at the end of the hall, helps reduce time spent lugging laundry up and down stairs.
  • Each of the additional bedrooms have access to their own full bath, and a generous bonus room - included in the total living area figures - provides a fun space upstairs for all to enjoy.
What's Included
  • Cover Sheet with plan info
  • General Notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans

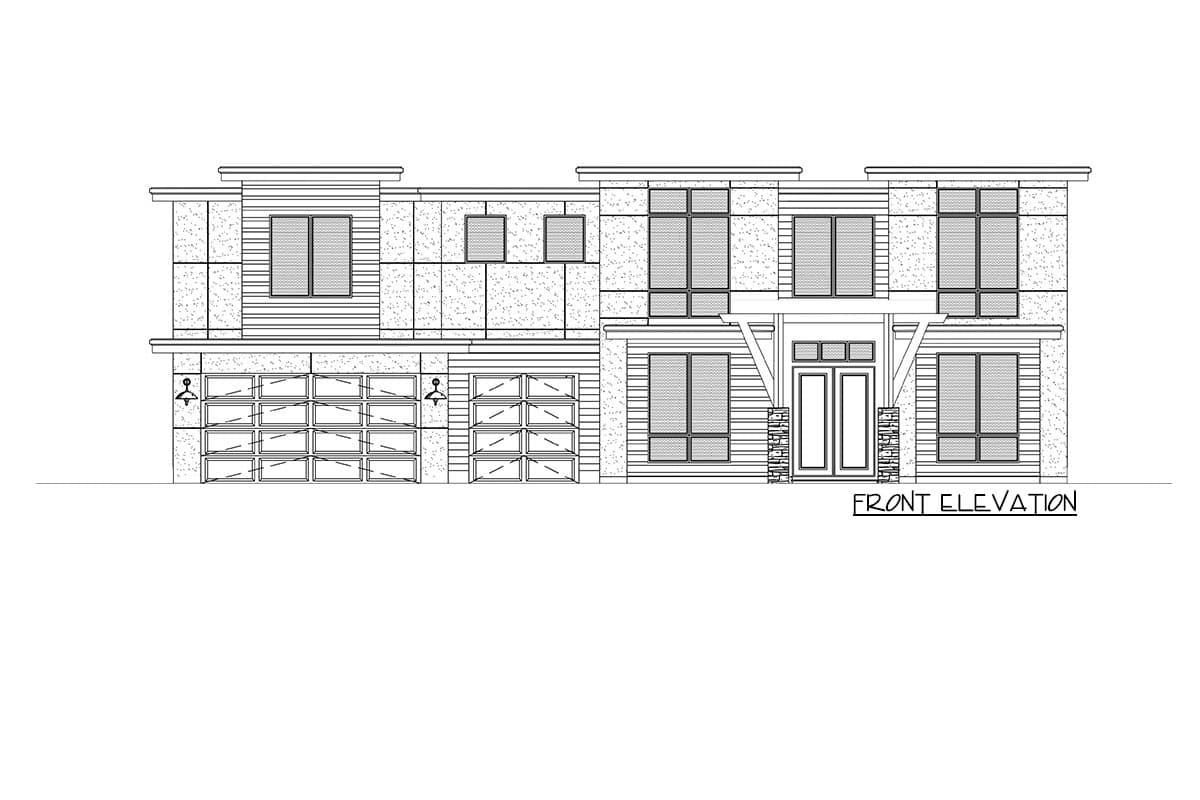

  • Elevations
  • Building Cross Section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
What's Not Included
  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans  - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

5,156 sq. ft.

1st Floor

2,500 sq. ft.

2nd Floor

2,656 sq. ft.

Porch, Combined

282 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

5

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

65' 0"

Depth

67' 0"

Max Ridge Height

23' 0"

Garage

Type

Attached

Area

702 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Garage

11' 6''

Roof Details

Primary Pitch

0.25 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

Northwest

Special Features

Bonus Room

Butler Walk-in Pantry

Formal Dining

Home Office

Laundry - Upstairs

Master Suite - 2nd Floor

Two Story Great Room

Square Footage Breakdown

Total Heated Area

5,156 sq. ft.

1st Floor

2,500 sq. ft.

2nd Floor

2,656 sq. ft.

Porch, Combined

282 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

5

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

65' 0"

Depth

67' 0"

Max Ridge Height

23' 0"

Garage

Type

Attached

Area

702 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Garage

11' 6''

Roof Details

Primary Pitch

0.25 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

Northwest

Special Features

Bonus Room

Butler Walk-in Pantry

Formal Dining

Home Office

Laundry - Upstairs

Master Suite - 2nd Floor

Two Story Great Room
