Plan 72899DA
Northwest Duplex House Plan
Heated S.F.
2,952
Units
2
Width
Depth
Floor Plan

Plan 72899DA

Main Level
slide image 0
2nd Floor
slide image 1

Plan 72899DA

1-800-854-7852

1-262-521-4596

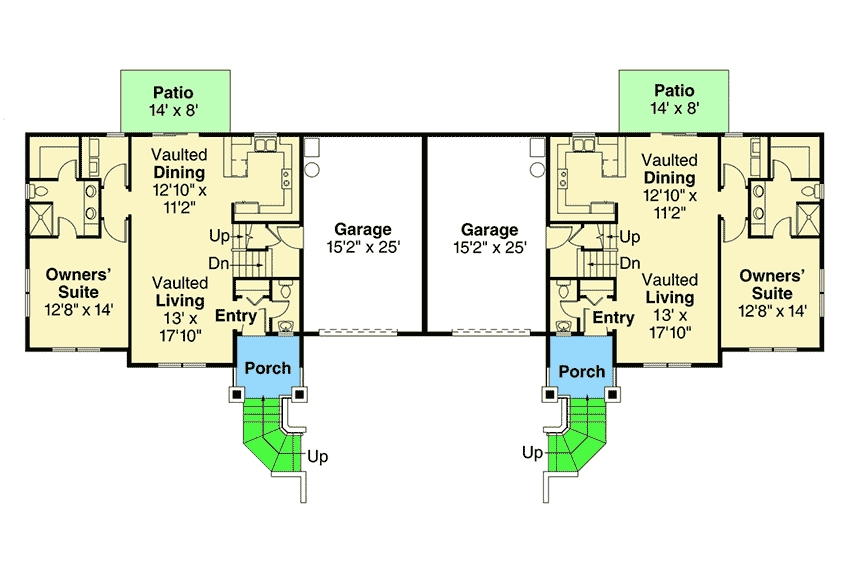

Main Level
floor plan image Main Level

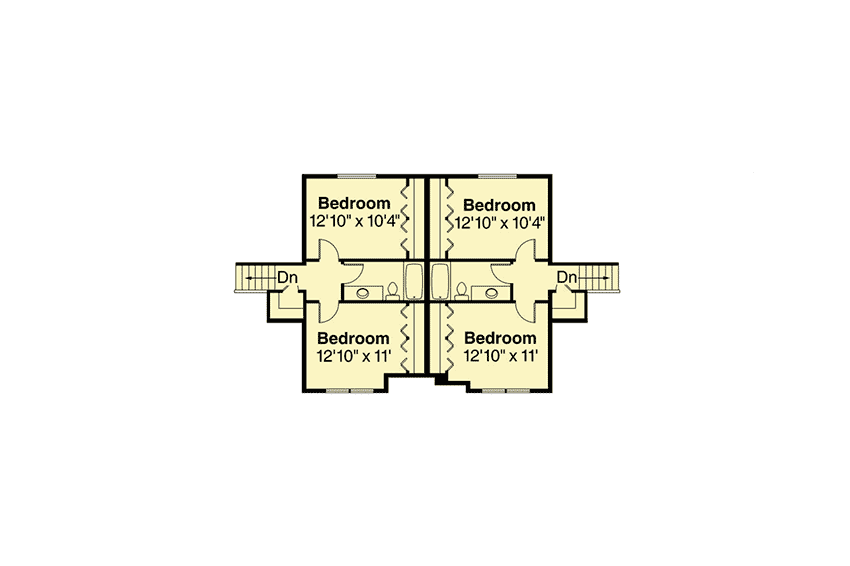

2nd Floor
floor plan image 2nd Floor
Plan Details
  • Separated by the single car garages, these duplex units have a buffer zone to keep noise down.
  • Vaulted ceilings make each unit feel larger.
  • Patio space in back gives you a spot for grilling.
  • The master suite lies on the first floor and two more bedrooms occupy the upper floor.
  • Related Plan: Get a different exterior with house plan 72898DA (2,941 sq. ft.).
Unit A
1,474Sq. Ft.
1005 Sq. Ft.
1st Floor
469 Sq. Ft.
2nd Floor
3Beds
2Full Baths
1Half Bath
1Vehicle
Attached
473 Sq. Ft.
51'width
34'depth
24' 3"height
Unit B
1,478Sq. Ft.
1005 Sq. Ft.
1st Floor
473 Sq. Ft.
2nd Floor
3Beds
2Full Baths
1Half Bath
1Vehicle
Attached
403 Sq. Ft.
51'width
34'depth
24' 3"height
What's Included
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,952 sq. ft.

1st Floor

2,010 sq. ft.

2nd Floor

942 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

102' 0"

Depth

34' 0"

Max Ridge Height

24' 3"

Garage

Type

Attached

Area

806 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick And Truss

Architectural Style

Northwest

Special Features

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

2,952 sq. ft.

1st Floor

2,010 sq. ft.

2nd Floor

942 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

102' 0"

Depth

34' 0"

Max Ridge Height

24' 3"

Garage

Type

Attached

Area

806 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick And Truss

Architectural Style

Northwest

Special Features

Master Suite - 1st Floor
