Plan 80771PM
Northwest Home with Interesting Features
Heated S.F.
2,505
Beds
3
Baths
2.5
Stories
2
Cars
2
Floor Plan

Plan 80771PM

Main Level
slide image 0
2nd Floor
slide image 1

Plan 80771PM

1-800-854-7852

1-262-521-4596

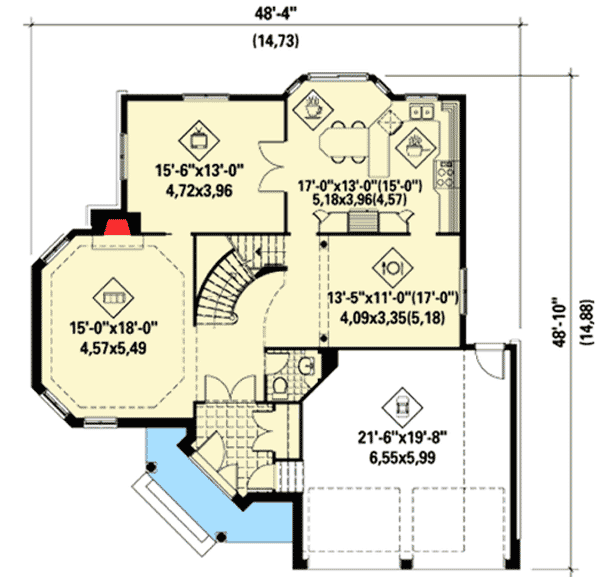

Main Level
floor plan image Main Level

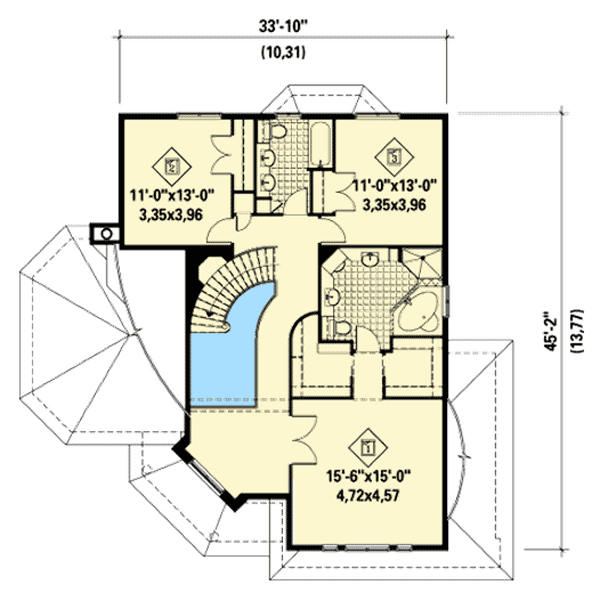

2nd Floor
floor plan image 2nd Floor
Plan Details
  • An interesting roofline and angled foyer distinguish this Northwest home plan.
  • Two sets of double doors open to reveal the main foyer with its graceful curved staircase.

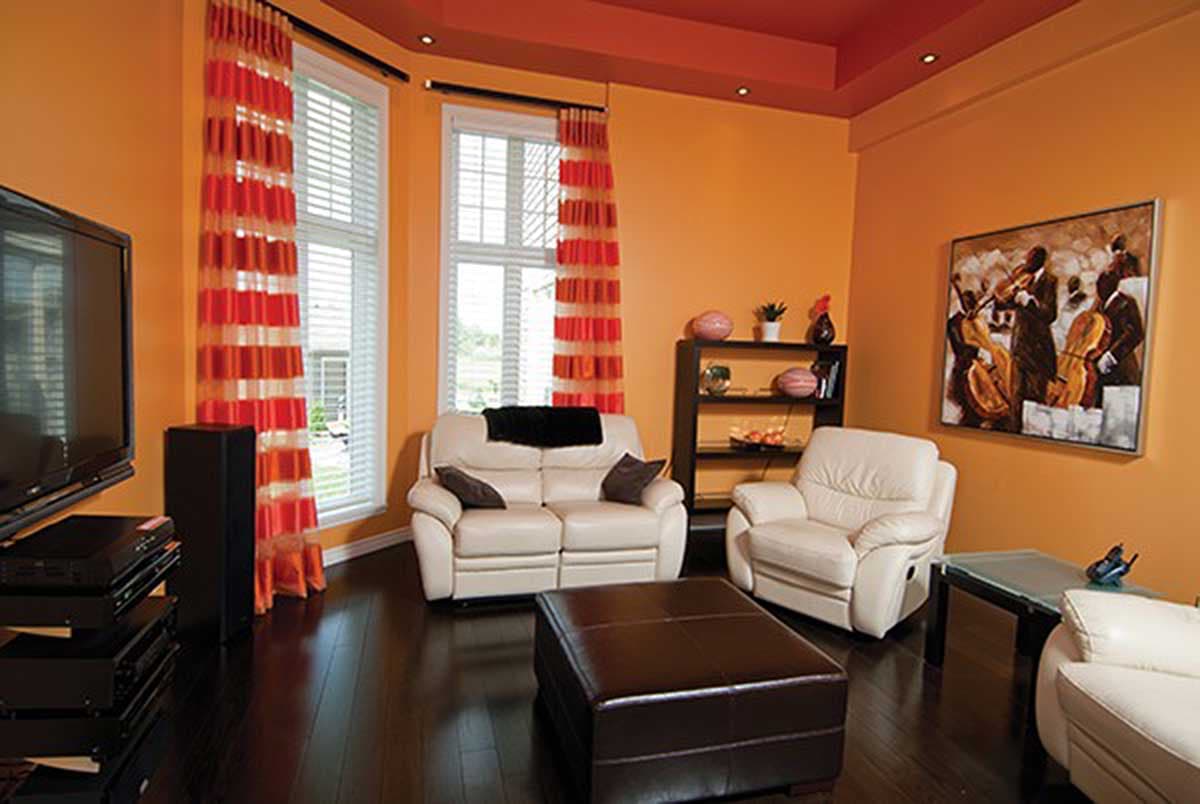

  • The elegant living room is spacious and has a tray ceiling and a big fireplace.
  • Pocket doors close off the family room from the living room.

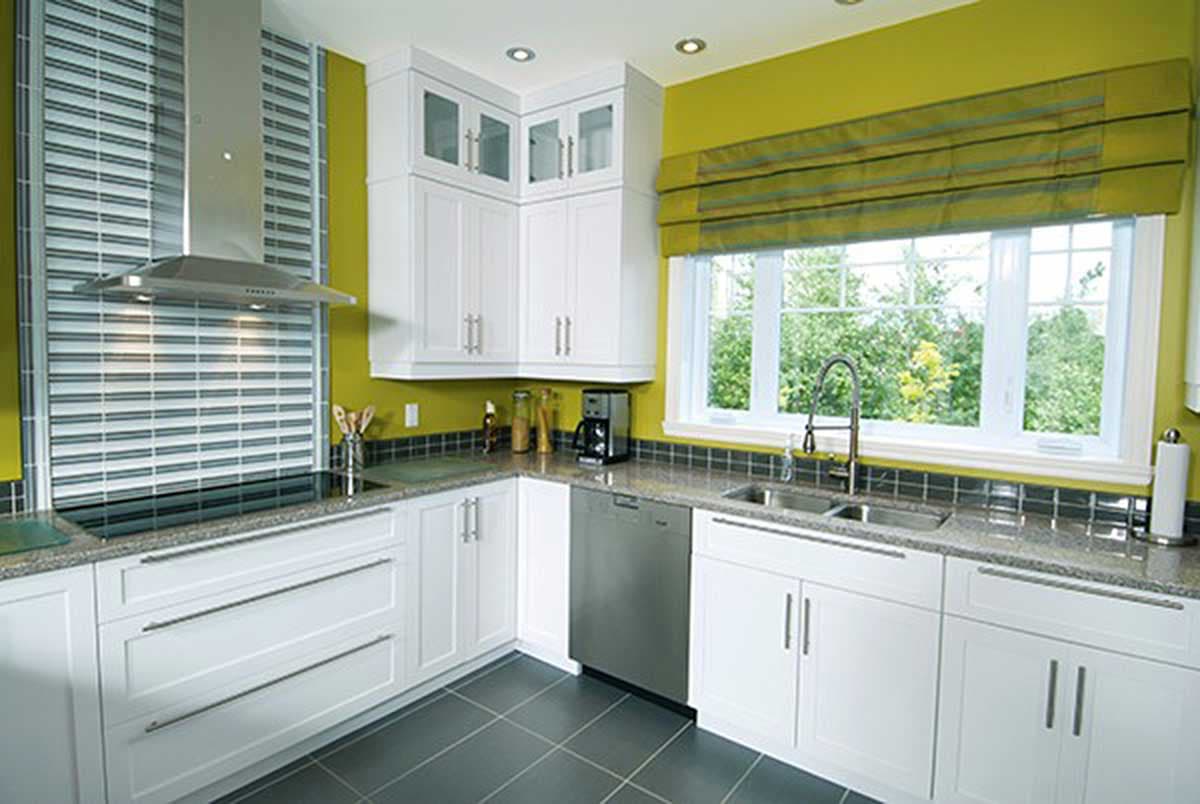

  • On the kitchen side, more double doors close off all the kitchen noise.
  • Note the beautiful display niche halfway up the staircase.
  • An open rail on the second floor lets you look down into the foyer below.
  • A loft area lies right outside the master suite.
  • The master bathroom is huge and has two sinks and a make-up counter for the lady of the house.
  • Space-saving pocket doors are used to close off the two walk-in closets.
What's Included
Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,505 sq. ft.

1st Floor

1,252 sq. ft.

2nd Floor

1,253 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

48' 4"

Depth

48' 10"

Max Ridge Height

36' 0"

Garage

Type

Attached

Area

465 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

European

Northwest

Special Features

Loft

Master Suite - 2nd Floor

Plan Collections

Canadian House Plans

Metric

Photo Gallery

Square Footage Breakdown

Total Heated Area

2,505 sq. ft.

1st Floor

1,252 sq. ft.

2nd Floor

1,253 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

48' 4"

Depth

48' 10"

Max Ridge Height

36' 0"

Garage

Type

Attached

Area

465 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

European

Northwest

Special Features

Loft

Master Suite - 2nd Floor

Plan Collections

Canadian House Plans

Metric

Photo Gallery
