Plan 90283PD
Northwest House Plan with Contemporary Influences
Heated S.F.
1,580
Beds
3
Baths
2.5
Stories
2
Cars
1
Floor Plan

Plan 90283PD

Main Level
slide image 0
2nd Floor
slide image 1

Plan 90283PD

1-800-854-7852

1-262-521-4596

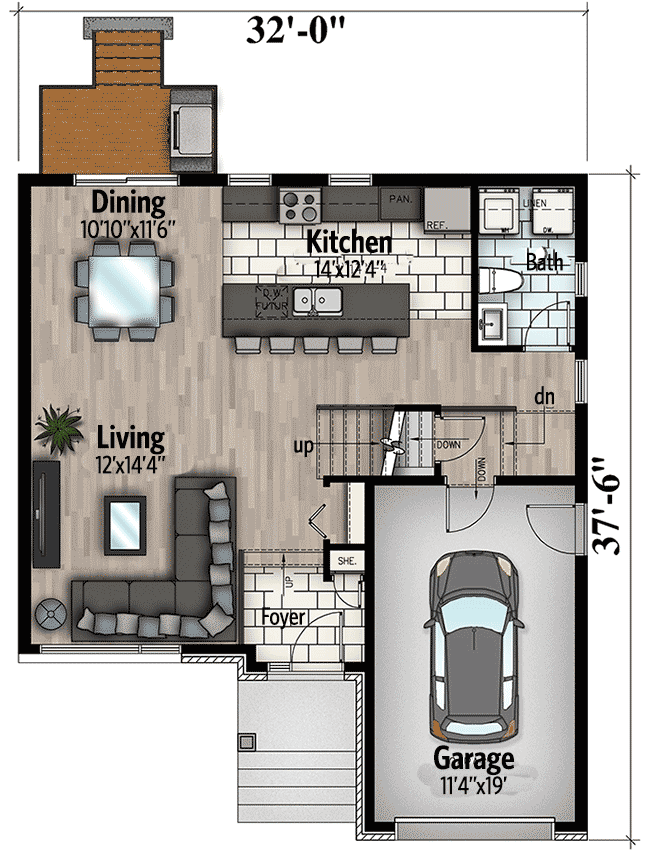

Main Level
floor plan image Main Level

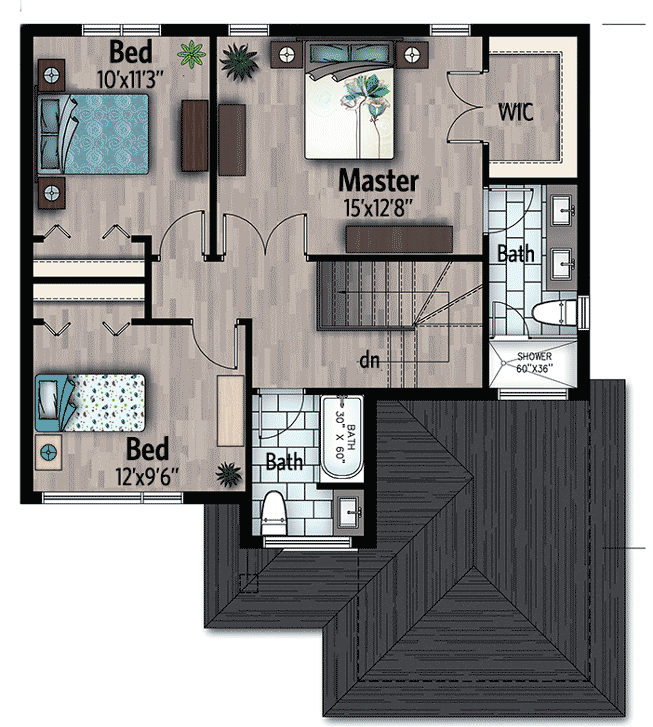

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This two-story Northwest house plan has a contemporary feel and a big, open floor plan.
  • Both the garage and the foyer are sunken by one step.
  • The open layout makes the square footage feel larger.
  • The powder room does double duty as the laundry center to maximize space.
  • Seat five people at the big kitchen island.
  • All the bedrooms are upstairs with the master suite having a private bathroom and big walk-in closet.
What's Included
Please note this plan is designed to the National Building Code of Canada.

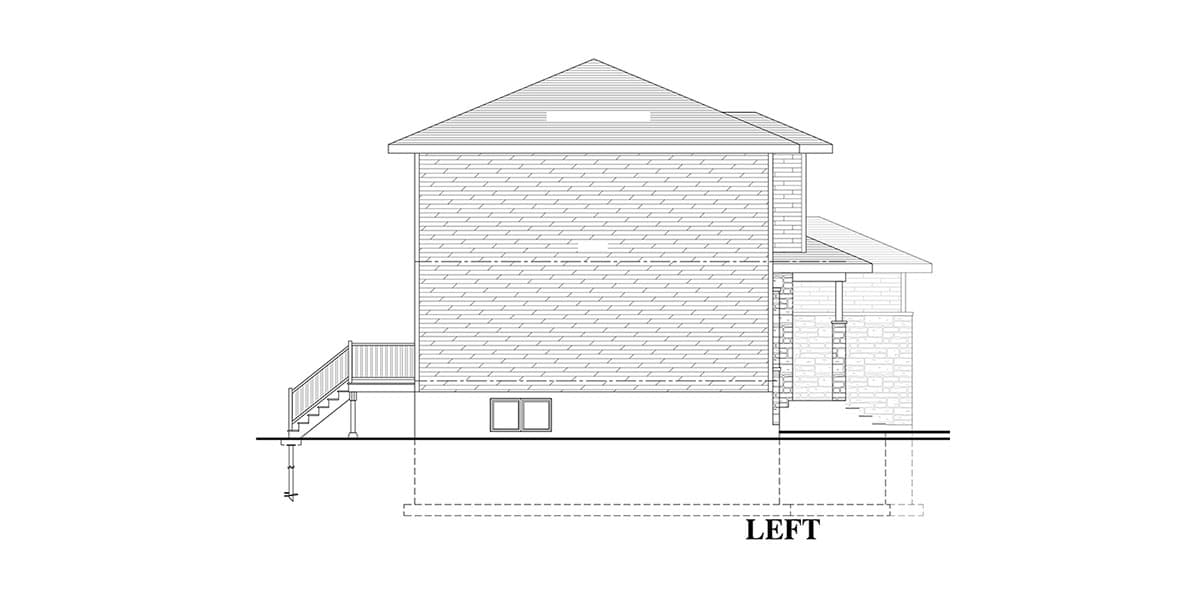

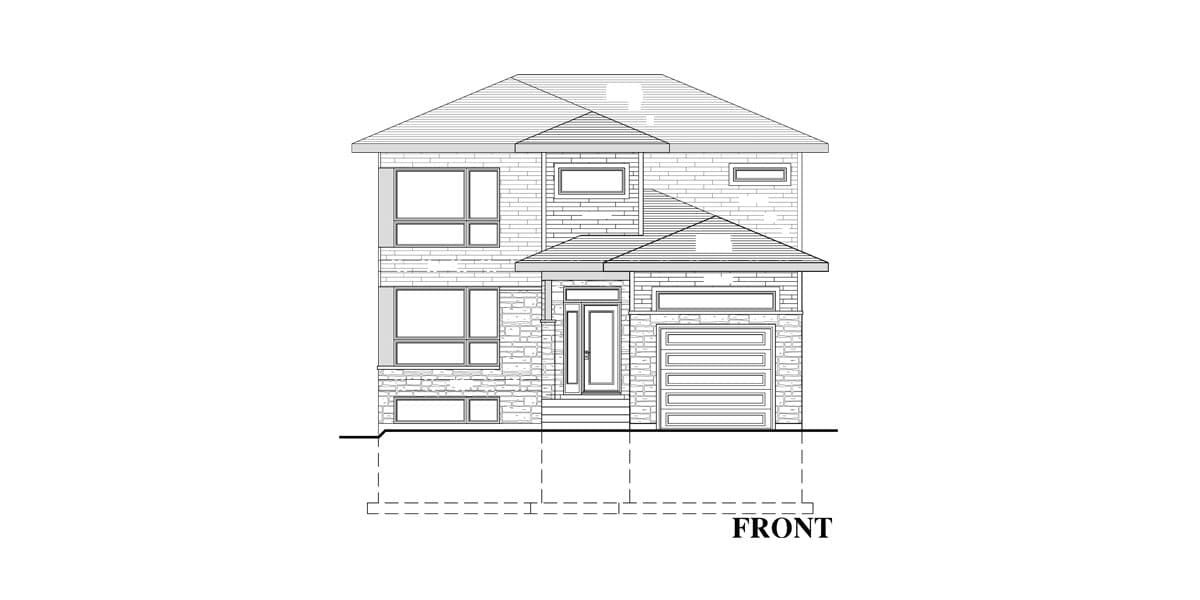

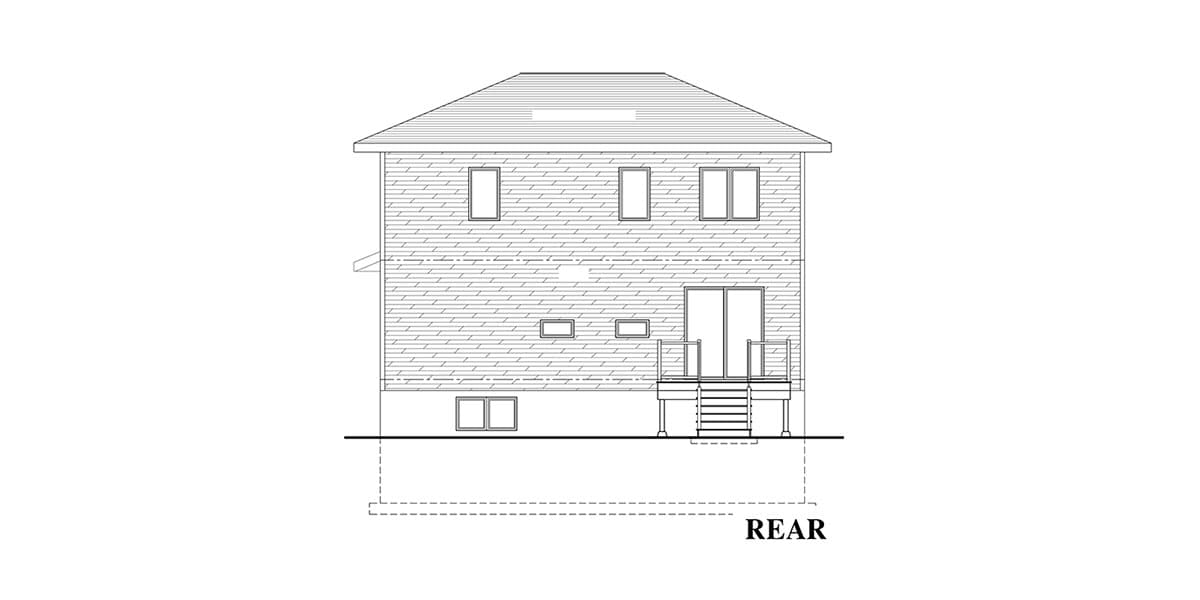

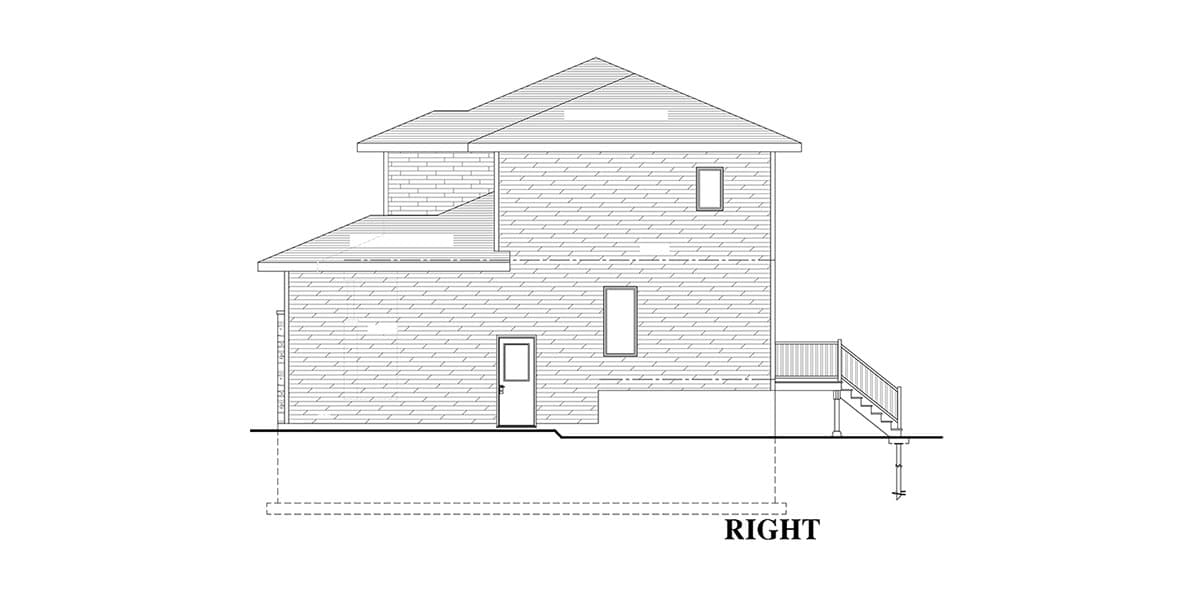

  • Elevations
  • Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
  • Main floor plan w/ structure for the roof above, electrical layout
  • Building section
  • Construction details
  • Suggested lighting plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Framing - layouts with beam sizes and locations
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,580 sq. ft.

1st Floor

767 sq. ft.

2nd Floor

813 sq. ft.

Basement Unfinished

767 sq. ft.

Porch, Front

24 sq. ft.

Porch, Rear

50 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

32' 0"

Depth

37' 6"

Max Ridge Height

27' 0"

Garage

Type

Attached

Area

279 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Room

Ceiling Type

Height

Foyer

Flat

9' 0''

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Contemporary

Northwest

Special Features

Laundry - Upstairs

Master Suite - 2nd Floor

Square Footage Breakdown

Total Heated Area

1,580 sq. ft.

1st Floor

767 sq. ft.

2nd Floor

813 sq. ft.

Basement Unfinished

767 sq. ft.

Porch, Front

24 sq. ft.

Porch, Rear

50 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

32' 0"

Depth

37' 6"

Max Ridge Height

27' 0"

Garage

Type

Attached

Area

279 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Room

Ceiling Type

Height

Foyer

Flat

9' 0''

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Contemporary

Northwest

Special Features

Laundry - Upstairs

Master Suite - 2nd Floor
