Plan 35512GH
Northwest House Plan with Splendid Wrap-Around Porch and Laundry Chute
Heated S.F.
1,440
Beds
2
Baths
2
Stories
2
Cars
2
Floor Plan

Plan 35512GH

Main Level
slide image 0
Ground Level
slide image 1

Plan 35512GH

https://www.architecturaldesigns.com

1-800-854-7852

1-262-521-4596

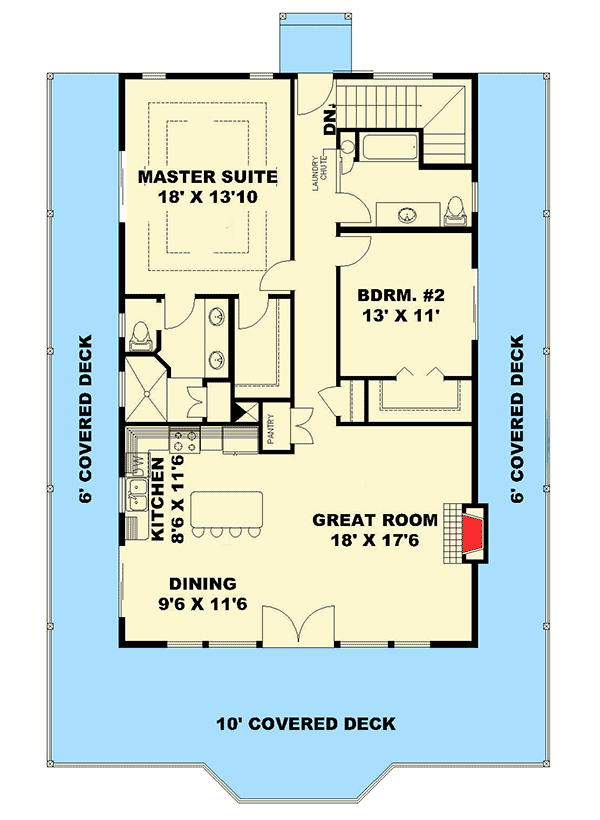

Main Level
floor plan image Main Level

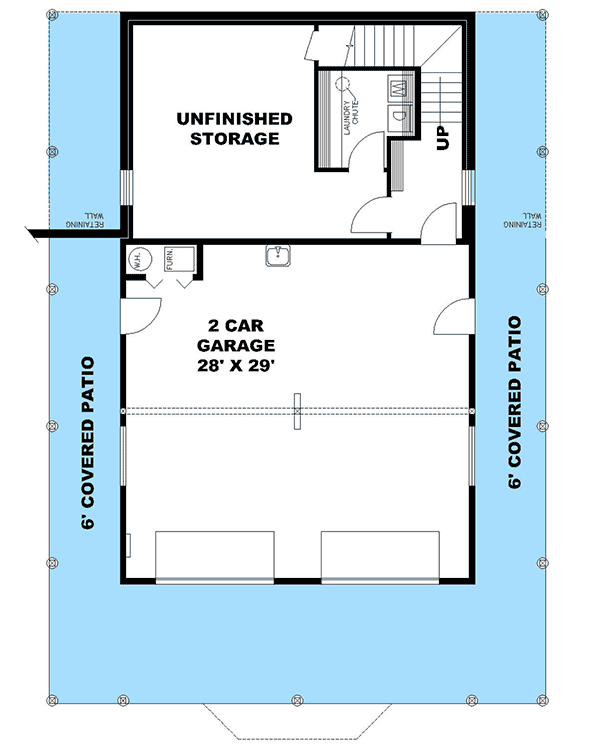

Ground Level
floor plan image Ground Level
Plan Details
  • Explore this new version of the very popular 35245GH!
  • With room for 2 cars plus unfinished storage (and a laundry room with a laundry chute) this house plan gives you lots of flexibility.
  • On the upper floor, the great room, dining area and kitchen are all vaulted and open to each other, creating a spacious feeling.
  • Double doors lead out to the 10'deep covered deck (6' on the sides).
  • The master suite has its own private bath and a walk-in closet.
  • The second bedroom has sliders to the deck and access to the hall bath with a handy laundry chute.
What's Included
  • Exterior Elevations:  The exterior elevations provide exterior views of the house and call out the exterior finish materials, such as siding, stucco, brick, stone, etc. This page also shows roof pitches and materials, and decorative elements, such as columns and window shutters. Sometimes window and door sizes are also shown here.
  • Floor Plans:  The floor plan shows how each room is laid out on each floor of the house. In most cases, the floor plan will include wall sizes, room dimensions, notes about ceiling design, window and door locations and sizes, and other structural layout notes and details.
  • Foundation Plan: This page provides a detailed foundation drawing, including the thickness of the foundation walls, how the foundation is built, footing and wall placement, Rebar schedule, as well as other construction notes and details. This page may also include a floor framing plan.
  • Cross Sections: Cross sections are views from the top to the bottom of the house plan showing structural details related to the construction of the home. They will show the composition of the foundation, interior and exterior walls, roof, floor and stair details. They also show rooflines, ceiling heights, and the relationships between floors. Cross sections may be on a separate page or on various pages throughout the home plan.
  • Basic Electric: This page shows the locations of outlets, switches, and fixtures. It may be on a separate page, or located on the floor plan page.
  • Simple Plumbing: This page shows the locations of the bathtubs, showers, toilets, and sinks. This may be found on the floor plan, or it might be on a separate page.
  • Details: This page includes the structural details for the construction of the house.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,440 sq. ft.

2nd Floor

1,440 sq. ft.

Basement Unfinished

585 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

48' 0"

Depth

33' 10"

Max Ridge Height

22' 1"

Garage

Type

Drive Under

Area

855 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

10' 6"

First Floor

8'

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

N on N

Framing Type

Truss

Architectural Style

Plan Collections

Square Footage Breakdown

Total Heated Area

1,440 sq. ft.

2nd Floor

1,440 sq. ft.

Basement Unfinished

585 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

48' 0"

Depth

33' 10"

Max Ridge Height

22' 1"

Garage

Type

Drive Under

Area

855 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

10' 6"

First Floor

8'

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

N on N

Framing Type

Truss

Architectural Style

Plan Collections
