Northwest House Plan with Stacked Porches and Flex Space
Heated S.F.
2,288
Beds
3 - 4
Baths
3
Stories
2
Floor Plan

Plan 50136PH

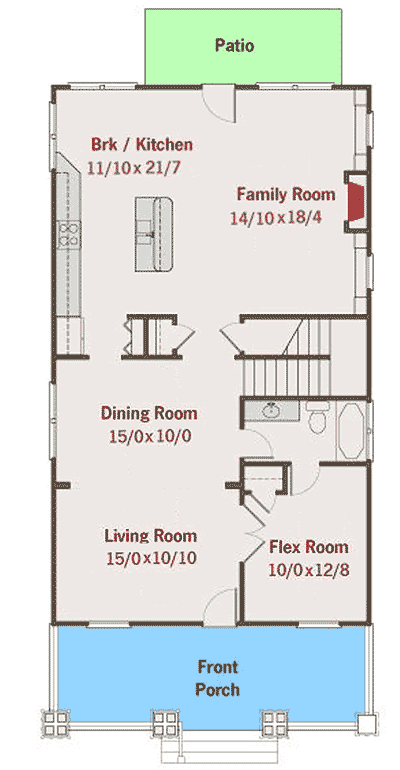

Main Level
slide image 0

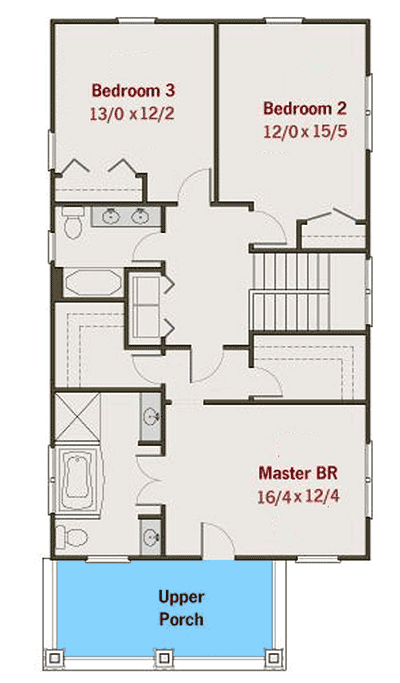

2nd Floor
slide image 1

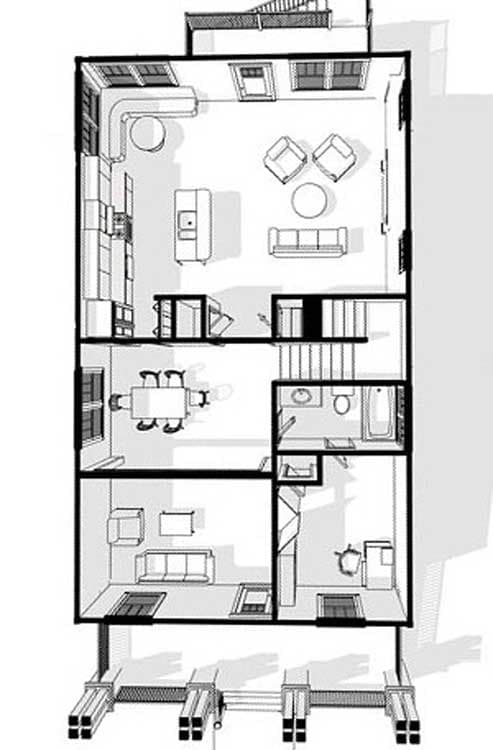

3D Main Floor
slide image 2

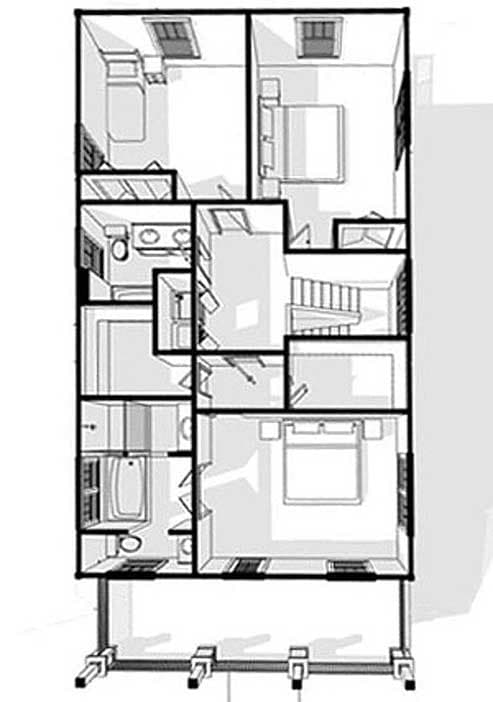

3D Second Floor
slide image 3

Plan 50136PH

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
3D Main Floor
floor plan image 3D Main Floor
3D Second Floor
floor plan image 3D Second Floor
Plan Details
  • Long and lean, this two-story Northwest house plan has delightful stacked porches in the front.
  • It packs a lot of rooms within its narrow footprint and has a drive-under garage on the left side.
  • In addition to the front porch, the main level offers a patio out back.
  • Both the formal rooms in the front of the home and the informal areas in back boast a wonderful open layout.
  • A row of built-ins flank the family room fireplace.
  • All three bedrooms are upstairs but the master suite takes the front room, complete with a private balcony.
  • Two walk-in closet in the master lie near the washer/dryer closet in the hall.
  • Related Plans: Get different exteriors with house plans 50137PH, 50141PH and 50143PH.
What's Included
  • Foundation Plan: Includes detailed information about the foundation layout including concrete walls, footings, pads, posts, beams, bearing walls, and foundation notes. If the home features a basement, the first-floor framing details may also be included on this plan. If your plan features slab construction rather than a basement, the plan shows footings and details for a monolithic slab. This page, or another in the set, may include a sample plot plan for locating your house on a building site. Additional sheets focus on foundation cross-sections and other details. In some instances a designer may only provide what is commonly referred to as a foundation schematic or plumbing plan. These types of drawings only show the footprint of the foundation and do not include foundation construction details.
  • Floor Plans: Show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and include locations of doors and windows. Plans will also include and markers indicating cross-section details provided elsewhere in the plans if applicable.
  • Building Sections: Building sections show changes in floor, ceiling, or roof height, and / or the relationship of one level to another. These sections show how the various parts of the house fit together and are valuable during construction.
  • Electrical Plans: The electrical plan offers suggested locations with notes for all lighting, outlets, switches, and some other electrical appliances. A layout is provided for each level, as well as basements, garages, or other structures. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. These details should be designed by your electrician.
  • Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
  • Construction Details: Most drawings sets include typical construction details. These details may include the foundation, interior walls, exterior walls, floors, stairways, and / or roof details. NOTE: A majority of our plans include construction details but some do not.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Framing Plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,288 sq. ft.

1st Floor

1,144 sq. ft.

2nd Floor

1,144 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

30' 0"

Depth

50' 0"

Max Ridge Height

34' 0"

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Framing Type

Stick

Architectural Style

Bungalow

Craftsman

New Orleans

Northwest

Special Features

Flex Room

Laundry - Upstairs

Master Suite - 2nd Floor

Stacked Porches

Square Footage Breakdown

Total Heated Area

2,288 sq. ft.

1st Floor

1,144 sq. ft.

2nd Floor

1,144 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

30' 0"

Depth

50' 0"

Max Ridge Height

34' 0"

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Framing Type

Stick

Architectural Style

Bungalow

Craftsman

New Orleans

Northwest

Special Features

Flex Room

Laundry - Upstairs

Master Suite - 2nd Floor

Stacked Porches
