Plan 3197D
Nostalgic and Convenient
Heated S.F.
2,614
Beds
3
Baths
2
Stories
2
Cars
2
Floor Plan

Plan 3197D

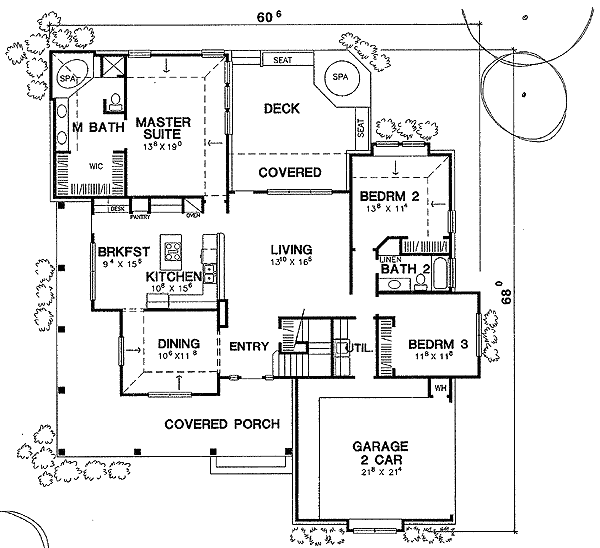

Main Level
slide image 0
2nd Floor
slide image 1

Plan 3197D

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details

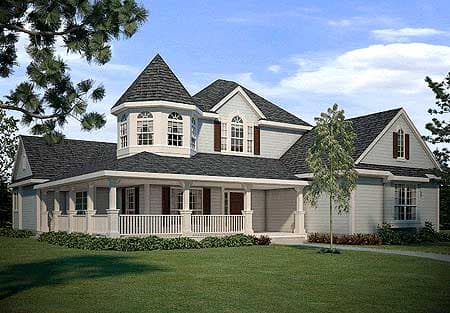

  • With its echoes of the country and of the Victorian era, this home satisfies your longing for tradition while providing modern conveniences and luxuries.
  • Entering from the wrap-around porch, you see the formal dining room to one side and the living room straight ahead. Ten-foot ceilings are found in most rooms, with 10-foot slopes to 12-foot flat ceilings in the dining room, master bedroom and bedroom two.
  • The kitchen-breakfast room combination features a cooktop island, pantry closet and built-in desk.
  • Both the living room and the master bedroom overlook the partly covered deck in back with its built-in seating and spa tub. Another spa tub is found in the compartmented master bath, which also includes a separate shower, twin sinks and a walk-in closet. Bedrooms two and three share the other bath, which has its own linen closet.
  • Upstairs, the space is occupied by a huge game room, storage space and a delightful reading area placed in a turret.
  • IMPORTANT NOTE: Due to state regulations, the CAD version may not be sold to residents of Alabama, Louisiana, New Mexico, Tennessee and Texas.  If residing in any of the aforementioned states, the PDF version does not come with a release to make plan modifications. Please contact us for more information.
What's Included

  • Foundation plan
  • Fully dimensioned floor plan

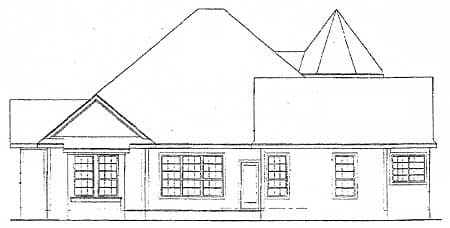

  • Four elevations (front, rear, left & right)
  • Electrical plan
  • Building cross section
  • Roof framing
  • Ceiling framing
  • Cabinet elevations

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,614 sq. ft.

1st Floor

1,964 sq. ft.

2nd Floor

650 sq. ft.

Basement Unfinished

1,964 sq. ft.

Porch, Combined

310 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

60' 6"

Depth

68' 0"

Max Ridge Height

34' 0"

Garage

Type

Attached

Area

466 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Country

Victorian

Special Features

Formal Dining

Game/Rec Room

Master Suite - 1st Floor

Wrap Around Porch
