Plan 72493DA
Nostalgic Country Farmhouse
Heated S.F.
3,291
Beds
4
Baths
3.5
Stories
2
Cars
2
Floor Plan

Plan 72493DA

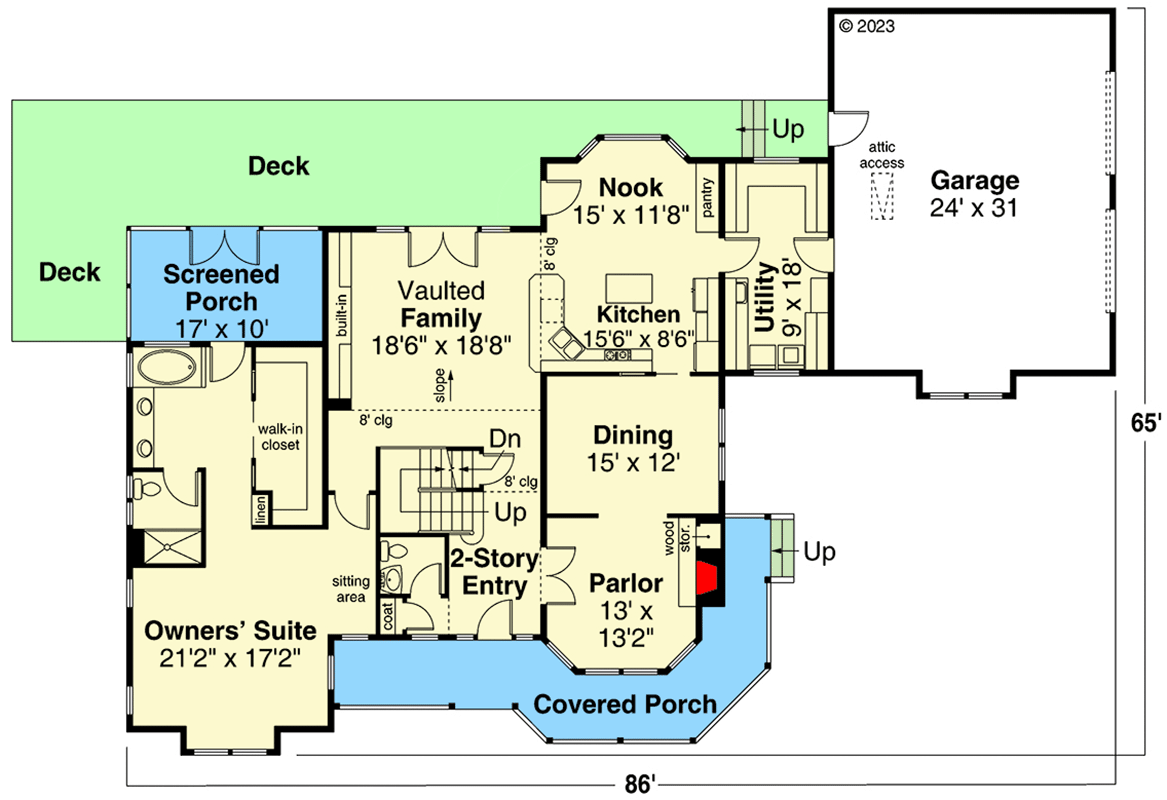

Main Level
slide image 0

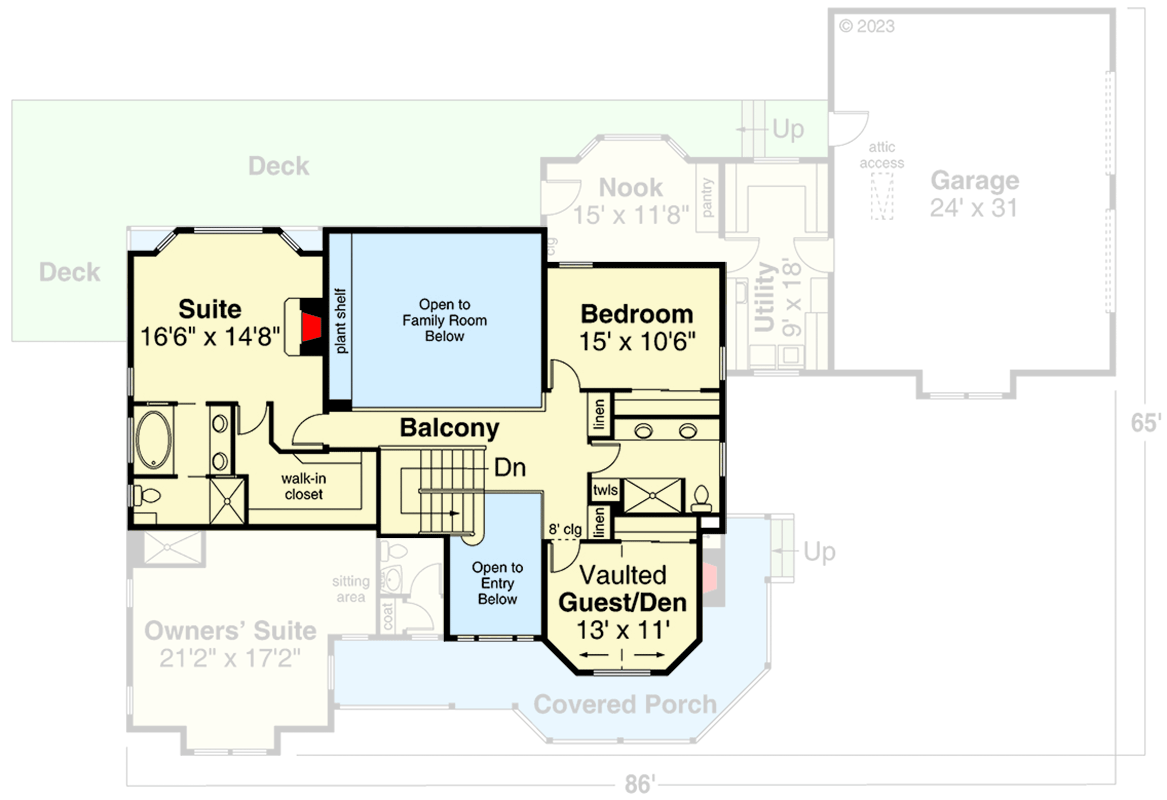

2nd Floor
slide image 1

Plan 72493DA

1-800-854-7852

1-262-521-4596

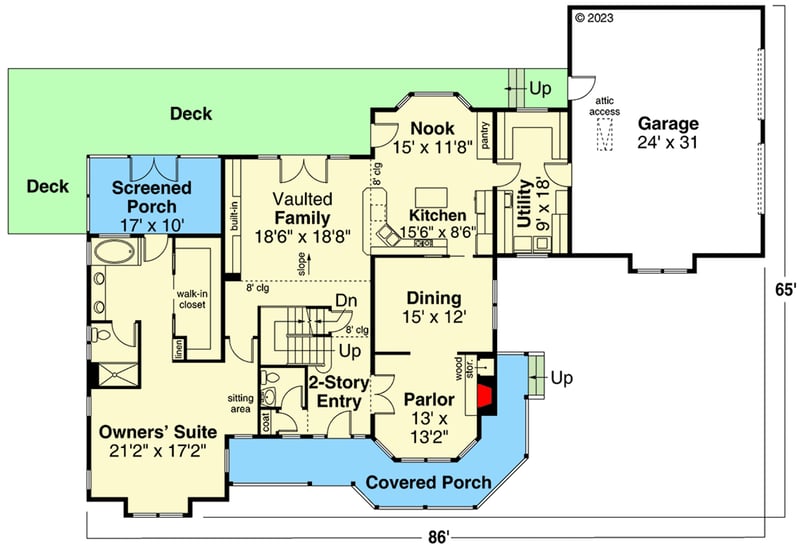

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • Stone veneer wainscoting and chimney, nostalgic wooden posts, and railings.
  • Two-story entry leads into vaulted family room open to sunny nook and kitchen.
  • Screened porch off master suite; large utility/mud room links kitchen & garage.
What's Included
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

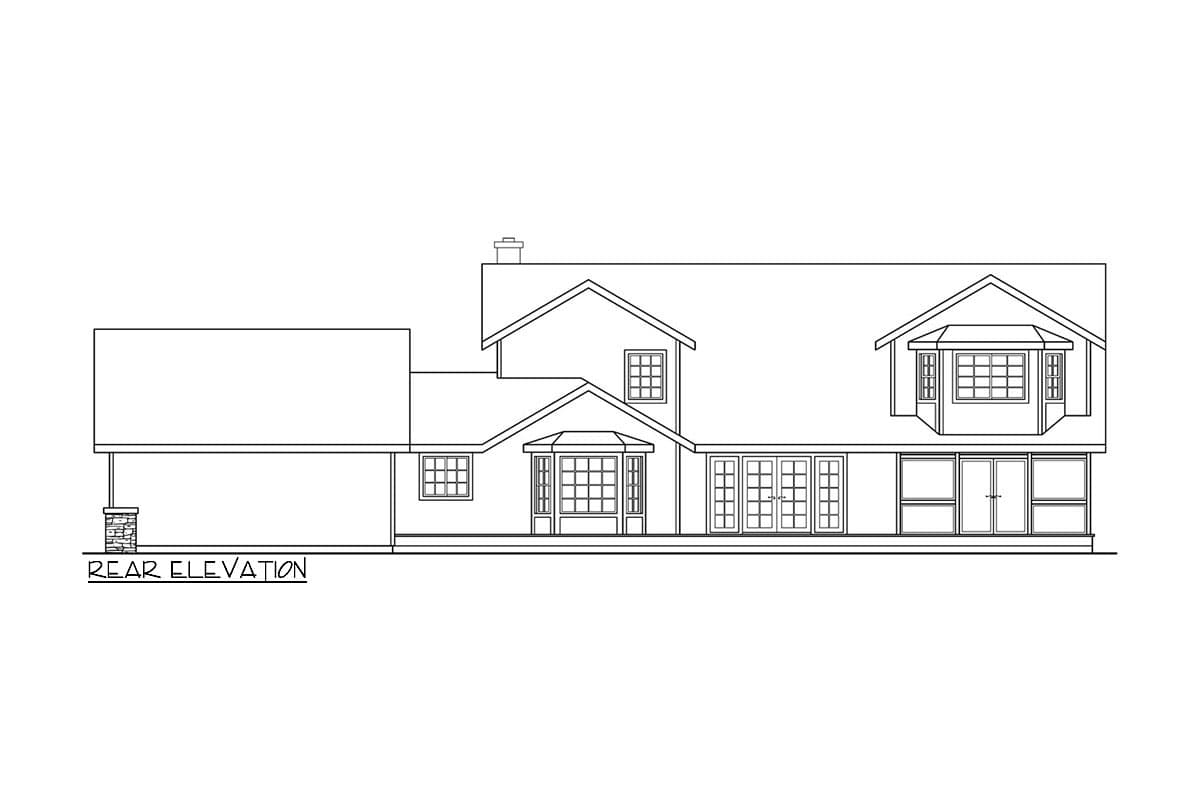

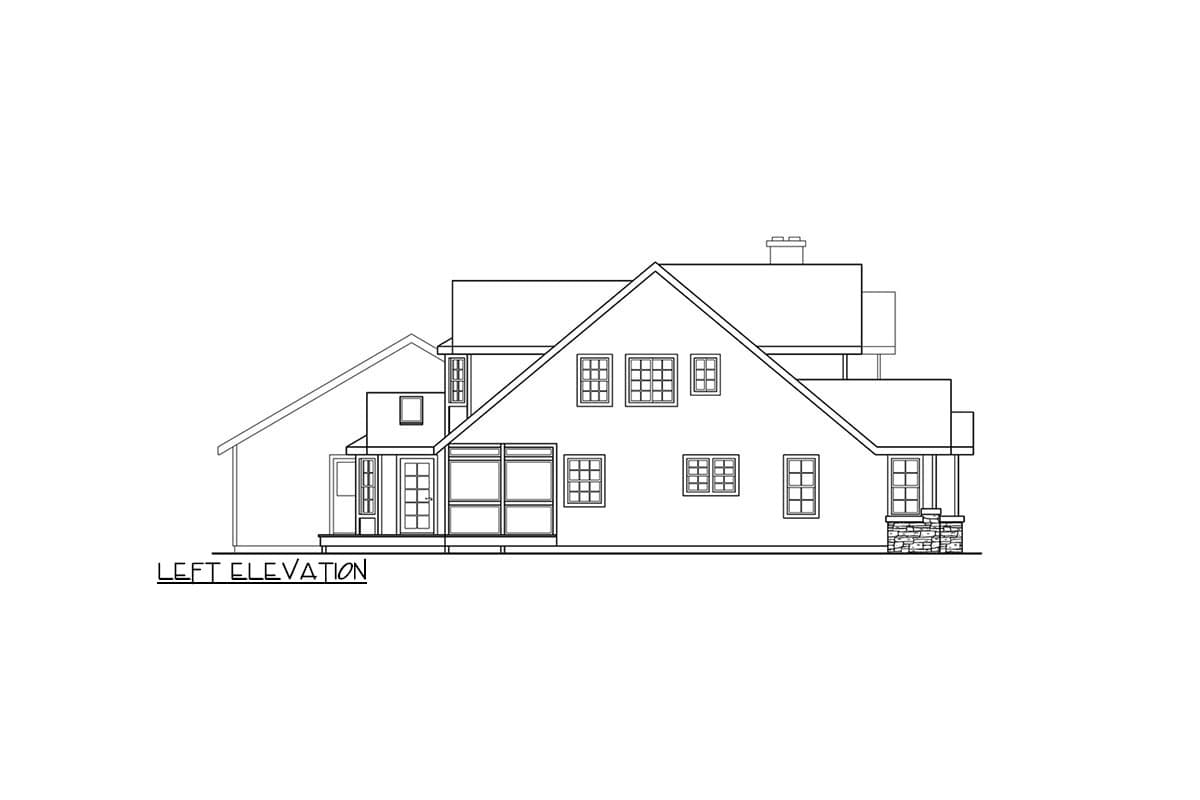

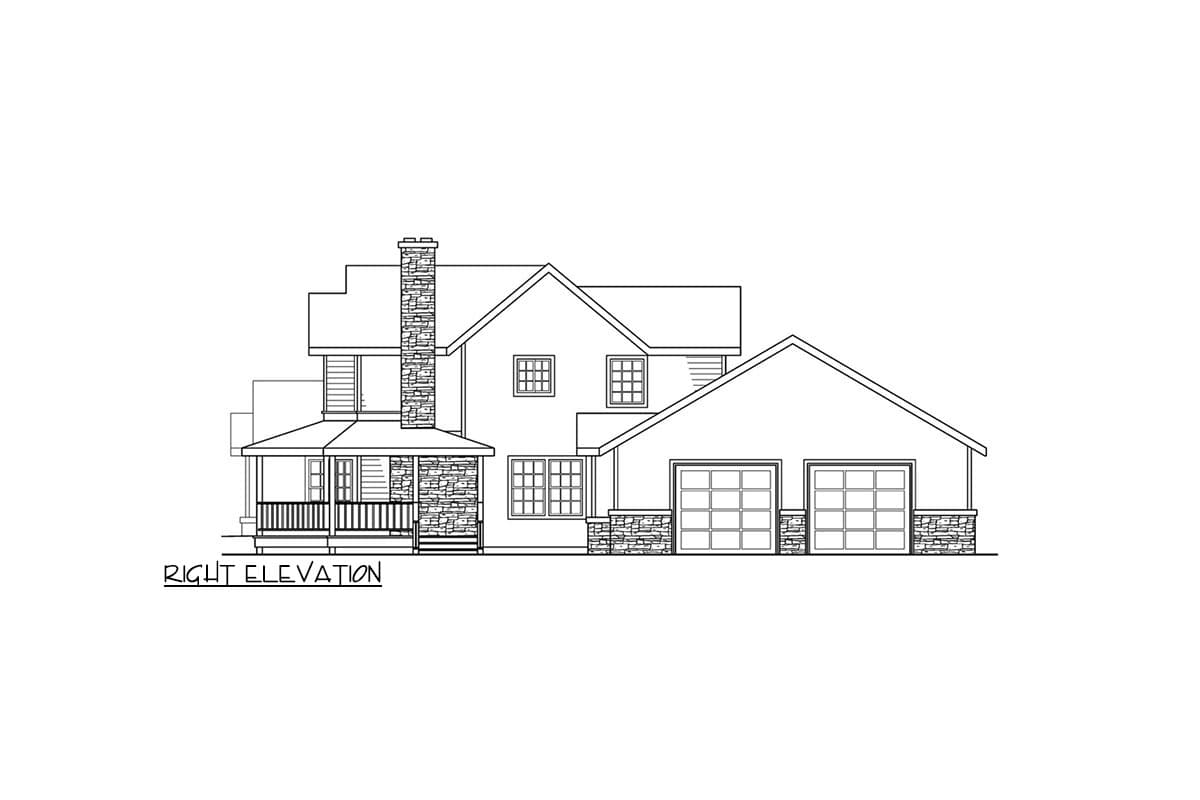

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,291 sq. ft.

1st Floor

2,183 sq. ft.

2nd Floor

1,108 sq. ft.

Basement Unfinished

2,118 sq. ft.

Screened Porch

170 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

86' 0"

Depth

65' 0"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

808 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Country

Farmhouse

Special Features

Breakfast Nook

Butler Walk-in Pantry

Master Suite - 1st Floor

Master Suite - Sitting Area

Mudroom

Square Footage Breakdown

Total Heated Area

3,291 sq. ft.

1st Floor

2,183 sq. ft.

2nd Floor

1,108 sq. ft.

Basement Unfinished

2,118 sq. ft.

Screened Porch

170 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

86' 0"

Depth

65' 0"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

808 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Country

Farmhouse

Special Features

Breakfast Nook

Butler Walk-in Pantry

Master Suite - 1st Floor

Master Suite - Sitting Area

Mudroom
