Plan 680308VR
One-Bed ADU-Friendly House Plan - 646 Sq Ft
Heated S.F.
646
Beds
1
Baths
1.5
Stories
2
Cars
1
Floor Plan

Plan 680308VR

Main Level
slide image 0
2nd Floor
slide image 1

Plan 680308VR

1-800-854-7852

1-262-521-4596

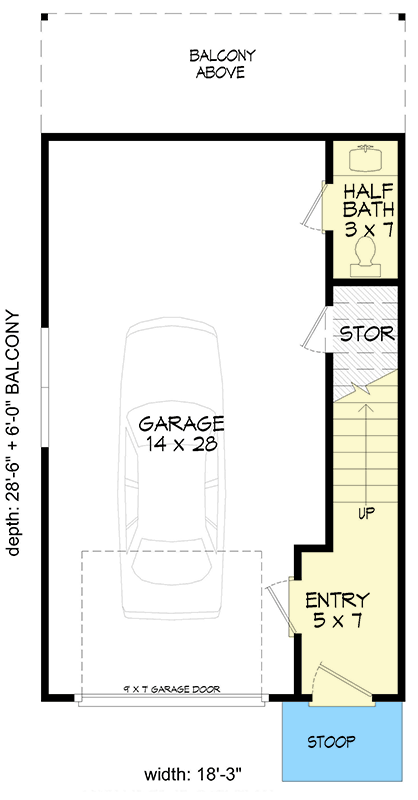

Main Level
floor plan image Main Level

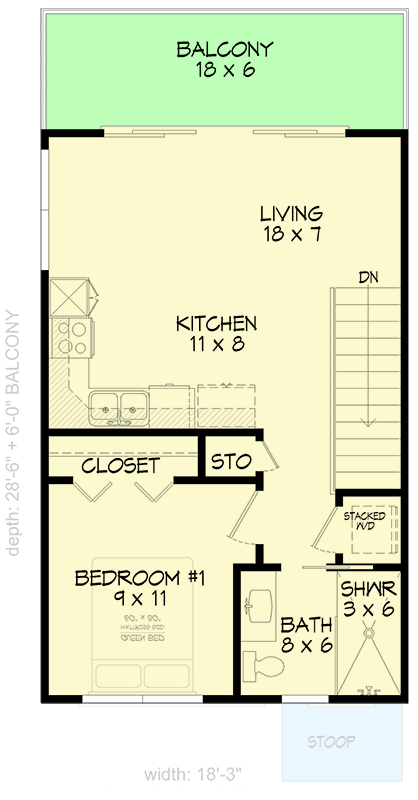

2nd Floor
floor plan image 2nd Floor
Plan Details

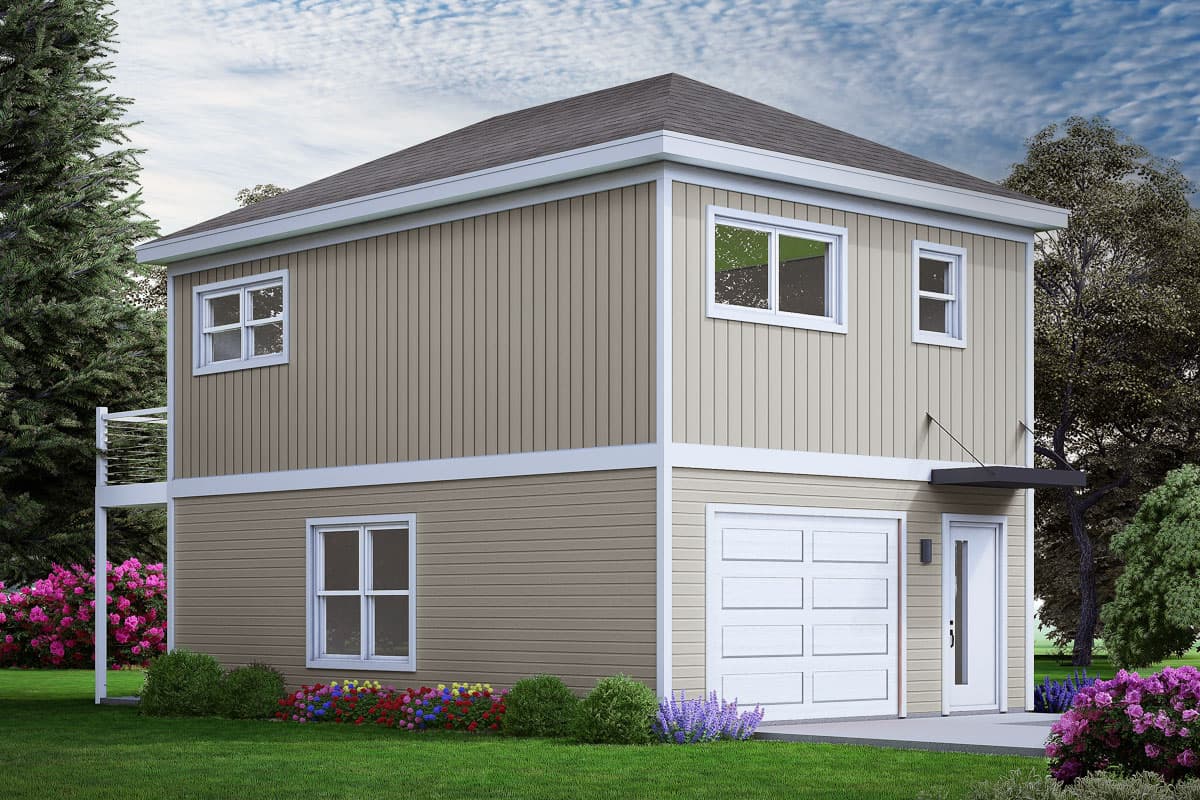

  • A hipped roof tops this one-bed minimalist house plan which - at just 632 square feet - could be used as an ADU, guest or carriage house.
  • All the living space is on the second floor except for a ground floor entry foyer and a half bath.

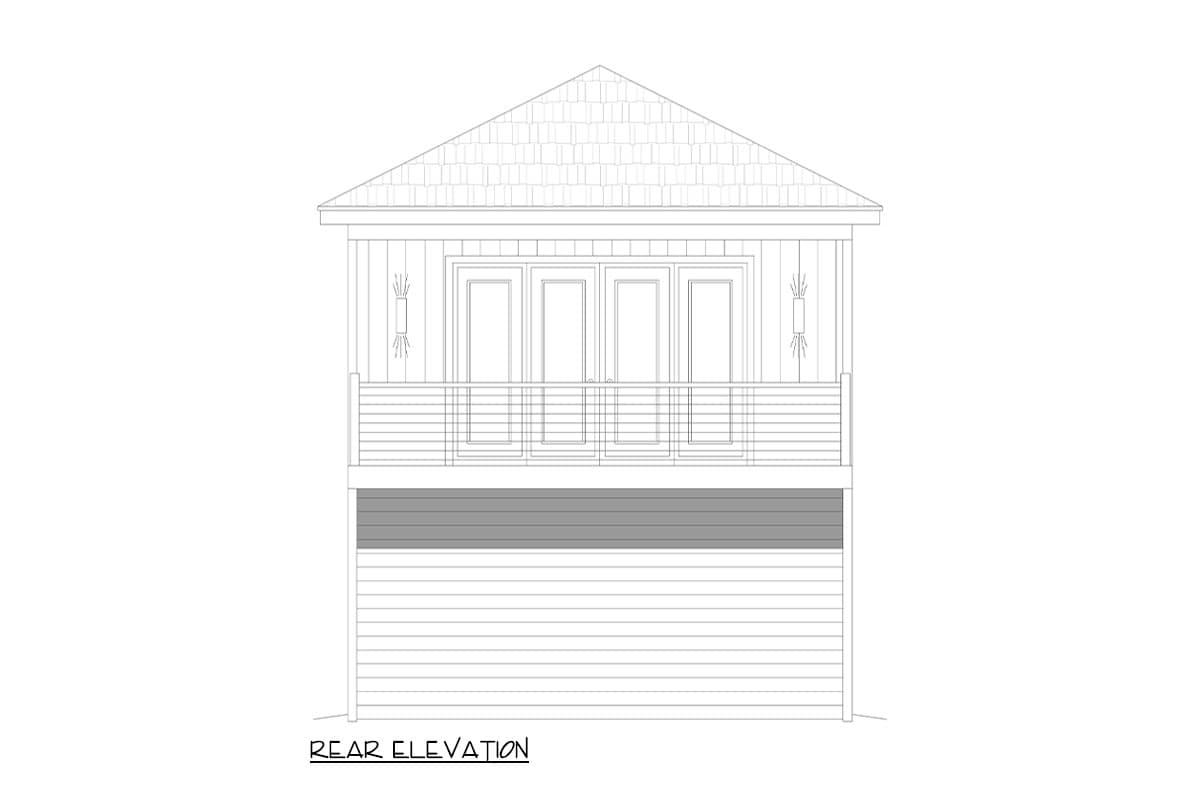

  • The main living area is all open and has a 6'-deep balcony in back. The efficient galley kitchen has everything right at your fingertips.
  • A compact washer/dryer closet and a bathroom with a large shower are located just outside the bedroom.
  • Related Plans: Get alternate versions with house plans 68785VR, 68473VR and 68938VR.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions

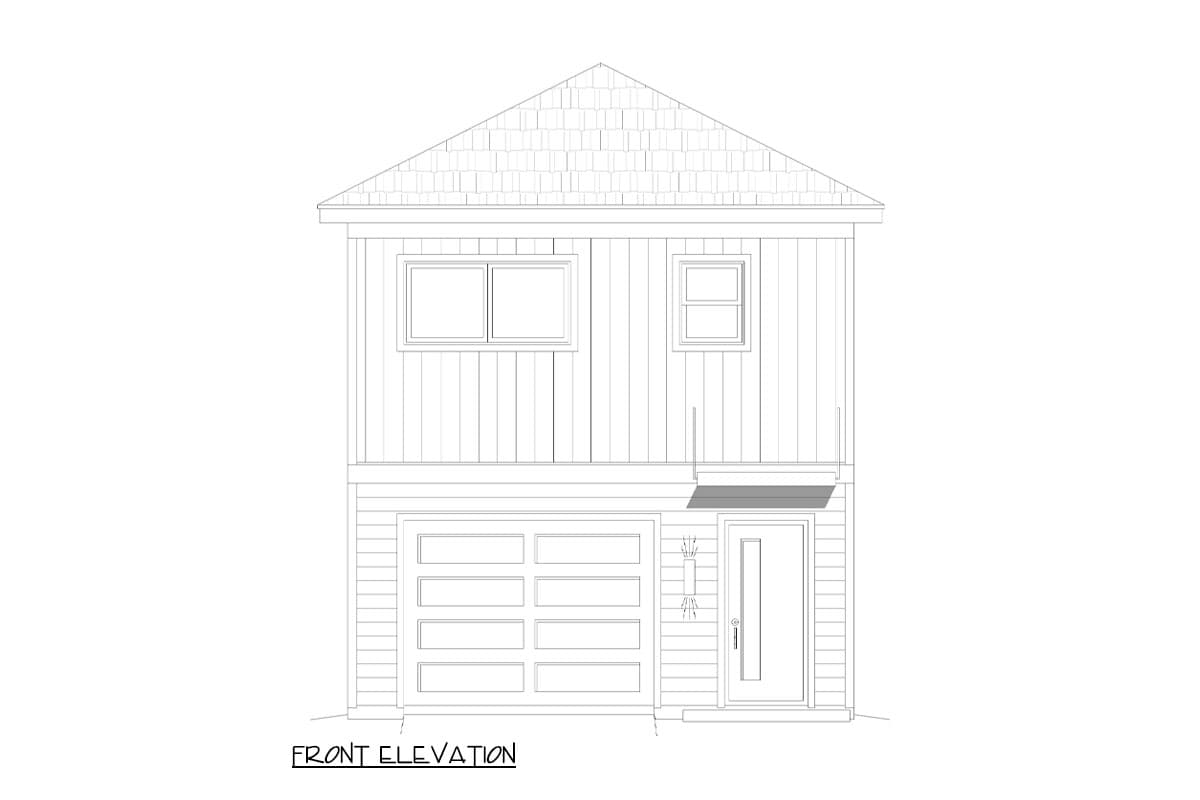

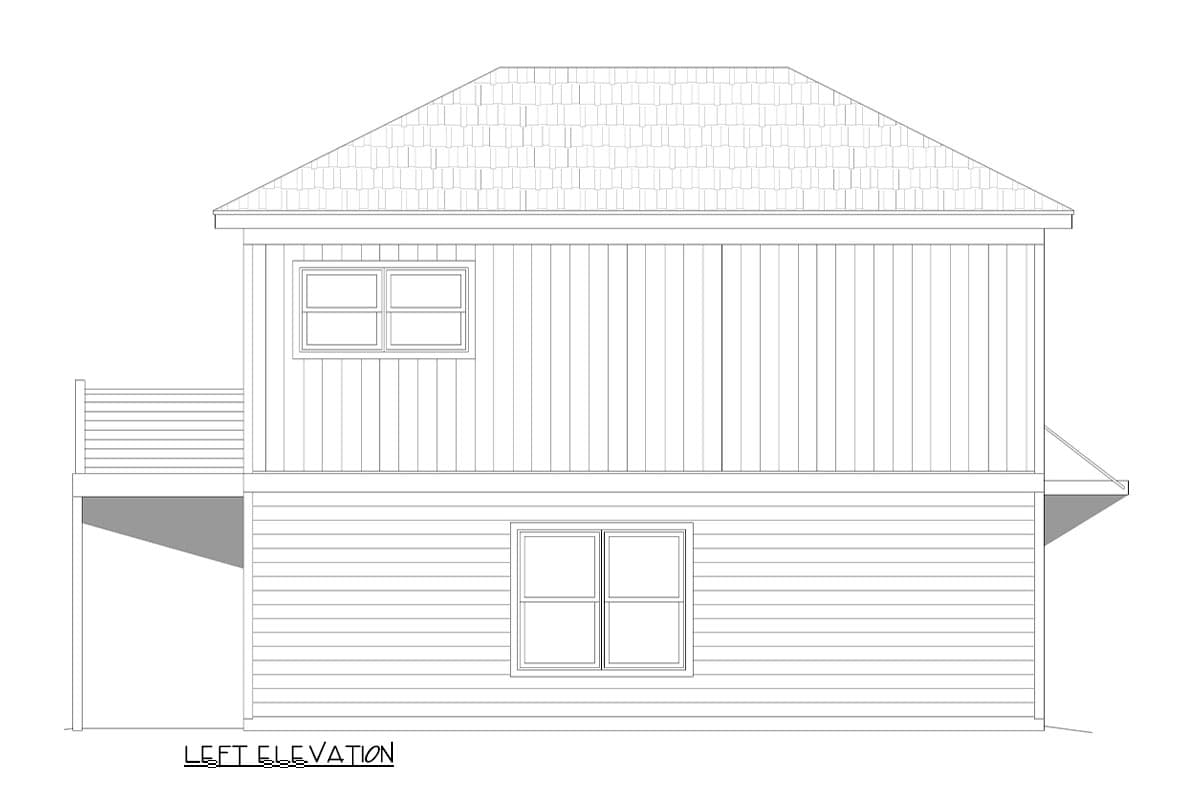

  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

646 sq. ft.

1st Floor

126 sq. ft.

2nd Floor

520 sq. ft.

Balcony / Veranda

110 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

18' 3"

Depth

26' 6"

Max Ridge Height

23' 1"

Garage

Type

Attached

Area

394 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

9'

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Laundry - Upstairs

Master Suite - 2nd Floor

Plan Collections

ADU

Square Footage Breakdown

Total Heated Area

646 sq. ft.

1st Floor

126 sq. ft.

2nd Floor

520 sq. ft.

Balcony / Veranda

110 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

18' 3"

Depth

26' 6"

Max Ridge Height

23' 1"

Garage

Type

Attached

Area

394 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

9'

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Laundry - Upstairs

Master Suite - 2nd Floor

Plan Collections

ADU
