Plan 72466DA
One-bed Country Cottage - 960 Sq Ft
Heated S.F.
960
Beds
1
Baths
1
Stories
1
Floor Plan

Plan 72466DA

Main Level
slide image 0
Main Level - 2x4 Exterior Wall Version
slide image 1

Plan 72466DA

1-800-854-7852

1-262-521-4596

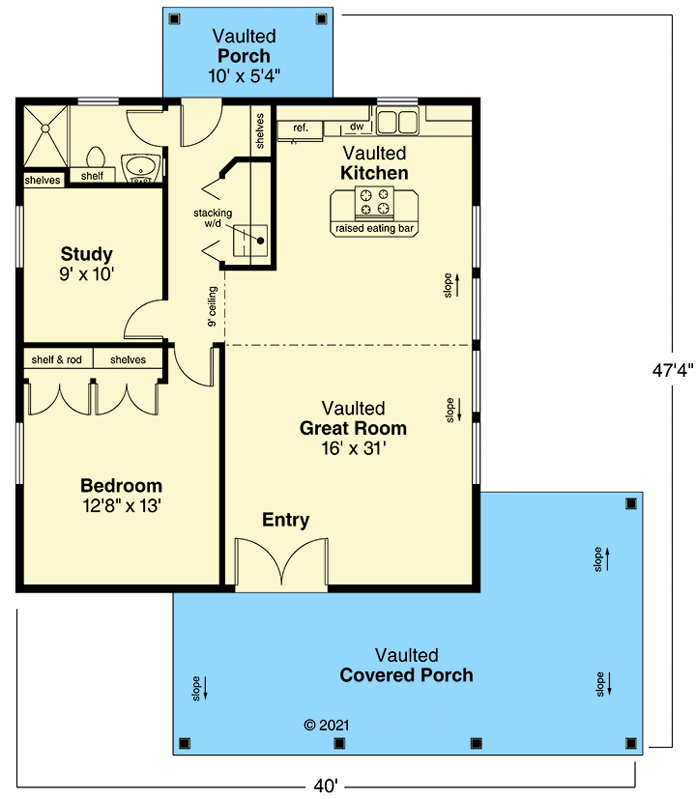

Main Level
floor plan image Main Level

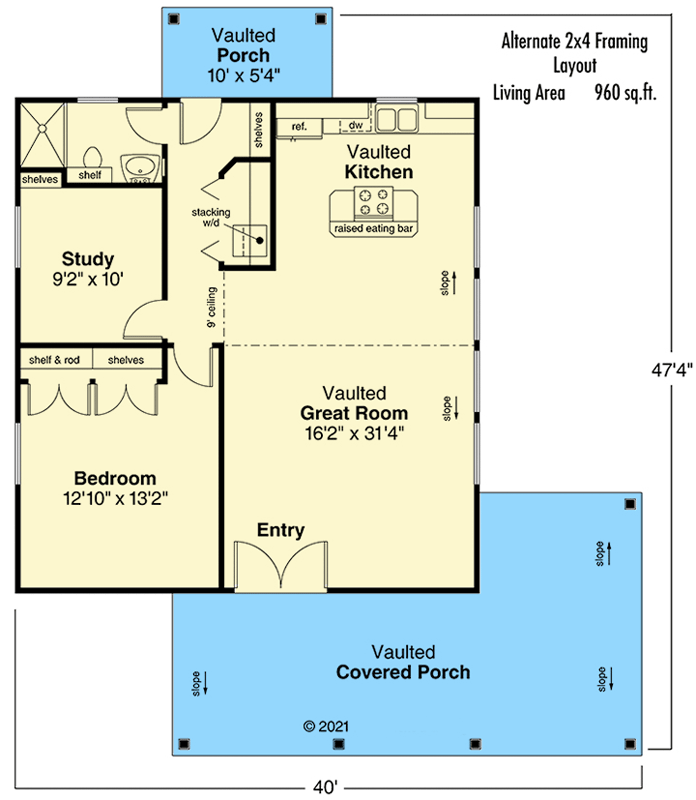

Main Level - 2x4 Exterior Wall Version
floor plan image Main Level - 2x4 Exterior Wall Version
Plan Details
  • People who feel drawn to simplicity will find much to appreciate in this home plan. Call it a cabin, a bungalow or a vacation retreat. Whichever designation you chose, this home is charming. And being small, it's as economical to build as it is to maintain.
  • Slender wooden posts support and define a long front porch that wraps around to the right. Exposed rafter tails along the roof's edge create visual interest there, while cedar shake shingles give a rustic texture to the exterior, above the batt and board siding.
  • Entering, you step through one of the two atrium doors into a surprisingly large and sunny vaulted great room. Windows line much of the side wall, and a kitchen with a large work island fills the rear. If a wood or gas flame stove is part of your dream, the front corner by the door is an ideal location.
  • A stacked washer/dryer is nearby, hidden behind doors that front the hallway leading to the back porch. Shelves fill the other half of the alcove. Its lower half could be outfitted with a folding counter atop storage cabinets. More storage is available in a smaller alcove across from the bathroom.
  • Two rooms fill the rest of the left side. The house plan's front bedroom is larger and boasts a wide closet. The second room could be used as a study or another bedroom. A pull-down ladder there provides handy attic access.
  • In the basement version, the width of the home is extended 4' and the basement stairs will run in the great room alongside the master bedroom wall.
What's Included
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

960 sq. ft.

1st Floor

960 sq. ft.

Porch, Front

382 sq. ft.

Porch, Rear

54 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

47' 4"

Max Ridge Height

21' 0"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Cottage

Vacation

Special Features

Library/Study

Master Suite - 1st Floor
