Plan 29819RL
One Bed Garage Apartment with Parking for 3 Cars - 650 Sq Ft
Heated S.F.
650
Beds
1
Baths
1
Stories
2
Cars
3
Floor Plan

Plan 29819RL

Main Level
slide image 0
2nd Floor
slide image 1

Plan 29819RL

1-800-854-7852

1-262-521-4596

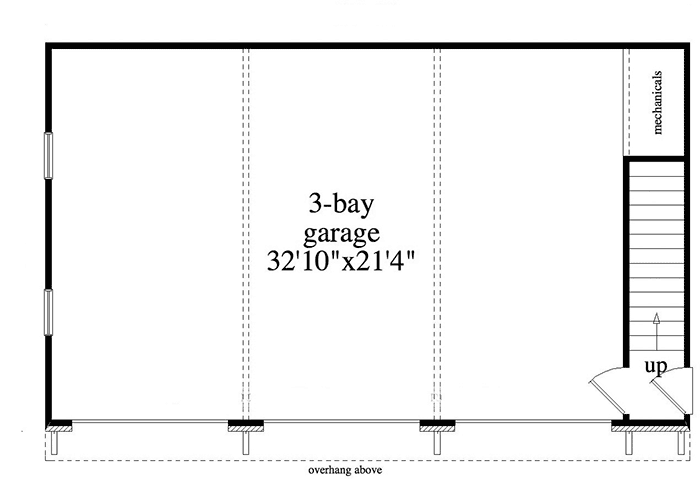

Main Level
floor plan image Main Level

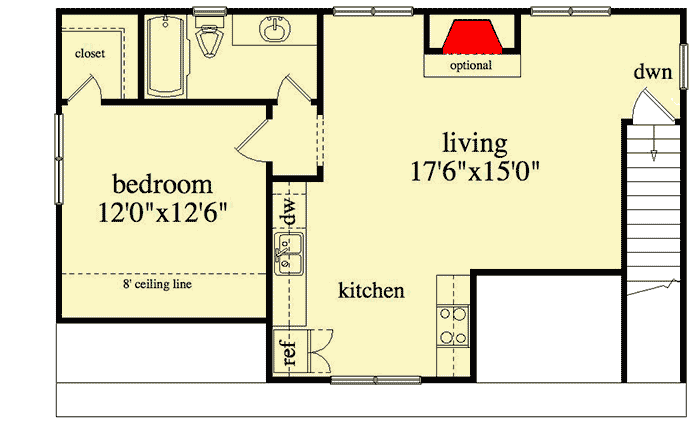

2nd Floor
floor plan image 2nd Floor
Plan Details
  • A shed dormer lets light into the second floor of this 650 square foot one bed garage apartment plan with 719 square feet of parking for 3 cars on the ground level.
  • A full kitchen and a fireplace make this level feel like a real home.
  • The bedroom is large with a walk-in closet and full bath.
  • Related Plans: See these alternate 3 car carriage house plans - 29827RL and 29819RL.
What's Included

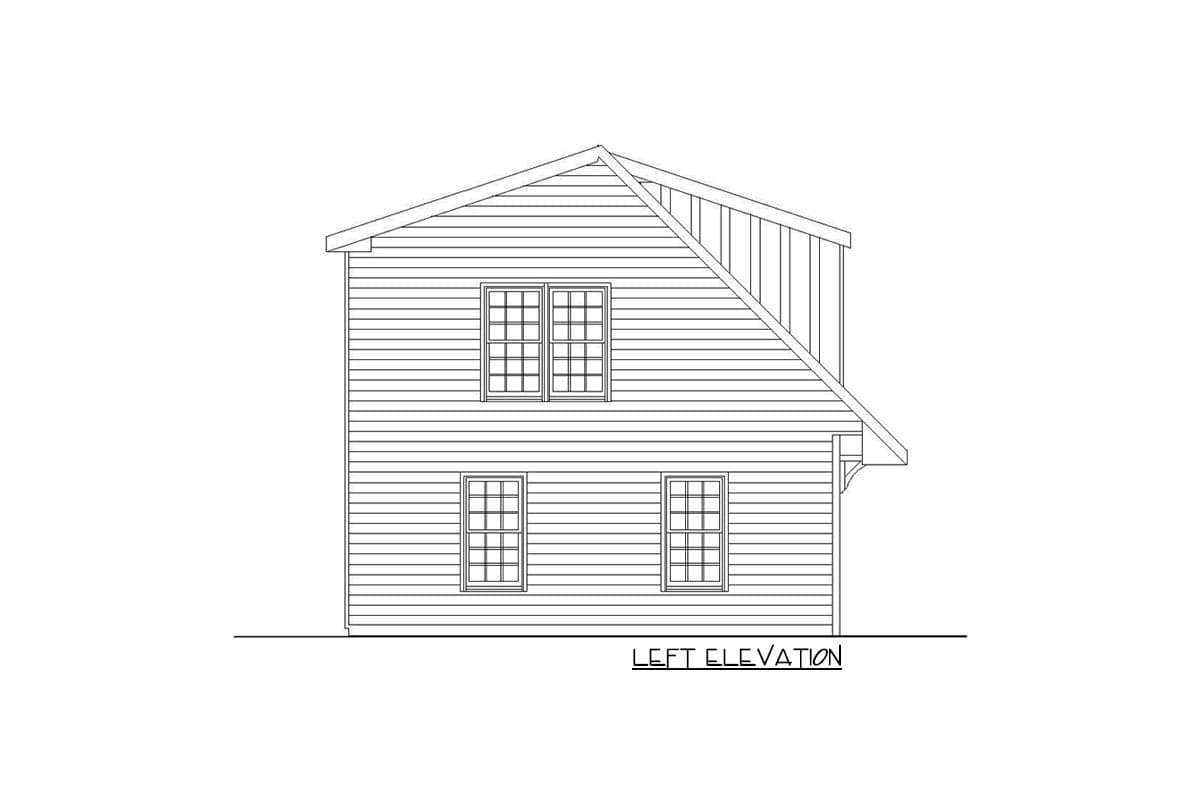

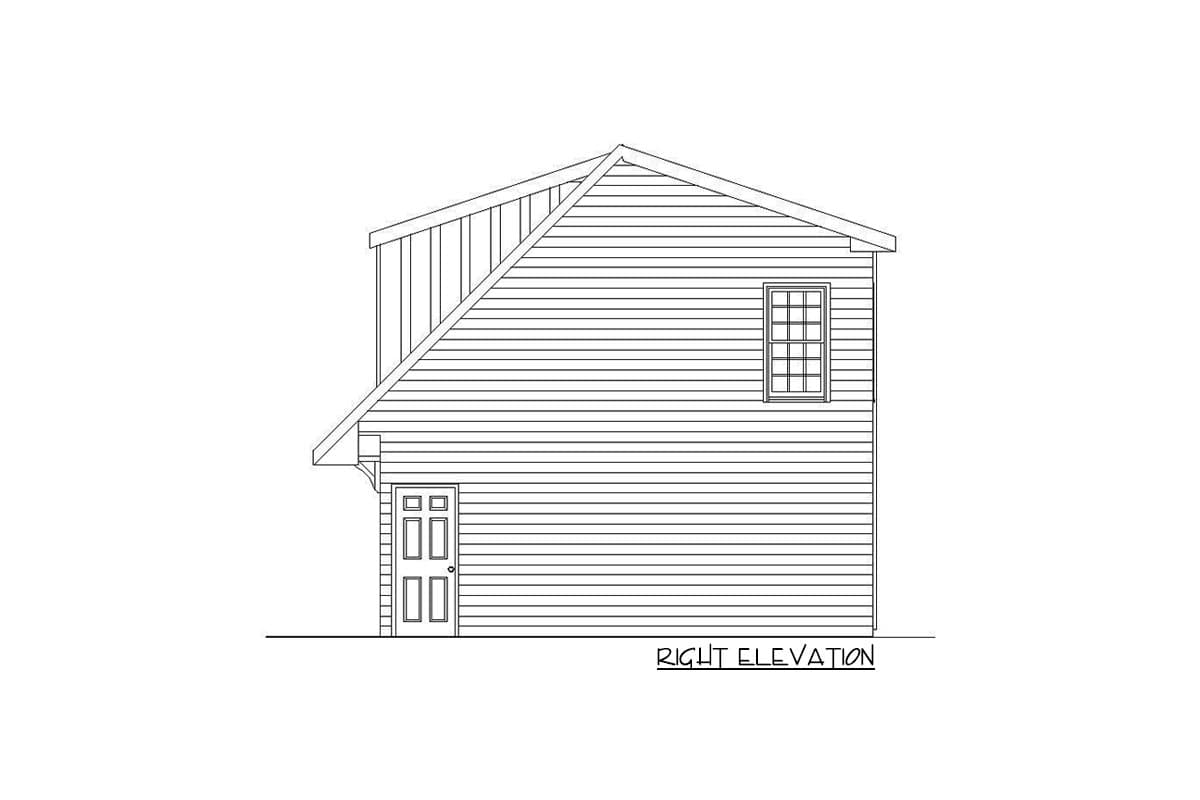

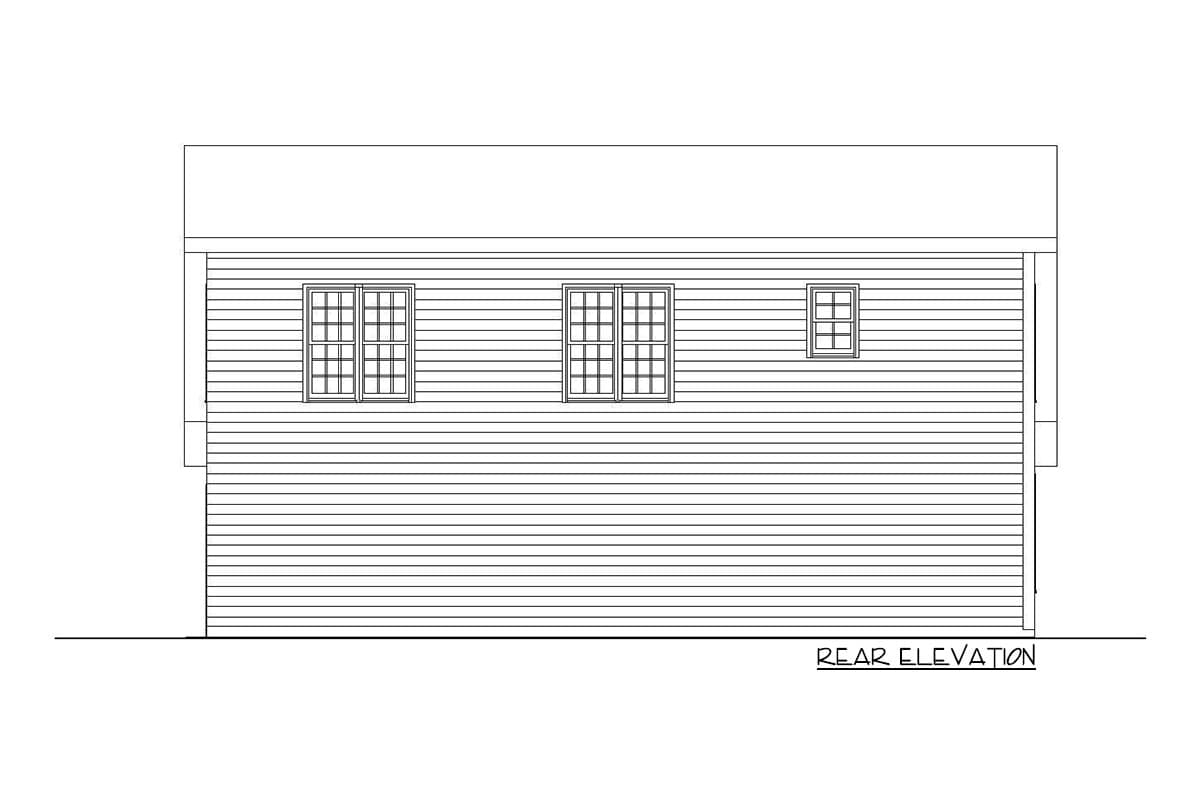

  • All 4 elevations (front, rear, left, right)
  • 2D Roof overview
  • 3D Roof overview
  • Main Level Layout
  • Basement Level Layout
  • Cross-Section (Typical Wall, Stairs (if applicable))
  • Typical Details

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

650 sq. ft.

1st Floor

650 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

37' 0"

Depth

22' 4"

Max Ridge Height

22' 0"

Garage

Type

Detached

Area

719 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

14 on 12

Secondary Pitch

5 on 12

Framing Type

Stick

Architectural Style

Carriage

Special Features

Master Suite - 2nd Floor

Square Footage Breakdown

Total Heated Area

650 sq. ft.

1st Floor

650 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

37' 0"

Depth

22' 4"

Max Ridge Height

22' 0"

Garage

Type

Detached

Area

719 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

14 on 12

Secondary Pitch

5 on 12

Framing Type

Stick

Architectural Style

Carriage

Special Features

Master Suite - 2nd Floor
