One Floor Living with Privacy
Heated S.F.
1,600
Beds
3
Baths
2.5
Stories
1
Cars
2
Photos
Floor Plan

Plan 51706HZ

Main Level
slide image 0

Plan 51706HZ

1-800-854-7852

1-262-521-4596

Main Level

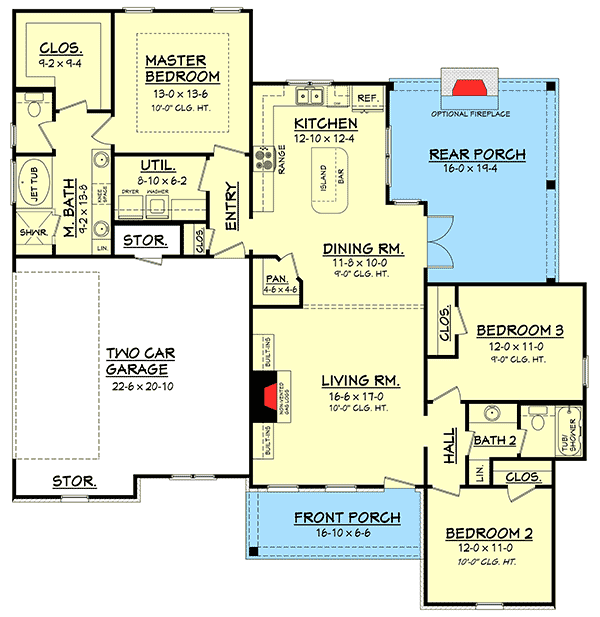

floor plan image Main Level
Plan Details
  • Enjoy the convenience of one floor living with this attractive 3 bedroom house plan. With the split bedroom layout, you'll enjoy your privacy while doing so.
  • A front porch greets you and it opens to the living room. From just inside the front door you get views extending completely through to the back of the home.
  • The master has a large walk-in and a tray ceiling. Laundry is very convenient to the suite while not being directly in it.
  • There is a walk-in pantry in the kitchen and a large island with seating for casual meals.
  • The rear porch is accessible by french doors and has an option to include a fireplace. The covered space is roomy and makes a great outdoor living room.
  • The roof is stick framed with a 10:12 pitch.
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.

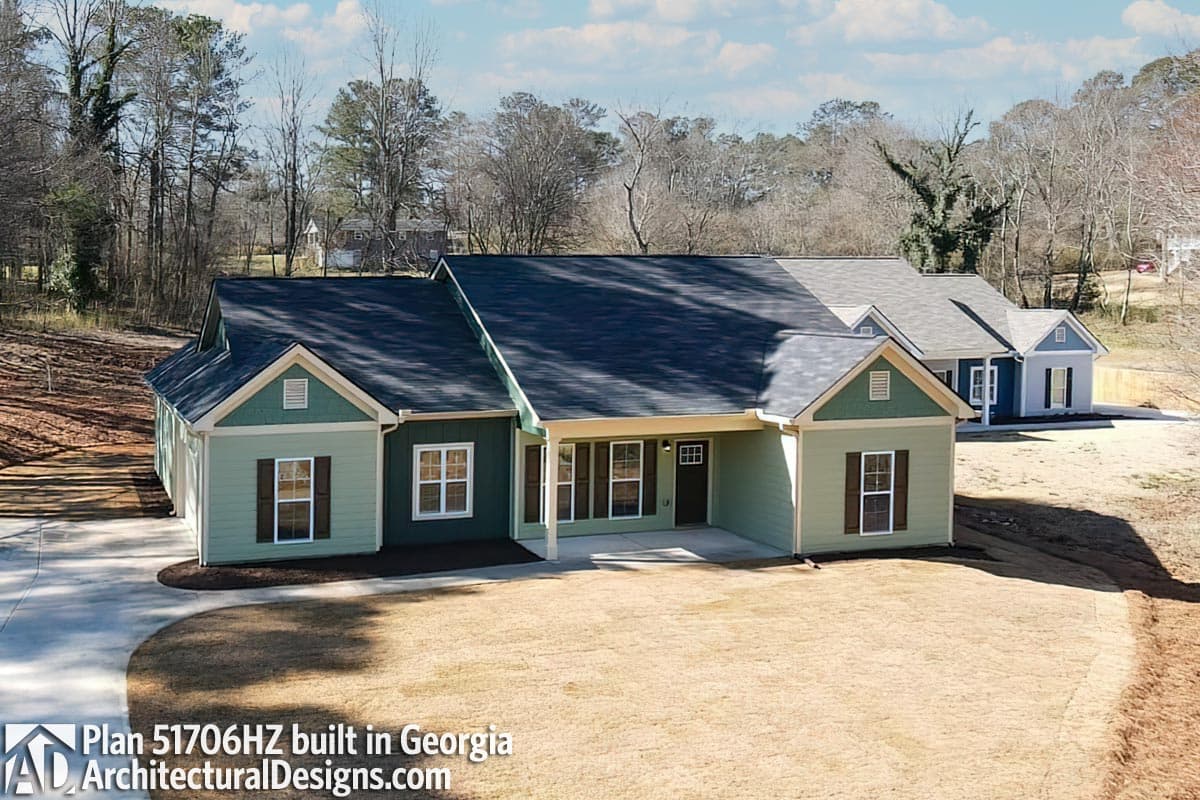

build gallery item - House Plan 51706HZ Comes to Life in Georgia

House Plan 51706HZ Comes to Life in Georgia

20

Photos

build gallery item - House Plan 51706HZ Comes to Life in Georgia, Again!

House Plan 51706HZ Comes to Life in Georgia, Again!

9

Photos

What's Included
  • Cover Sheet with abbreviations, rendering, sheet index
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

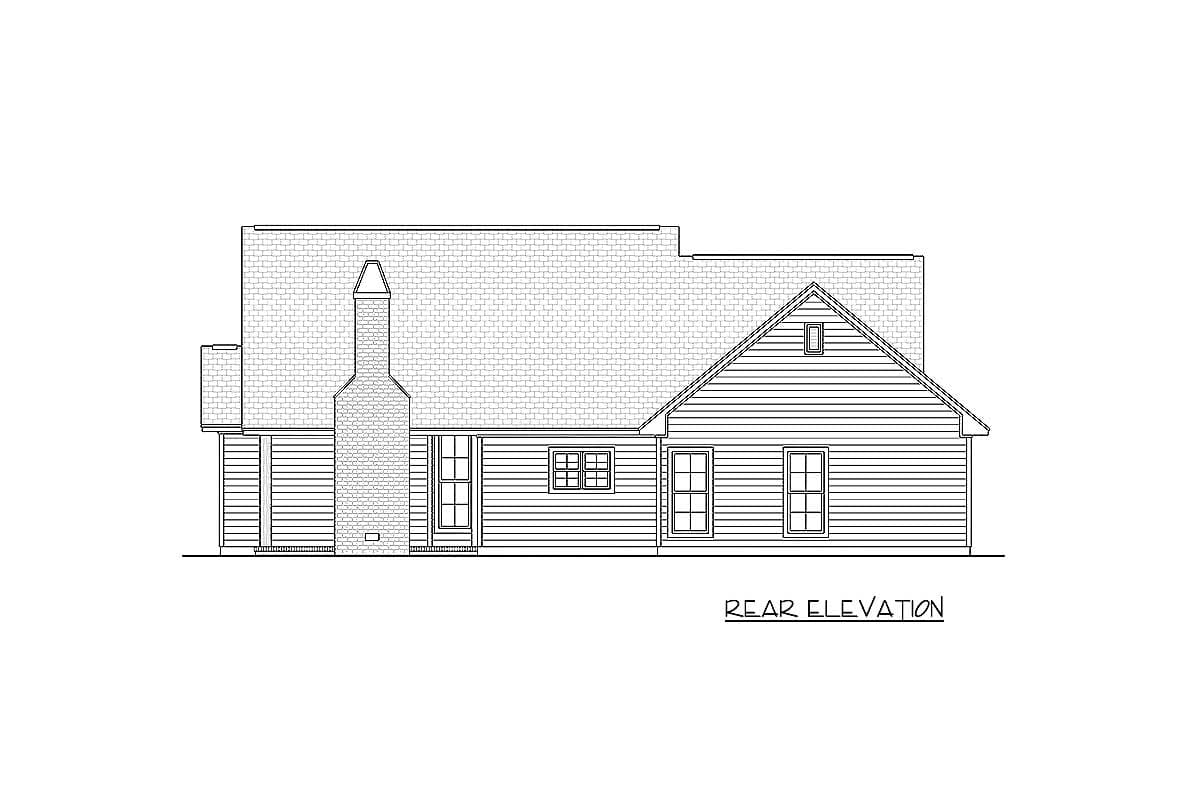

  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Kitchen cabinet views
  • Electrical plan
  • Span charts and other misc details

View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,600 sq. ft.

1st Floor

1,600 sq. ft.

Porch, Front

109 sq. ft.

Porch, Rear

281 sq. ft.

Storage

44 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

55' 4"

Depth

57' 6"

Max Ridge Height

23' 3"

Garage

Type

Attached

Area

483 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9' 4"

First Floor

9'

Room

Ceiling Type

Height

Living Room

10' 0''

Bedroom 2

10' 0''

Master Bedroom

Tray

10' 0''

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Cottage

Traditional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Photo Gallery

USDA Approved

Square Footage Breakdown

Total Heated Area

1,600 sq. ft.

1st Floor

1,600 sq. ft.

Porch, Front

109 sq. ft.

Porch, Rear

281 sq. ft.

Storage

44 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

55' 4"

Depth

57' 6"

Max Ridge Height

23' 3"

Garage

Type

Attached

Area

483 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9' 4"

First Floor

9'

Room

Ceiling Type

Height

Living Room

10' 0''

Bedroom 2

10' 0''

Master Bedroom

Tray

10' 0''

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Cottage

Traditional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Photo Gallery

USDA Approved
