Plan 82216KA
One Floor Traditional House Plan
Heated S.F.
2,065
Beds
3
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 82216KA

Main Level
slide image 0

Plan 82216KA

1-800-854-7852

1-262-521-4596

Main Level

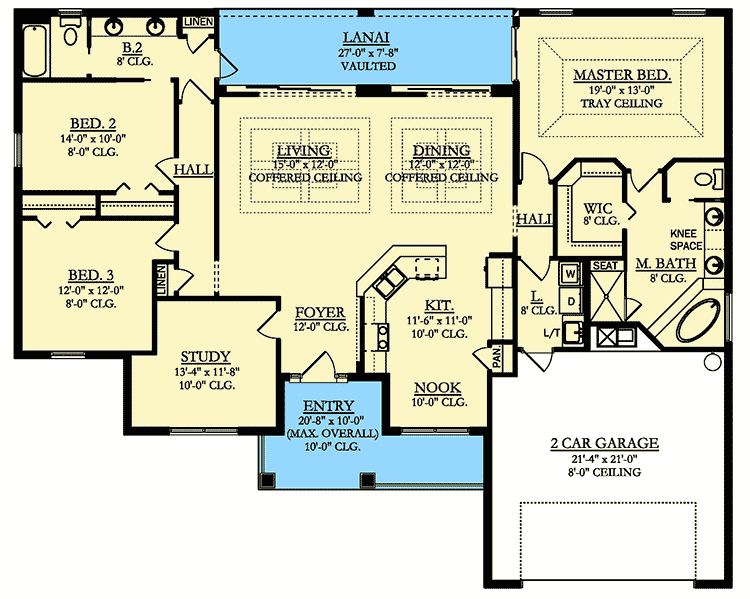

floor plan image Main Level
Plan Details
  • Transom windows and beautiful ceiling treatments are key designs features in this lovely one floor Traditional house plan.
  • The 12' high foyer opens up to reveal the gorgeous coffered ceilings in the combined living and dining areas.
  • In the kitchen, a peninsula eating bar shelters the sink and keeps the noise down.
  • Two sliding glass doors take you easily out to the vaulted rear lanai.
  • With its split bedroom layout, the large master suite is a secluded retreat.
  • Knee space between the two sinks in the master bathroom allow for a stool and make up area.
  • On the opposite side of the home, two family bedrooms share a hall bathroom with double sinks to keep things moving in the mornings.
  • The quiet study is large and comfortable.
What's Included
  • Foundation Plan: Complete with dimensions, dimensioned plumbing, referenced details, General Notes and Schedules.
  • Elevations: Minimal four completed elevations with dimensions, notes and material call outs. Also exterior details where applicable.
  • Floor Plan(s): Complete with dimensions and notes of all elements. On our high-end plans we provide architectural and structural floor plans, as typical part of our sets to avoid clatter and for easy construction.
  • Roof Plan: Complete with roof pitches overhangs and notes for special condition also dimensions on any special condition as per plan.
  • Building Sections: Where applicable, building sections are included. The quantity of these drawings is determined by the plan set complexity.
  • Details: Interior and Exterior details as require per plan. Common details are: Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
  • Interior Elevations: Some sets include interior Kitchen, Bathrooms and other significant detailed plan specific areas.
  • Roof Framing Plan: Engineered truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Floor Framing Plan: Only were needed. Engineered floor truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Building Sections: Complete with layout, light fixtures, outlets, legend and notes.
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.
  • Lintel Plan: Provided with block concrete masonry unit plans only. Lintel sizes and details for all exterior openings. Since local codes and conditions very, this plan is for reference only.
  • Structural Details: Including wall sections and all framing details needed per plans. Since local codes and conditions very, this plan is for reference only.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,065 sq. ft.

1st Floor

2,065 sq. ft.

Porch, Front

100 sq. ft.

Porch, Rear

206 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

65' 8"

Depth

53' 0"

Max Ridge Height

22' 0"

Garage

Type

Attached

Area

493 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

2,065 sq. ft.

1st Floor

2,065 sq. ft.

Porch, Front

100 sq. ft.

Porch, Rear

206 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

65' 8"

Depth

53' 0"

Max Ridge Height

22' 0"

Garage

Type

Attached

Area

493 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Plan Collections

Photo Gallery
