Plan 24409TW

One-Level Craftsman Home Plan with Walk-Out Basement

Heated S.F.

2,944

Beds

4

Baths

4

Stories

1

Cars

2

Floor Plan

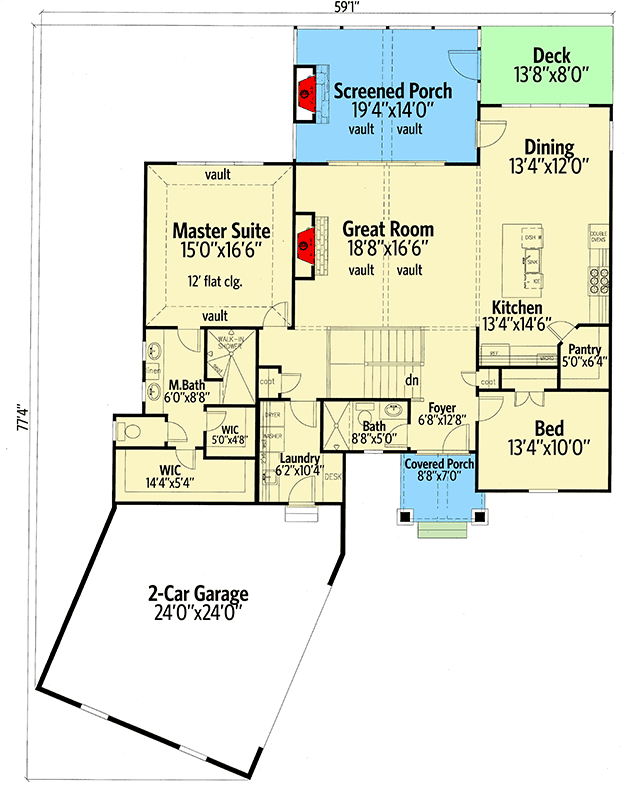

Main Level

floor plan image Main Level

Lower Level

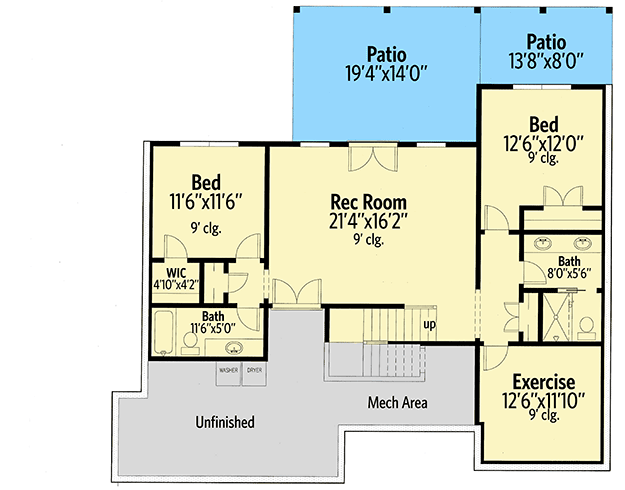

floor plan image Lower Level

Plan Details

The angled, 2-car garage creates a parking courtyard in front of this one-level, Craftsman home plan. Step inside, and discover a coat closet and full bath conveniently located in the foyer.

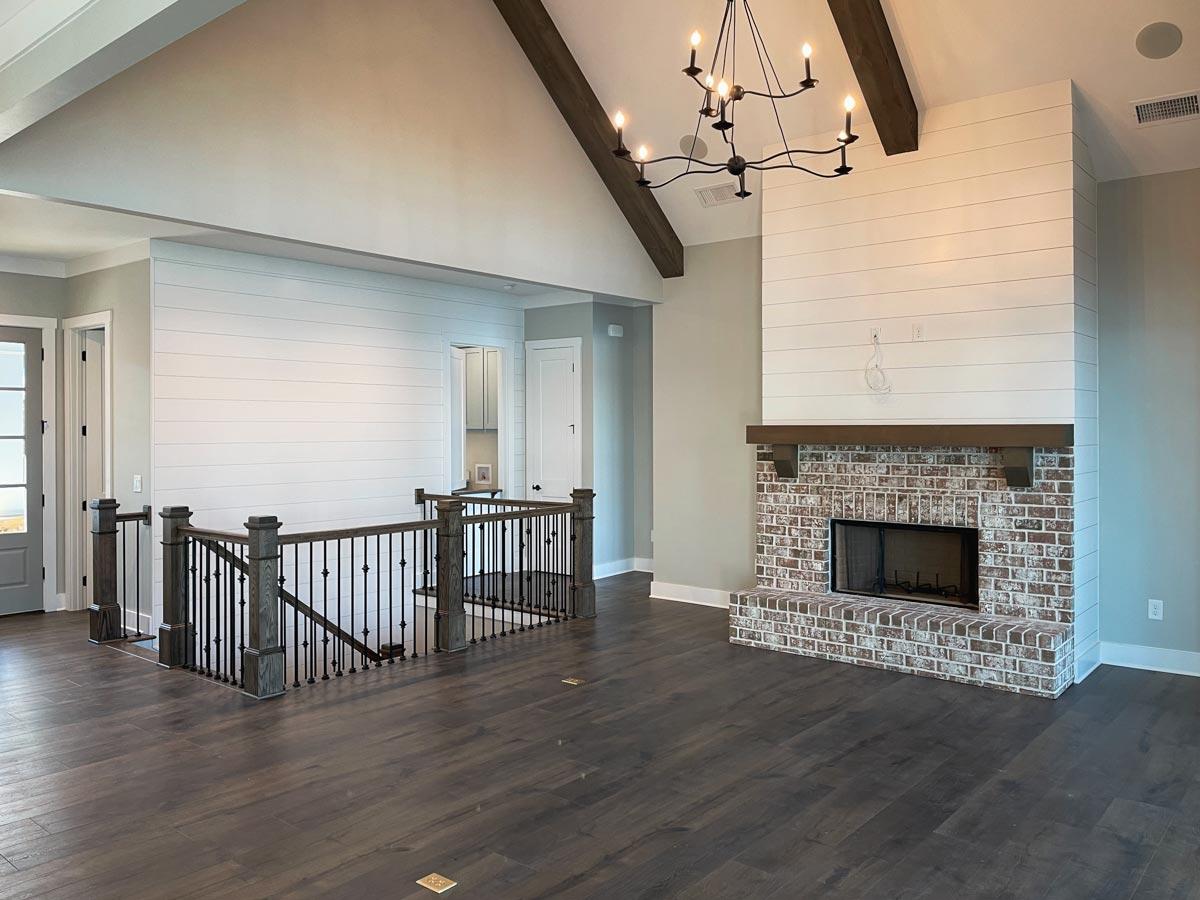

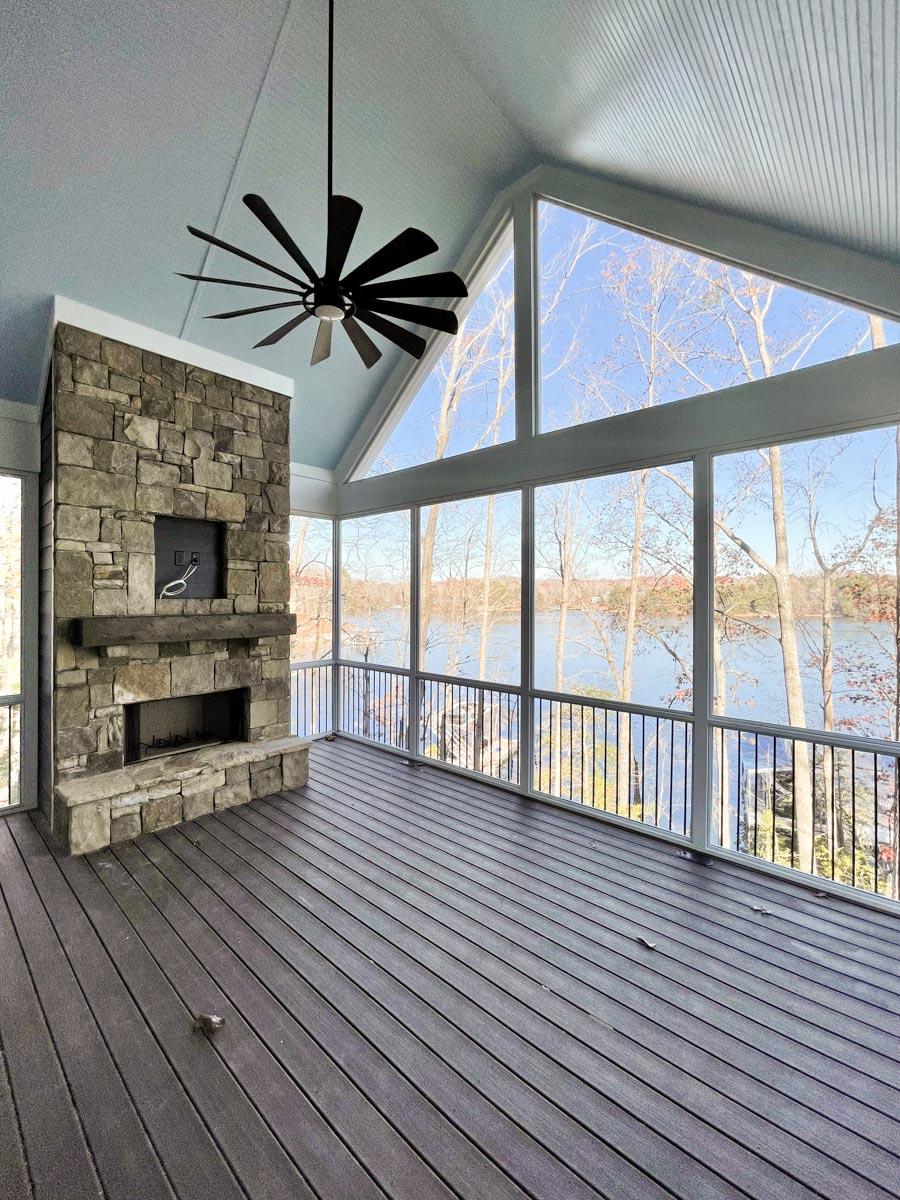

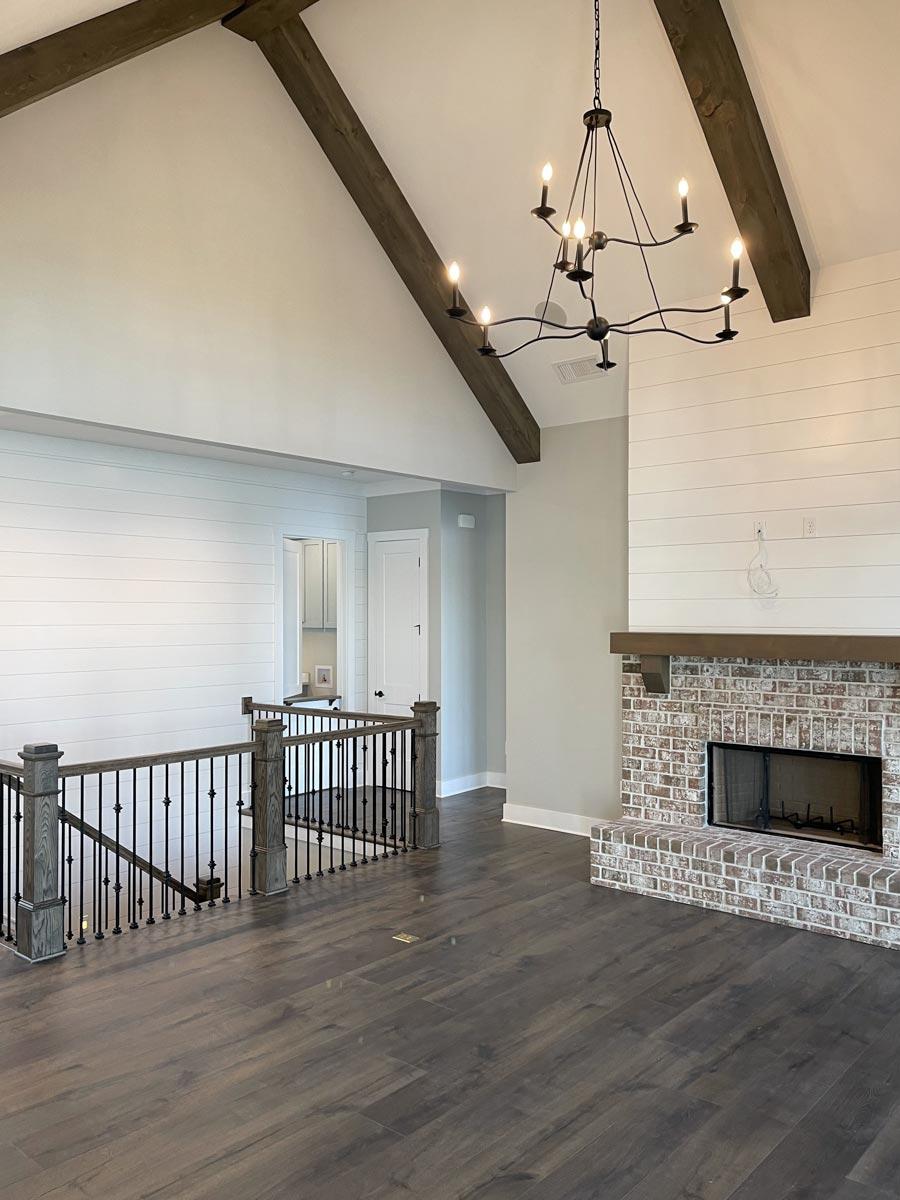

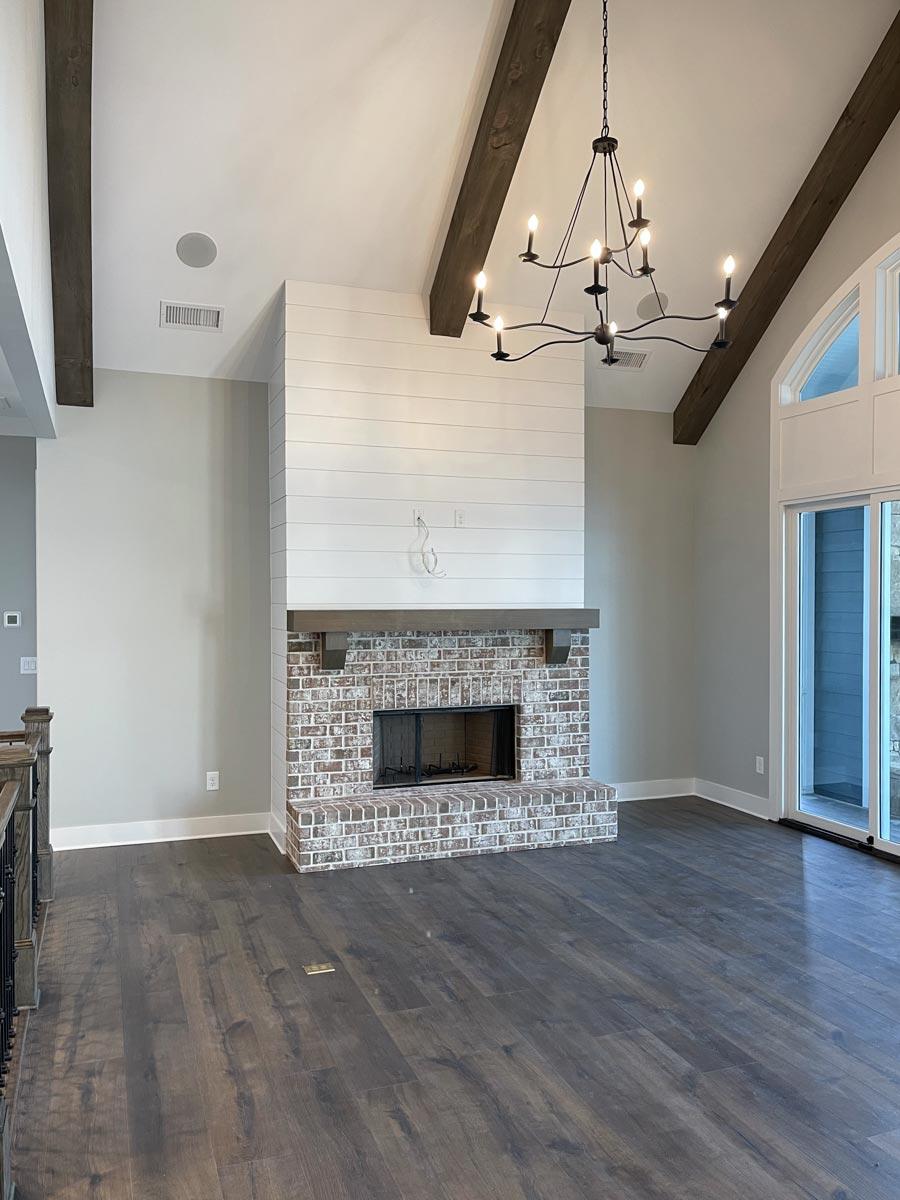

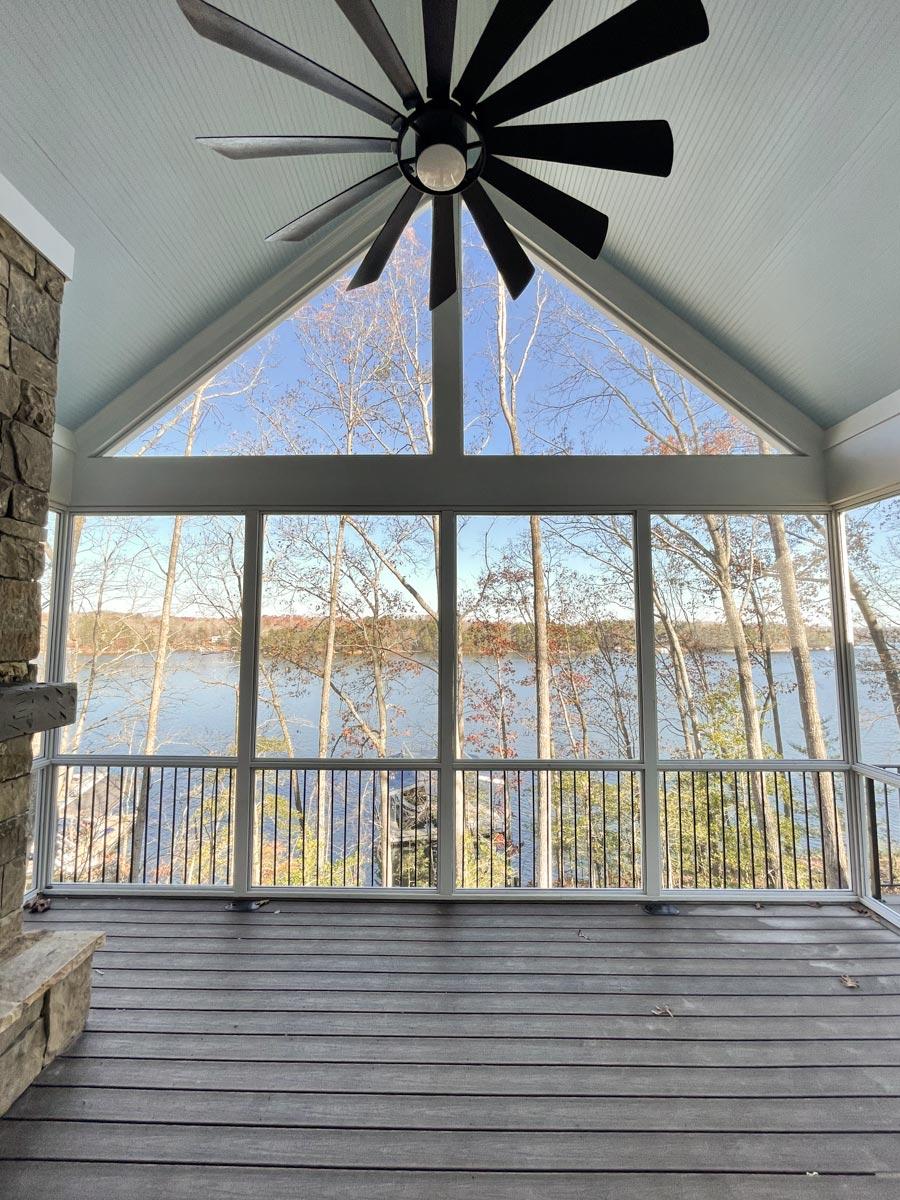

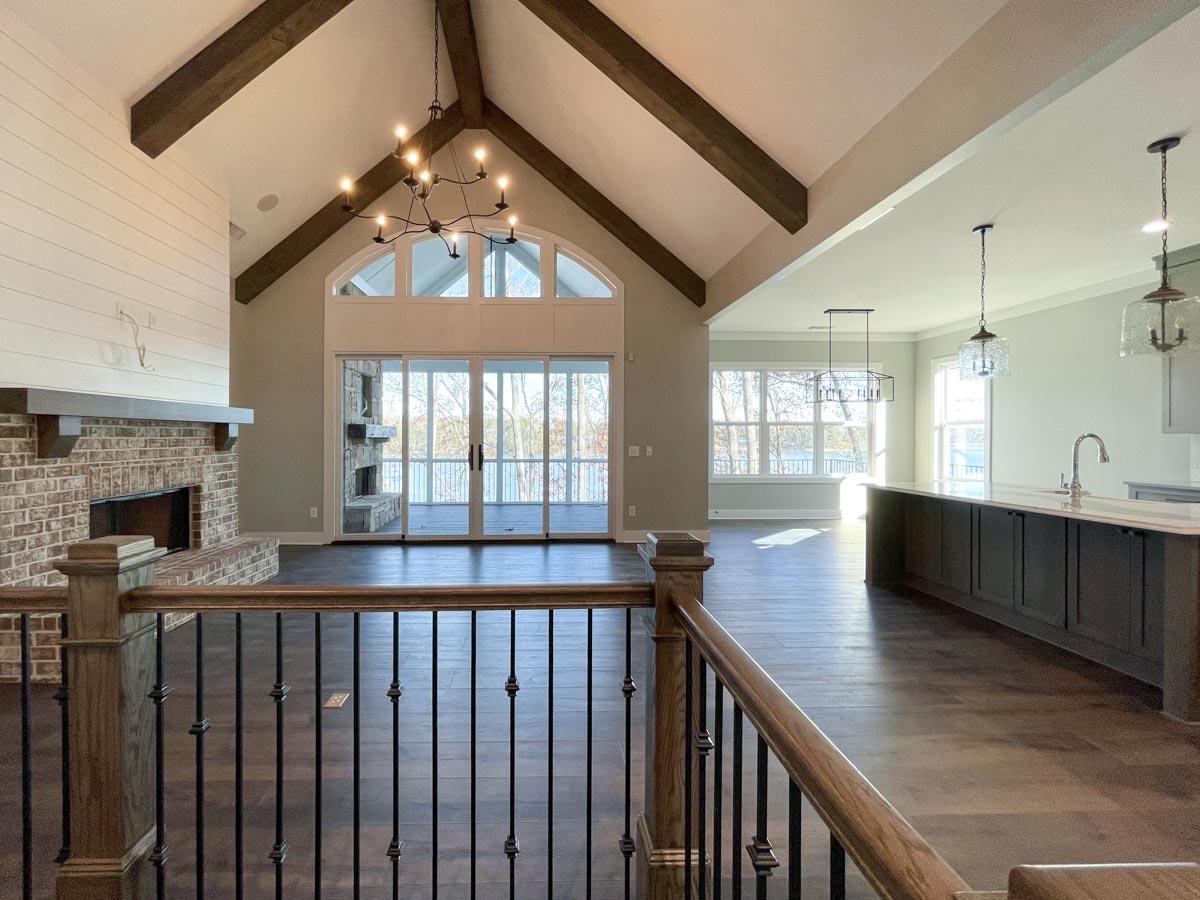

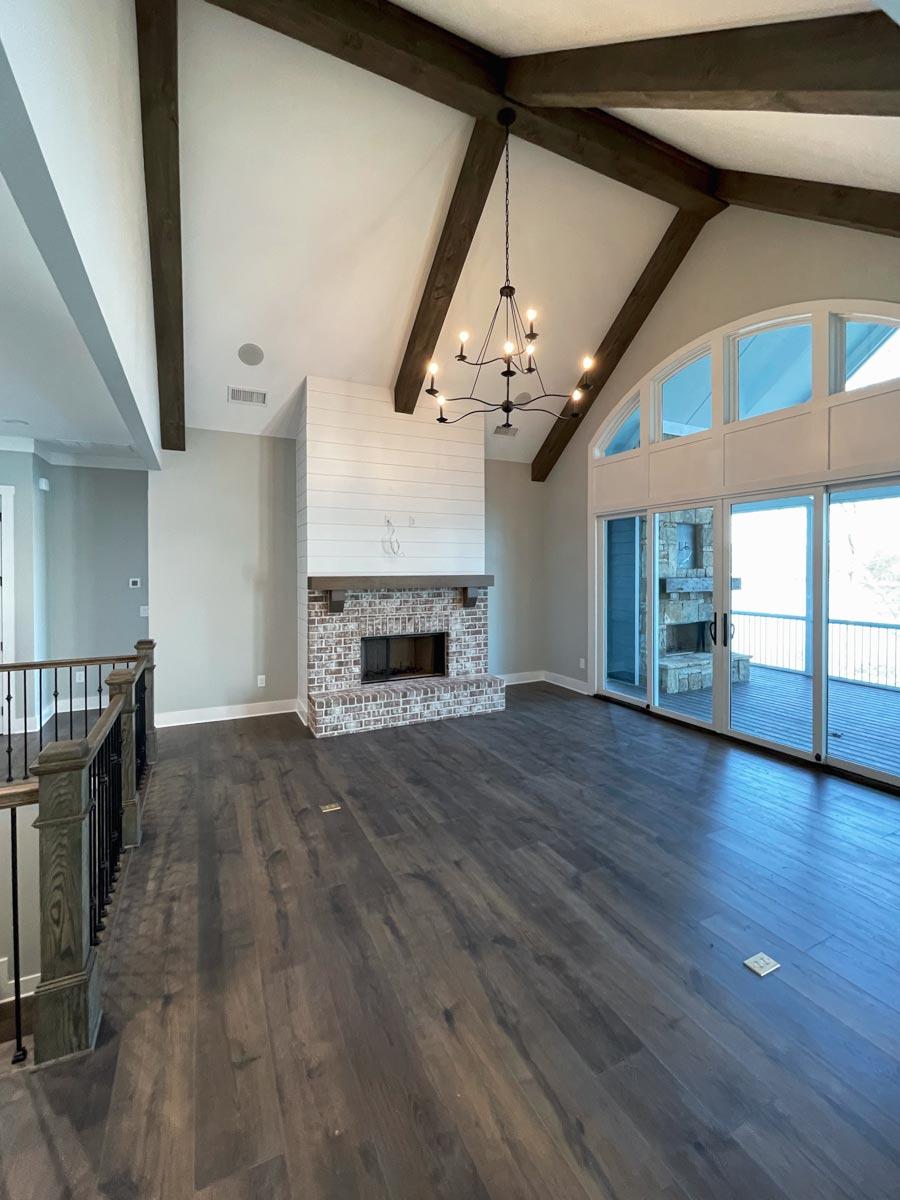

A beautiful, vaulted ceiling rests above the great room in the center of the home, and extends onto the screened porch. A grand fireplace anchors the left wall, providing warmth to the open kitchen and dining area.

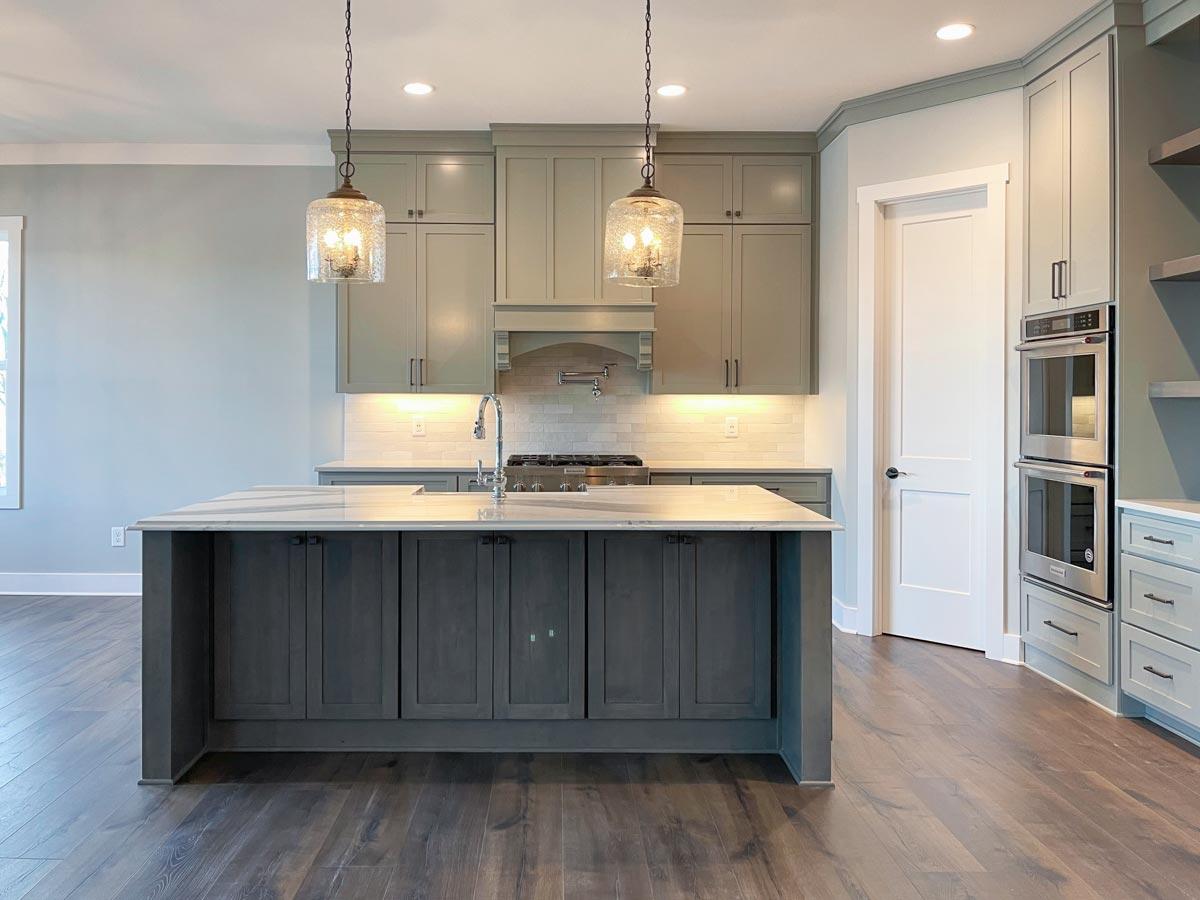

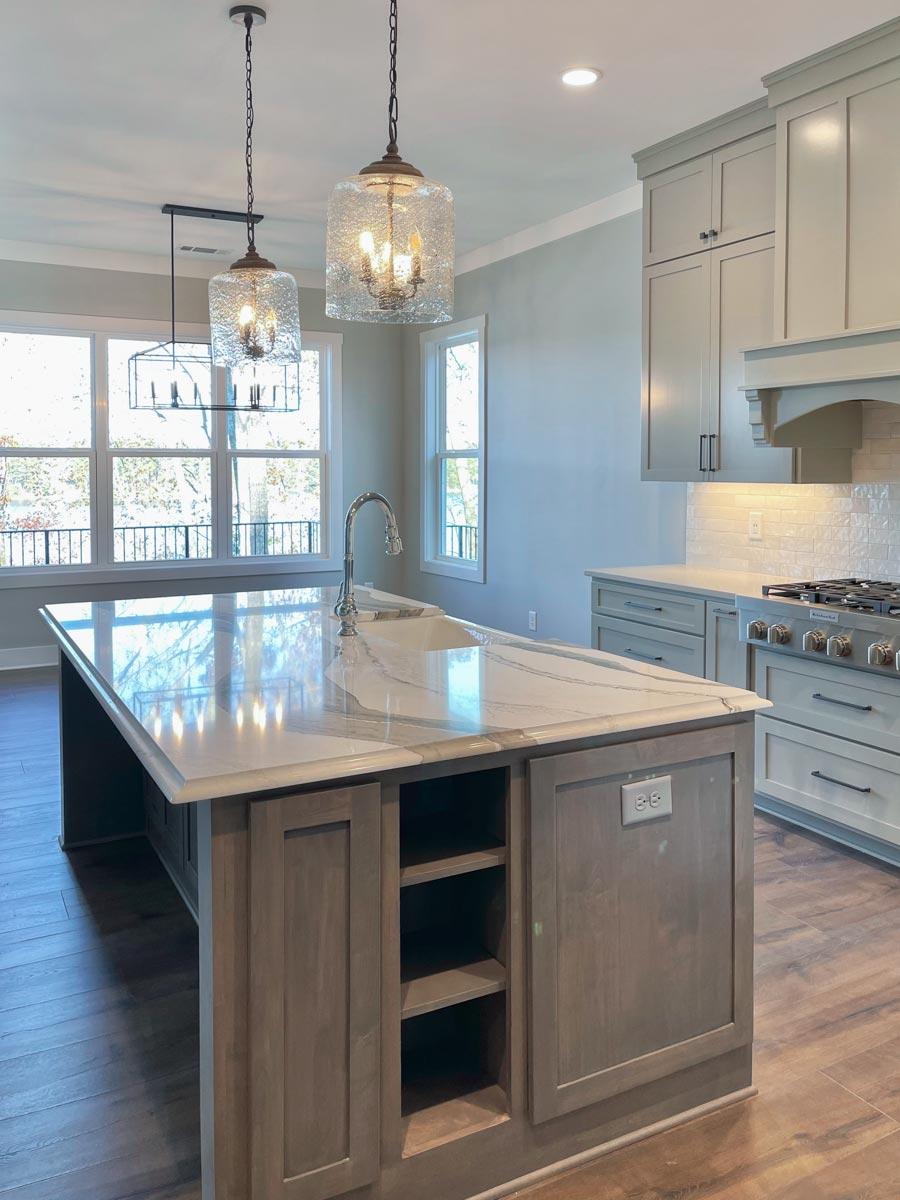

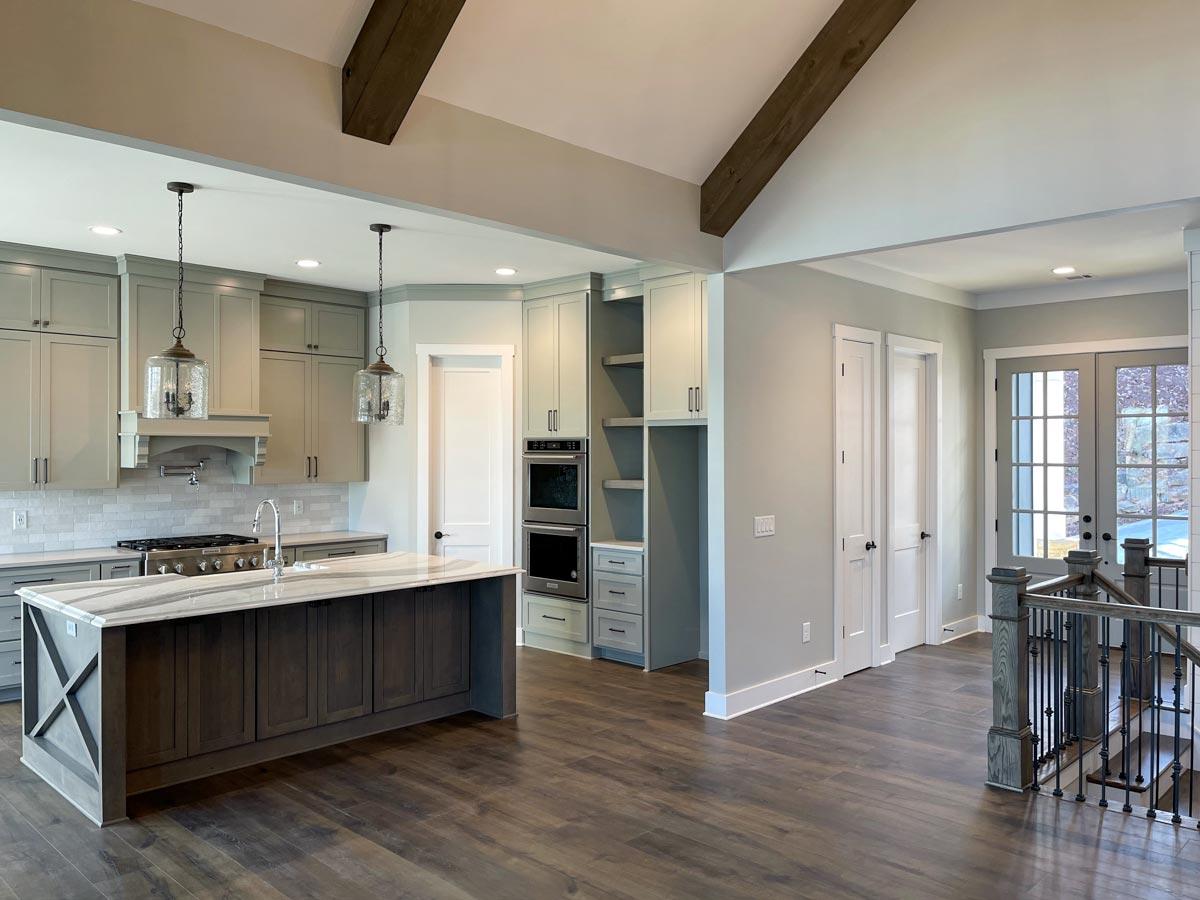

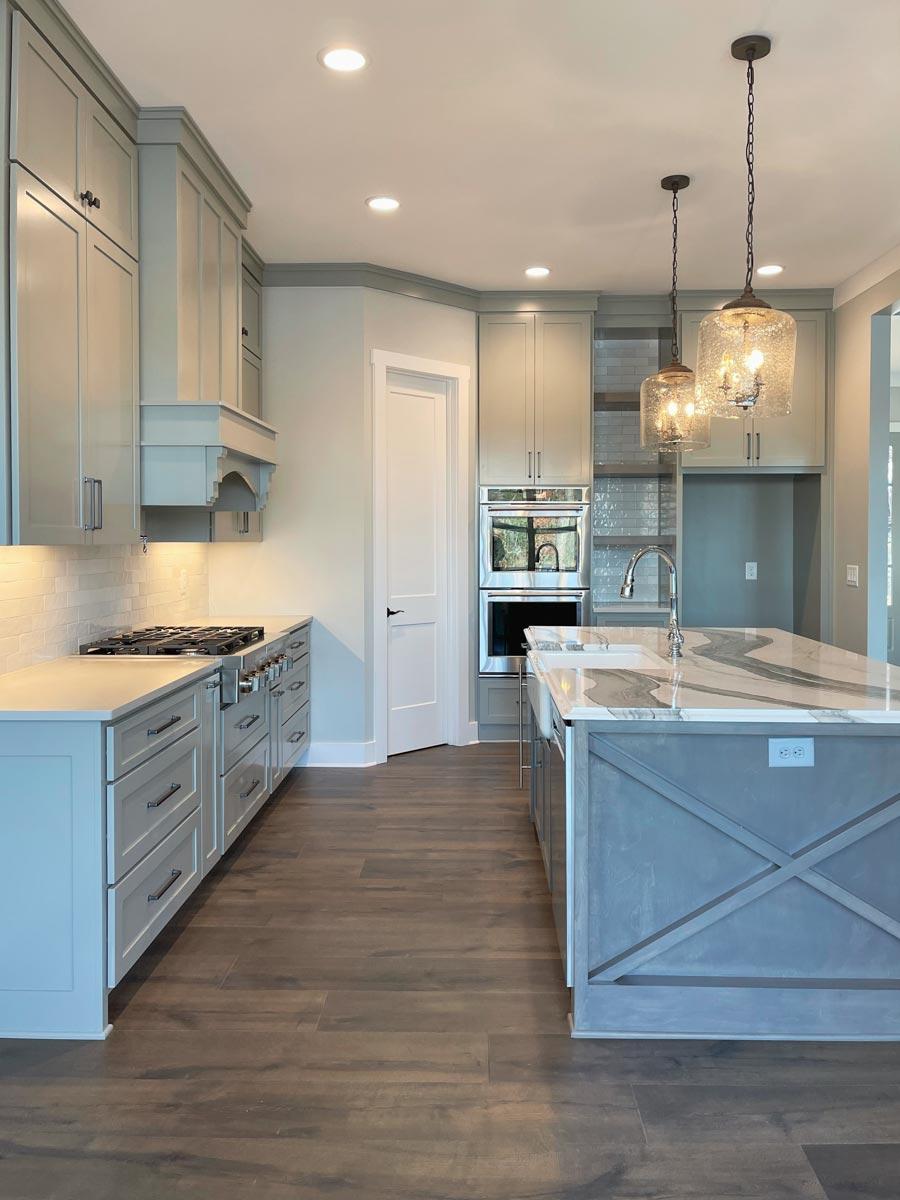

The sizable island in the kitchen maximizes workspace, and the corner pantry lends a space to store oversized appliances.

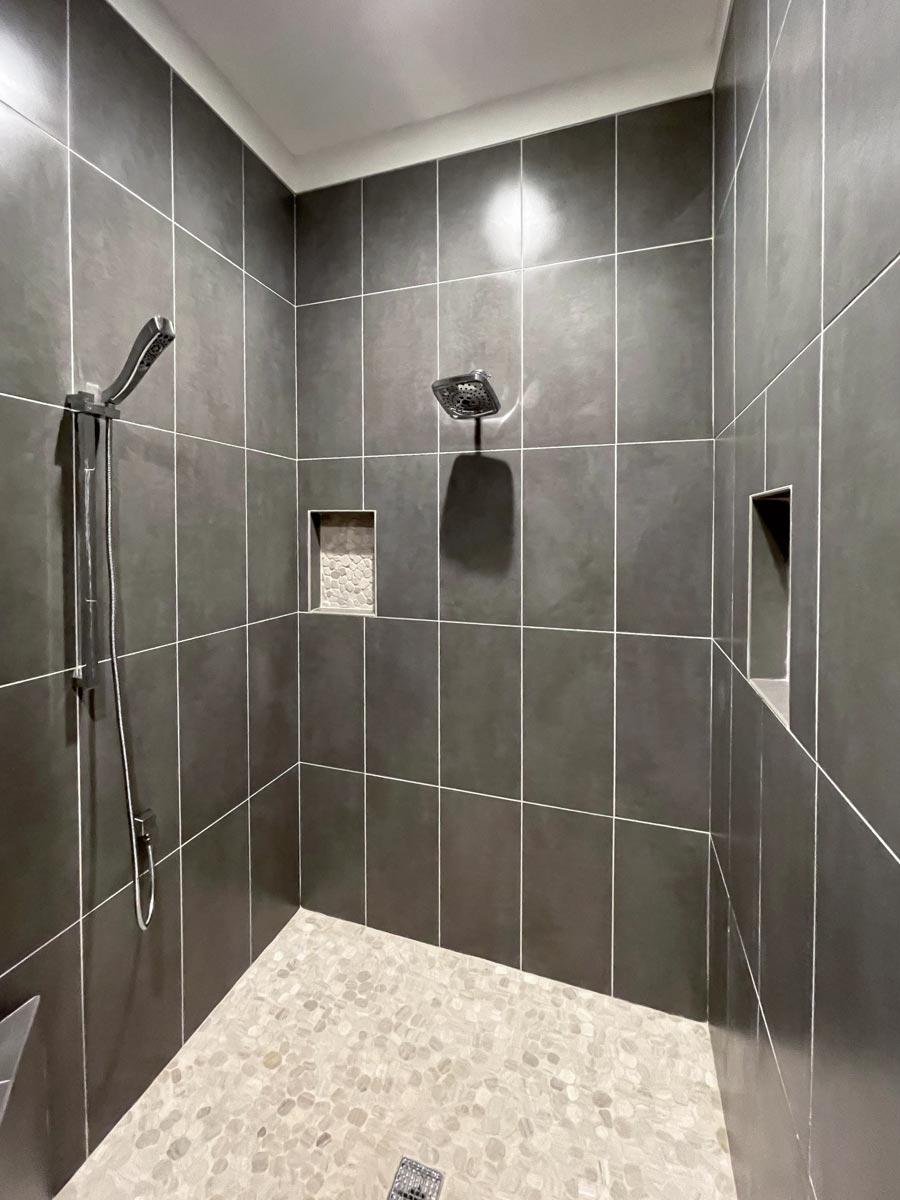

The main-floor, master suite considers your future needs, and features a sizable walk-in shower in the attached bath, along with two closets and a toilet room.

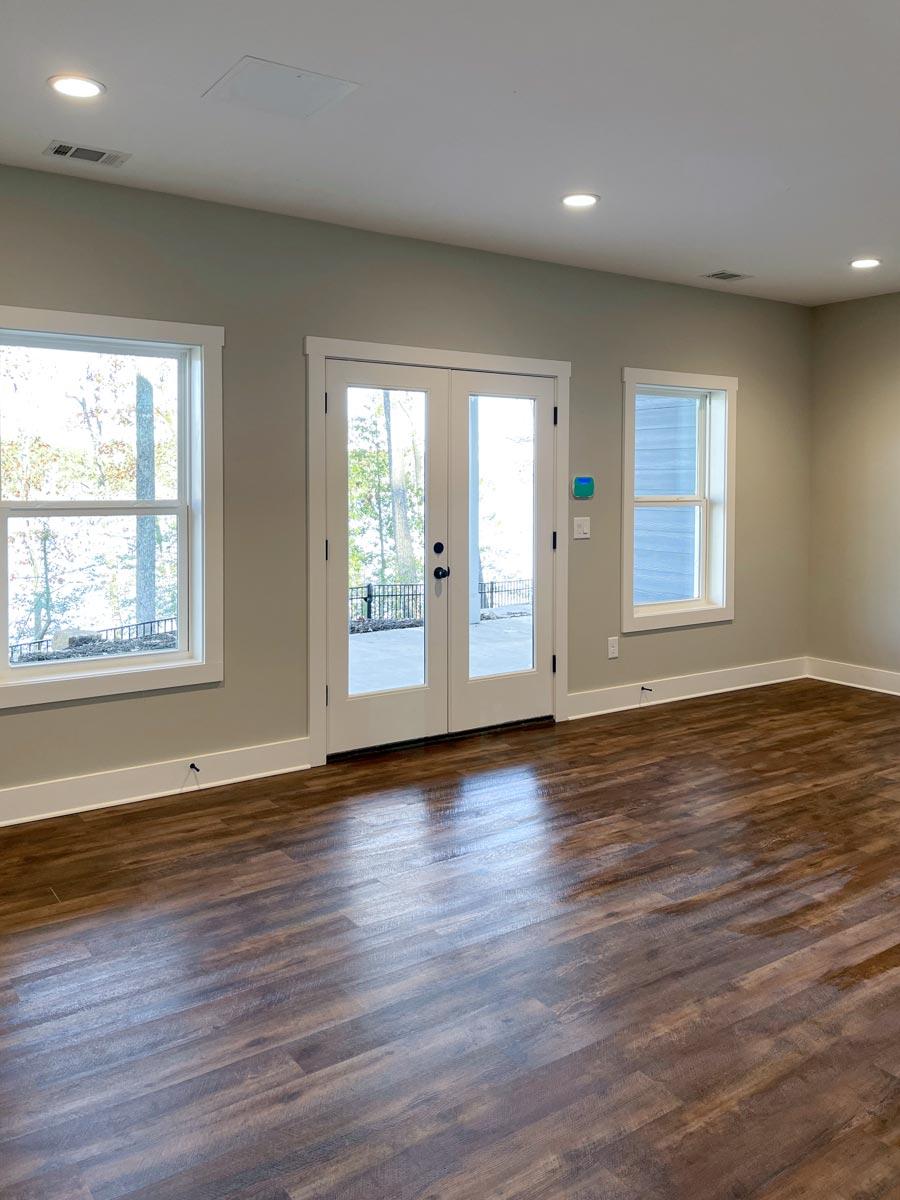

Enjoy 1,222 sq ft of living space on the lower level, and gain a generous recreation room that opens onto a covered patio, two bedrooms, two baths, and an exercise room.

What's Included

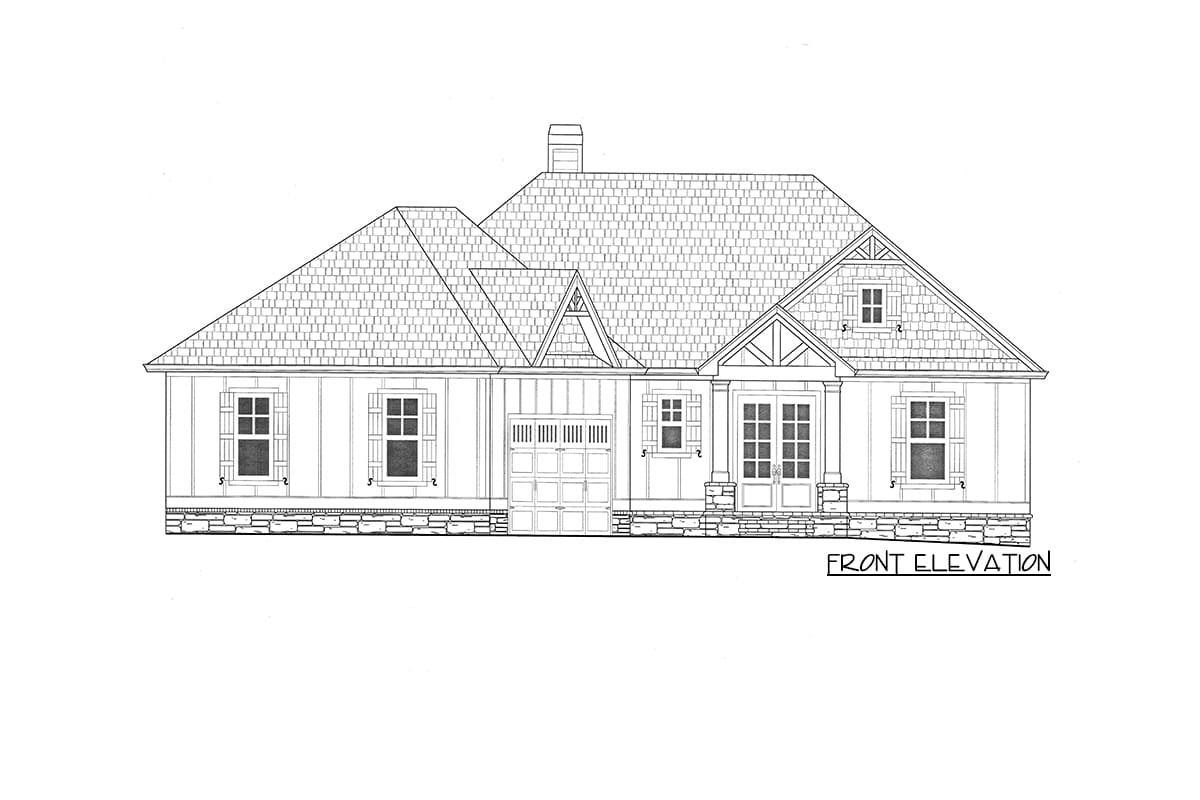

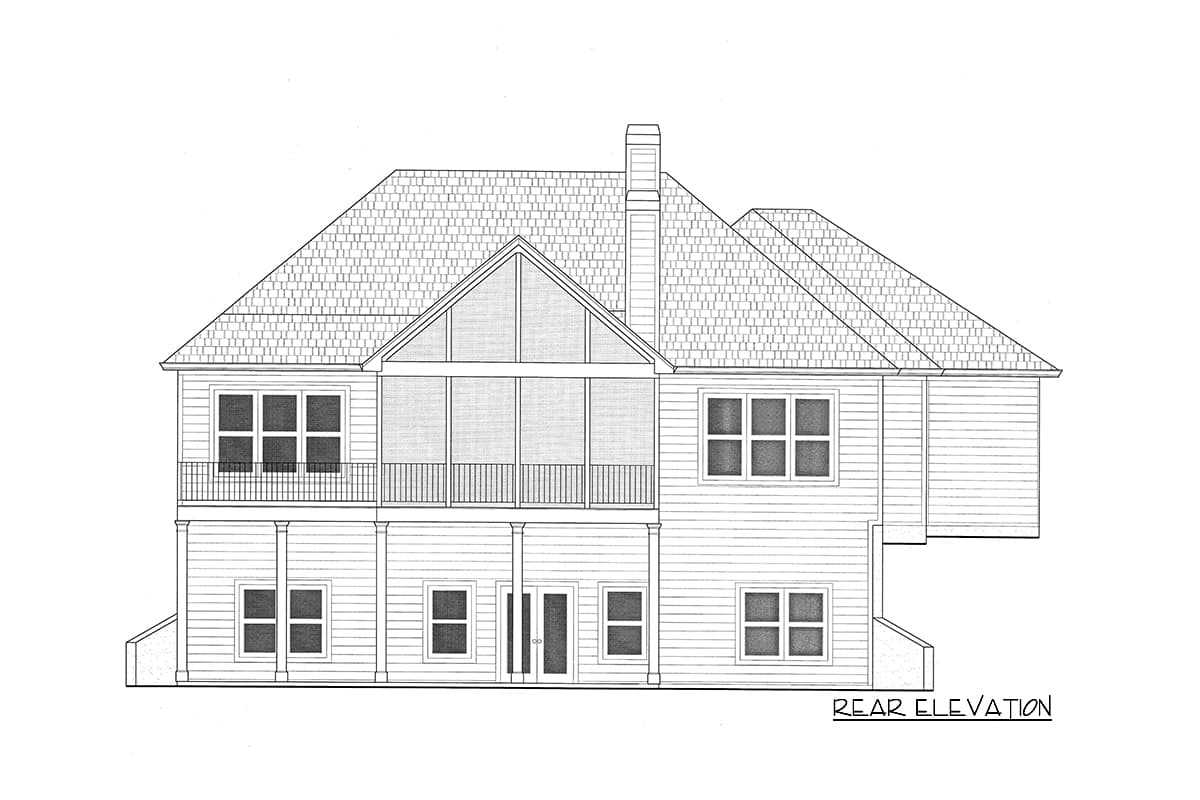

Four elevations (front, rear, right & left) with finish details
Fully dimensioned floor plans which include window and door sizes
Foundation plan with footing details
Roof plan with cornice details
General framing details
Floor joists layout
Electrical layout

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,944 sq. ft.

Lower Level

1,222 sq. ft.

1st Floor

1,722 sq. ft.

Basement Unfinished

500 sq. ft.

Porch, Combined

326 sq. ft.

Covered Patio

110 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

59' 1"

Depth

77' 4"

Max Ridge Height

23' 1"

Garage

Type

Attached

Area

607 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

Lower Level

9'

First Floor

10'

Garage

12' 0''

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

4 on 12

Framing Type

Stick And Truss

Architectural Style

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Lower Level

Master Suite - 1st Floor

Outdoor Fireplace

Two Story Great Room

Plan Collections

Lake House Plans

Square Footage Breakdown

Total Heated Area

2,944 sq. ft.

Lower Level

1,222 sq. ft.

1st Floor

1,722 sq. ft.

Basement Unfinished

500 sq. ft.

Porch, Combined

326 sq. ft.

Covered Patio

110 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

59' 1"

Depth

77' 4"

Max Ridge Height

23' 1"

Garage

Type

Attached

Area

607 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

Lower Level

9'

First Floor

10'

Garage

12' 0''

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

4 on 12

Framing Type

Stick And Truss

Architectural Style

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Lower Level

Master Suite - 1st Floor

Outdoor Fireplace

Two Story Great Room

Plan Collections

Lake House Plans
