Plan 86230HH
One Level European House Plan
Heated S.F.
1,809
Beds
3
Baths
2
Stories
1
Cars
1
Floor Plan

Plan 86230HH

Main Level
slide image 0

Plan 86230HH

1-800-854-7852

1-262-521-4596

Main Level

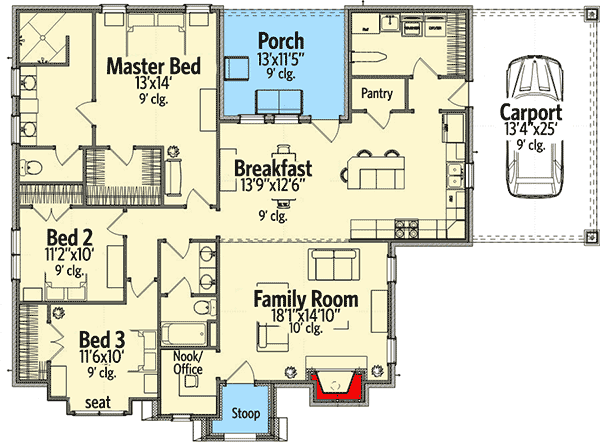

floor plan image Main Level
Plan Details
  • Live all on one level in this European house plan that has Tudor influences.
  • Charming touches include an office nook, a window seat in bedroom 3 and decorative wooden shutters on the outside.
  • The front door opens right into the big family room where you have a 10' high ceiling and a fireplace.
  • Further back, the eating area shares space with the large kitchen that has a walk-in pantry and easy access to the side carport.
  • The rear porch is sheltered and quiet, with room for grilling.
  • The master suite gets a walk-in closet and a quiet location in the back of the house.
What's Included
  • Cover Sheet
  • Foundation plans
  • Elevations - complete with dimensions, ridge heights and special notes
  • Floor Plans - complete with dimensions of all elements including plumbing, appliances and cabinet sizes
  • Roof Plan - complete with dimensions, plate heights, roof pitches and notes for special conditions
  • Rafter Plan
  • Details
  • Interior Elevations - include applicable cabinetry, electrical and special construction notes
  • Floor Joist Plan - complete with spans, sizes and direction (if applicable)
  • Ceiling Joist - complete with spans, sizes and direction
  • Sections - complete with dimensions, notes and specifications
  • Electrical plan - complete wit layout, light fixtures, outlets and legend
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,809 sq. ft.

1st Floor

1,809 sq. ft.

Porch, Combined

187 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Pier

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

62' 9"

Depth

46' 9"

Max Ridge Height

27' 9"

Garage

Type

Carport

Area

333 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

European

Tudor

Special Features

Bedrooms - Clustered

Breakfast Nook

Butler Walk-in Pantry

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Home Office

Square Footage Breakdown

Total Heated Area

1,809 sq. ft.

1st Floor

1,809 sq. ft.

Porch, Combined

187 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Pier

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

62' 9"

Depth

46' 9"

Max Ridge Height

27' 9"

Garage

Type

Carport

Area

333 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

European

Tudor

Special Features

Bedrooms - Clustered

Breakfast Nook

Butler Walk-in Pantry

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Home Office
