Plan 500029VV

Exclusive

One-level Farmhouse Plan with Split-bed Layout

Heated S.F.

2,362

Beds

3

Baths

2.5

Stories

1

Cars

3

Floor Plan

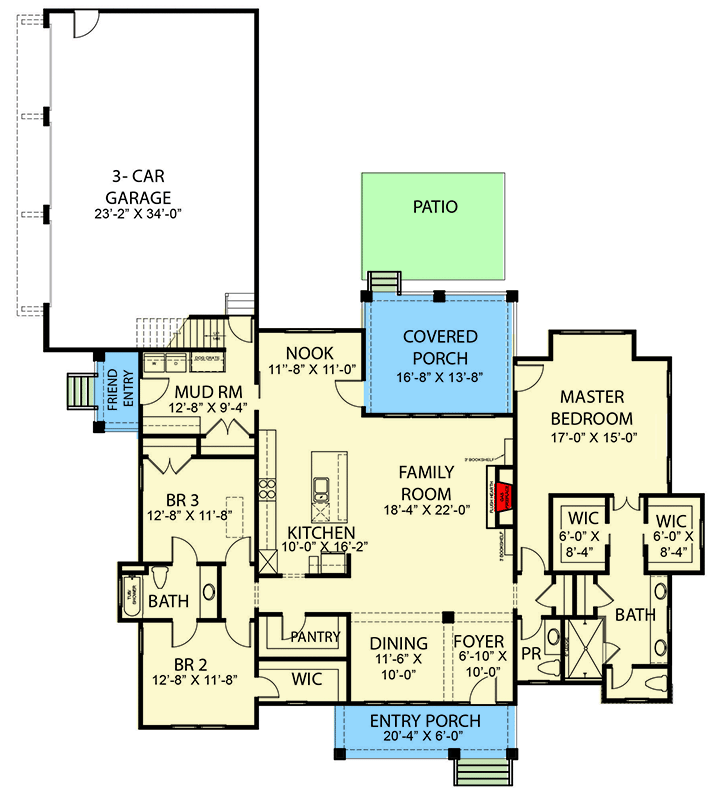

Main Level

floor plan image Main Level

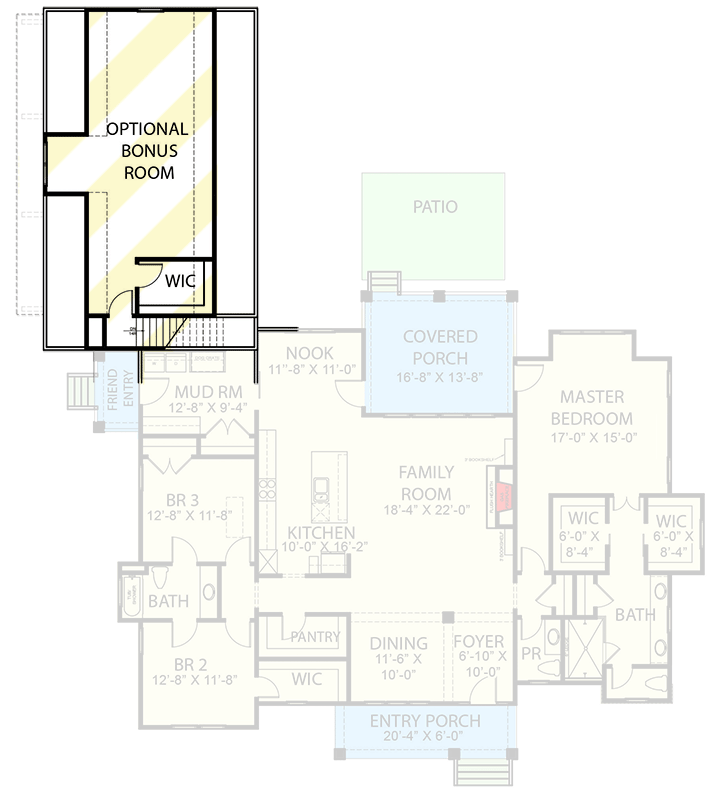

2nd Floor

floor plan image 2nd Floor

Plan Details

This thoughtful design features a Farmhouse-style exterior with 3 bedrooms on the main level and an optional 4th bedroom with the bonus space above the garage.
A fireplace anchors the right wall of the family room and the seamless flow into the kitchen and dining spaces creates the open-concept layout many desire.
The rear covered porch is accessible from the breakfast nook and master bedroom.
The split-bedroom layout separates the secondary bedrooms from the master bedroom for privacy purposes. Twin walk-in closets line the hallway that leads to the master bathroom.
The 3-car garage is attached to the rear of the home and offers entry from the side. The laundry / mudroom combo provides an entrance for friends and family and includes a coat closet.

What's Included

Cover sheet with notes
Foundation
Floor plans
Elevations
Sections
Framing plans
Electrical plans

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,362 sq. ft.

1st Floor

2,362 sq. ft.

Bonus

595 sq. ft.

Porch, Front

122 sq. ft.

Porch, Rear

232 sq. ft.

Entry

45 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

74' 0"

Depth

84' 0"

Max Ridge Height

27' 2"

Garage

Type

Attached

Area

915 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Modern Farmhouse

Special Features

Butler Walk-in Pantry

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Square Footage Breakdown

Total Heated Area

2,362 sq. ft.

1st Floor

2,362 sq. ft.

Bonus

595 sq. ft.

Porch, Front

122 sq. ft.

Porch, Rear

232 sq. ft.

Entry

45 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

74' 0"

Depth

84' 0"

Max Ridge Height

27' 2"

Garage

Type

Attached

Area

915 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Modern Farmhouse

Special Features

Butler Walk-in Pantry

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections
