Plan 31805DN

One Level Florida House Plan with Courtyard Living Space - 4038 Sq Ft

Heated S.F.

4,038

Beds

3 - 4

Baths

3

Stories

1

Cars

3

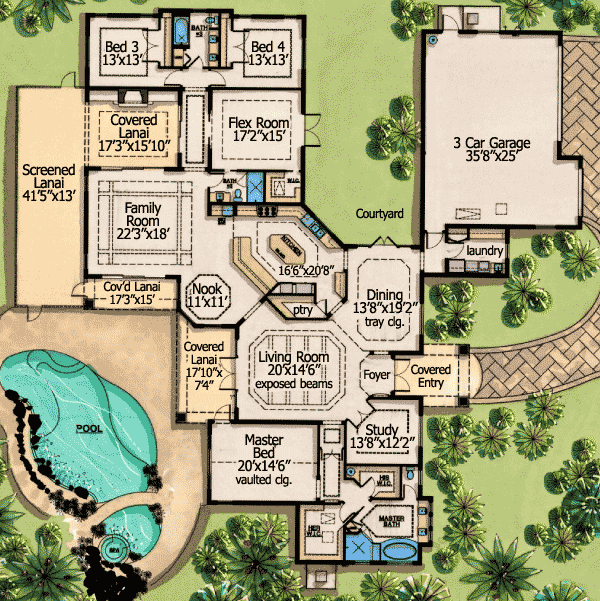

Floor Plan

Main Level

floor plan image Main Level

Plan Details

Enjoy the convenience of one-level living with this 3 (or 4) bedroom house plan with a courtyard. With the flex room serving multi-purposes including a guest room or den, the home is a flexible one to live in.
The master suite is vaulted and has access to a covered lanai shared with the living room.

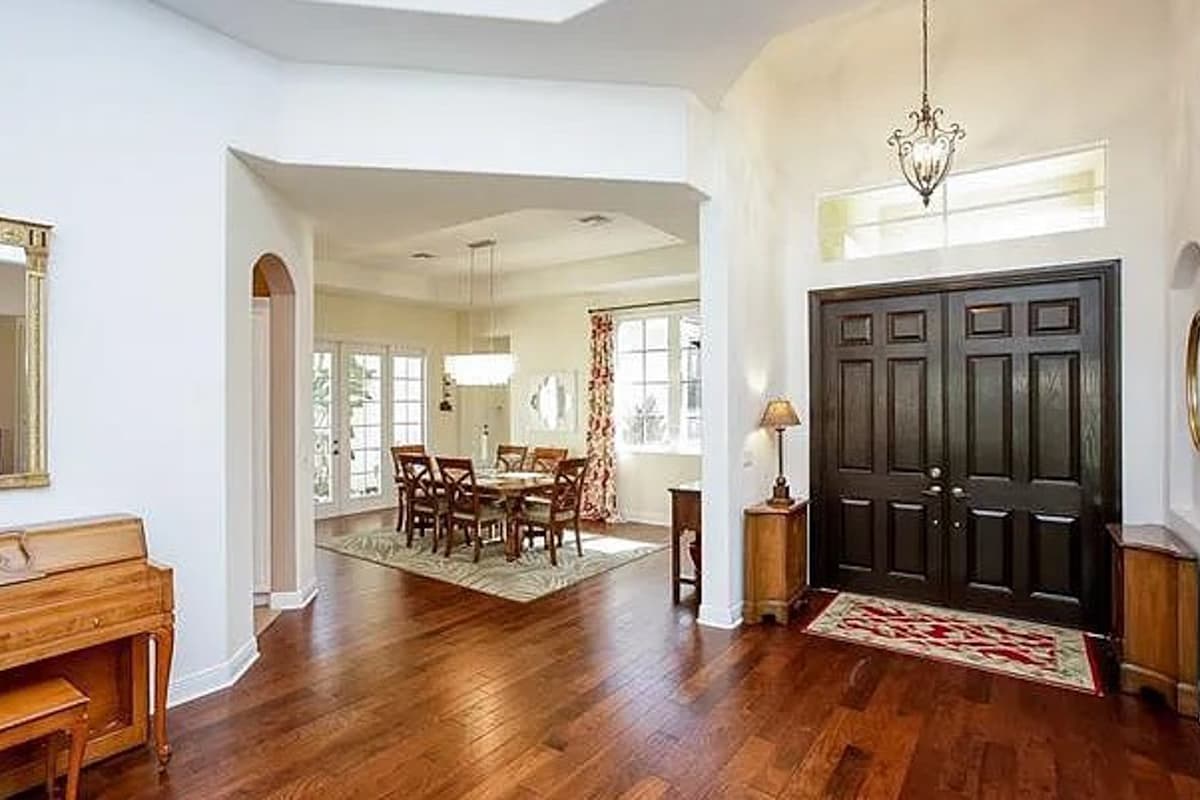

From the foyer, enjoy views through the home.
Outdoor spaces are accessible from virtually every room in the home with 3 covered lanais, one screened lanai and the courtyard.

What's Included

Slab Plan
Floor Plans with Notes and Dimensions
Door and Window Schedules
Electrical Plans
Ceiling Plans

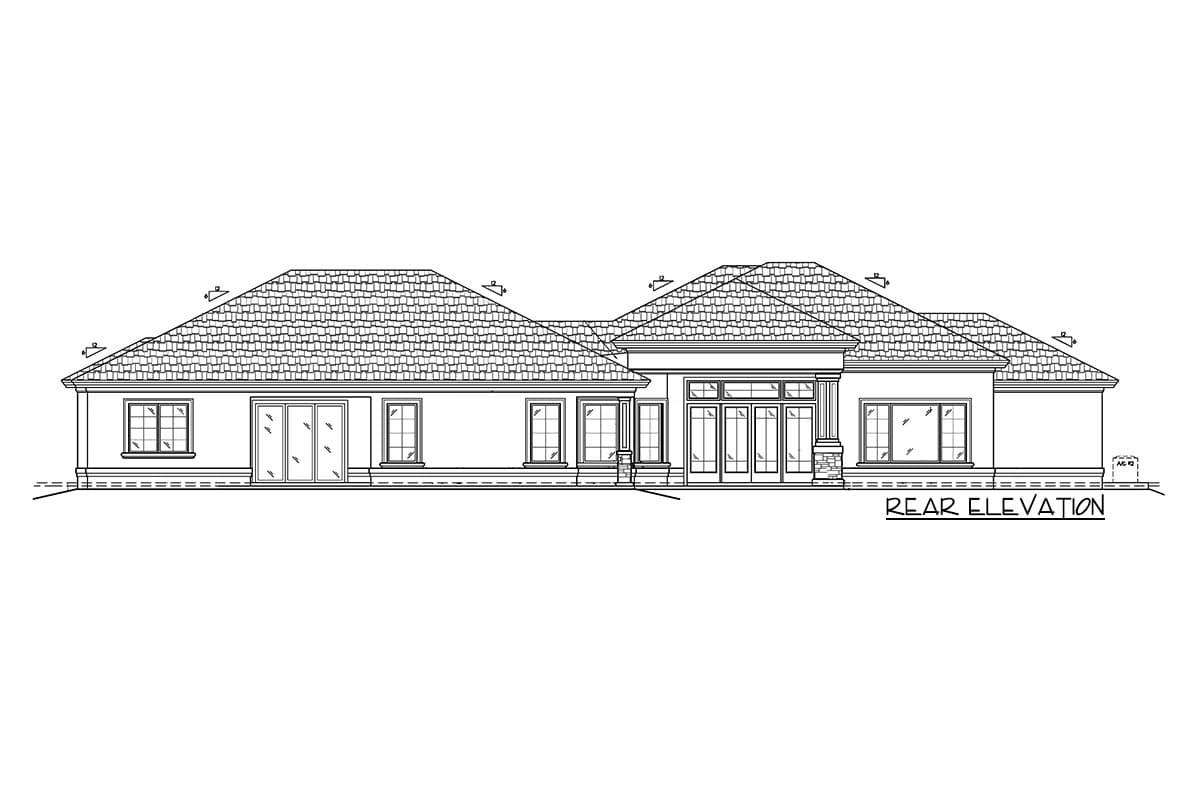

Elevations of All Sides
Roof Plans
Building Sections
Wall Sections
Fastener Requirements

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

4,038 sq. ft.

1st Floor

4,038 sq. ft.

Screened Porch

560 sq. ft.

Entry

142 sq. ft.

Lanai

547 sq. ft.

Gazebo

220 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

106' 8"

Depth

109' 4"

Garage

Type

Attached

Area

1023 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

11'

Room

Ceiling Type

Height

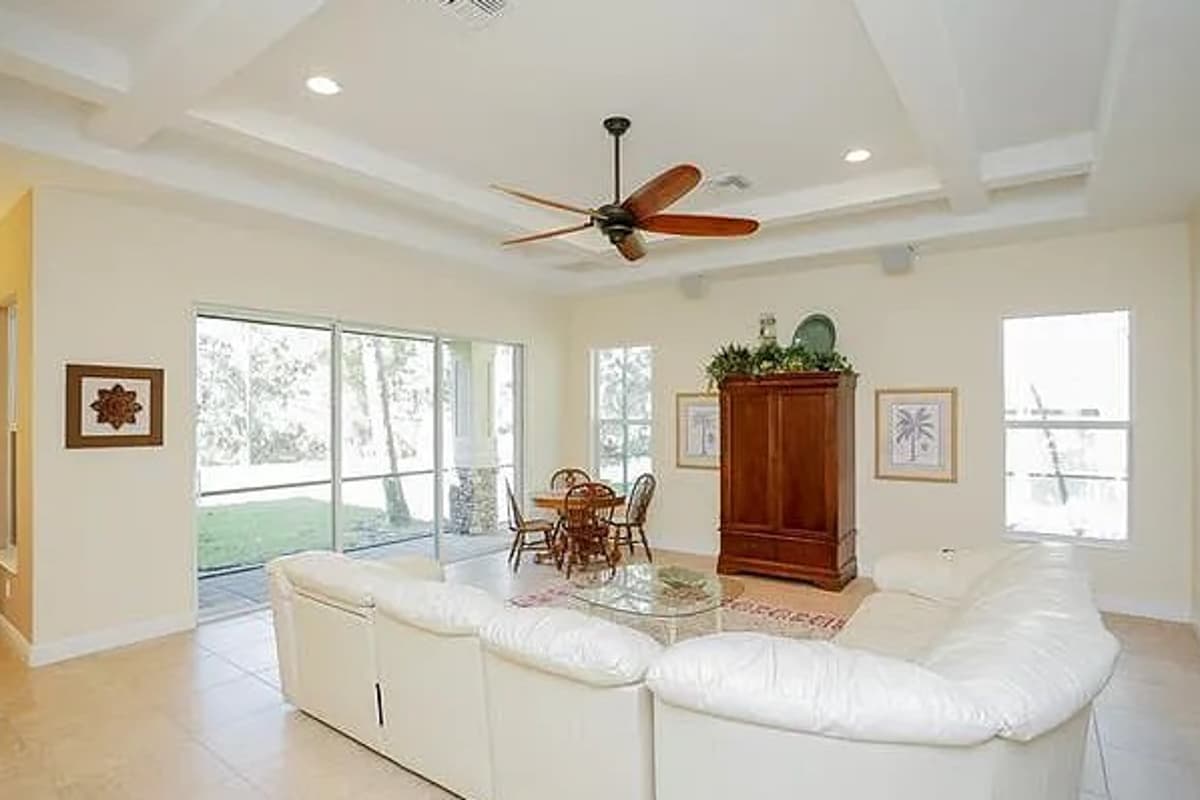

Living Room

Beamed

0' 0''

Family Room

Coffered

0' 0''

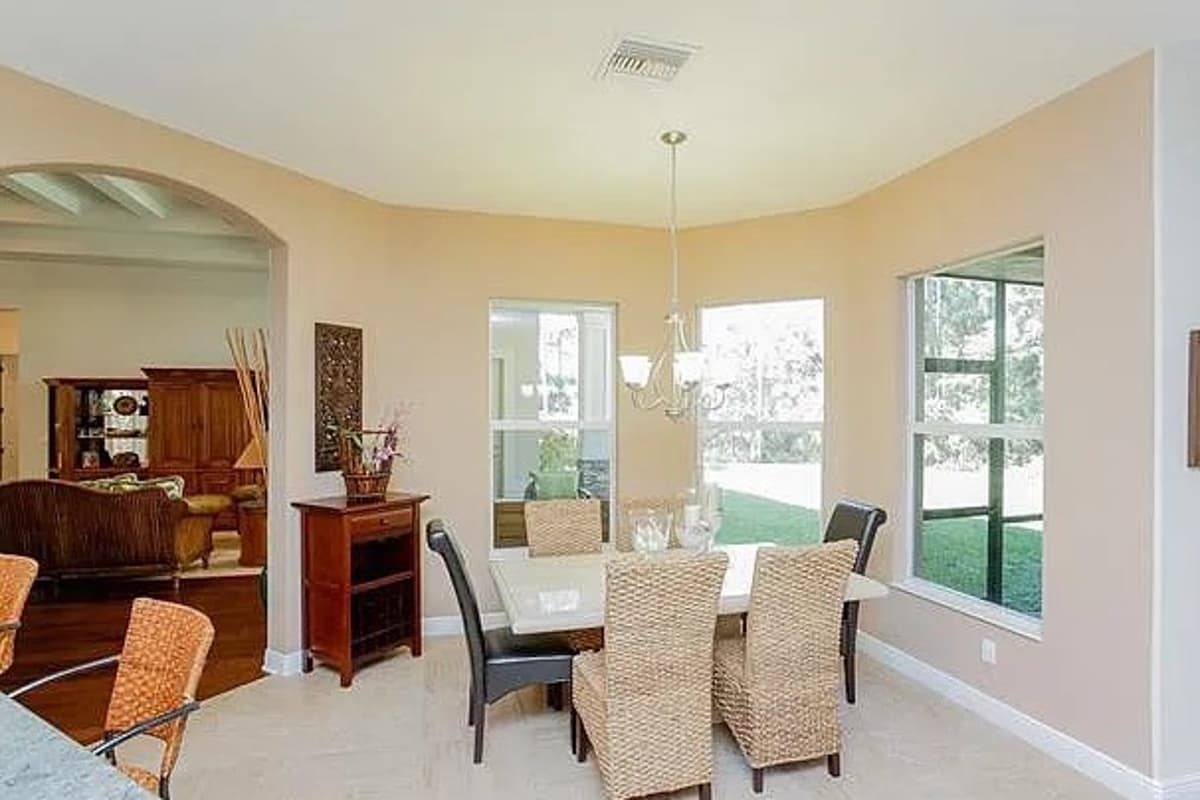

Dining Room

Tray

0' 0''

Study

Tray

0' 0''

Master Bedroom

Vaulted

0' 0''

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Outdoor Fireplace
