Plan 82272KA
One-level House Plan with Open Layout
Heated S.F.
1,789
Beds
3
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 82272KA

Main Level
slide image 0

Plan 82272KA

1-800-854-7852

1-262-521-4596

Main Level

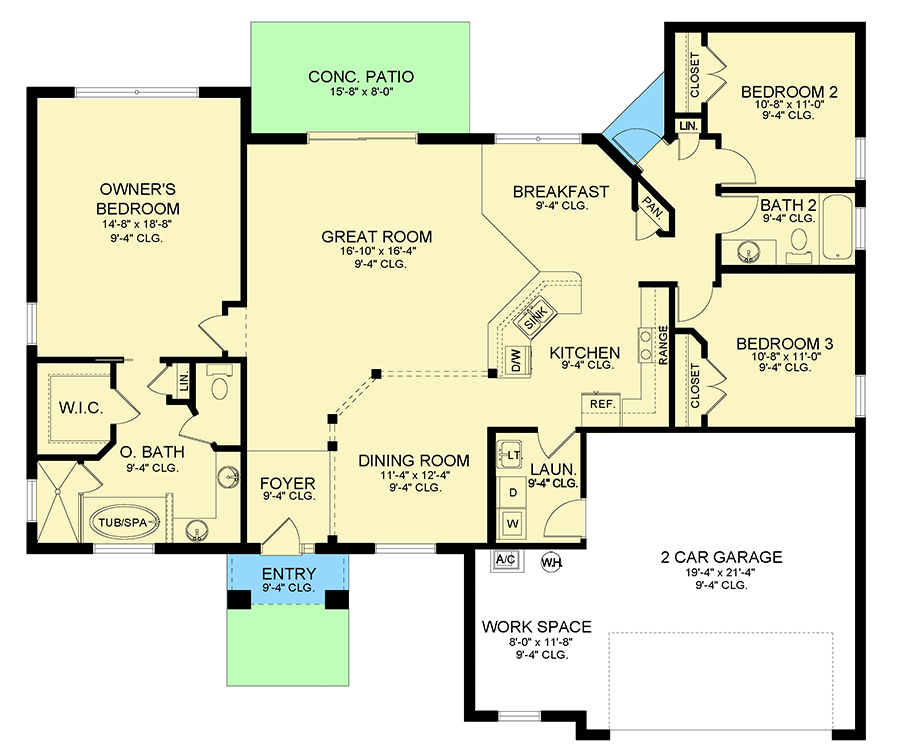

floor plan image Main Level
Plan Details
  • Three columns support an inviting front porch on this 3-bedroom, ranch house plan. The open layout inside creates a great space for family and friends to gather.
  • The formal entry leads into a foyer with views into the dining room, great room, and kitchen. An angled kitchen island anchors the living space and the laundry room's close proximity to the kitchen helps when multi-tasking.
  • Sliding doors open to a concrete patio, providing the perfect space to grill or dine outside.
  • The owner's bedroom is privately located on the left side of the home. A pocket door reveals the attached master bath with two sinks, a commode room, and a walk-in closet.
  • Bedrooms 2 and 3 share a full bath, and a door across the hall provides easy access to the backyard. The forward-facing, 2-car garage includes a workspace area for a workshop or extra storage.
  • Related Plans: Get an alternate exterior with house plans 82269KA, 82270KA, and 82271KA.
What's Included

This plan set includes the following:

  • Cover Sheet
  • Foundation Floor Plan
  • Interior elevations

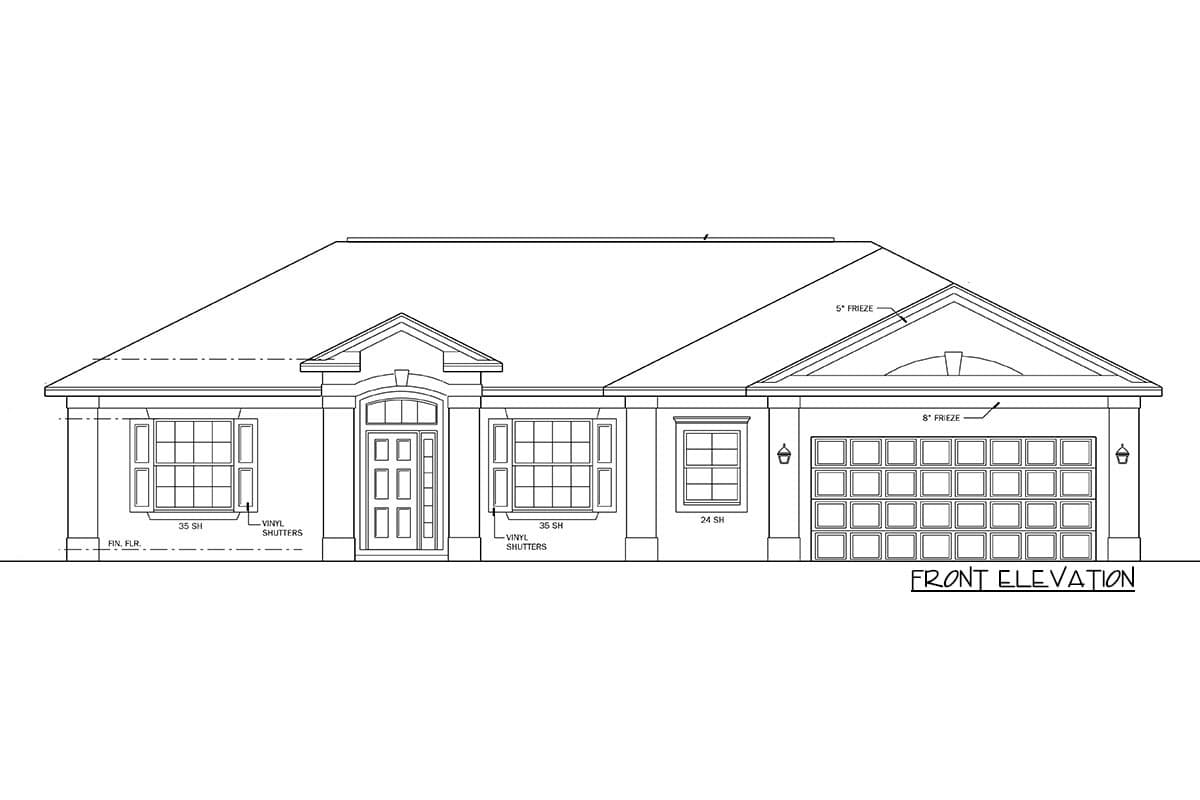

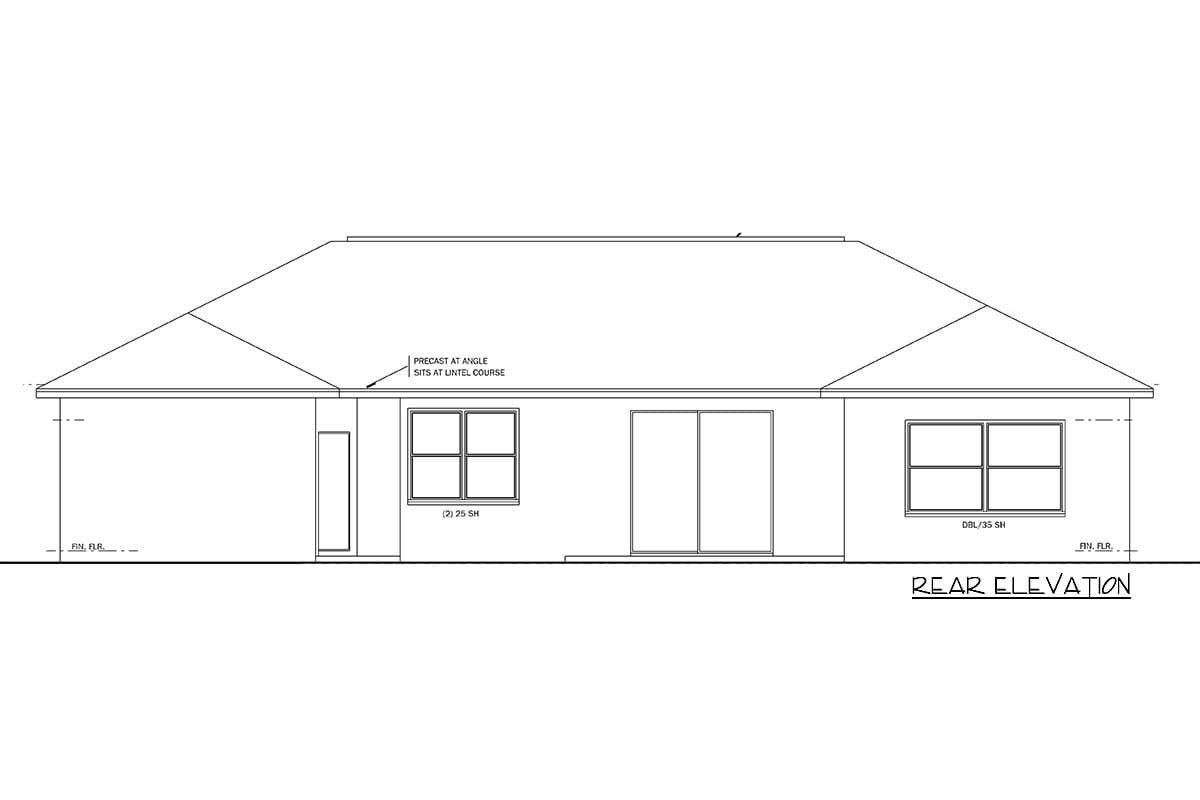

  • Front and rear elevations

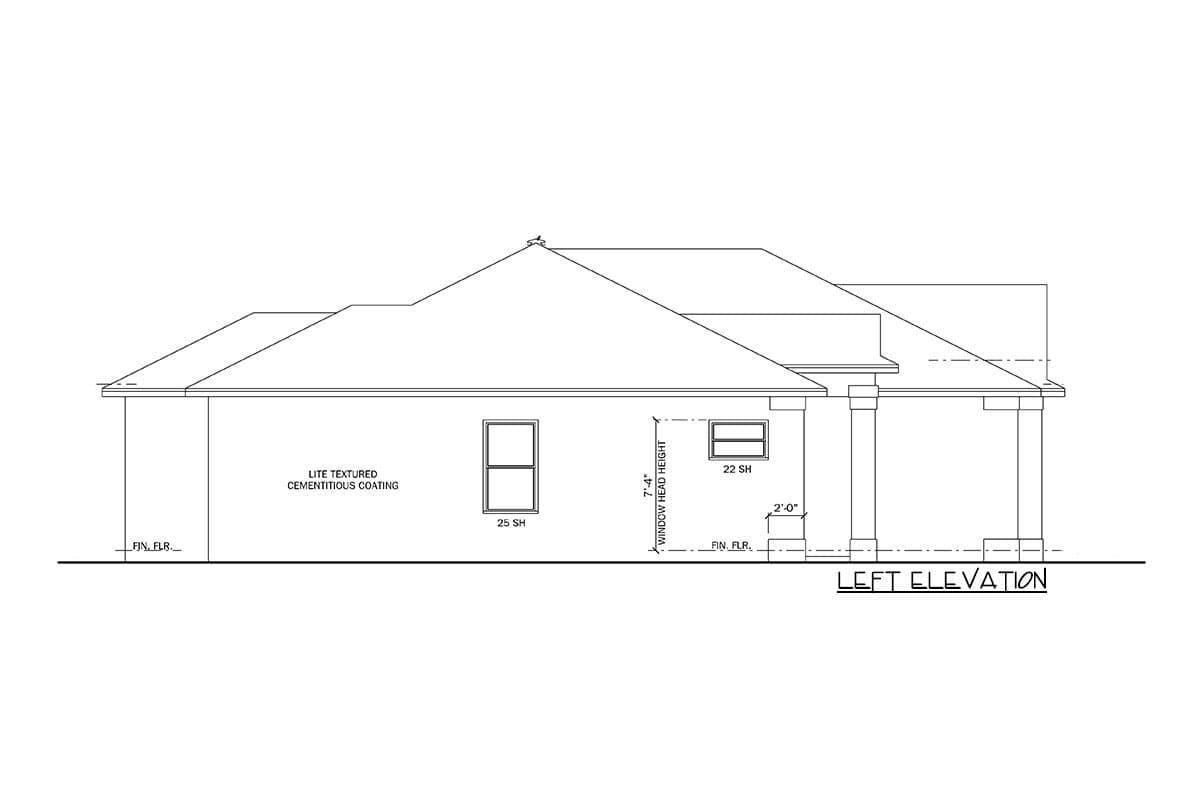

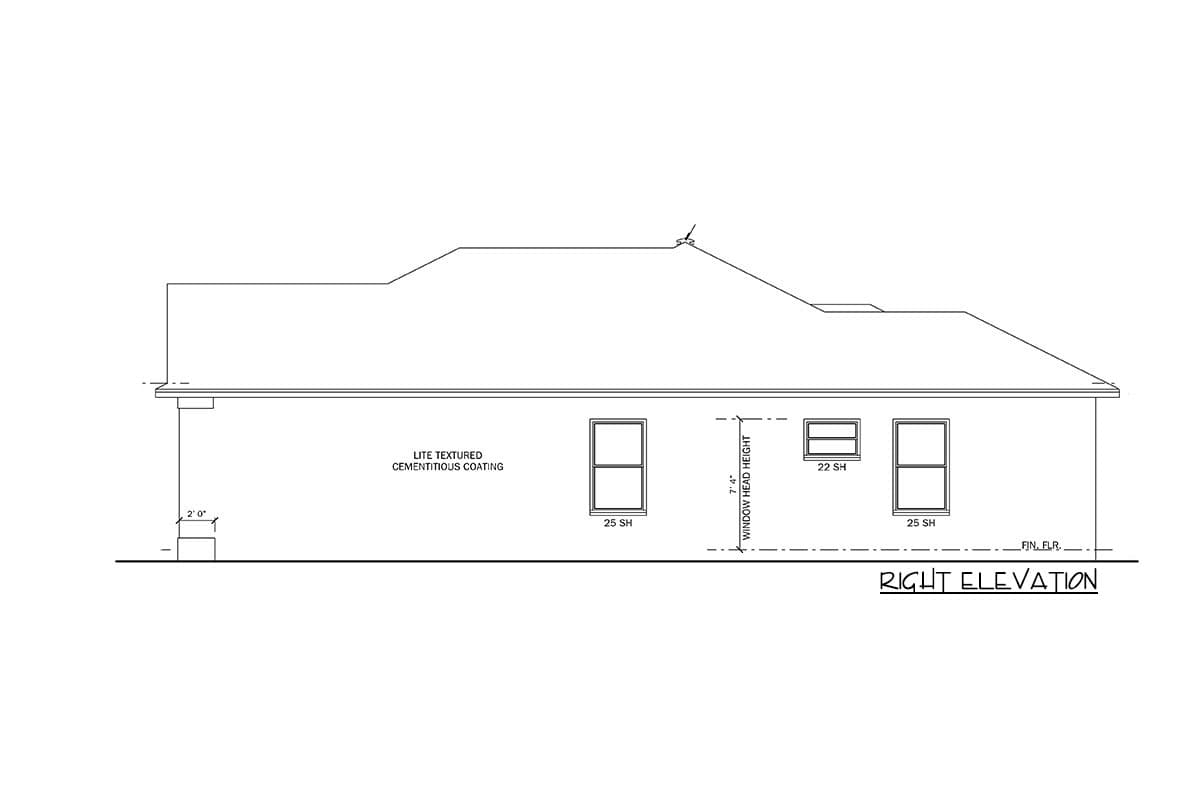

  • Side elevations
  • Electrical Plans
  • Lintel Plan
  • Structural Details (3 Pages)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,789 sq. ft.

1st Floor

1,789 sq. ft.

Porch, Front

35 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

60' 0"

Depth

51' 4"

Garage

Type

Attached

Area

549 sq. ft.

Count

2 Cars

Entry Location

Front

Architectural Style

Mediterranean

Ranch

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Workshop
