Plan 54022LK
One-level Modern Gem with Split Bedrooms
Heated S.F.
2,129
Beds
3
Baths
2
Stories
1
Cars
2
Floor Plan

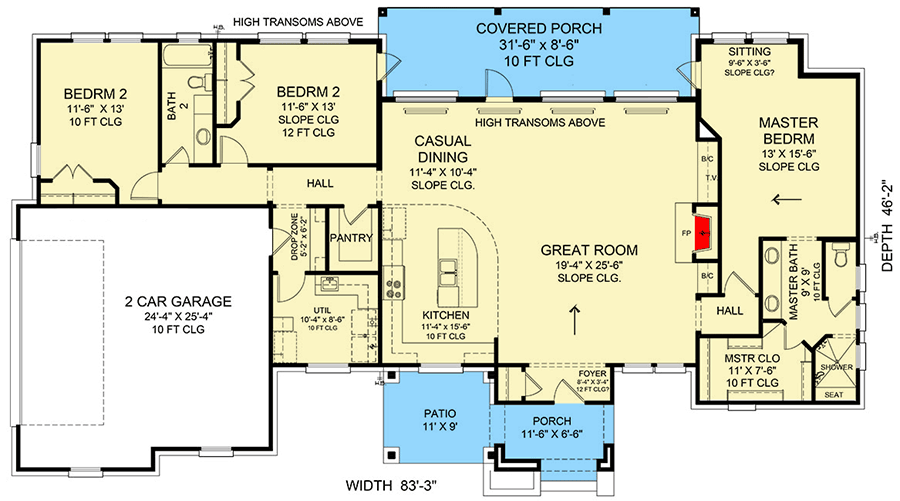

Plan 54022LK

Main Level
slide image 0

Plan 54022LK

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details
  • A multitude of lean to roofs combine to create this one-level, modern gem, complete with stone accents on the exterior and a light-filled, open floor plan due to a variety of transom windows.
  • Once inside, the heart of the home greets you, with a fireplace serving as the focal point. The open kitchen includes L-shaped cabinets surrounding a large island, and the adjacent covered porch is perfect for grilling and outdoor dining.
  • The master bedroom occupies the right wing of the home, and boasts a sitting nook with access to the back porch. The 4-fixture, master bath includes dual sinks, a commode room, and a sizable walk-in closet.
  • Bedrooms 2 and 3 feature a sloped ceiling, making the rooms feel larger.
  • Remain organized when coming and going with the drop zone just inside from the 2-car garage.
What's Included
  • FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches and outlets.
  • ELEVATIONS: The front, rear and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
  • ROOF PLANS: Provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable
  • BUILDING CROSS SECTION: Shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.
  • INTERIOR ELEVATIONS: Show's how the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.
  • NOTES AND DETAILS: Provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
