One-level Modern Hill Country House Plan with Split Bedrooms and Large Covered Porch
Heated S.F.
2,849
Beds
3
Baths
3
Stories
1
Cars
2
Floor Plan

Plan 430071LY

Main Level
slide image 0

Plan 430071LY

1-800-854-7852

1-262-521-4596

Main Level

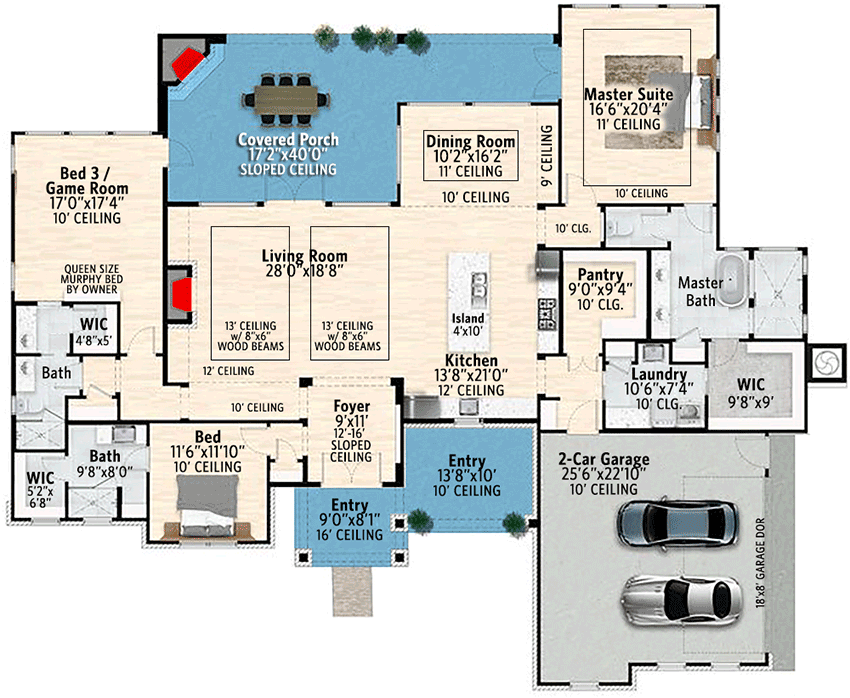

floor plan image Main Level
Plan Details
  • This one-level modern hill country house plan presents a stone trim below board and batten siding, finished off by a ribbed metal roof.
  • Inside, the open floor plan encourages family and friends to gather, while the rear porch is the perfect spot for outdoor dining.
  • The spacious kitchen hosts an oversized island, large range, and a walk-in pantry. Easy access to the garage makes unloading groceries a breeze.
  • Enjoy the privacy offered by the master suite, which includes a pair of french doors that lead to the porch, along with a 5-fixture bathroom and walk-in closet that connects with the laundry room.
  • Two bedroom suites line the left side of the home, each with access to a full bath.
What's Included
  • Cover sheet
  • Plot Plan (survey must be provided)
  • Roof plan
  • Floor plan
  • Exterior elevations
  • Typical wall sections
  • Ceiling treatment plans
  • Electrical floor plans
  • Interior elevations
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Foundations are engineered locally based on soil samples which is why a “typical” foundation plan is not provided.
