Plan 62752DJ
One-Level Modern House Plan with 3 Bedrooms - 1290 Sq Ft
Heated S.F.
1,290
Beds
3
Baths
2
Stories
1
Cars
2
Tour
Floor Plan

Plan 62752DJ

Main Level
slide image 0

Plan 62752DJ

1-800-854-7852

1-262-521-4596

Main Level

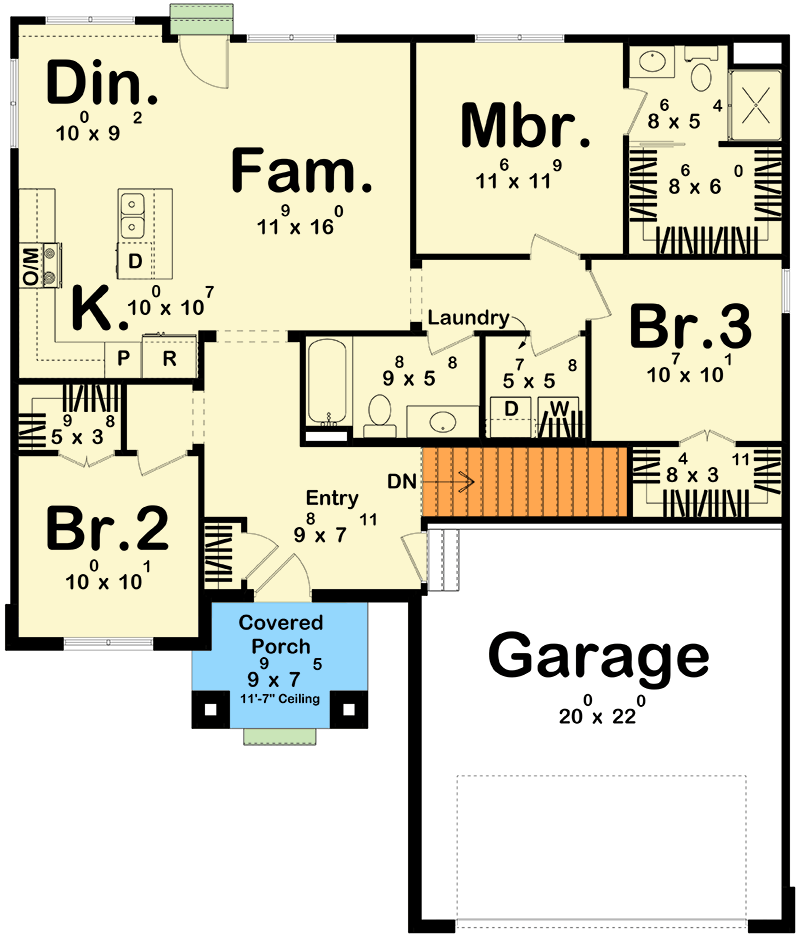

floor plan image Main Level
Plan Details

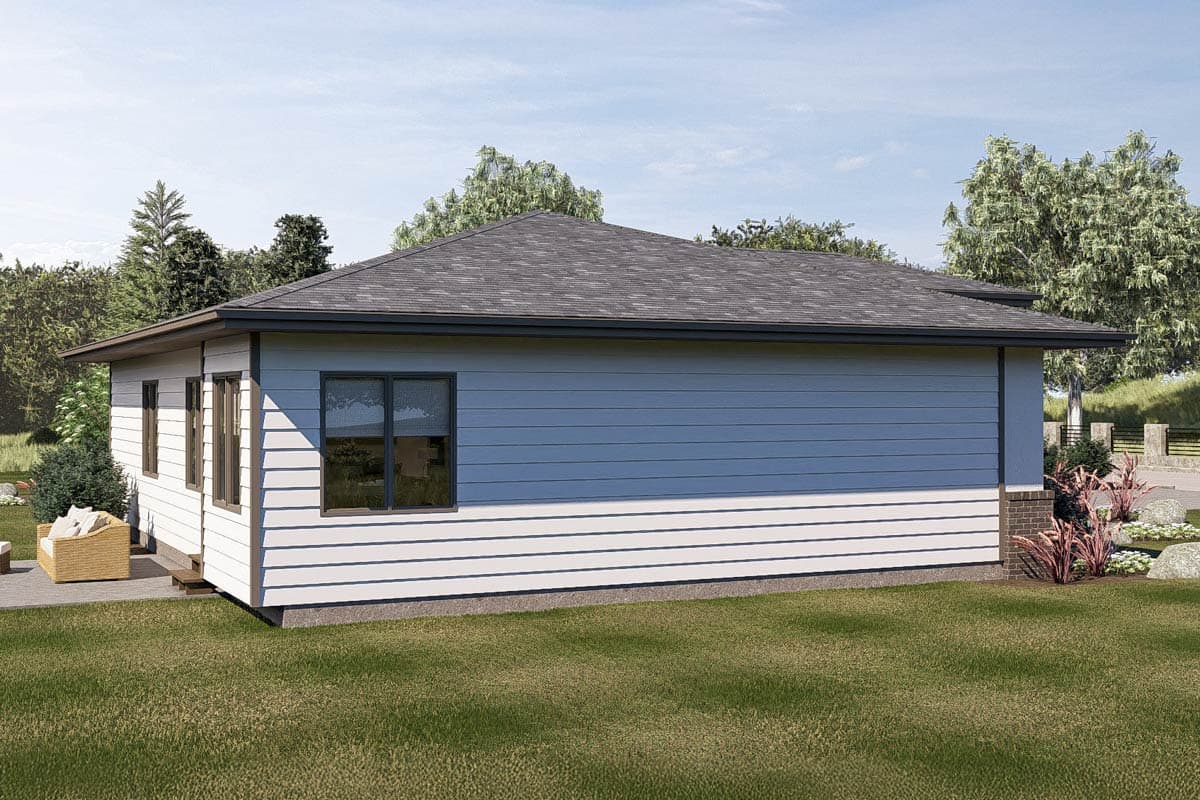

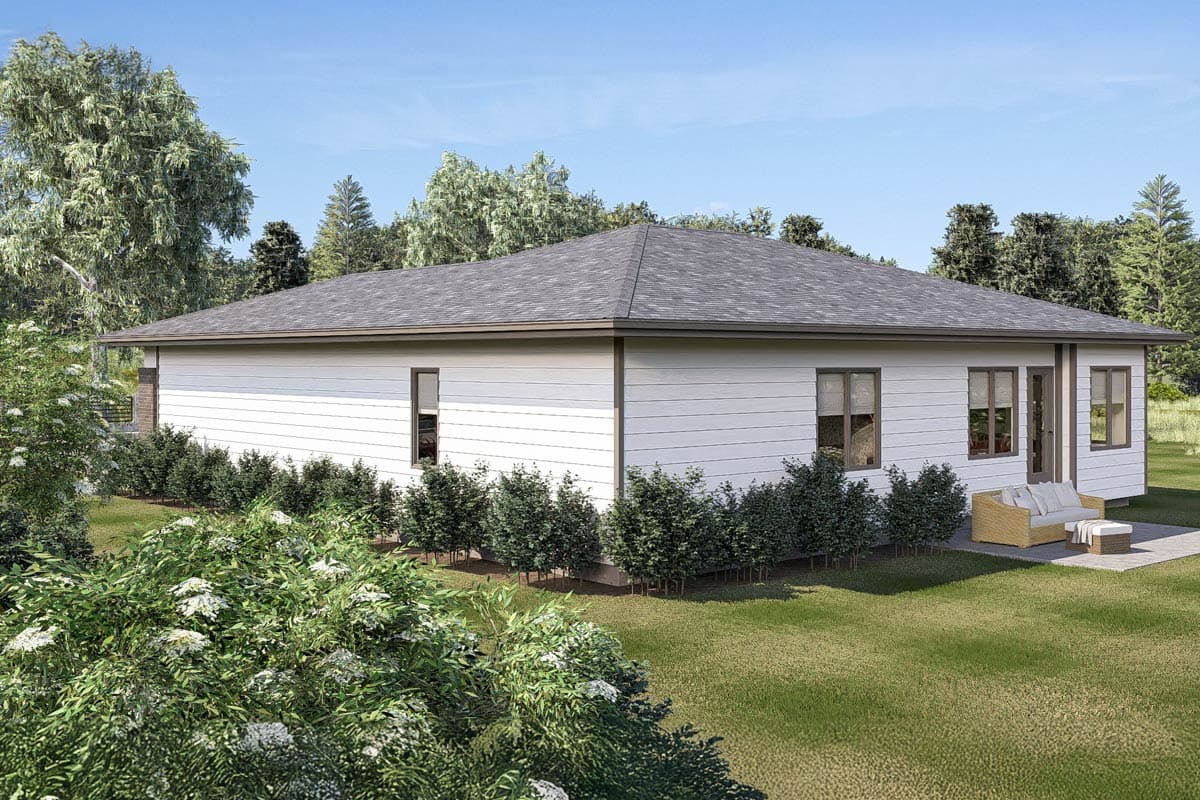

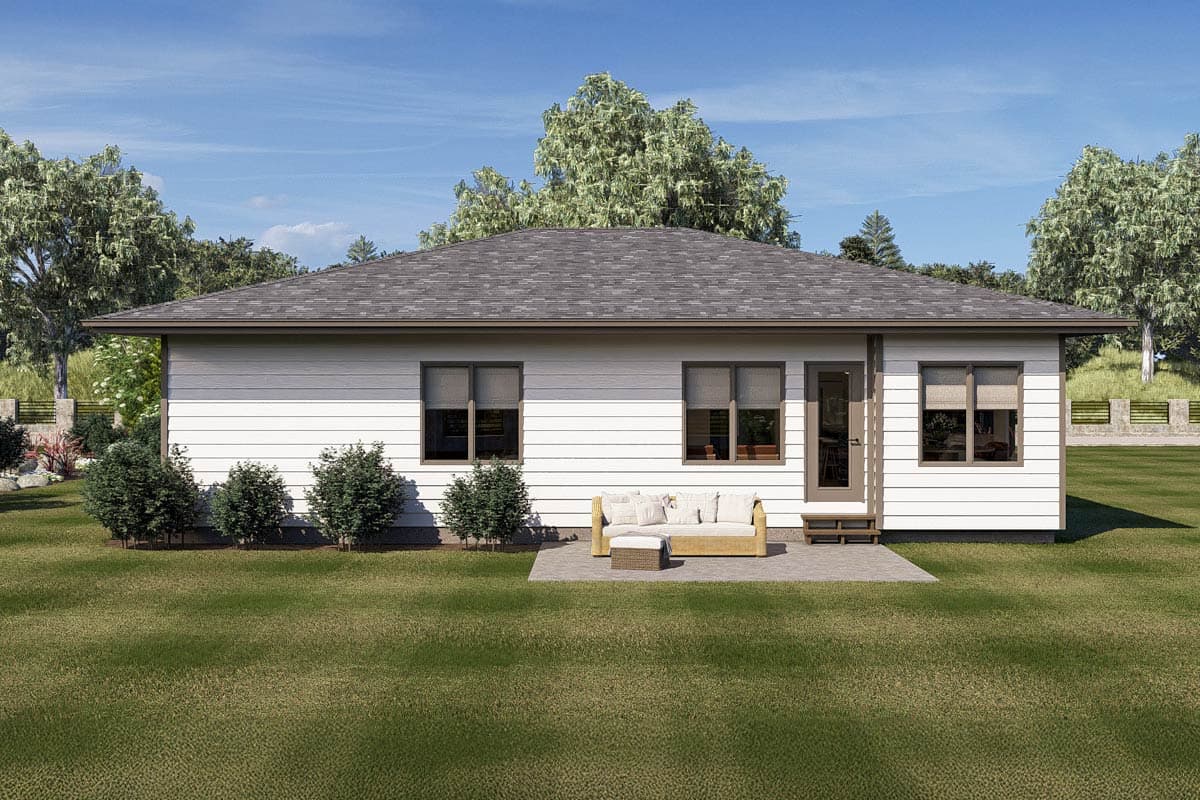

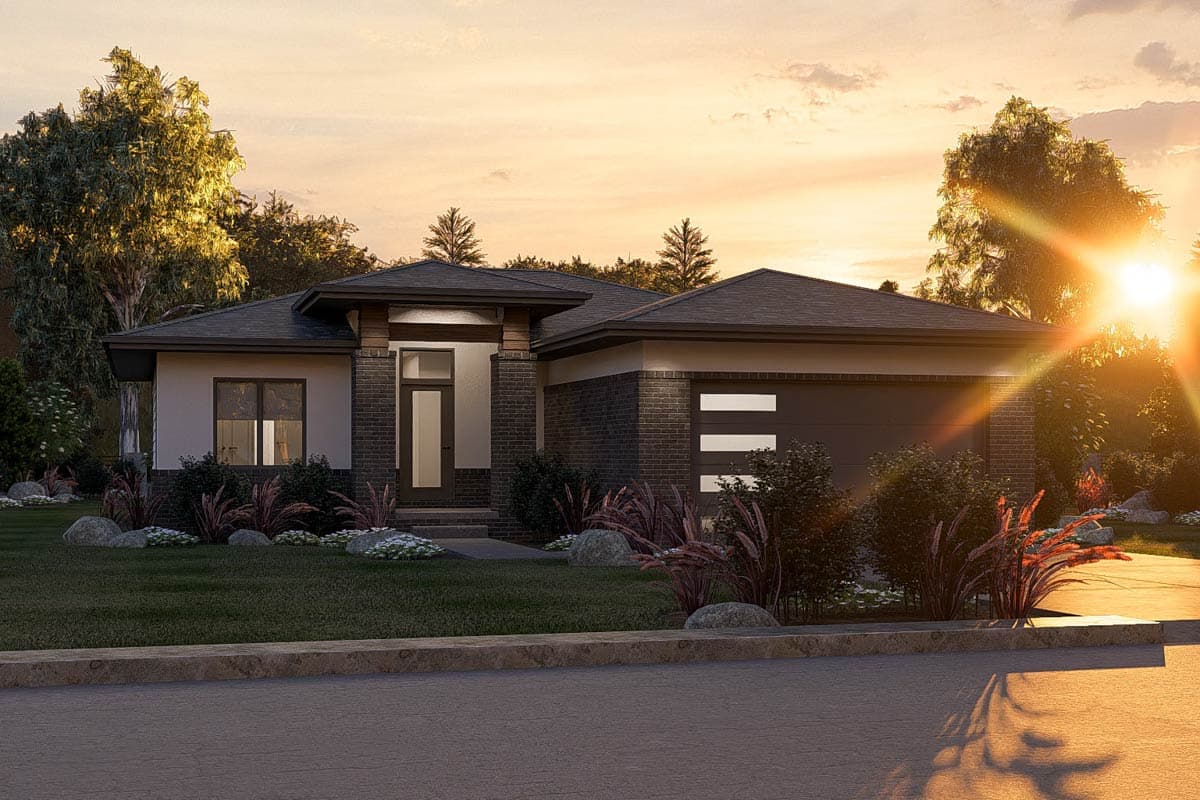

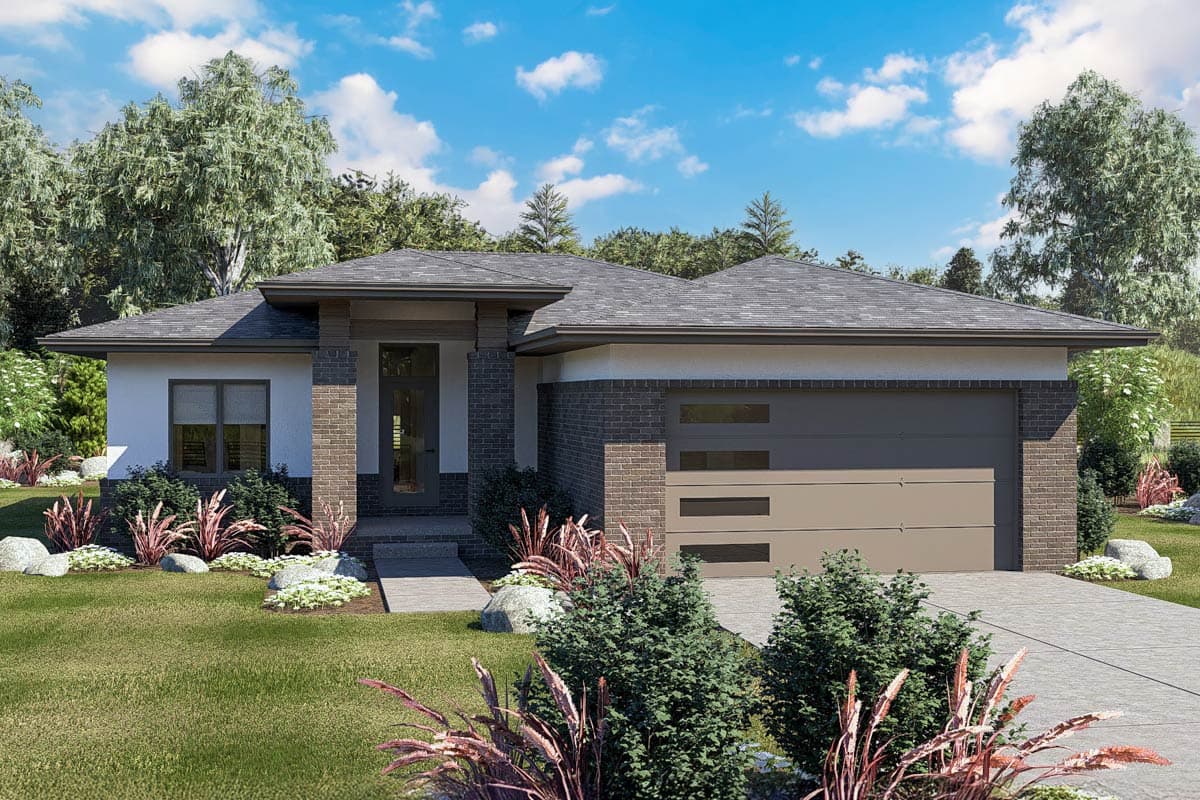

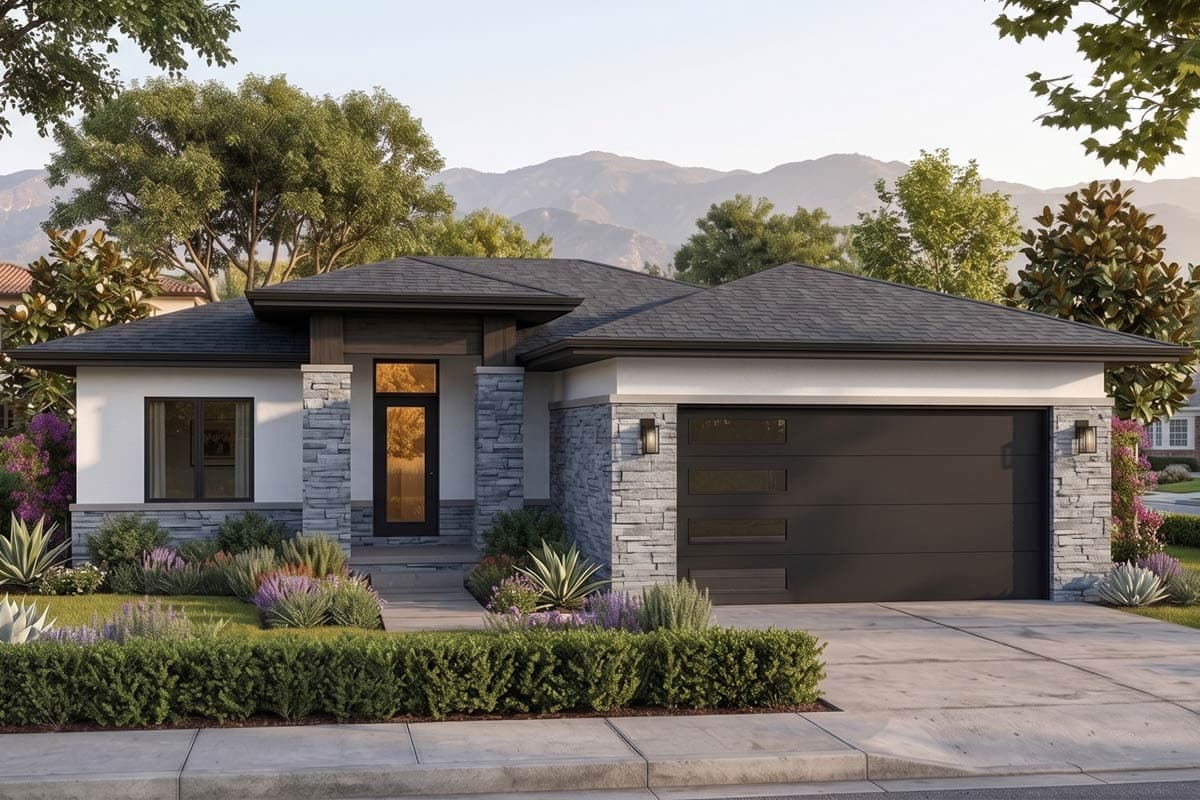

  • Brick and horizontal siding, beneath a cross-hipped roof, enhance the exterior of this modern ranch house plan.

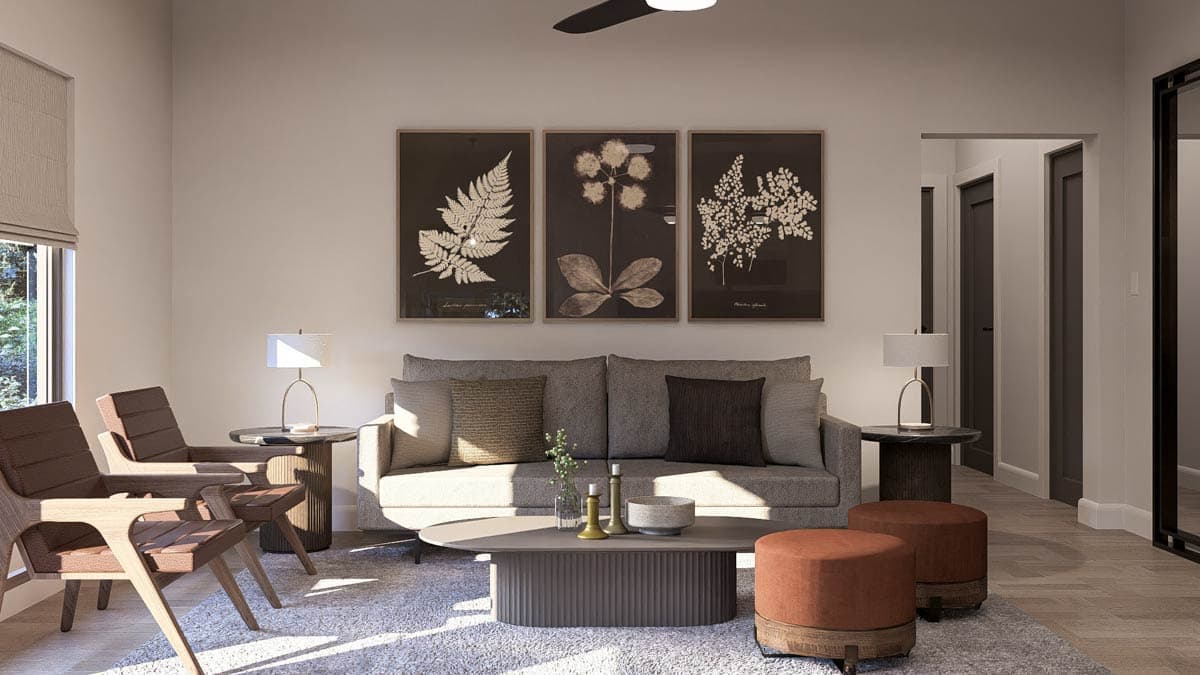

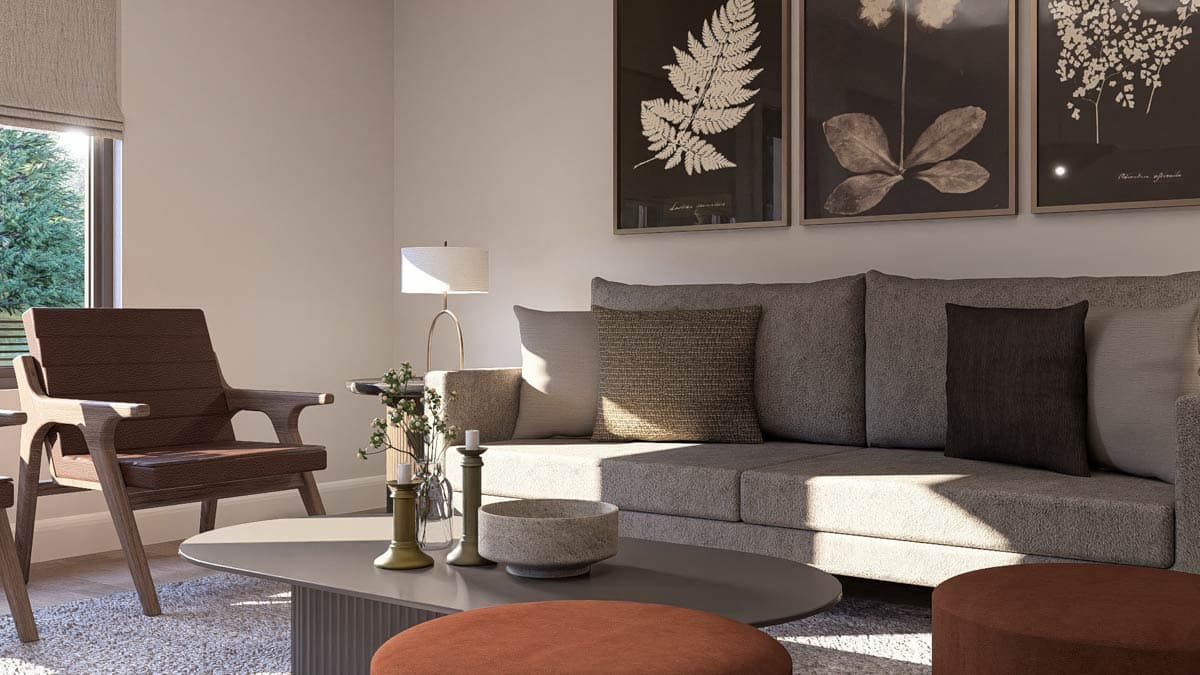

  • Both the formal entry and garage entry lead to the main foyer which includes a coat closet. Past a quiet bedroom that sits towards the front of the home, the shared living space greets you. Clean sight lines between the family room, kitchen, and dining room promote easy conversation.

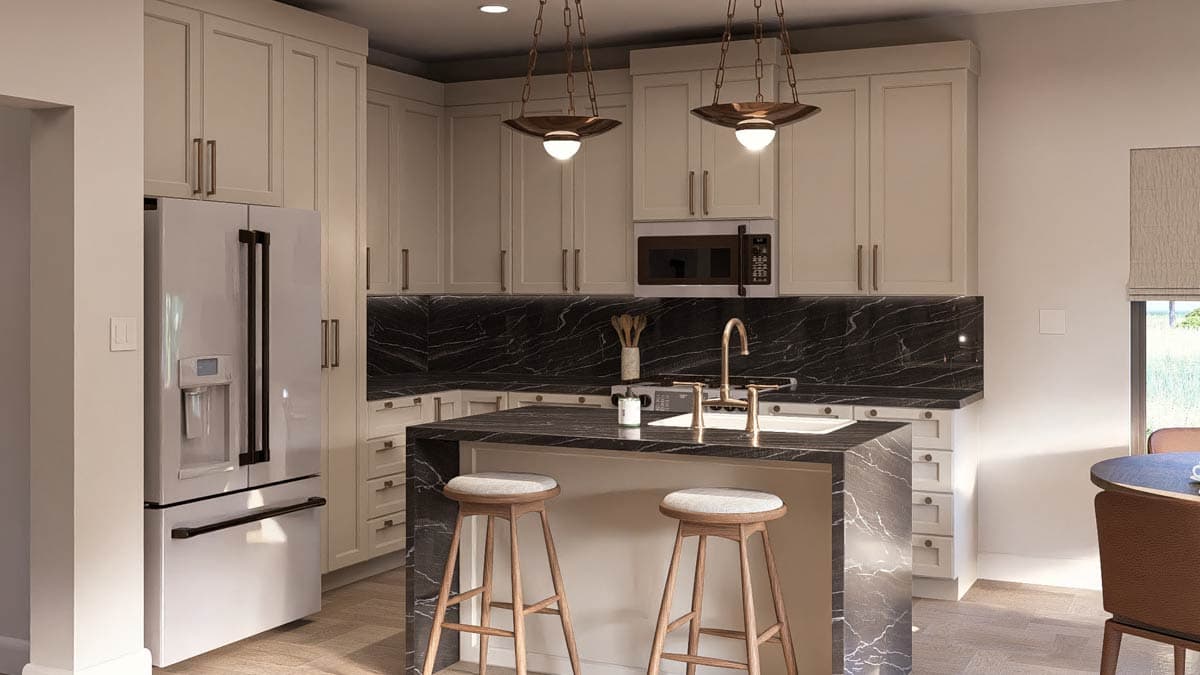

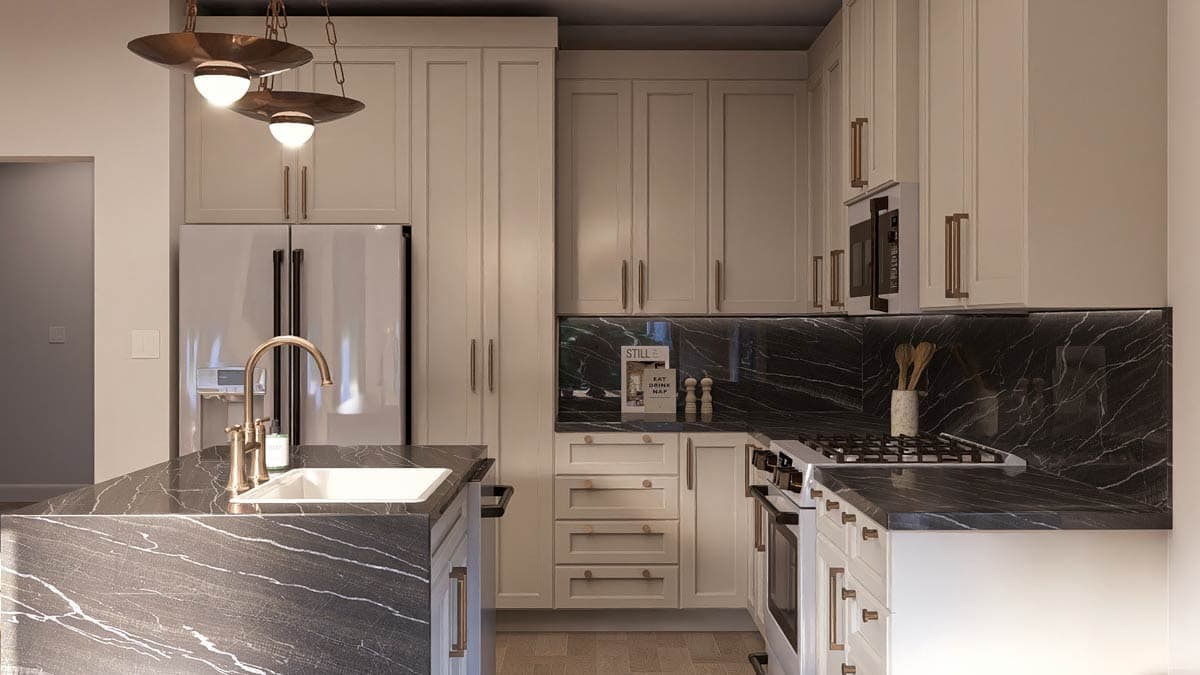

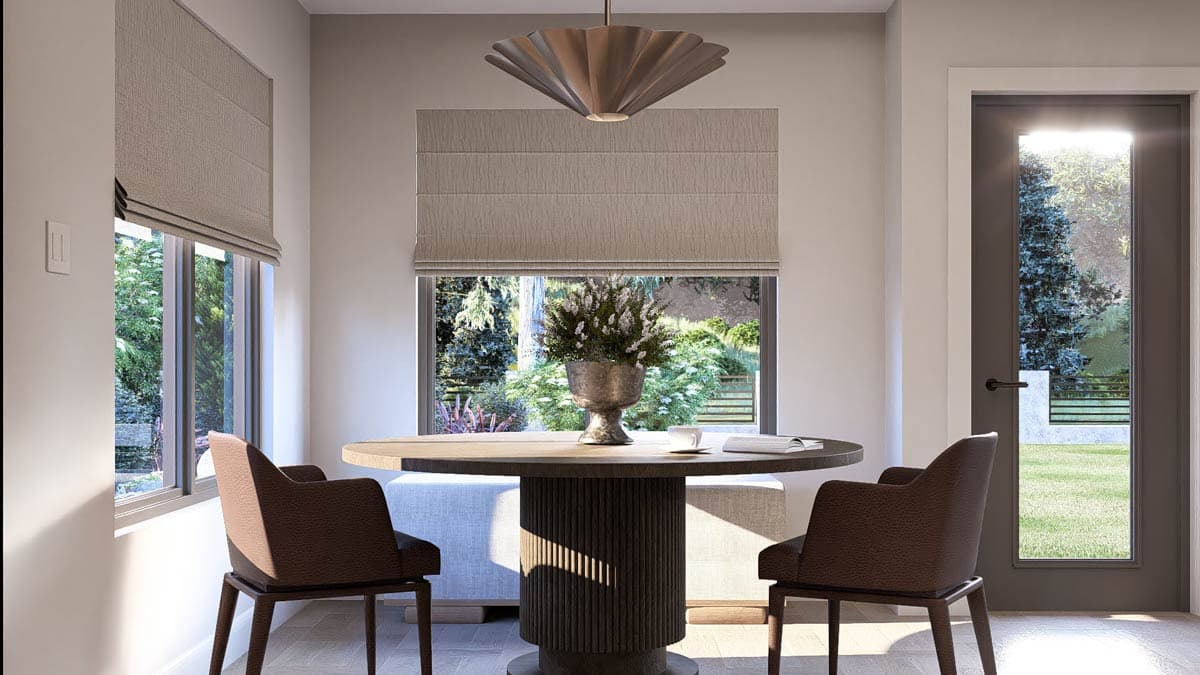

  • A kitchen island includes a sink and provides additional workspace. The neighboring dining room offers rearward views and a door leads to the backyard.

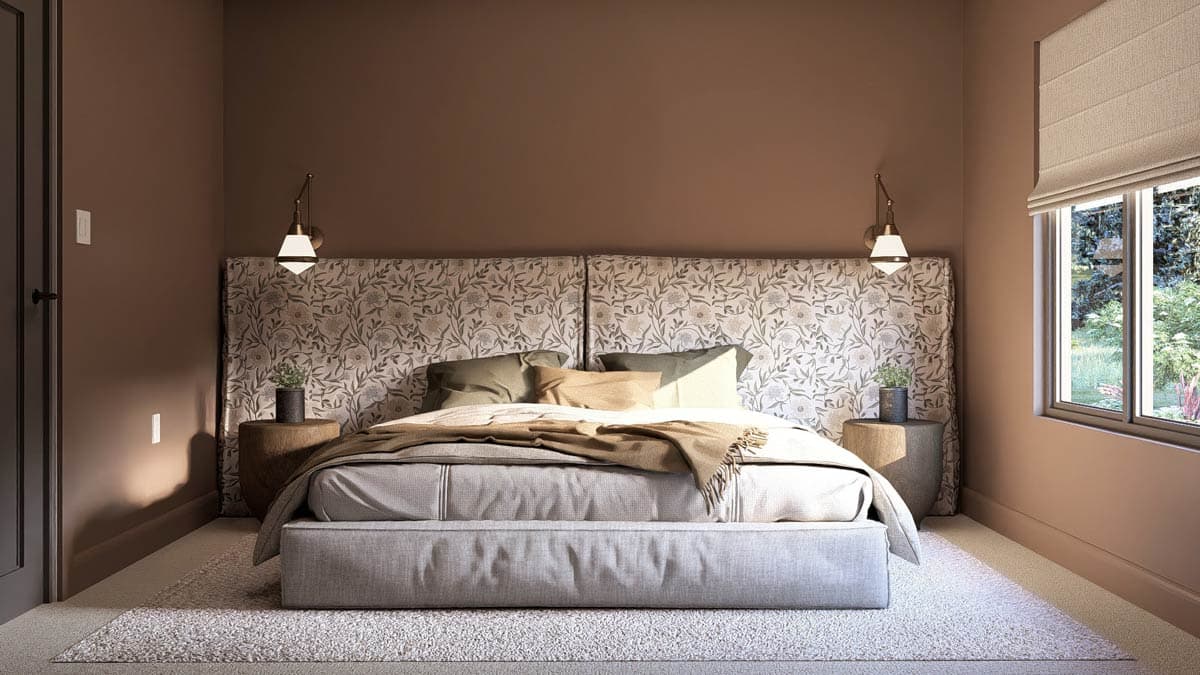

  • The master bedroom includes a walk-in closet and a full bathroom, and is ideally located across from the laundry room.

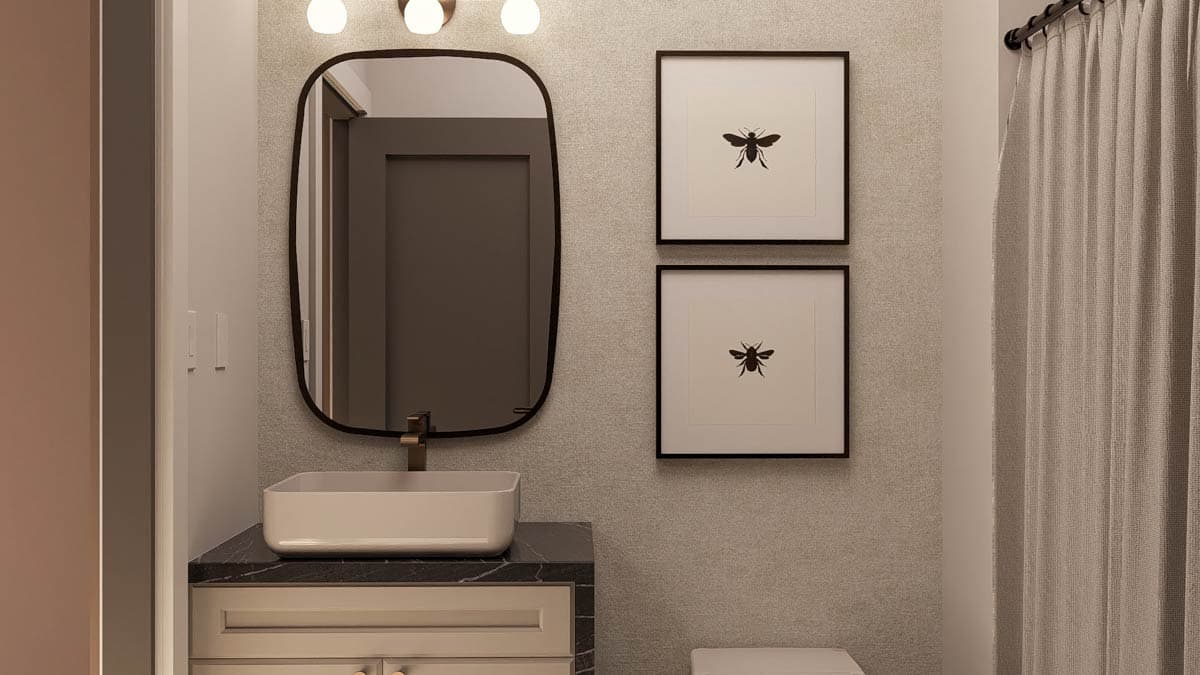

  • A third bedroom shares the full bathroom on the main floor.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,290 sq. ft.

1st Floor

1,290 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

43' 0"

Depth

51' 0"

Garage

Type

Attached

Area

459 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

4 on 12

Framing Type

Architectural Style

Northwest

Prairie

Ranch

Special Features

Bedrooms - Clustered

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor
