Plan 95129RW

One-level Mountain Craftsman Plan with Split-bed Layout

Heated S.F.

2,290

Beds

3

Baths

2

Stories

1

Cars

2

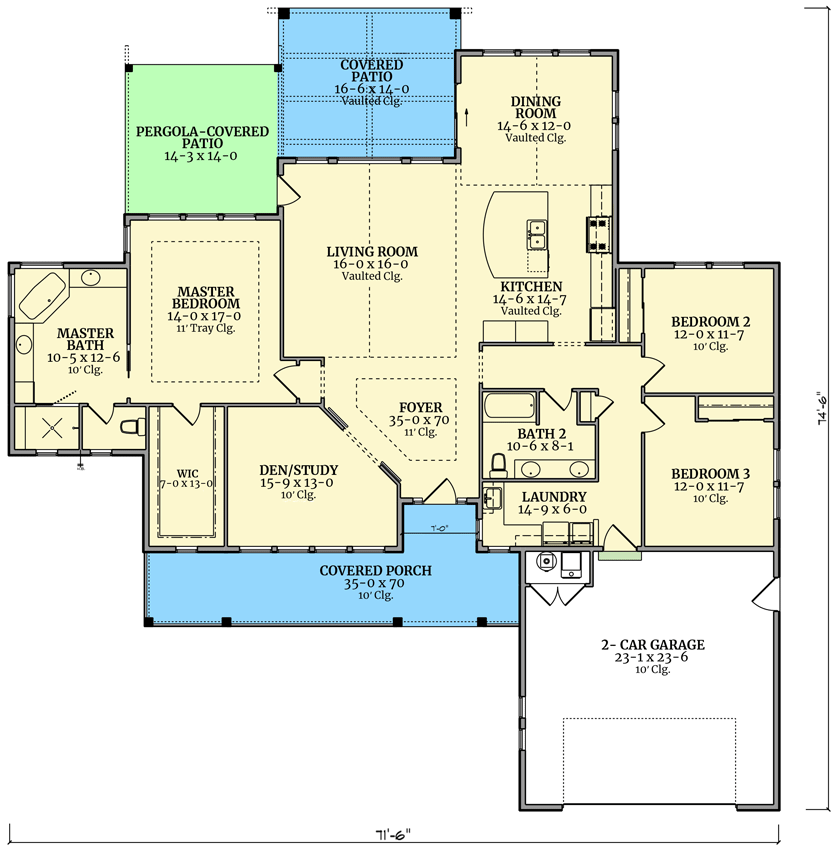

Floor Plan

Main Level

floor plan image Main Level

Plan Details

Enjoy one-level living in this stunning Mountain Craftsman home plan, complete with stone accents and a ribbed metal roof.
The split-bedroom layout provides the homeowner with the utmost privacy, while the central living space provides an open environment for families to spend quality time together.
A quiet den, or study, is just off the foyer, and a spacious patio lends an outdoor space with a vaulted ceiling.
The master bedroom boasts a tray ceiling, walk-in closet, and 5-fixture bathroom with a water closet.
Bedrooms 2 and 3 sit side-by-side behind the double garage, across from a full bath with two sinks and the laundry room.

What's Included

Cover Page

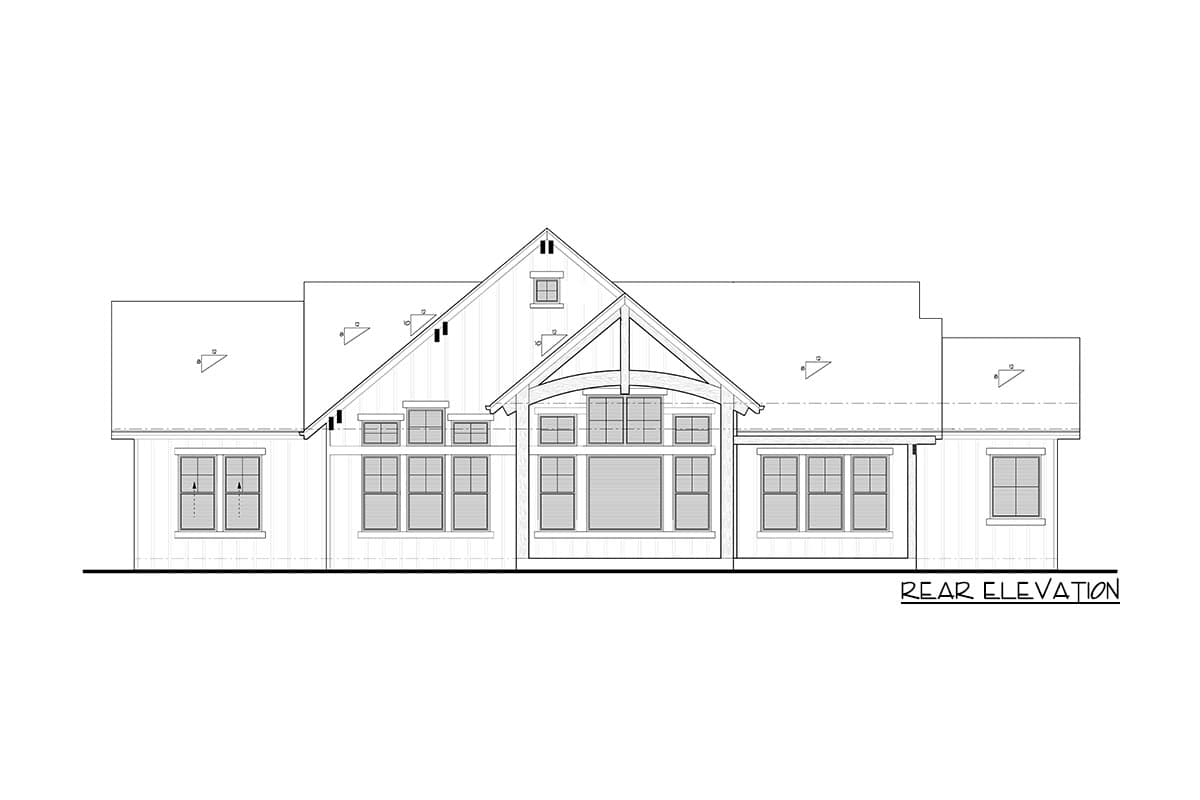

4 Elevations
Floorplans
Foundation plan (with no specifications of structural elements)
Roof plan (with no specifications of structural elements)
Typical wall sections
Electrical plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
REScheck or other energy related calculations are NOT included.
Wind load or seismic calculations are NOT included.
Framing plans or beam sizes are NOT included.
Other specific drawings that your local permit office may requires

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,290 sq. ft.

1st Floor

2,290 sq. ft.

Porch, Combined

710 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

71' 6"

Depth

74' 6"

Max Ridge Height

25' 8"

Garage

Type

Attached

Area

576 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Modern Farmhouse

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Square Footage Breakdown

Total Heated Area

2,290 sq. ft.

1st Floor

2,290 sq. ft.

Porch, Combined

710 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

71' 6"

Depth

74' 6"

Max Ridge Height

25' 8"

Garage

Type

Attached

Area

576 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Modern Farmhouse

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections
