Plan 48502FM
One Level Split Bedroom House Plan
Heated S.F.
1,792
Beds
1 - 3
Baths
1 - 2
Stories
1
Cars
2
Floor Plan

Plan 48502FM

Main Level
slide image 0

Plan 48502FM

1-800-854-7852

1-262-521-4596

Main Level

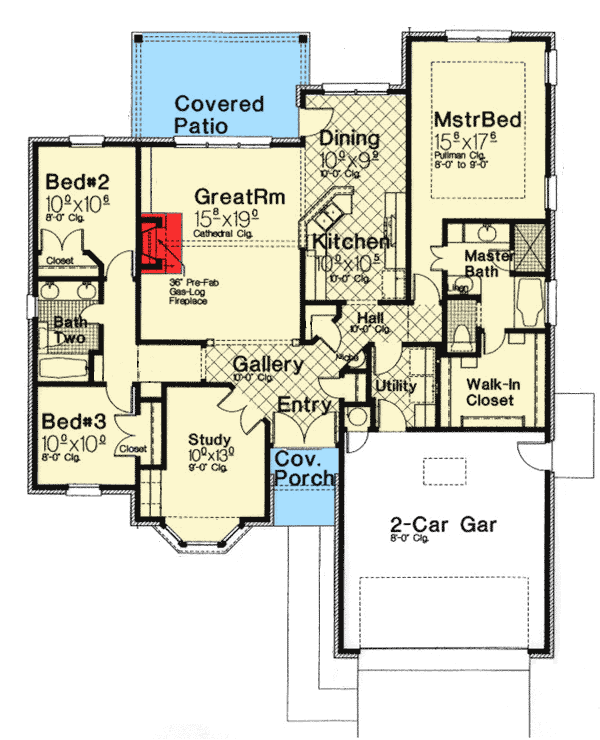

floor plan image Main Level
Plan Details
  • A charming bay window topped with metal roofing extends the study of this one level Traditional house plan.
  • Gather around the gas fireplace in the vaulted great room and spend time with the family.
  • In the kitchen the peninsula eating bar is nicely positioned to take in views of the great room, covered rear patio and the dining area.
  • A large master suite with tray ceiling gains lots of privacy from the split bedroom floor plan.
  • On the other side of the house, a large bathroom with double sinks serves the two family bedrooms.
What's Included
  • Cover Sheet
  • Floor Plans
  • Electrical Plan
  • Foundation Plan
  • Front and Left Elevation
  • Rear and Right Elevation
  • Roof Plan
  • Cabinets and Section
  • Building Section

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

1,792 sq. ft.

1st Floor

1,792 sq. ft.

Beds/Baths

Bedrooms

1, 2, or 3

Full bathrooms

1 or 2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

50' 0"

Depth

60' 0"

Max Ridge Height

24' 0"

Garage

Type

Attached

Area

421 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Room

Ceiling Type

Height

Great Room

Cathedral

0' 0''

Gallery

10' 0''

Dining Room

10' 0''

Kitchen

10' 0''

Study

9' 0''

Master Bedroom

Pullman

9' 0''

Roof Details

Primary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Southern

Traditional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,792 sq. ft.

1st Floor

1,792 sq. ft.

Beds/Baths

Bedrooms

1, 2, or 3

Full bathrooms

1 or 2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

50' 0"

Depth

60' 0"

Max Ridge Height

24' 0"

Garage

Type

Attached

Area

421 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Room

Ceiling Type

Height

Great Room

Cathedral

0' 0''

Gallery

10' 0''

Dining Room

10' 0''

Kitchen

10' 0''

Study

9' 0''

Master Bedroom

Pullman

9' 0''

Roof Details

Primary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Southern

Traditional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Library/Study

Master Suite - 1st Floor
