Name: Plan 444243GDN: One-level Stone Cottage with Bonus Room above Garage - 2149 Sq Ft
SKU: 444243GDN
Price: 1575.0 USD
Availability: InStock

Plan 444243GDN

One-level Stone Cottage with Bonus Room above Garage - 2149 Sq Ft

Heated S.F.

2,149

Beds

2 - 3

Baths

Stories

Cars

Floor Plan

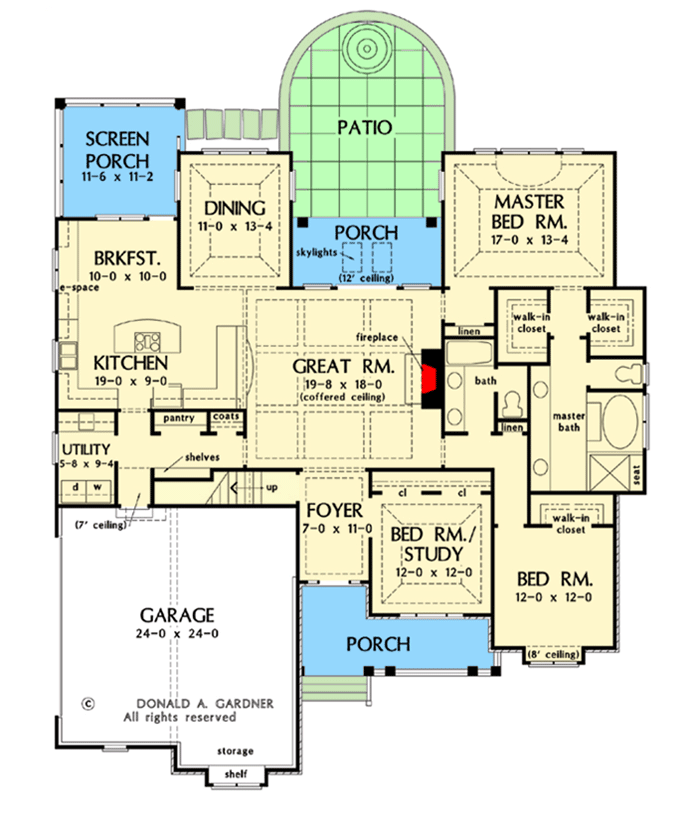

Main Level

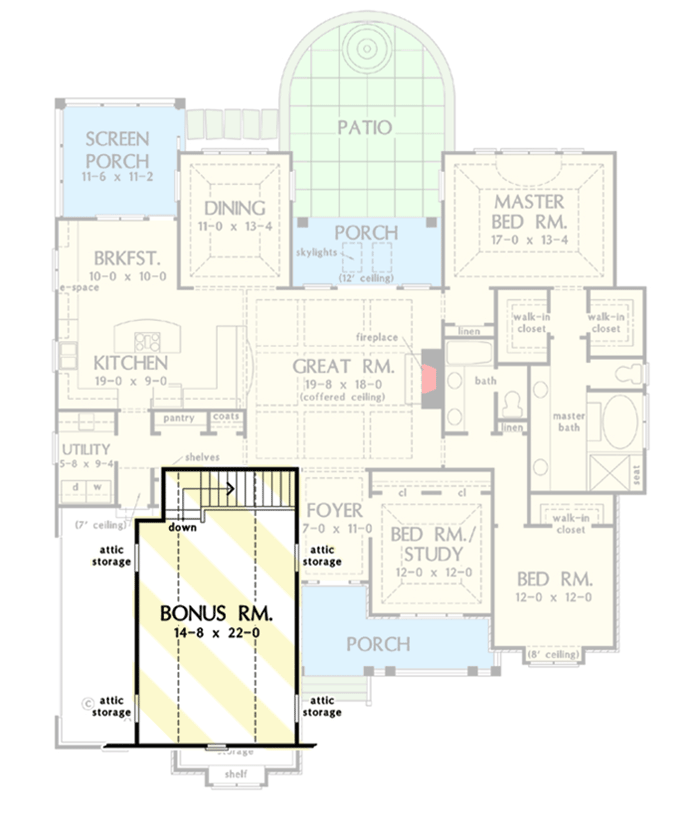

Bonus Room

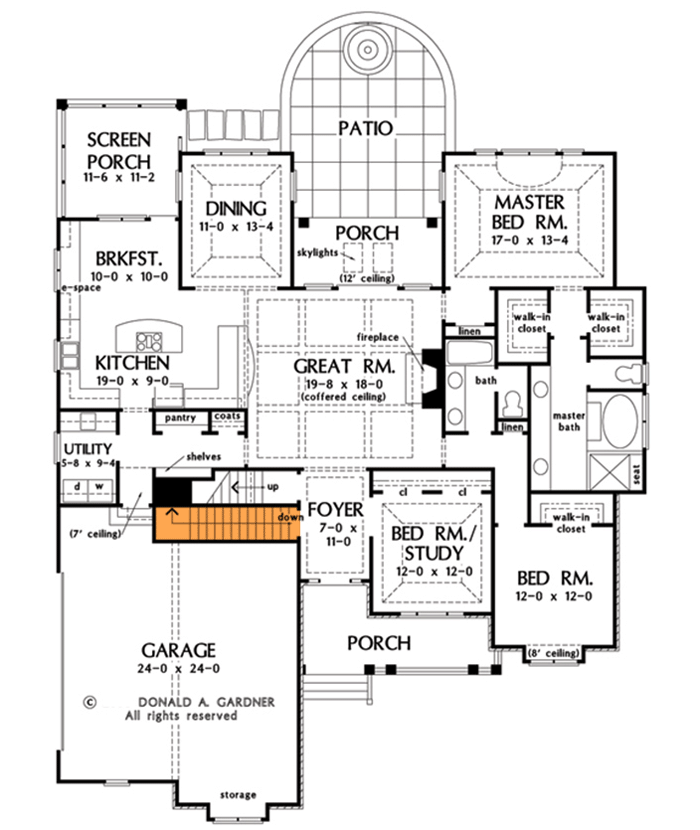

Basement Option

Plan Details

A combination of stone and siding creates a welcoming façade for this one-level Cottage house plan, and a 386 square foot bonus room provides a flexible space for the family to enjoy. A 6'-deep front porch has room for some furniture.
Intricate coffered ceilings decorate the great room with 13' coffered ceiling, which is anchored by a fireplace and provides easy access to a partially-covered patio.
The gourmet kitchen features a cooktop island that overlooks the breakfast nook, complete with a handy e-space.
Families will love the rear hall entrance from the garage, which features a coat closet and plenty of shelves for holding mail, keys, and other personal items.
The master bedroom protrudes from the rear of the home and boasts a tray ceiling, dual walk-in closets, and a deluxe ensuite
Related Plan: Get an alternate version with house plan 444244GDN.

What's Included

Cover Sheet - An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped
Foundation Plan - This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.
Detailed Floor Plans - These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.
Interior Elevations - The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.
Roof Plan - The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.
Exterior Elevations - Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.
Cross-Section / Wall Section Details - Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.
Structural Plan - Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
