Plan 39285ST
One-Level Traditional House Plan with Covered Porch
Heated S.F.
1,814
Beds
3
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 39285ST

Main Level
slide image 0
Basement Unfinished
slide image 1

Plan 39285ST

1-800-854-7852

1-262-521-4596

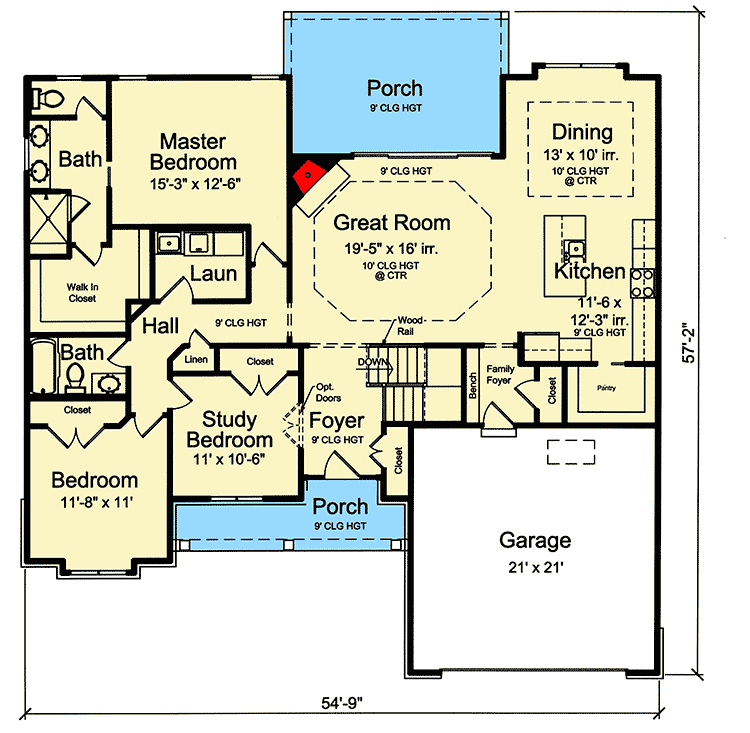

Main Level
floor plan image Main Level
Basement Unfinished
floor plan image Basement Unfinished
Plan Details

  • A charming brick and siding exterior and a covered front porch introduces this 3-bedroom, one-level house plan that can serve as your forever home for a growing family, or an empty nester.
  • The 10’ ceiling heights in the great room and dining area provides a feeling of spaciousness and dimension.
  • The gas fireplace adds a sense of comfort and triple doors to a covered back deck encourage outdoor living. A large island provides seating for casual meals and a large walk-in pantry offers plenty of storage.
  • A spacious family foyer / mud room creates an orderly buffer into the living areas, and the centrally located laundry room adds convenience.
  • The master suite offers a double-bowl vanity, private commode room, shower enclosure and walk-in closet.
  • This home is drawn for a sloped lot with a walk-out basement.

What's Included
  • General notes and specifications
  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,814 sq. ft.

1st Floor

1,814 sq. ft.

Basement Unfinished

1,814 sq. ft.

Porch, Front

92 sq. ft.

Porch, Rear

231 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

54' 9"

Depth

57' 2"

Max Ridge Height

24' 6"

Garage

Type

Attached

Area

443 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Country

Ranch

Traditional

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

1,814 sq. ft.

1st Floor

1,814 sq. ft.

Basement Unfinished

1,814 sq. ft.

Porch, Front

92 sq. ft.

Porch, Rear

231 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

54' 9"

Depth

57' 2"

Max Ridge Height

24' 6"

Garage

Type

Attached

Area

443 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Country

Ranch

Traditional

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Master Suite - 1st Floor

Mudroom
