Plan 623389DJ
One Story 4 Bed Modern Home Plan with Formal Dining - 2987 Sq Ft
Heated S.F.
2,987
Beds
4
Baths
3.5
Stories
1
Cars
2

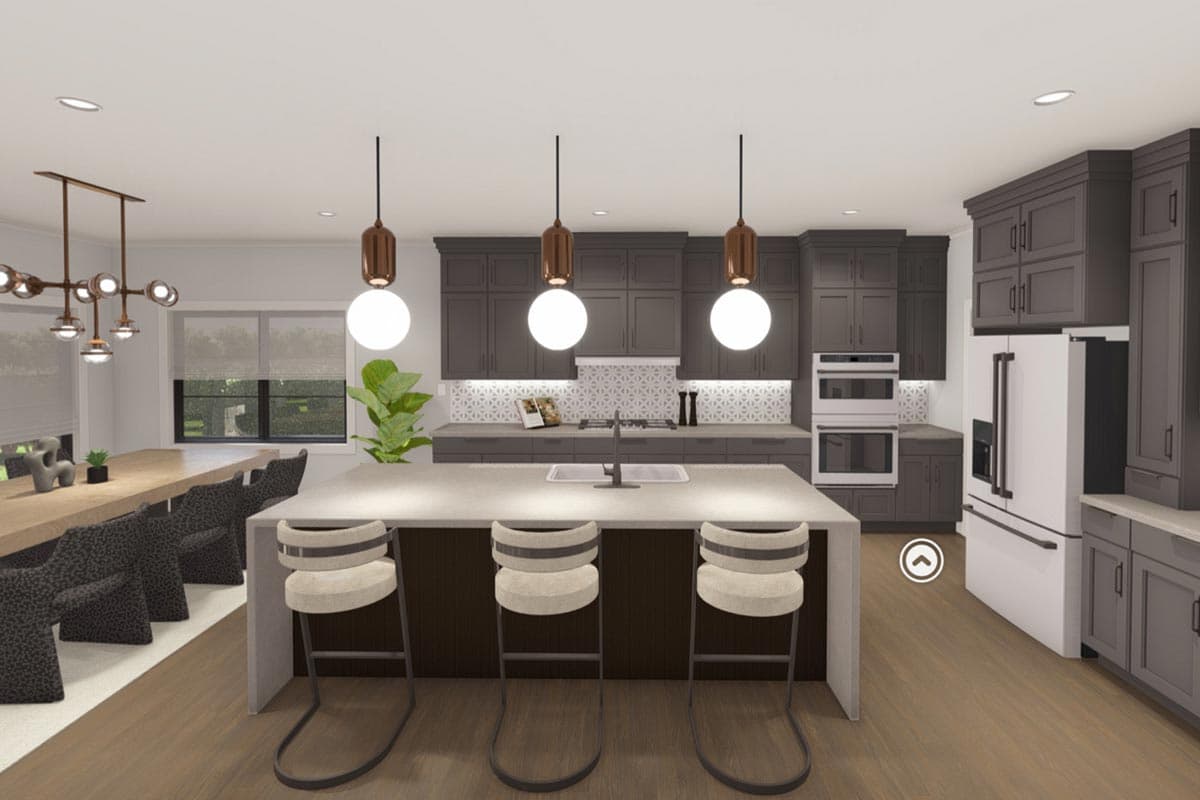

Tour
Floor Plan

Plan 623389DJ

Main Level
slide image 0

Plan 623389DJ

1-800-854-7852

1-262-521-4596

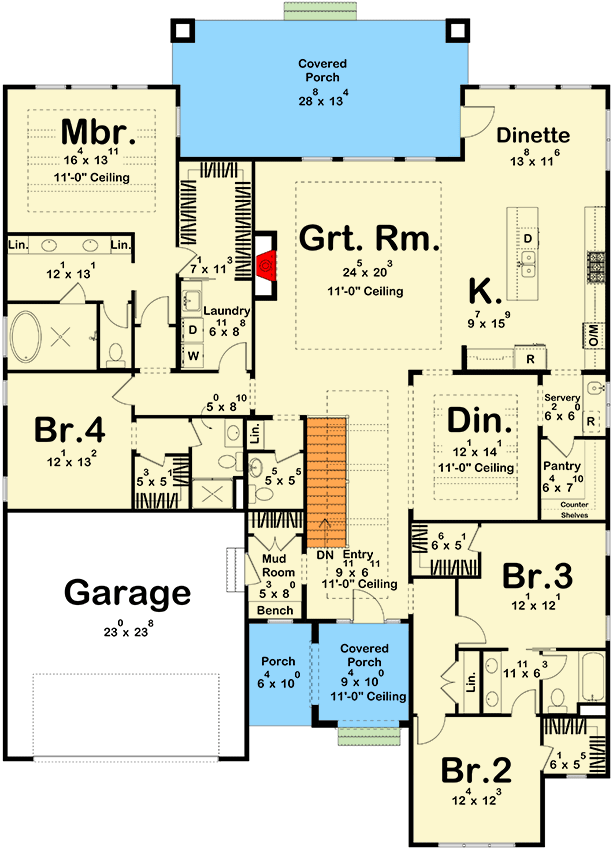

Main Level
floor plan image Main Level
Plan Details

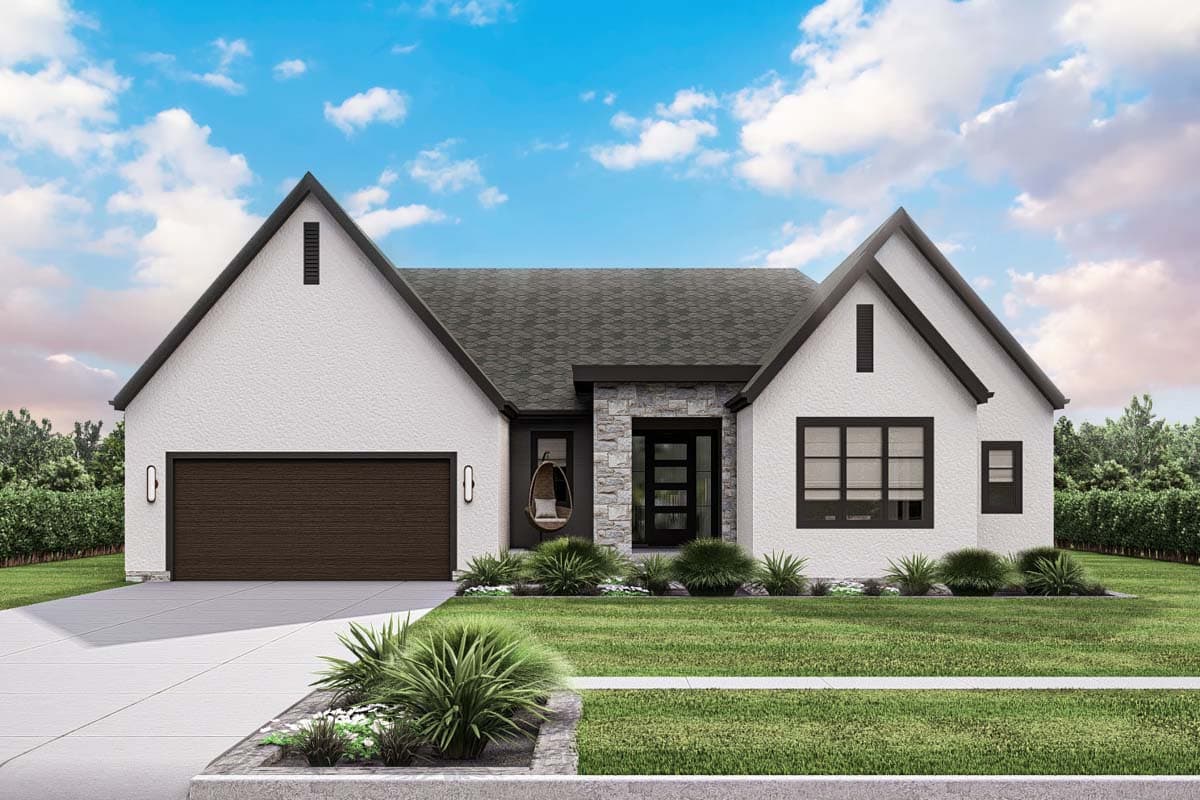

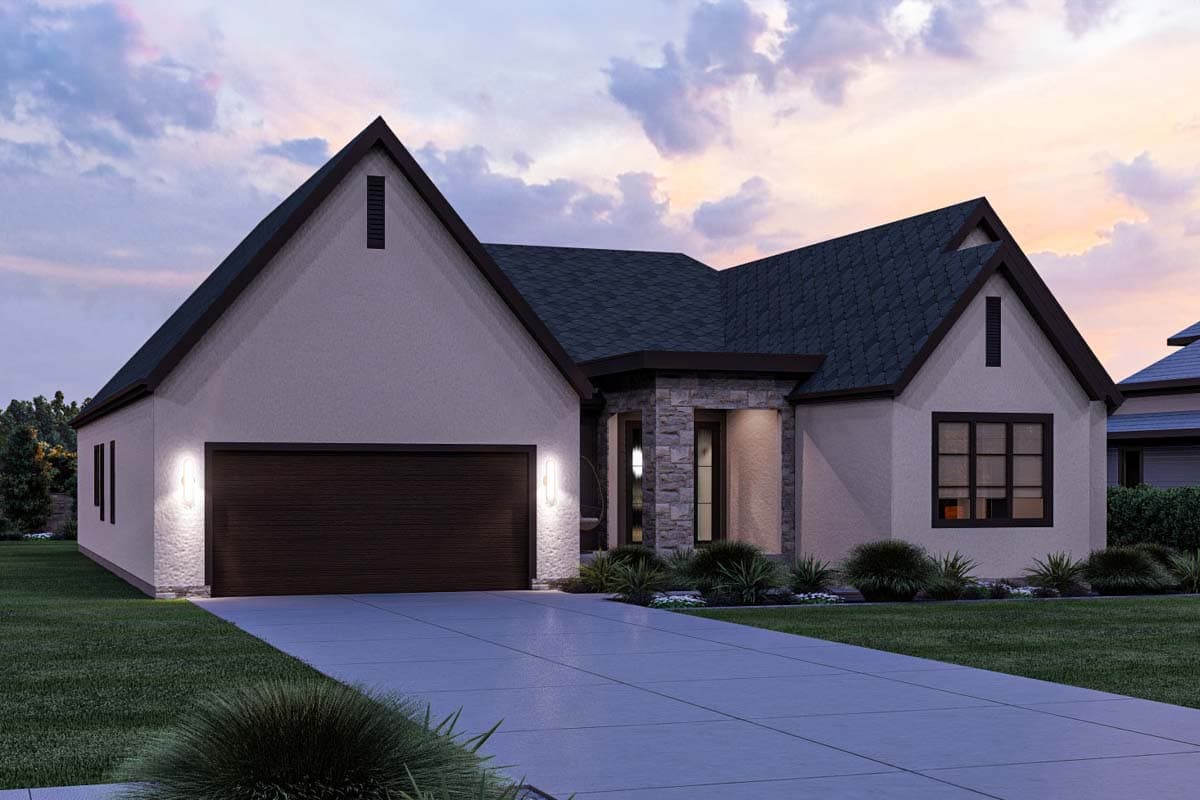

  • This modern one-story home has a sleek stucco exterior and a flat roof. It features 4 bedrooms and 3.5 bathrooms, providing ample space for family and guests.

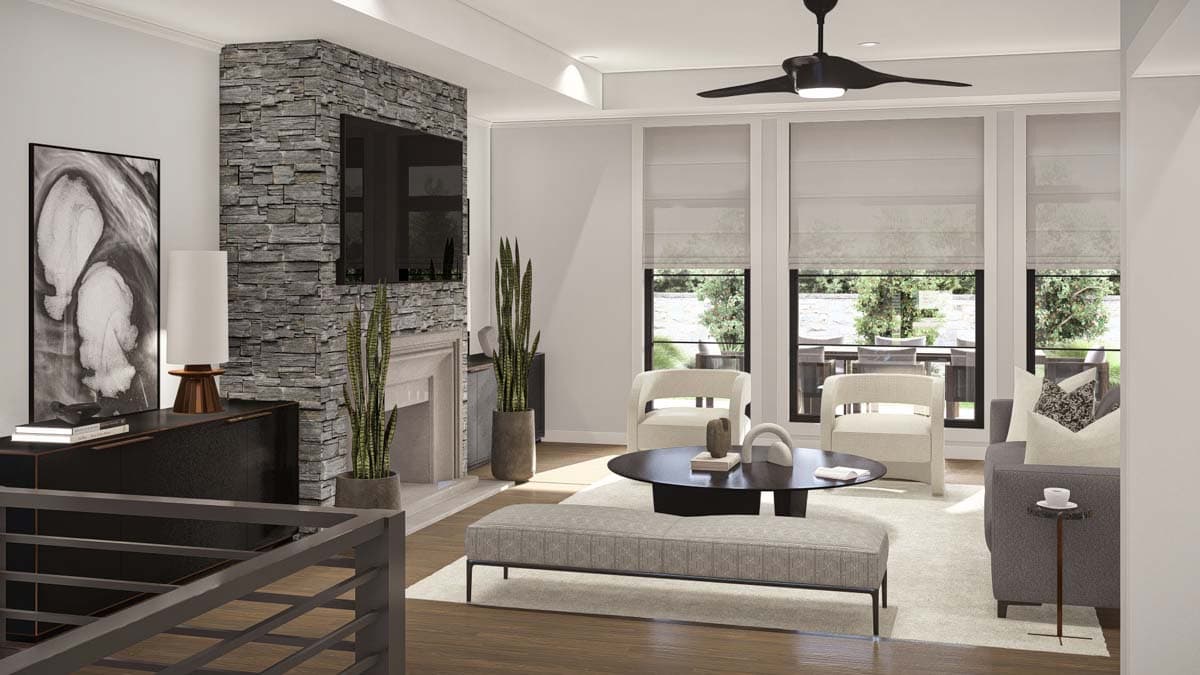

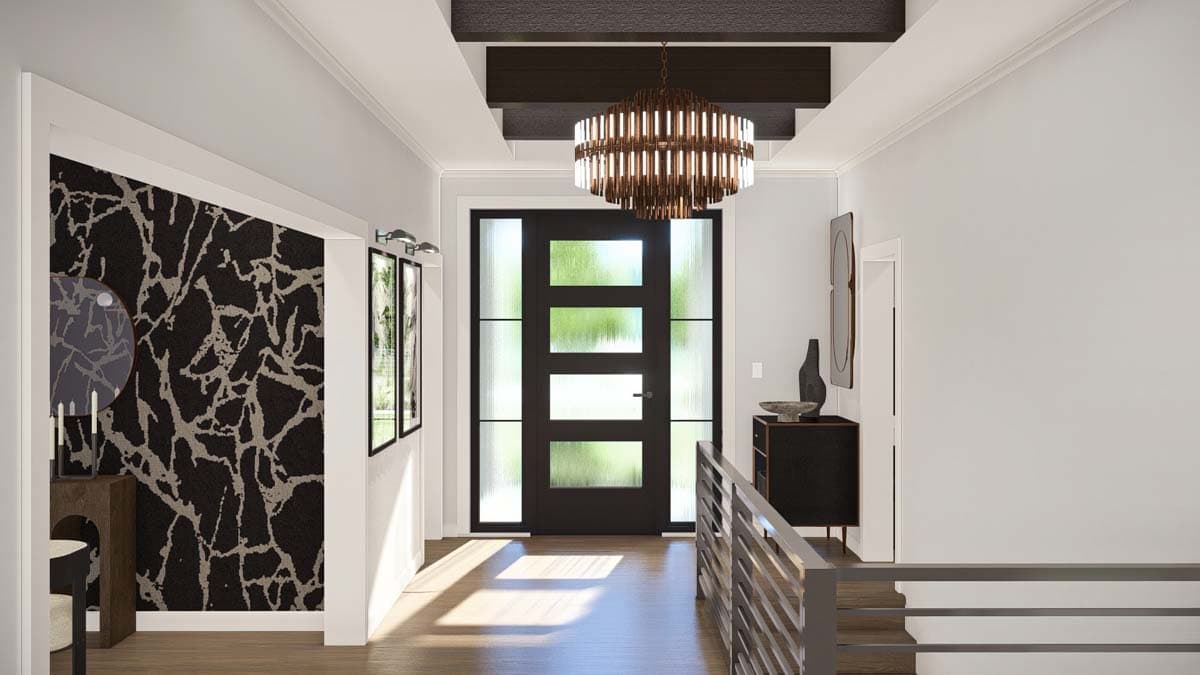

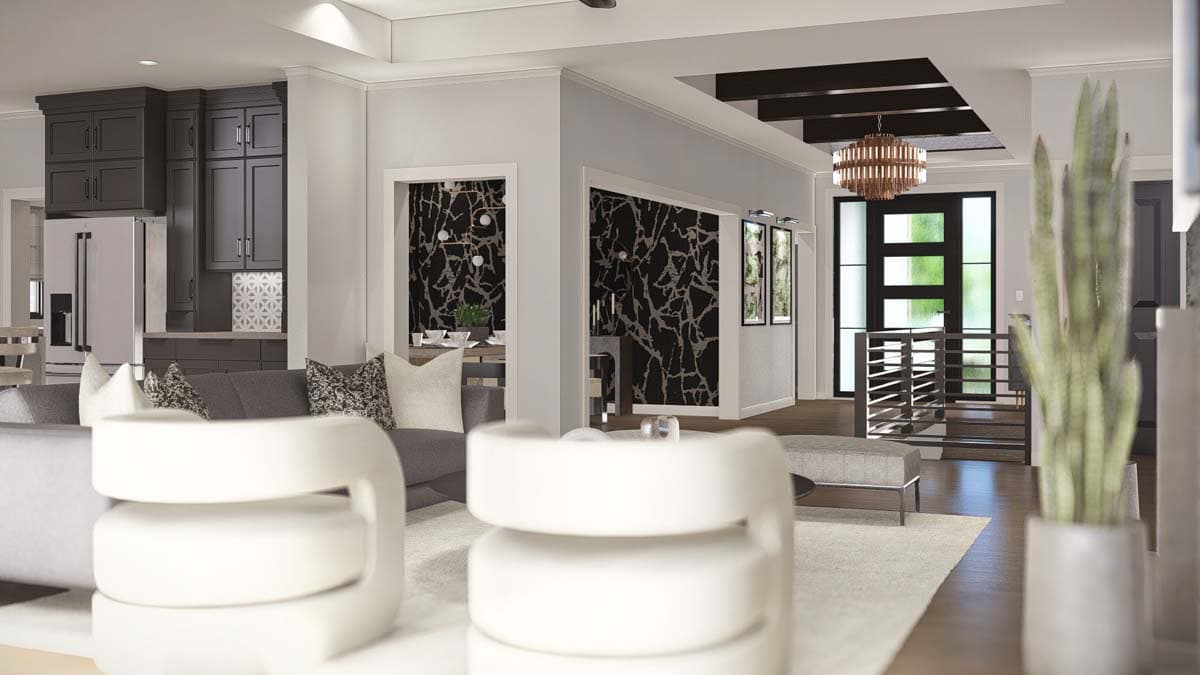

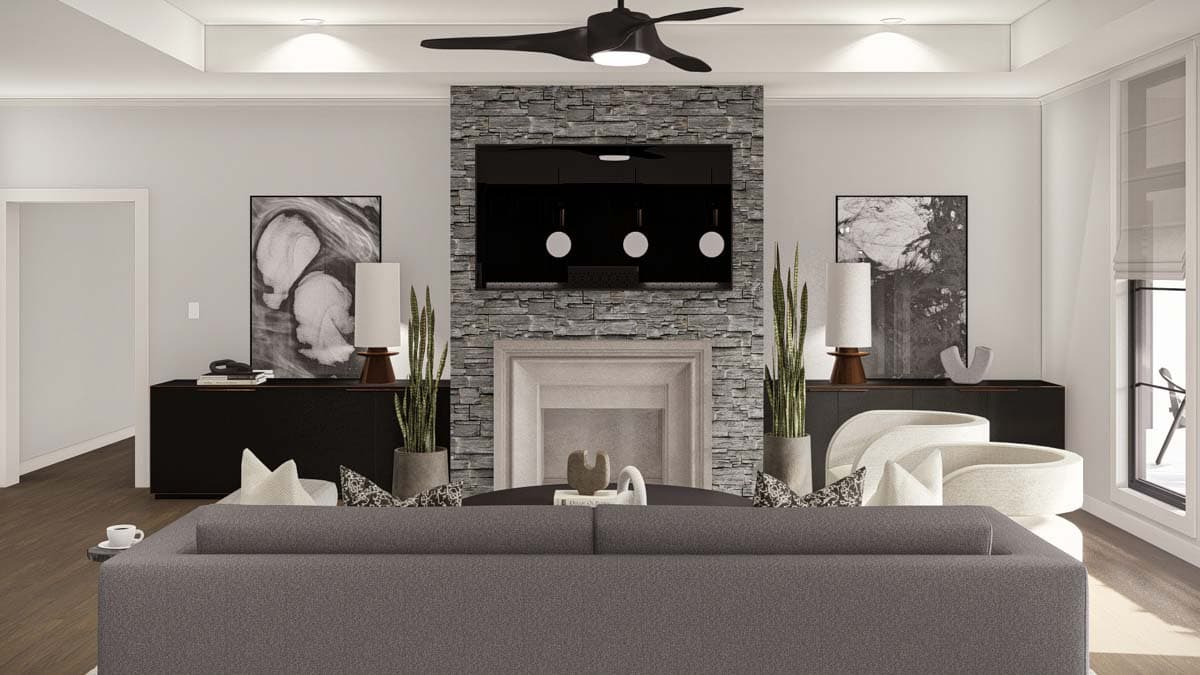

  • The entryway has a tray ceiling with beams, exuding luxury. The great room, with its tray ceiling and fireplace, offers a warm, inviting atmosphere. Large windows to brighten the space.

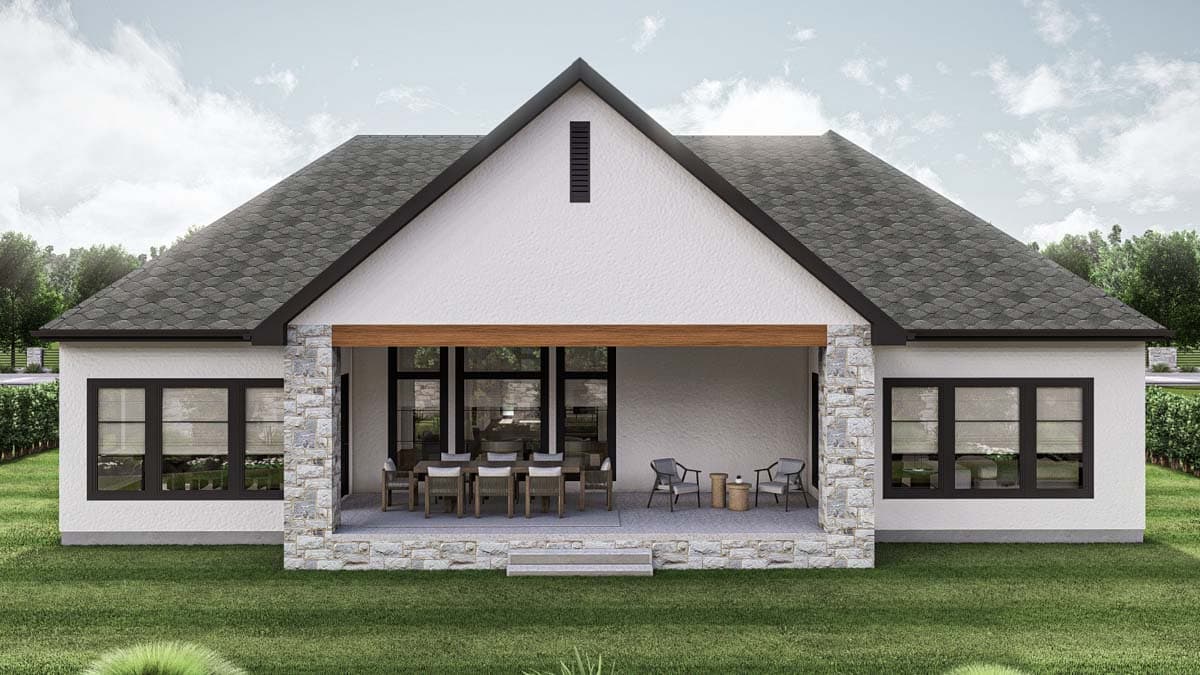

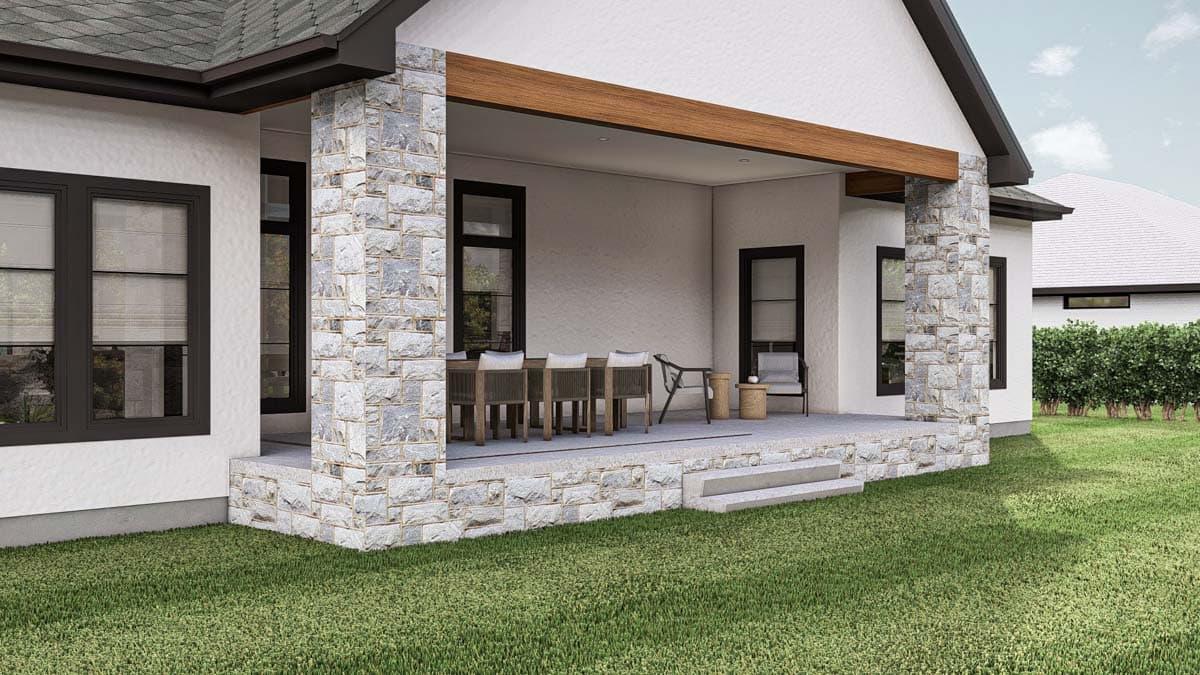

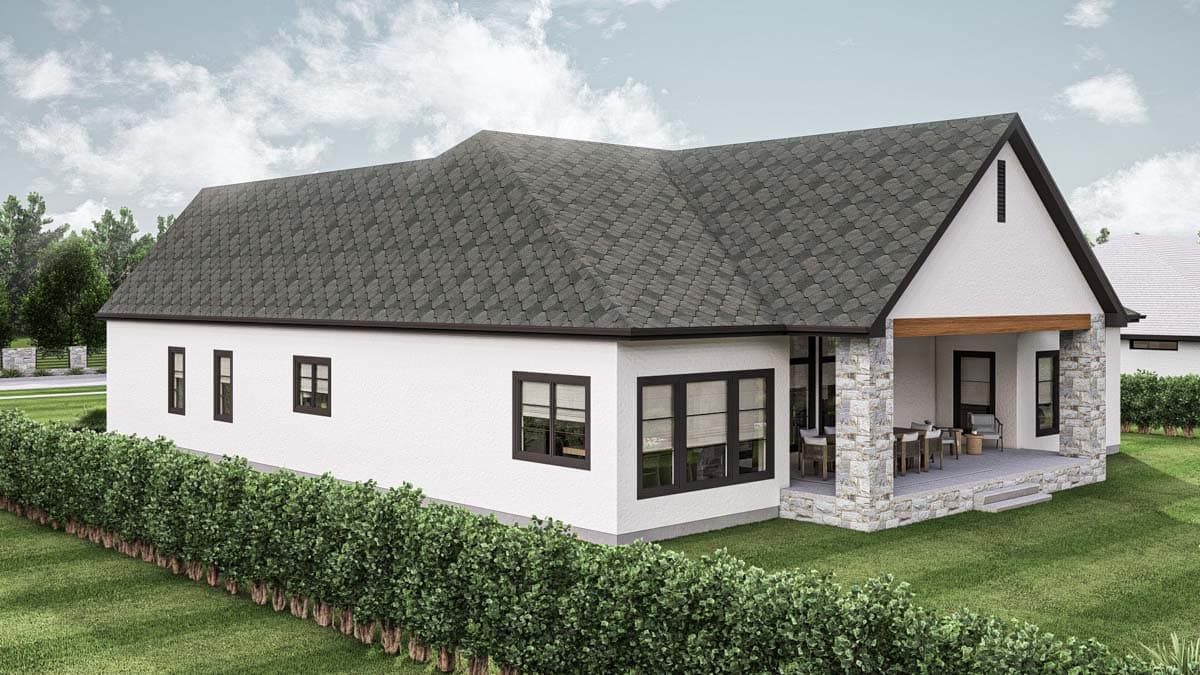

  • A large covered porch in the back is perfect for outdoor dining and relaxation.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,987 sq. ft.

1st Floor

2,987 sq. ft.

Porch, Combined

436 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

58' 8"

Depth

80' 0"

Max Ridge Height

24' 2"

Garage

Type

Attached

Area

564 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

14 on 12

Secondary Pitch

6 on 12

Architectural Style

Cottage

Ranch

Special Features

Bedrooms - Clustered

Breakfast Nook

Butler Walk-in Pantry

Formal Dining

Jack & Jill Bath

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

2,987 sq. ft.

1st Floor

2,987 sq. ft.

Porch, Combined

436 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

58' 8"

Depth

80' 0"

Max Ridge Height

24' 2"

Garage

Type

Attached

Area

564 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

14 on 12

Secondary Pitch

6 on 12

Architectural Style

Cottage

Ranch

Special Features

Bedrooms - Clustered

Breakfast Nook

Butler Walk-in Pantry

Formal Dining

Jack & Jill Bath

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
