One-Story Acadian House Plan with Split Bedrooms - 1628 Sq Ft
Heated S.F.
1,628
Beds
3
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 510252WDY

Main Level
slide image 0

Plan 510252WDY

1-800-854-7852

1-262-521-4596

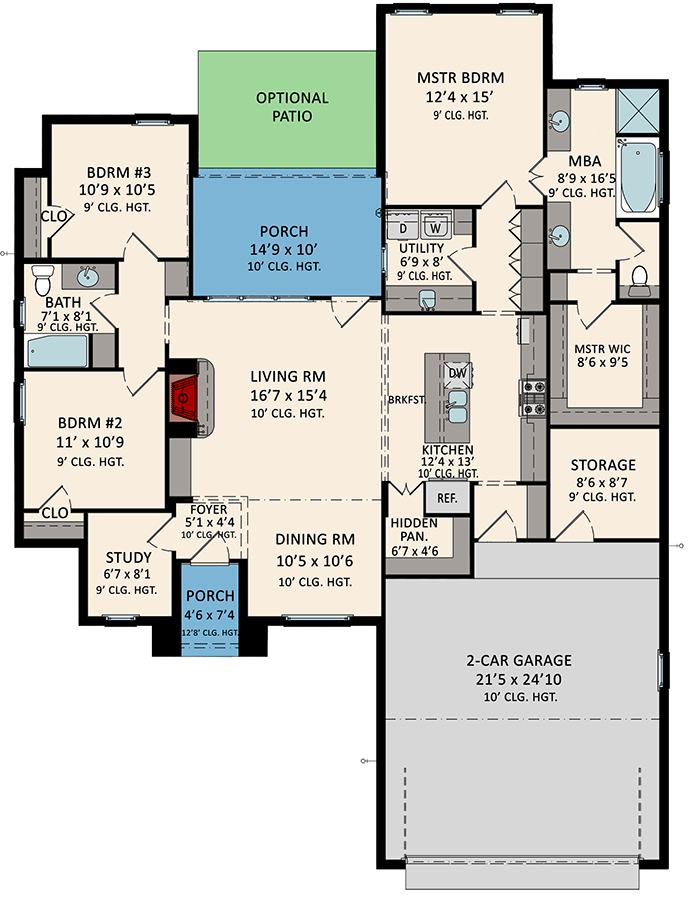

Main Level
floor plan image Main Level
Plan Details
  • This Acadian house plan offers you 1,628 square feet of heated living space, 3 beds, 2.5 baths and a 610 square foot 2-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Cover Sheet
  • Dimensioned Floor Plans w/ Notes & Details (if more than single level, dimensioned floor plan sheets are included for each level)
  • Exterior Elevations w/ Details
  • Building Section and Roof Plan w/ Trim Details
  • Additional Building Notes and Details
  • Electrical Layout
  • Foundation Plan
  • Foundation Details and Notes
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,628 sq. ft.

1st Floor

1,628 sq. ft.

Porch, Combined

194 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

51' 1"

Depth

67' 7"

Max Ridge Height

27' 3"

Garage

Type

Attached

Area

610 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Acadian

Southern

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Formal Dining

Home Office

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,628 sq. ft.

1st Floor

1,628 sq. ft.

Porch, Combined

194 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

51' 1"

Depth

67' 7"

Max Ridge Height

27' 3"

Garage

Type

Attached

Area

610 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Acadian

Southern

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Formal Dining

Home Office

Laundry - Main Level

Library/Study

Master Suite - 1st Floor
