Plan 560029TCD
One-Story ADU Cottage House Plan with 1 Bedroom - 502 Sq Ft
Heated S.F.
502
Beds
1
Baths
1
Stories
1
Floor Plan

Plan 560029TCD

Main Level
slide image 0

Plan 560029TCD

1-800-854-7852

1-262-521-4596

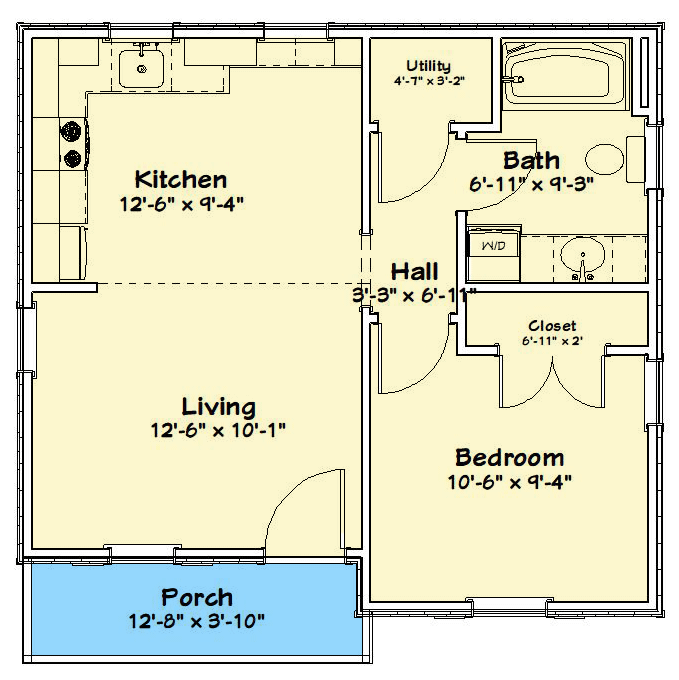

Main Level
floor plan image Main Level
Plan Details
  • This 502 square foot cottage house plan gives you 1 beds and 1 full bath.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Cover Sheet - Artistic rendering of cottage, 3D perspective views showing all exterior sides, an interior view, an interior dollhouse view. Also, design criteria, misc. notes and specifications and some individual plan data.
  • Foundation Plan - Foundation plan in ¼" scale, 3D view, construction details and notes.
  • Floor Plan(s) - Floor plan in ¼" scale, wall framing plan, top down roof view showing roof pitches. Window and door schedules.
  • Ceiling & Roof Framing - 2D and 3D views of framing.
  • Framing Details - Generic wall, ceiling and roof framing details. Lumber and framing notes.
  • Elevations - Front, rear, right and left side elevations. Notes on windows and doors. Miscellaneous notes.
  • Cross Sections - Cross section views with framing details.
  • Kitchen Plan - Kitchen and bath plans, elevations and schedule.
  • Electrical Plan - Electric layout plan, schedule and notes.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

502 sq. ft.

1st Floor

502 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

24' 0"

Depth

24' 0"

Max Ridge Height

14' 5"

Ceiling Heights

First Floor

8'

Architectural Style

Cottage

New American

Special Features

Handicapped Accessible

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

ADU

Square Footage Breakdown

Total Heated Area

502 sq. ft.

1st Floor

502 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

24' 0"

Depth

24' 0"

Max Ridge Height

14' 5"

Ceiling Heights

First Floor

8'

Architectural Style

Cottage

New American

Special Features

Handicapped Accessible

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

ADU
