Plan 24139BG

Exclusive

One-Story Contemporary Mountain House Plan with Angled Garage - 3570 Sq Ft
Heated S.F.
3,570
Beds
4
Baths
3.5
Stories
1
Cars
2
Floor Plan

Plan 24139BG

Main Level
slide image 0
Lower Level
slide image 1

Plan 24139BG

1-800-854-7852

1-262-521-4596

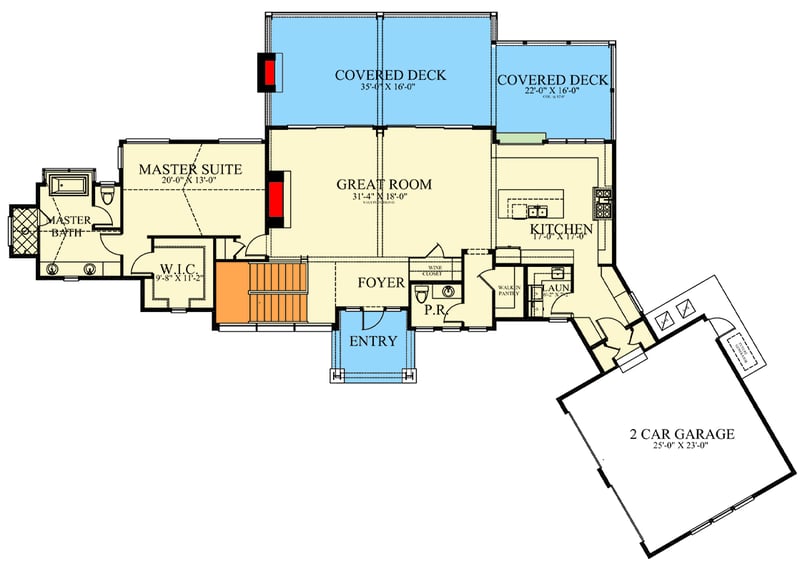

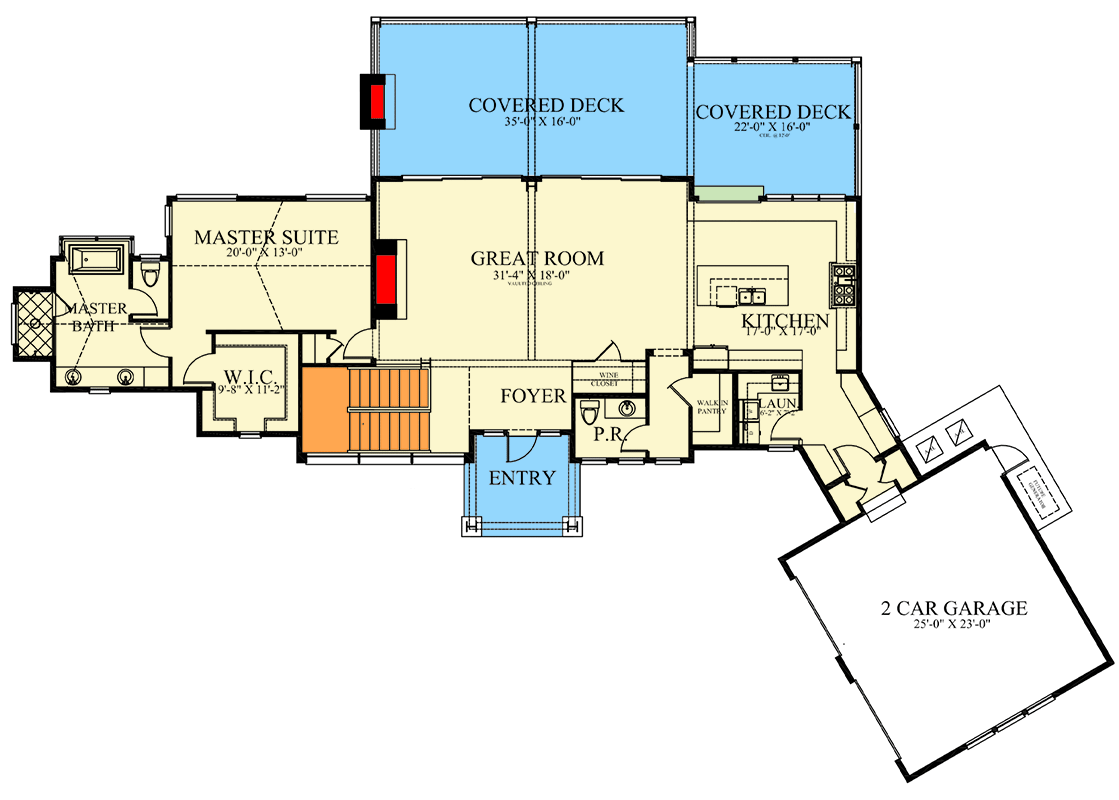

Main Level
floor plan image Main Level

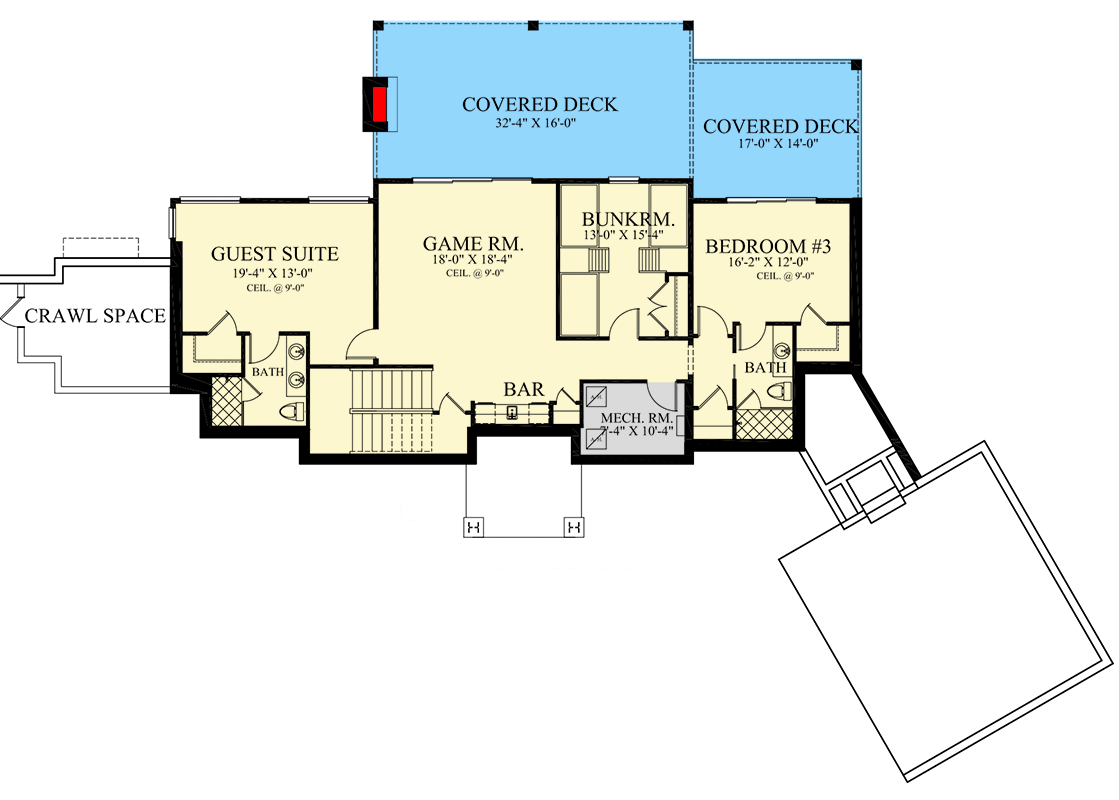

Lower Level
floor plan image Lower Level
Plan Details
  • This contemporary mountain house plan gives you 3,570 square feet of heated living space, 4 bed, 3.5 baths and a 575 square foot 2-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • Related Plan: Get a similar version without a garage with house plan 24137BG (3,571 sq. ft.).
  • BUILDING RESTRICTION: This plan may not be built Fannin or Gilmer Counties, Georgia.
What's Included
  • Cover page showing front elevation, contents and notes
  • Fully dimensioned floor plans including ceiling heights
  • Roof plan
  • All four exterior elevations
  • Typical cross section
  • Suggested electrical schematic
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Framing - layouts with beam sizes and locations
  • Energy calculations - handled locally when required
  • Roof truss design - to be created by the truss manufacturer in accordance with local code requirements
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,570 sq. ft.

Lower Level

1,487 sq. ft.

1st Floor

2,083 sq. ft.

Porch, Front

114 sq. ft.

Deck

756 sq. ft.

Lower Deck

756 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

110' 8"

Depth

77' 0"

Max Ridge Height

19' 2"

Garage

Type

Attached

Area

575 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

3 on 12

Framing Type

Truss

Architectural Style

Contemporary

Mid Century Modern

Modern

Mountain

Special Features

Angled Garage

Bedrooms - Split

Butler Walk-in Pantry

Game/Rec Room

Laundry - Main Level

Master Suite - 1st Floor

Stacked Porches

Wet Bar
