Plan 59336ND
One-Story Duplex Home Plan with 2718 Square Foot
Heated S.F.
2,718
Units
2
Width
Depth

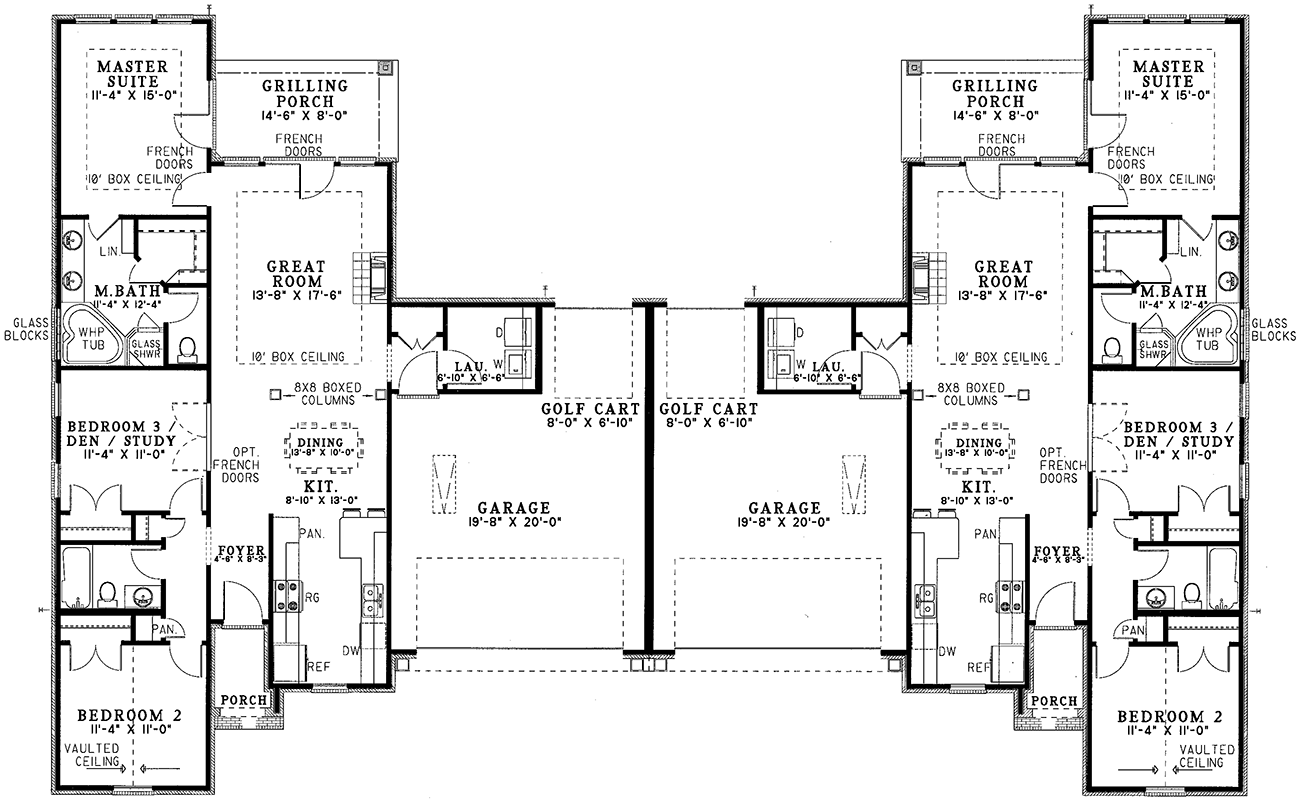

Floor Plan

Plan 59336ND

Main Level
slide image 0

Plan 59336ND

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details
  • Natural rock and boxed columns give this duplex wonderful street appeal.
  • This floor plan has ten foot-boxed ceilings in the great room and master suite bedroom and a vaulted ceiling in the front guestroom.
  • Columns are used to frame the dining area while enjoying a view of the great room.
  • The master suite has French doors leading to the grilling porch and a luxurious private bathroom.
  • The center bedroom has optional French doors and is perfect for a home study.
  • The double car garage has a rear golf cart bay for that glorious golf course living.
Unit A
1,359Sq. Ft.
1359 Sq. Ft.
1st Floor
2 or 3Beds
2Full Baths
2Vehicle
Attached
393 Sq. Ft.
46'width
60' 4"depth
24'height
Unit B
1,359Sq. Ft.
1359 Sq. Ft.
1st Floor
2 or 3Beds
2Full Baths
1Vehicle
Attached
393 Sq. Ft.
46'width
60' 4"depth
24'height
What's Included
  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,718 sq. ft.

1st Floor

2,718 sq. ft.

Porch, Front

146 sq. ft.

Porch, Rear

288 sq. ft.

Beds/Baths

Bedrooms

4, 5, or 6

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

92' 0"

Depth

60' 4"

Max Ridge Height

24' 2"

Garage

Type

Attached

Area

786 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Bedrooms - Clustered

Flex Room

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

2,718 sq. ft.

1st Floor

2,718 sq. ft.

Porch, Front

146 sq. ft.

Porch, Rear

288 sq. ft.

Beds/Baths

Bedrooms

4, 5, or 6

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

92' 0"

Depth

60' 4"

Max Ridge Height

24' 2"

Garage

Type

Attached

Area

786 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Bedrooms - Clustered

Flex Room

Laundry - Main Level

Library/Study

Master Suite - 1st Floor
