Plan 59327ND
One Story Duplex House Plan - 3 Beds. 2 Baths - 1398 Sq Ft
Heated S.F.
2,854
Units
2
Width
Depth
Floor Plan

Plan 59327ND

Main Level
slide image 0

Plan 59327ND

1-800-854-7852

1-262-521-4596

Main Level

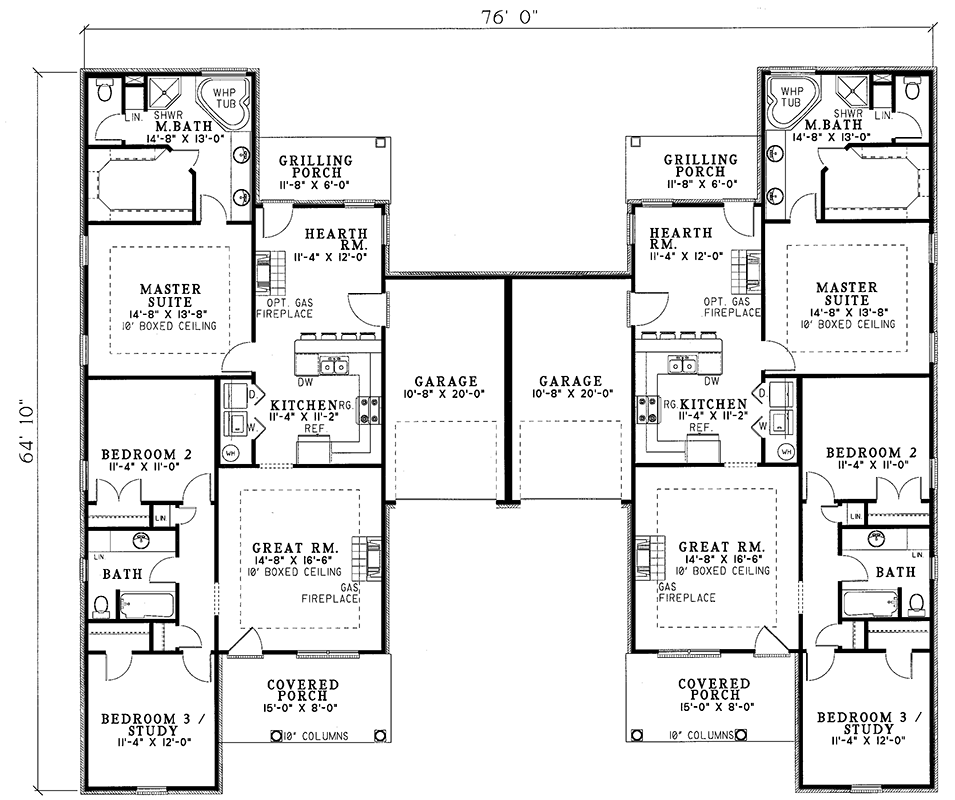

floor plan image Main Level
Plan Details
  • This one story duplex house plan gives you side-by-side 3 bed, 2 bath units each with 1398 square feet of heated living.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes.
  • Our vast collection of multi-family home plans, encompasses various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
Unit A
1,427Sq. Ft.
1427 Sq. Ft.
1st Floor
3Beds
2Full Baths
1Vehicle
Attached
213 Sq. Ft.
38'width
64' 10"depth
23'height
Unit B
1,427Sq. Ft.
1427 Sq. Ft.
1st Floor
3Beds
2Full Baths
1Vehicle
Attached
213 Sq. Ft.
38'width
64' 10"depth
23'height
What's Included
  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,854 sq. ft.

1st Floor

2,854 sq. ft.

Porch, Combined

412 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

76' 0"

Depth

64' 10"

Max Ridge Height

23' 10"

Garage

Type

Attached

Area

426 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Bedrooms - Clustered

Flex Room

Keeping Room

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

2,854 sq. ft.

1st Floor

2,854 sq. ft.

Porch, Combined

412 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

76' 0"

Depth

64' 10"

Max Ridge Height

23' 10"

Garage

Type

Attached

Area

426 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Bedrooms - Clustered

Flex Room

Keeping Room

Laundry - Main Level

Master Suite - 1st Floor
