Plan 510010WDY

One Story Farmhouse House Plan with Bonus Space

Heated S.F.

2,667

Beds

4 - 5

Baths

3 - 4

Stories

1

Cars

3

Floor Plan

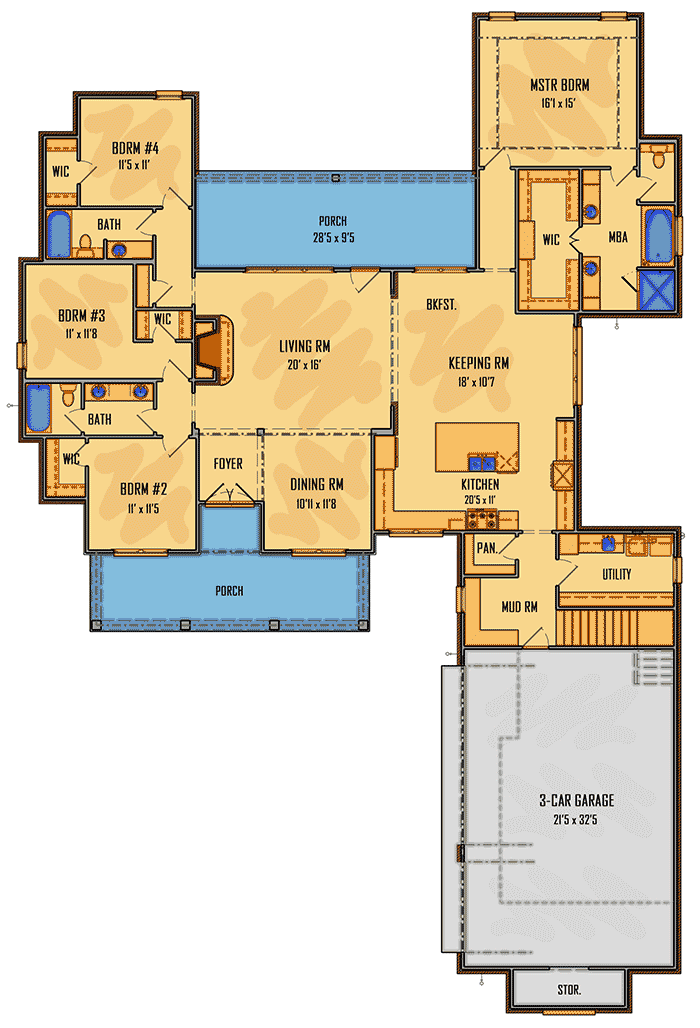

Main Level

floor plan image Main Level

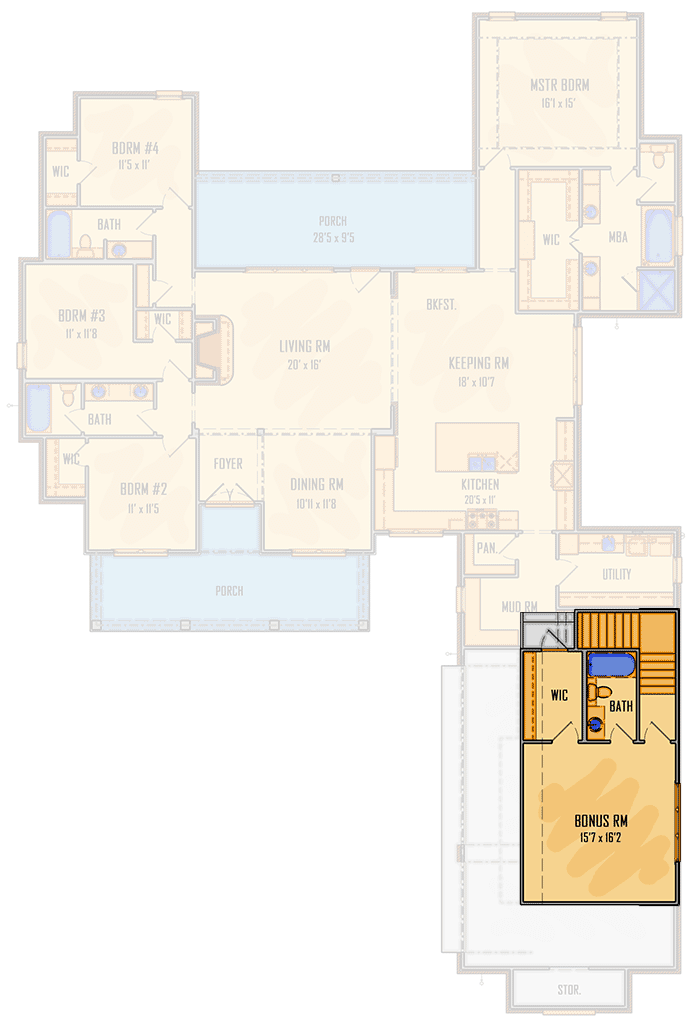

2nd Floor

floor plan image 2nd Floor

Plan Details

There's a generous amount of living space on the main floor of this updated Farmhouse plan but if you need extra room, a second floor bonus space gives you an extra 404 square feet.
Terrific sight lines are gained by the delightful open layout, with all the main rooms looking out to the rear covered porch.
The kitchen island gives you lots of extra work space so more than one person can cook.
The large master bedroom has a secluded location at the back of the house, away from street noise.
Every bedroom in this home gets a walk-in closet but the one in the master suite is huge.
The bonus space comes with the option for an extra bathroom so this could be used as an additional bedroom if desired.

What's Included

This plan has 8 sheets as follows:

Coversheet Color Rendering
Floor Plan with Dimensions, Notes, Door and Window Sizes, Beam Sizing
Bonus Room Plan, Section, Details, Electrical

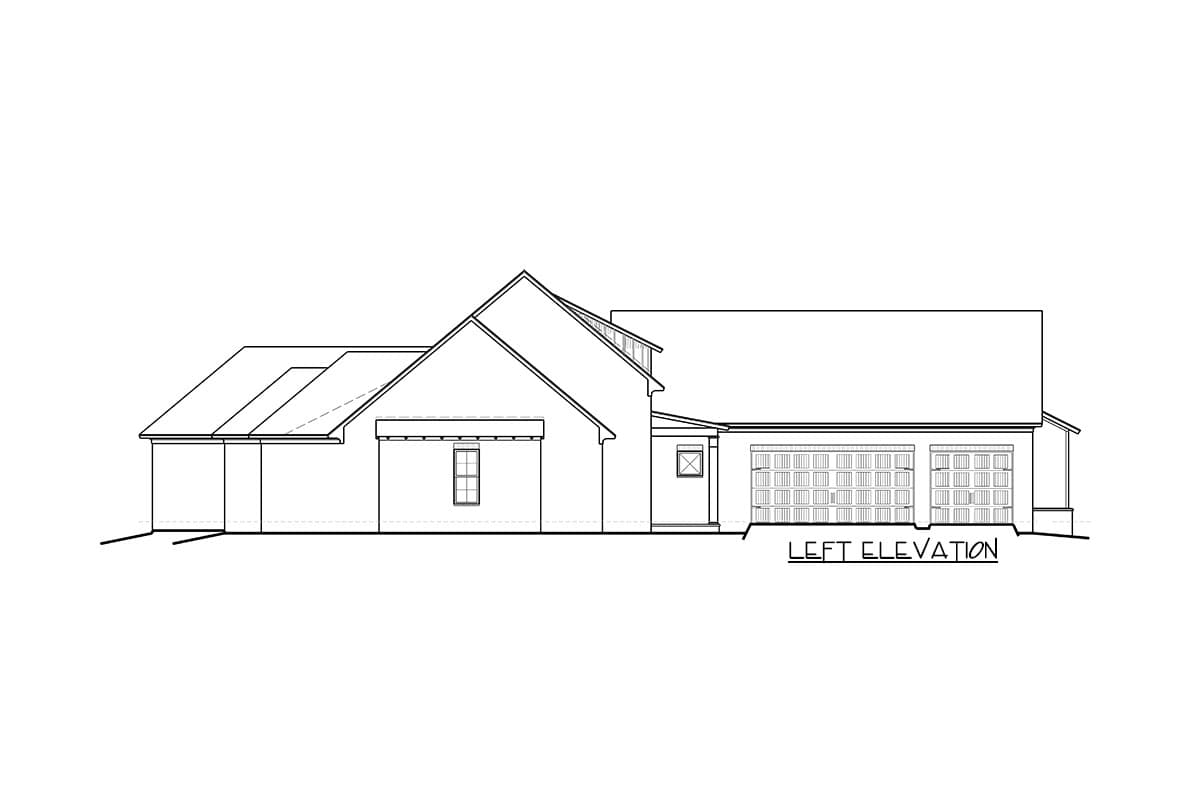

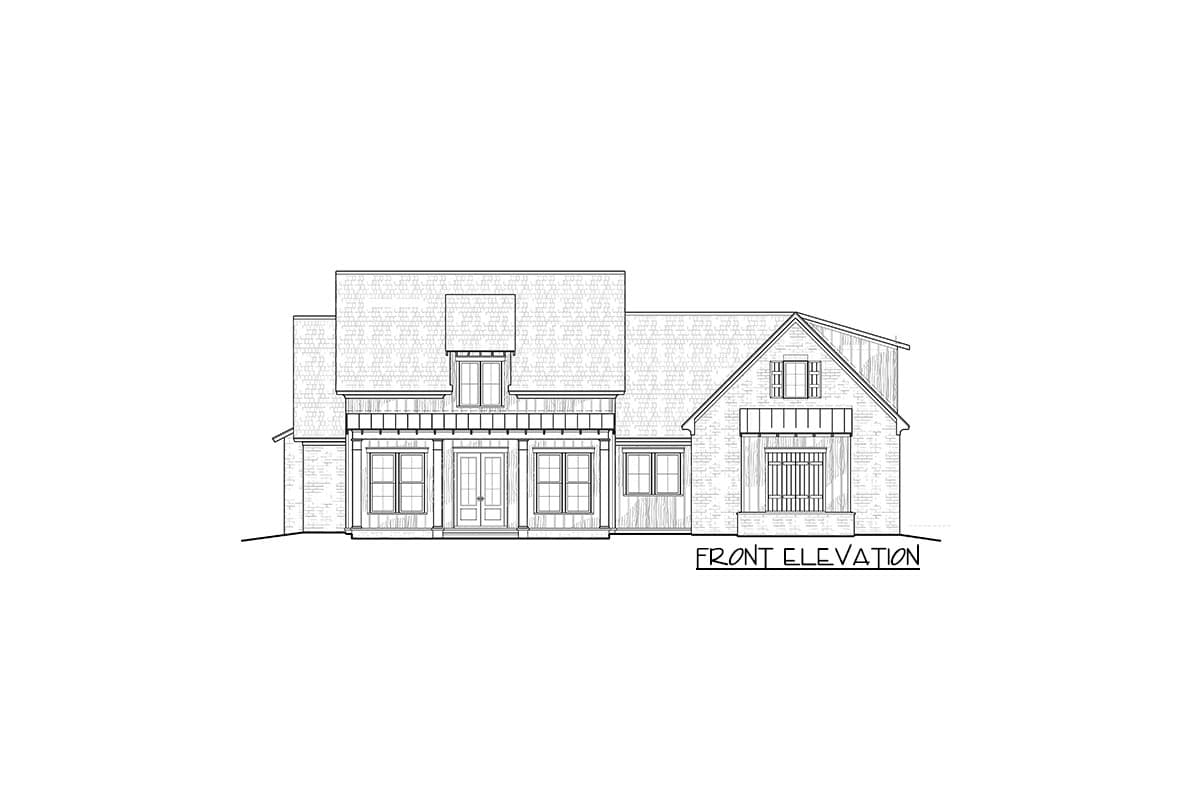

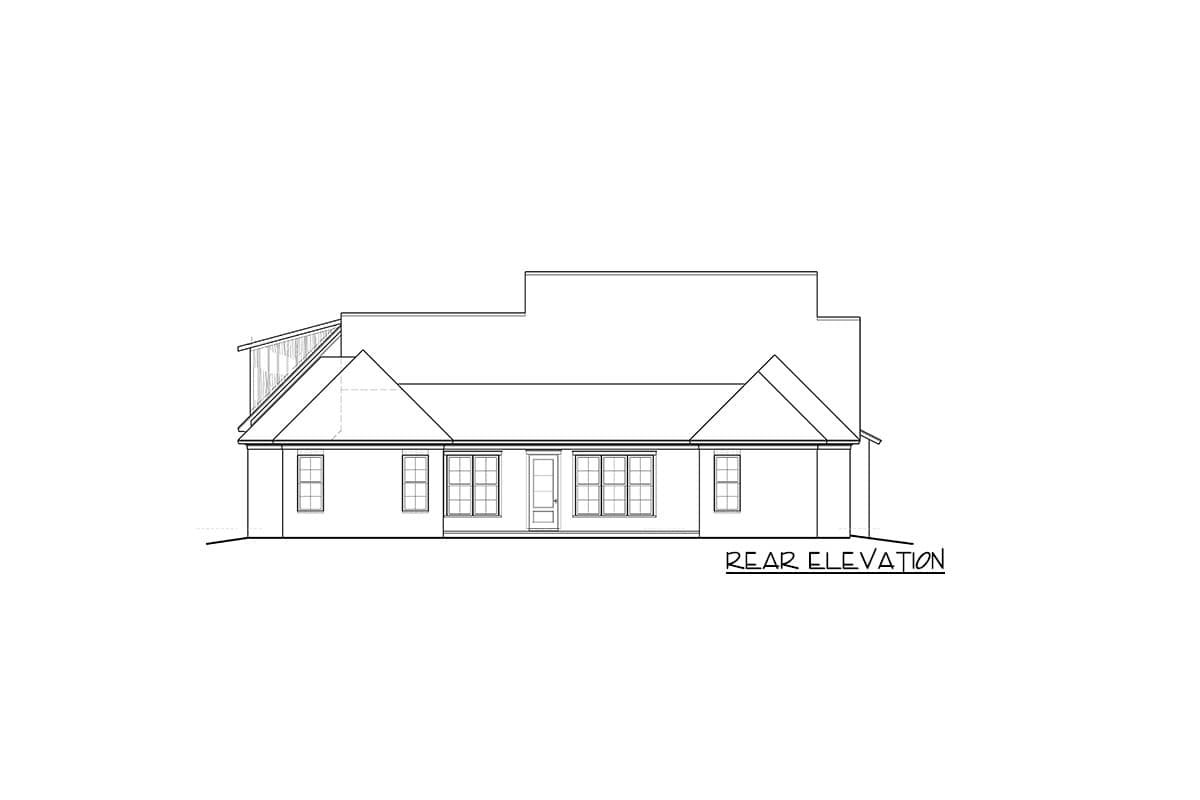

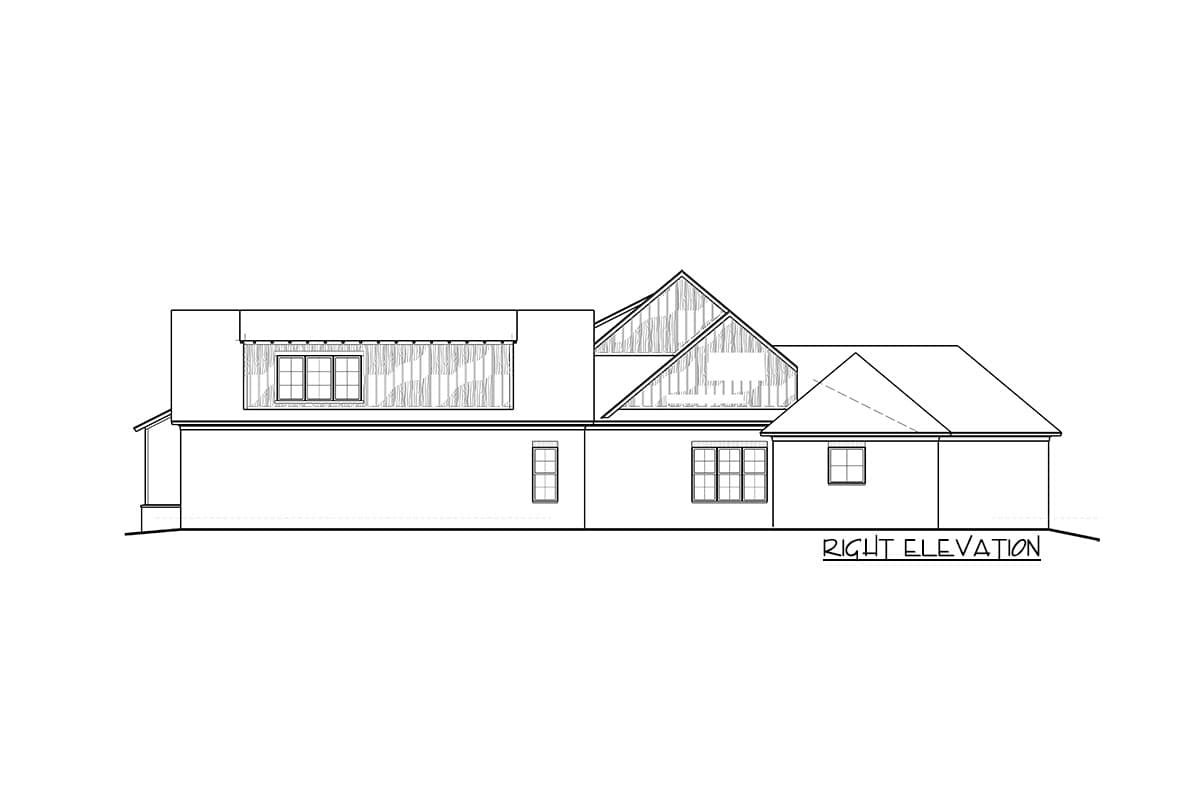

Exterior Elevations, Roof Plans
Rafter Schedule, Cornice Detail, Building Section
Electrical Plan, Schedules, Notes
Slab Foundation
Footing Details for Slab

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,667 sq. ft.

1st Floor

2,667 sq. ft.

Bonus

404 sq. ft.

Porch, Front

253 sq. ft.

Porch, Rear

287 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

3 or 4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

67' 8"

Depth

102' 1"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

768 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

11'

Room

Ceiling Type

Height

Master Bedroom

Tray

11' 4''

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

2 on 12

Framing Type

Stick

Architectural Style

Modern Farmhouse

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

2,667 sq. ft.

1st Floor

2,667 sq. ft.

Bonus

404 sq. ft.

Porch, Front

253 sq. ft.

Porch, Rear

287 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

3 or 4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

67' 8"

Depth

102' 1"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

768 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

11'

Room

Ceiling Type

Height

Master Bedroom

Tray

11' 4''

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

2 on 12

Framing Type

Stick

Architectural Style

Modern Farmhouse

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor
