Plan 51851HZ
One-Story Hill Country Home Plan with Open Floor Plan and Game Room - 2974 Sq Ft
Heated S.F.
2,974
Beds
3
Baths
3.5
Stories
1
Cars
3
Floor Plan

Plan 51851HZ

Main Level
slide image 0

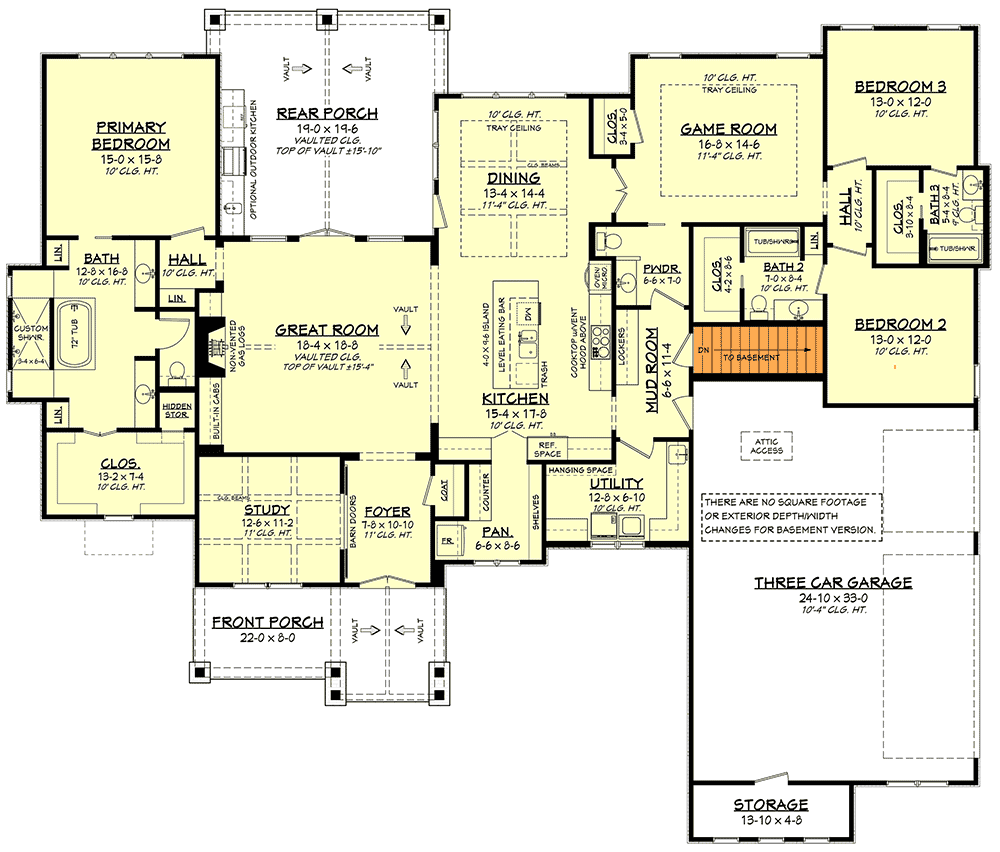

Main Floor - Basement Version
slide image 1

Plan 51851HZ

1-800-854-7852

1-262-521-4596

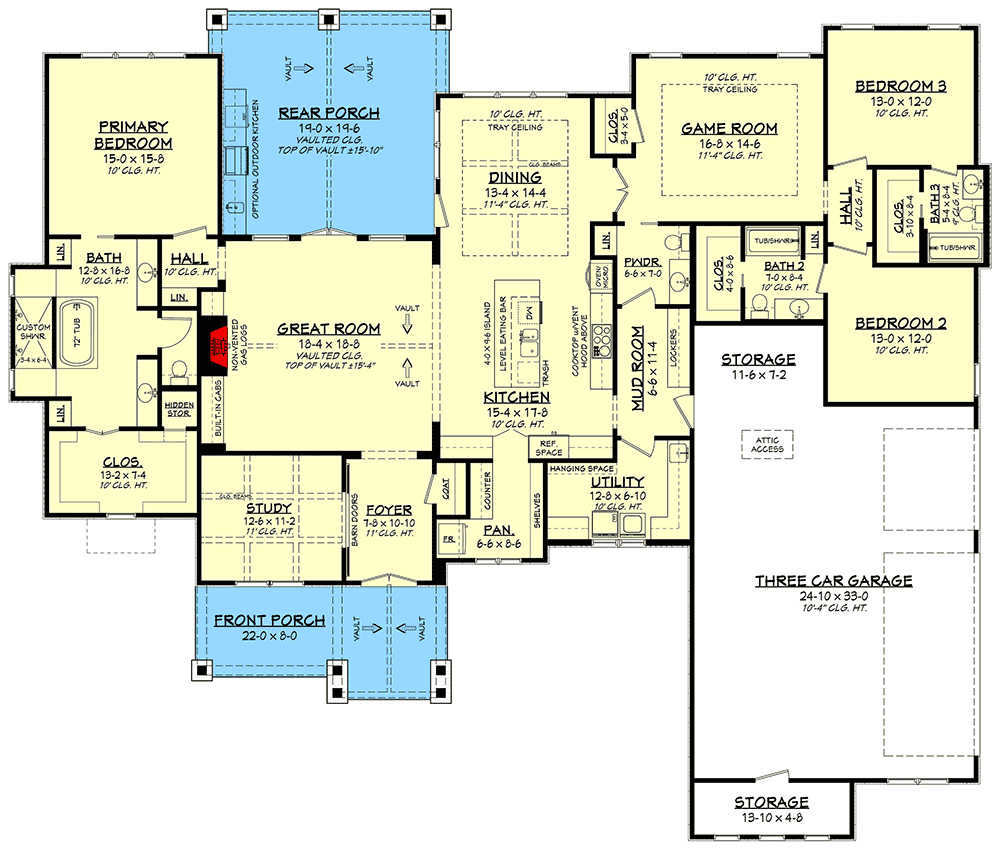

Main Level
floor plan image Main Level
Main Floor - Basement Version
floor plan image Main Floor - Basement Version
Plan Details
  • This one-story, hill country home plan proudly delivers a grand curb appeal with a stone trim and timber-frame gable porch, while dark window sashes and a metal roof add a modern edge to the traditional style. Spacious service areas in this home can accommodate even the most active families, while an open floor plan creates a comfortable space for everyday living.
  • A vaulted ceiling in the great room rests above a fireplace with surrounding built-ins, and a sizable kitchen island provides ample workspace and the walk-in pantry has room for a freezer unit. The attached dining room provides rearward views and access to the back porch, complete with an outdoor kitchen.
  • The master bedroom is privately situated on the left side of the home, and a pocket door leads to the ensuite featuring a standalone tub, custom double-headed shower, and a walk-in closet.
  • Across the home, two bedrooms each have their own bathrooms and a game room is steps away.
  • Related Plan: Get an extra bedroom with house plan 51800HZ (3,366 sq. ft.).
What's Included
This house plan set has 12 pages as follows:

Page 1  Cover Sheet with abbreviations, rendering, sheet index and design data
Page 2  Foundation Plan and Details
Page 3  Detailed floor plan(includes window sizes, ceiling joist size and directions, beam sizes and plumbing fixture locations, etc.)

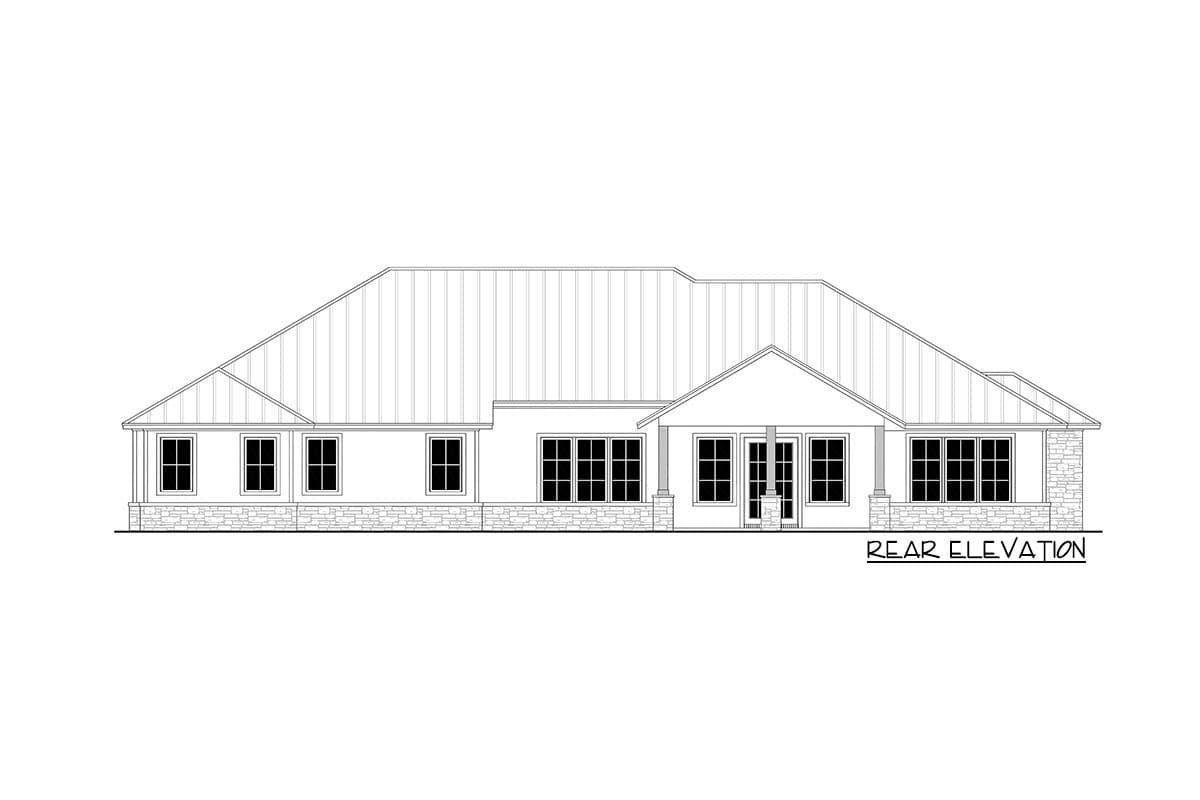

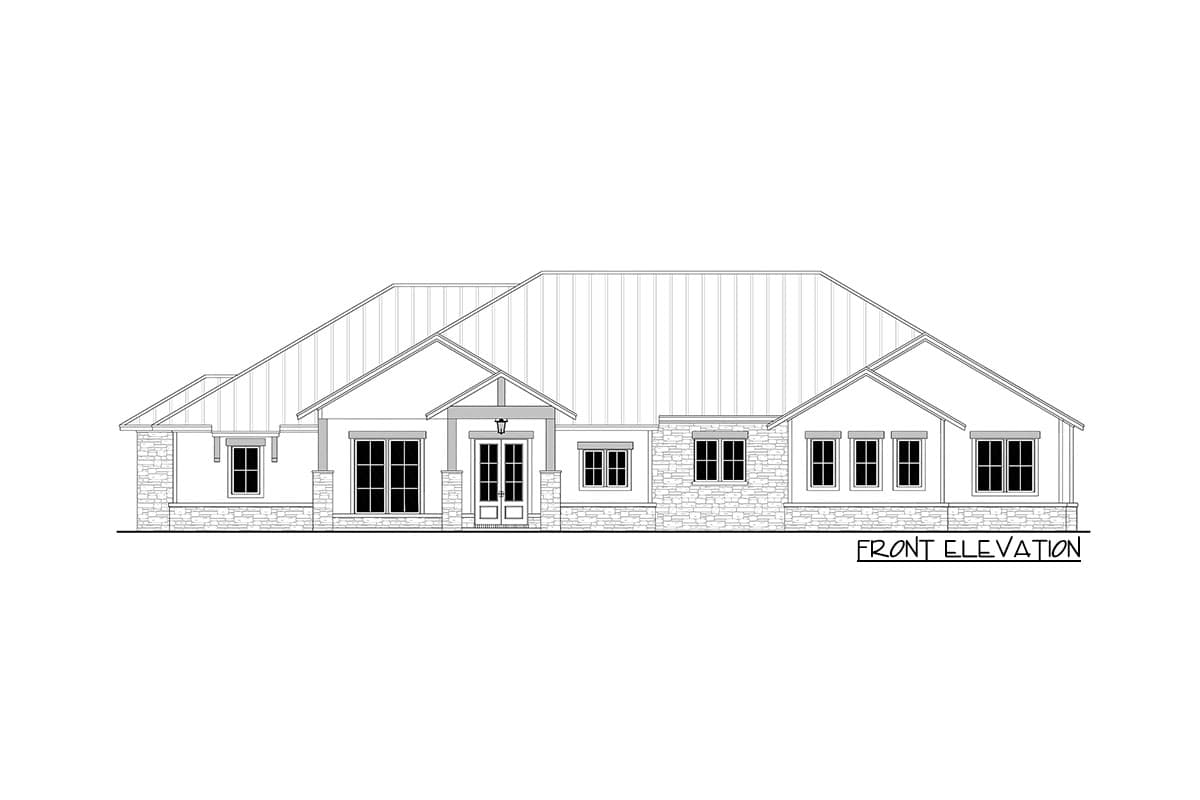

Page 4  Front and rear exterior views with additional details
Page 5  Right and left exterior views with additional details

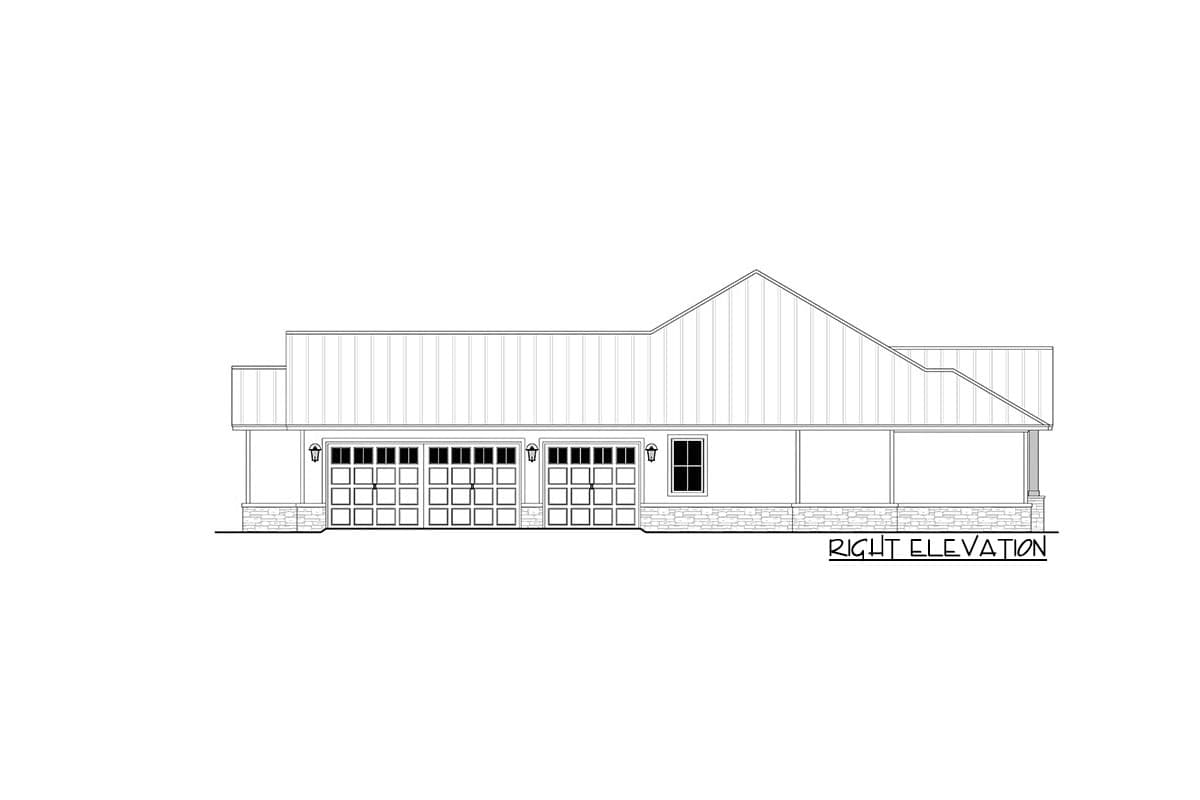

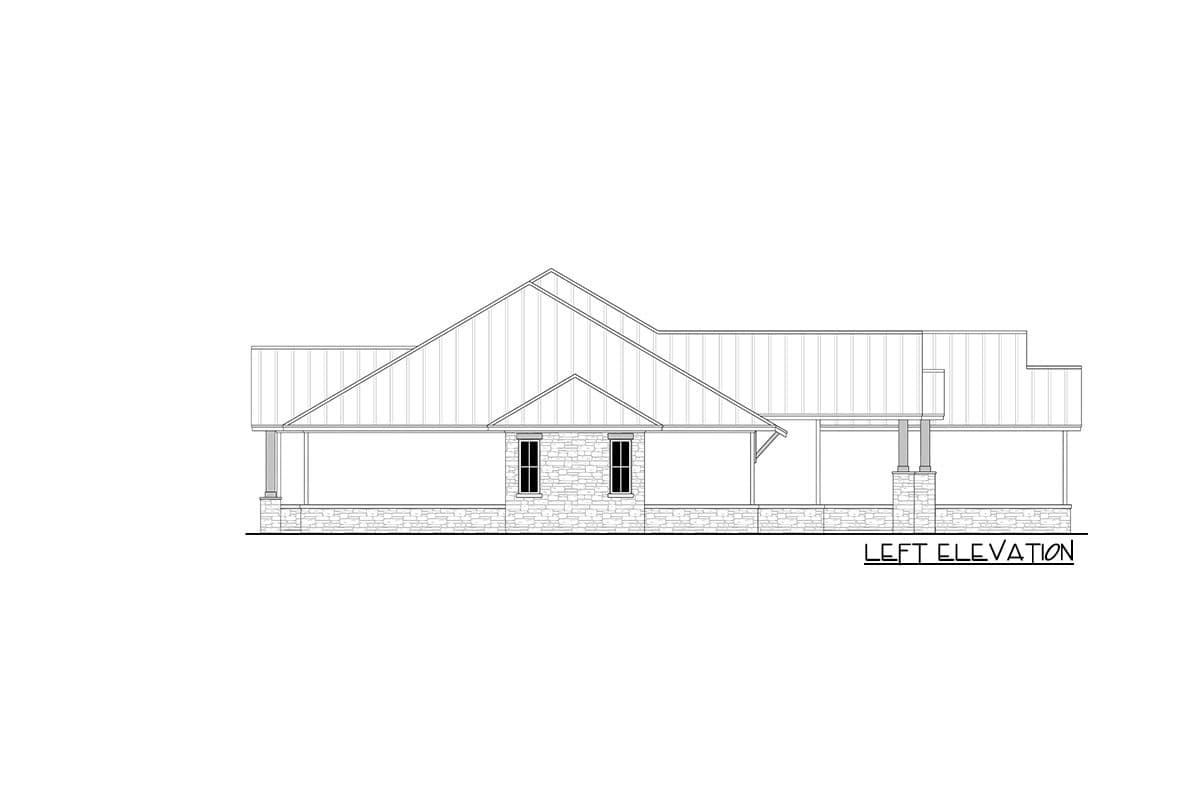

Page 6  Cross Sections, roof plan and cornice details
Page 7  Roof plan and span charts with additional notes
Page 8  Electrical plan with legend
Page N1 Code Information
Page N2 Code Information
Page N3 Code Information
Page N4 Energy Code Information
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,974 sq. ft.

1st Floor

2,974 sq. ft.

Porch, Front

196 sq. ft.

Porch, Rear

379 sq. ft.

Storage

155 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

86' 8"

Depth

73' 0"

Max Ridge Height

24' 0"

Garage

Type

Attached

Area

846 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9' 4"

First Floor

10'

Roof Details

Primary Pitch

7 on 12

Framing Type

Stick

Architectural Style

Hill Country

New American

Ranch

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Formal Dining

Game/Rec Room

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Outdoor Kitchen

Two Story Great Room

Square Footage Breakdown

Total Heated Area

2,974 sq. ft.

1st Floor

2,974 sq. ft.

Porch, Front

196 sq. ft.

Porch, Rear

379 sq. ft.

Storage

155 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

86' 8"

Depth

73' 0"

Max Ridge Height

24' 0"

Garage

Type

Attached

Area

846 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9' 4"

First Floor

10'

Roof Details

Primary Pitch

7 on 12

Framing Type

Stick

Architectural Style

Hill Country

New American

Ranch

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Formal Dining

Game/Rec Room

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Outdoor Kitchen

Two Story Great Room
