One-Story House Plan with 3-Car Garage - 2283 Sq Ft
Heated S.F.
2,283
Beds
3 - 4
Baths
2.5 - 3.5
Stories
1
Cars
3
Tour
Floor Plan

Plan 911038JVD

Main Level
slide image 0

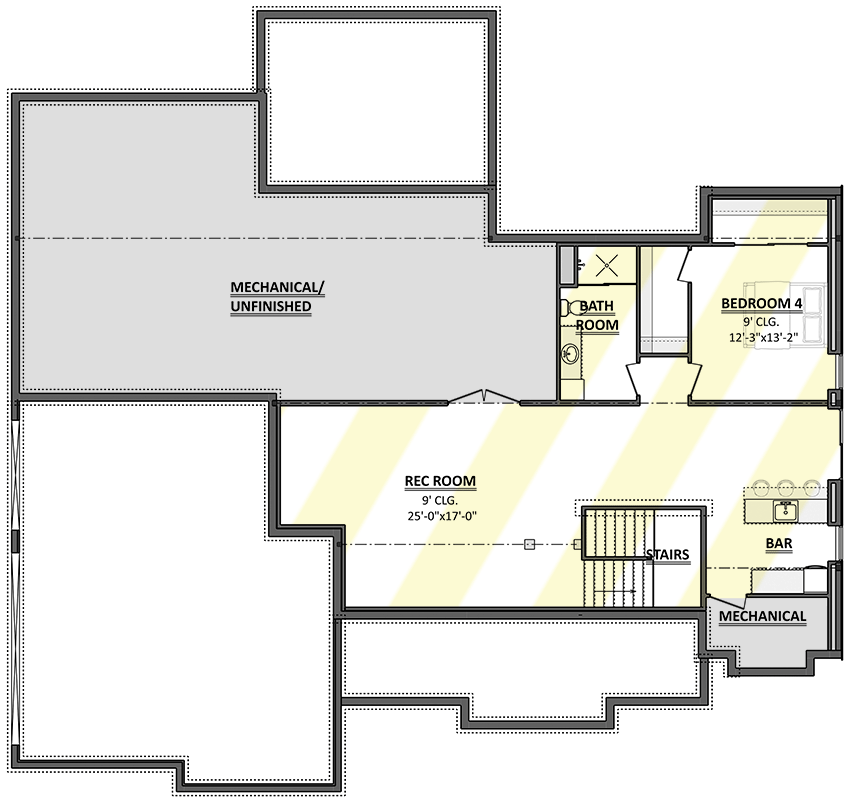

Optional Lower Level
slide image 1

Plan 911038JVD

1-800-854-7852

1-262-521-4596

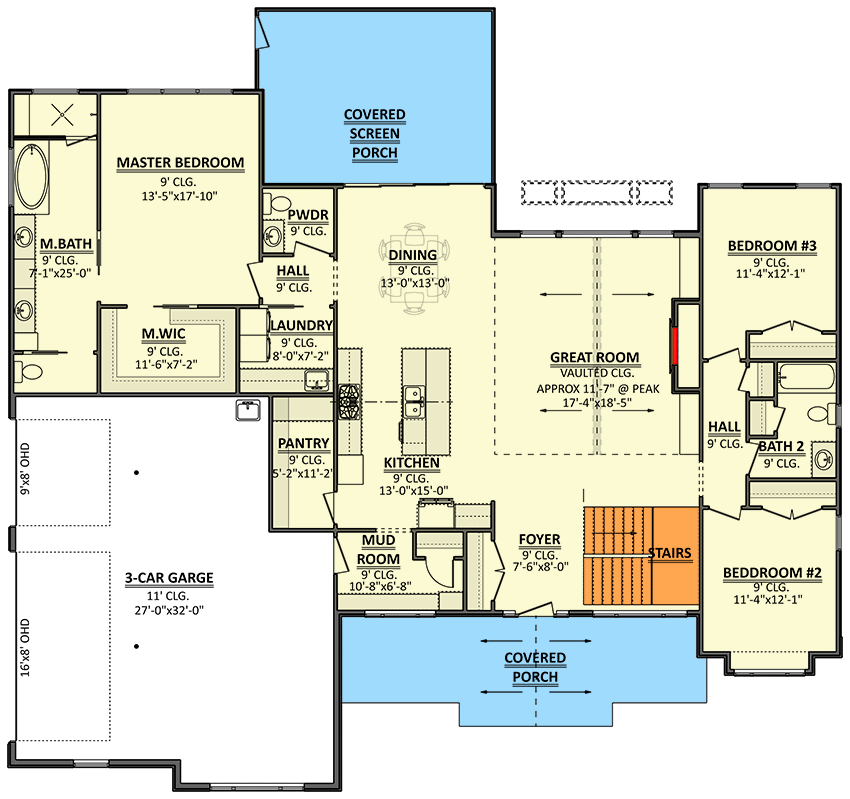

Main Level
floor plan image Main Level
Optional Lower Level
floor plan image Optional Lower Level
Plan Details
  • This house plan gives 2,283 square feet of single-level living with 3 bedrooms on the main floor (a fourth is possible if you finish the basement) and a 3-car garage with a 9' by 8' overhead door and a larger 16' by 8' overhead door giving you access to the 883 square feet of parking inside.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc. with electric plan notations)

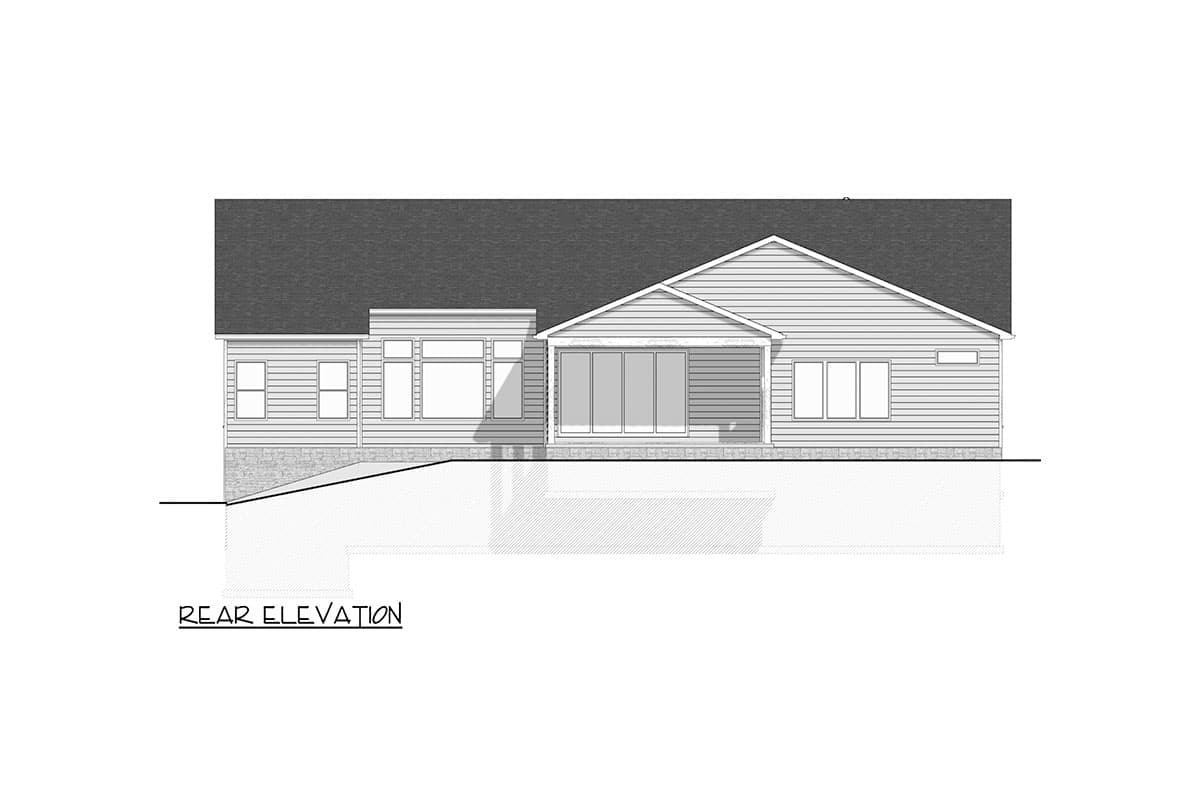

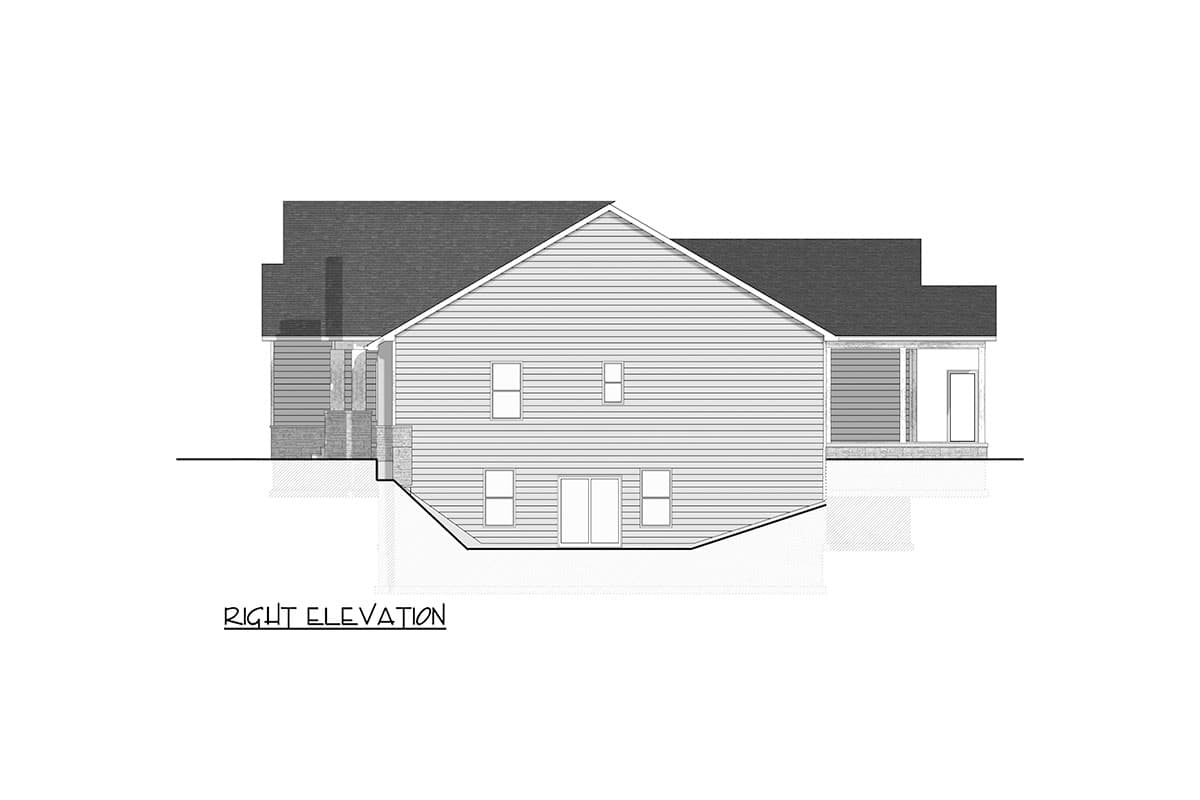

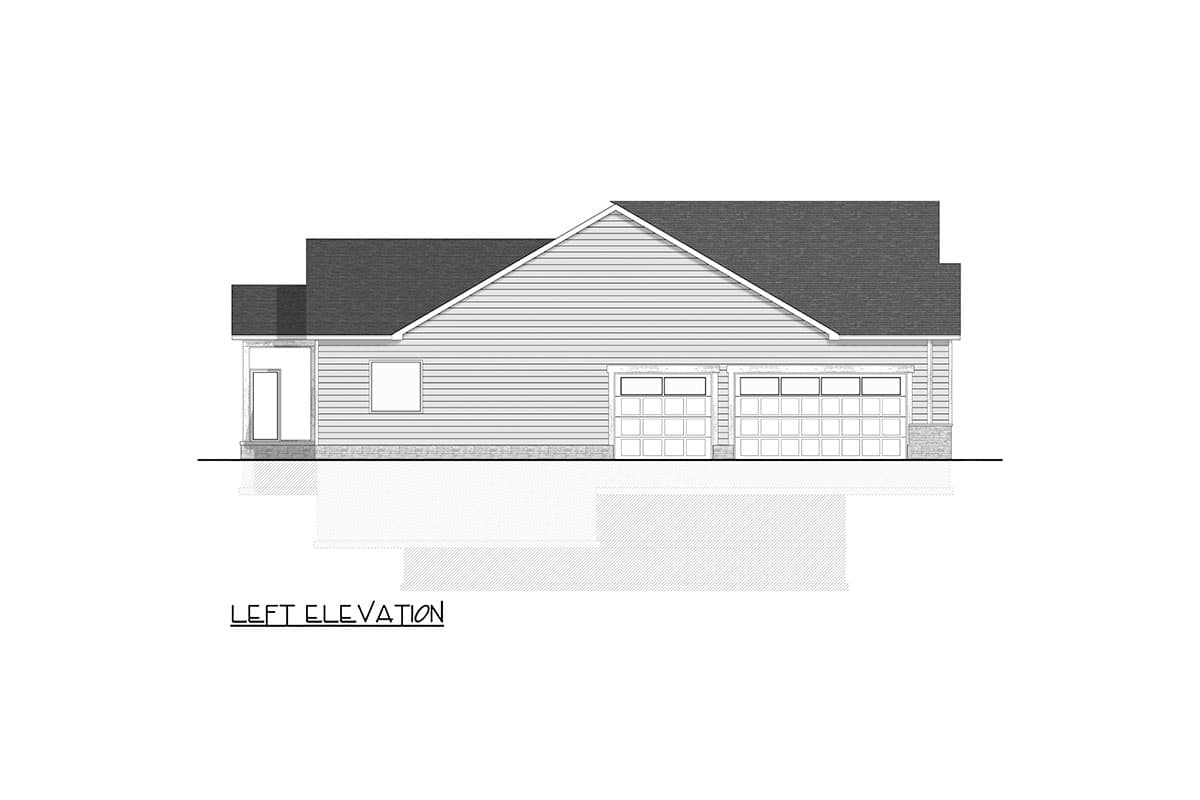

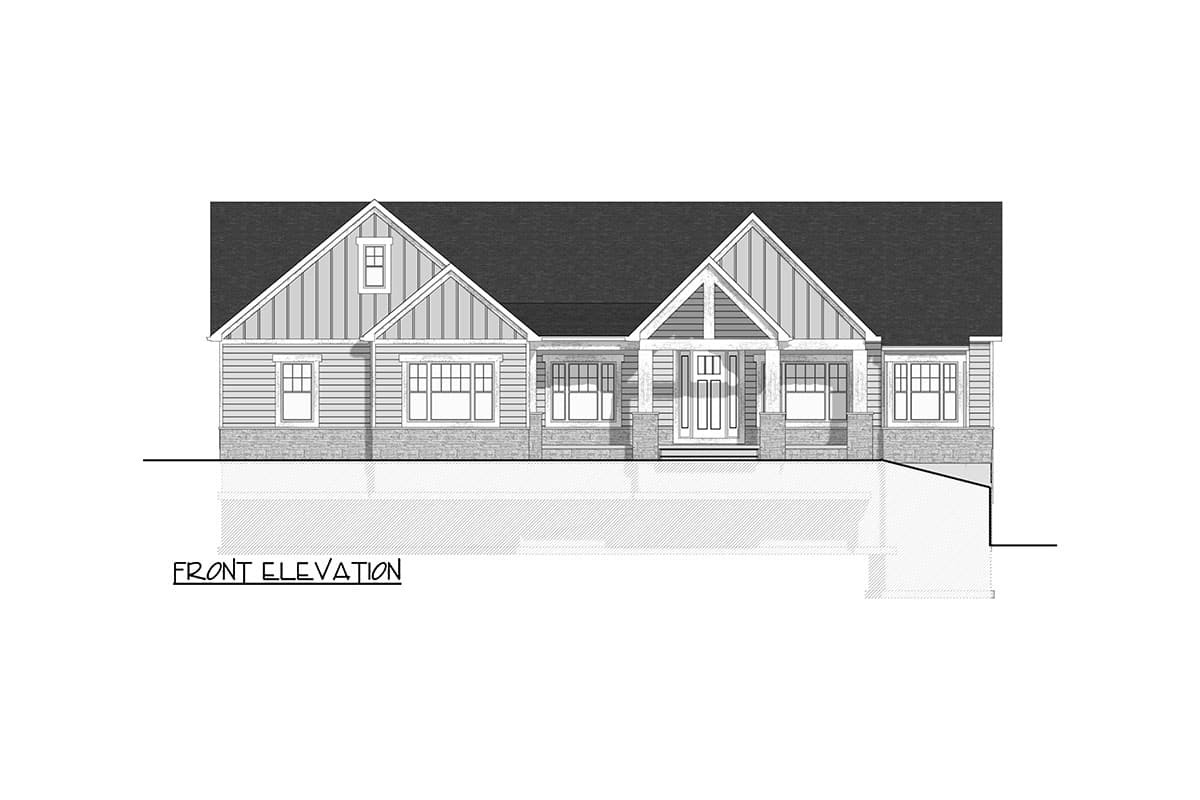

  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Wall section
  • Span charts and other misc details
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,283 sq. ft.

1st Floor

2,283 sq. ft.

Basement Unfinished

2,142 sq. ft.

Optional Lower Level

1,143 sq. ft.

Porch, Front

252 sq. ft.

Porch, Rear

300 sq. ft.

Screened Porch

300 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement, Walkout

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

70' 6"

Depth

66' 4"

Max Ridge Height

21' 0"

Garage

Type

Attached

Area

883 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Butler Walk-in Pantry

Game/Rec Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Wet Bar

Square Footage Breakdown

Total Heated Area

2,283 sq. ft.

1st Floor

2,283 sq. ft.

Basement Unfinished

2,142 sq. ft.

Optional Lower Level

1,143 sq. ft.

Porch, Front

252 sq. ft.

Porch, Rear

300 sq. ft.

Screened Porch

300 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement, Walkout

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

70' 6"

Depth

66' 4"

Max Ridge Height

21' 0"

Garage

Type

Attached

Area

883 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Butler Walk-in Pantry

Game/Rec Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Wet Bar
