Plan 33172ZR
One Story House Plan with 4 or 5 Bedrooms
Heated S.F.
2,583
Beds
4 - 5
Baths
3
Stories
1
Cars
2
Floor Plan

Plan 33172ZR

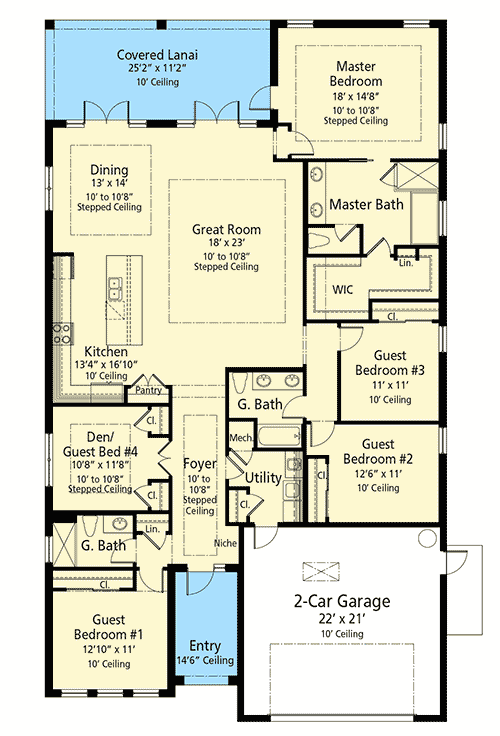

Main Level
slide image 0

Plan 33172ZR

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details

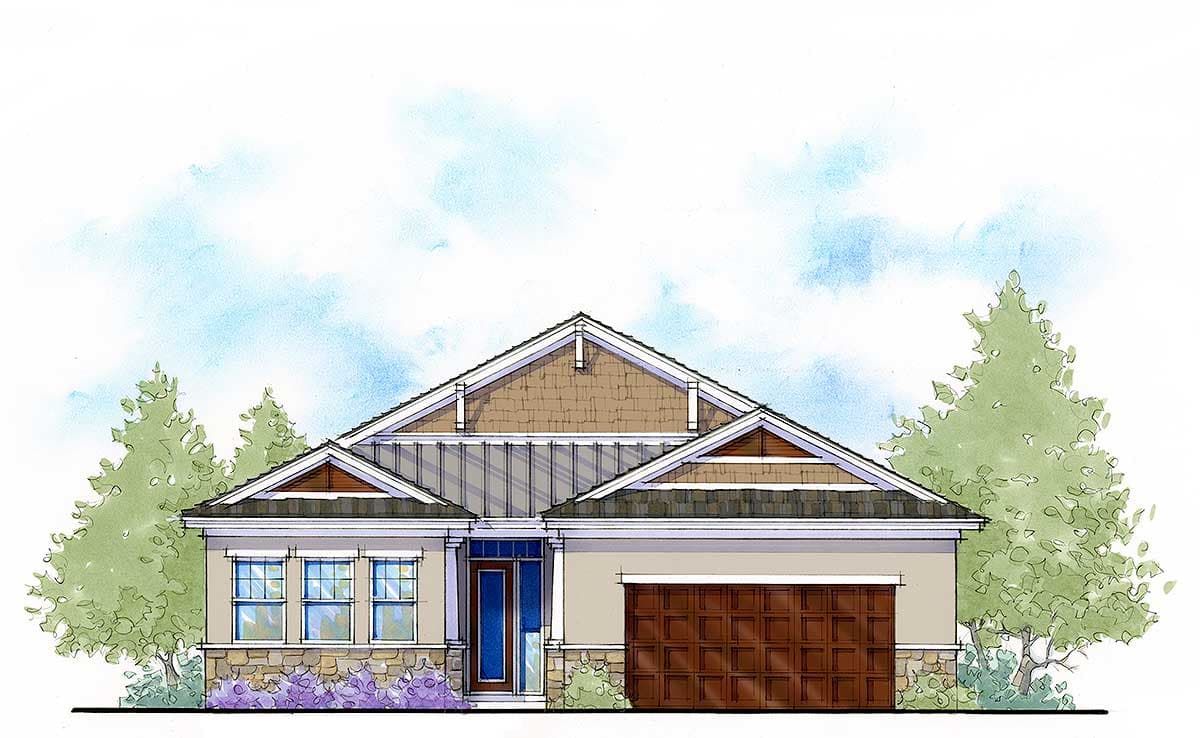

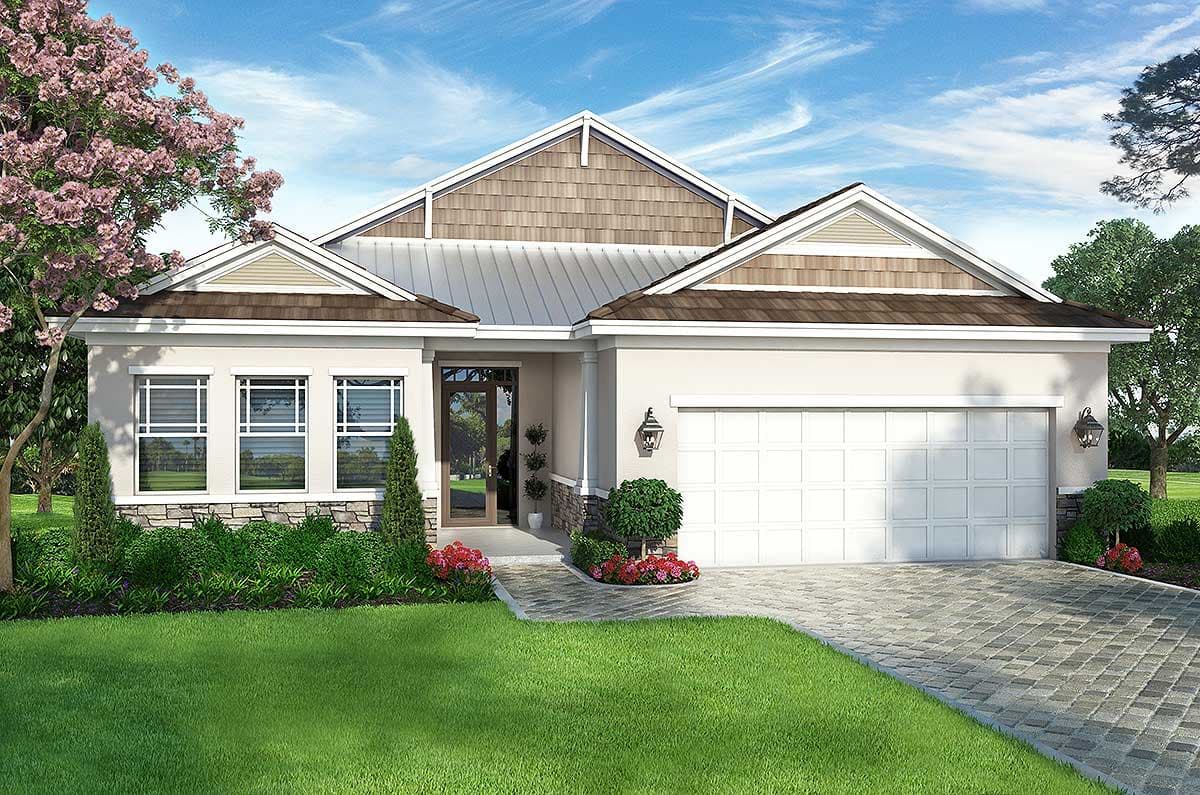

  • Live all on one floor with this flexible one story house plan. Charming details on the outside include metal roofing over the front porch and crown molding on the top gable.
  • A tray ceiling tops the long hallway that leads back to the huge, open great room area.
  • The eating, cooking and living areas are all blended together with two sets of double doors to the rear covered lanai.
  • In back, the master suite also has a door to the lanai, a generous amount of wall space and a lovely tray ceiling.
  • The master walk-in closet has his and her sections.
  • Get flexibility with your choice of a den or a fifth bedroom.
  • Related Plans: Downsize with house plans 33173ZR (2,378 sq. ft.) and 33209ZR (1,699 sq. ft.).
What's Included
  • COVER SHEET – / INDEX / SITE PLAN - The Cover sheet contains an index of the sheets that will follow in the ESHP design development set of plans. It will also include a gray scale elevation or rendering depicting the look of the front of the home, and overall roof plan.
  • WALL SECTIONS -The Wall Section sheet depicts one or more sections of the home’s exterior walls from the foundation to the roof, calling out all materials and construction specifics.
  • FOUNDATION PLAN - The Foundation Plan sheet shows the home’s foundation layout depicting plumbing, footing, support walls, columns, etc., calling out the necessary notes, dimensions and details.
  • SECOND FLOOR FRAMING (where appropriate) - The Second Floor Framing sheet shows important locations of beams and load-bearing conditions, as well as the floor truss spacing and direction. The Second Floor Framing Plan is meant as general information for the truss manufacturer.
  • FLOOR PLANS - The Floor Plan sheet(s), show a detailed layout of the floor plans with dimensions, notes, call outs and keys relating to sheets with sections and details needed by your builder for construction. These plans will include window and door sizes and locations, and will also show the location of bathroom fixtures.
  • ROOF PLAN & SOFFIT (CHASE LAYOUT) PLAN - The Roof Plan sheet is a general layout of the home’s roof. It is meant as general information for the truss manufacturer and framing contractor. This sheet also contains the location and size of the dropped soffits housing the forced-air chases. (Ducts in Conditioned Space – DICS) Energy Smart Home Plans is the only design company that offers this information for those seeking truly High-Performance Homes.
  • REFLECTED CEILING PLAN - The reflected ceiling plan shows all ceiling heights, treatments, and details including necessary notes.

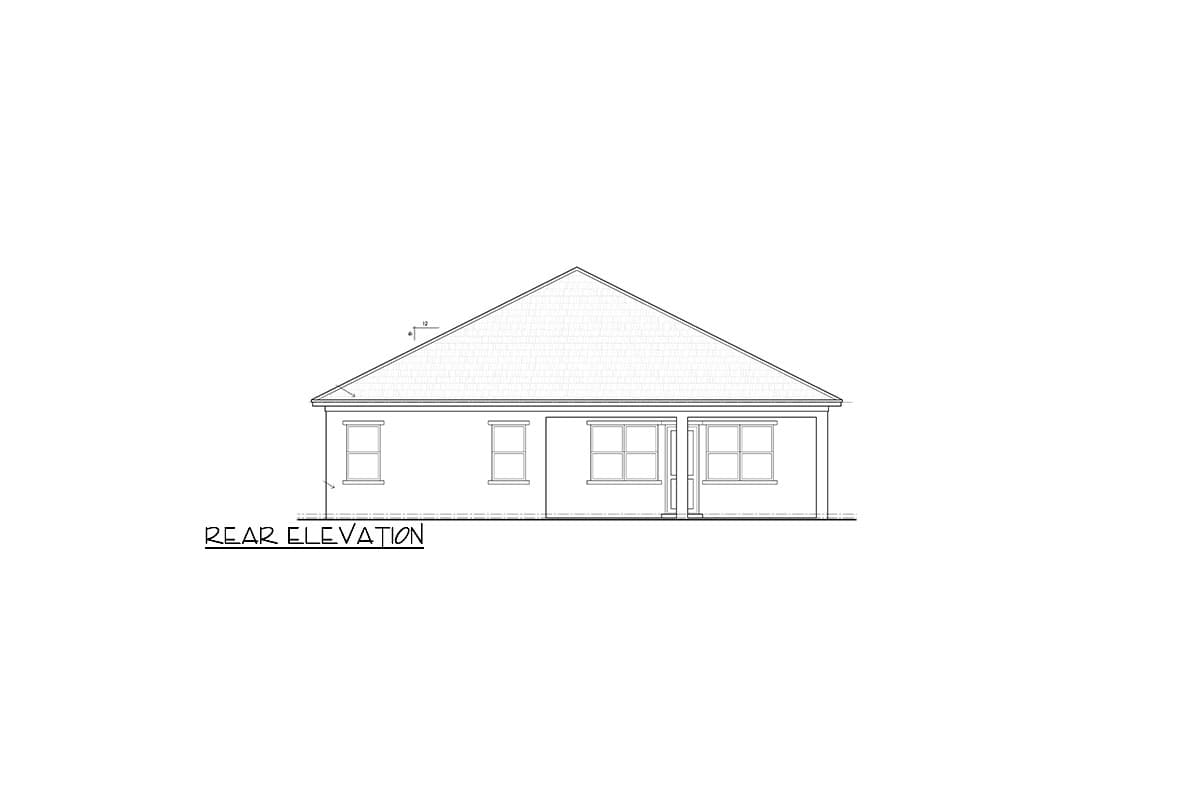

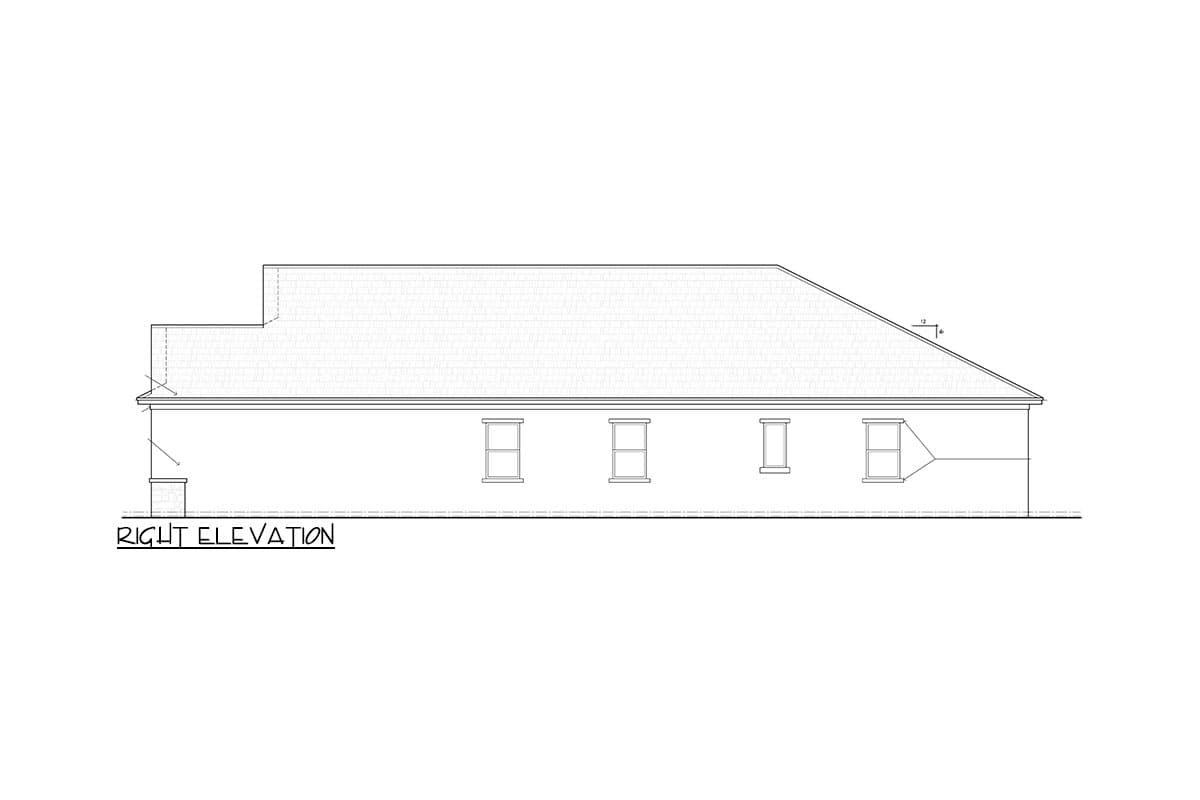

  • EXTERIOR ELEVATIONS - The Exterior Elevation sheet(s) depict elevations for all sides of the home, showing dimensions and material notes and exterior detailing where needed.
  • CROSS SECTION & INTERIOR ELEVATIONS - The Cross Section sheet depicts a section through the home revealing floor, ceiling and roof heights at a strategic location. The Interior Elevation sheet shows conceptual interior wall elevations for the Kitchen, Bathrooms, Utility Room as well as built-ins, fireplaces and other unique interior features as per design. (Interior elevations may not be available for all stock plans.)
  • ELECTRICAL PLAN - The Electrical Plan sheet shows suggested wiring and location of fixtures (lighting, ceiling fans, etc.), switches and outlets. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. Your electrician should work out these details.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,583 sq. ft.

1st Floor

2,583 sq. ft.

Porch, Front

90 sq. ft.

Lanai

280 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

44' 10"

Depth

78' 5"

Max Ridge Height

22' 1"

Garage

Type

Attached

Area

504 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Great Room

Step

10' 0''

Dining Room

Step

10' 0''

Den

Step

10' 0''

Master Bedroom

Step

10' 0''

Roof Details

Framing Type

Truss

Architectural Style

Prairie

Southern

Special Features

Bedrooms - Clustered

Den

Home Office

Laundry - Main Level

Master Suite - 1st Floor
