Plan 710189BTZ
One-Story House Plan with Bonus Upstairs
Heated S.F.
2,066
Beds
3 - 4
Baths
2.5 - 3.5
Stories
1
Cars
2
Floor Plan

Plan 710189BTZ

Main Level
slide image 0
2nd Floor
slide image 1

Plan 710189BTZ

1-800-854-7852

1-262-521-4596

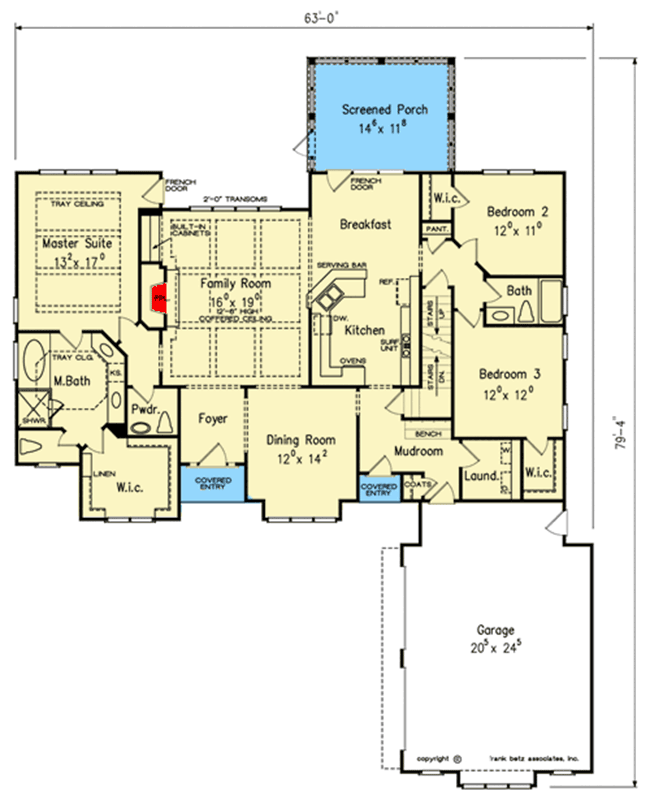

Main Level
floor plan image Main Level

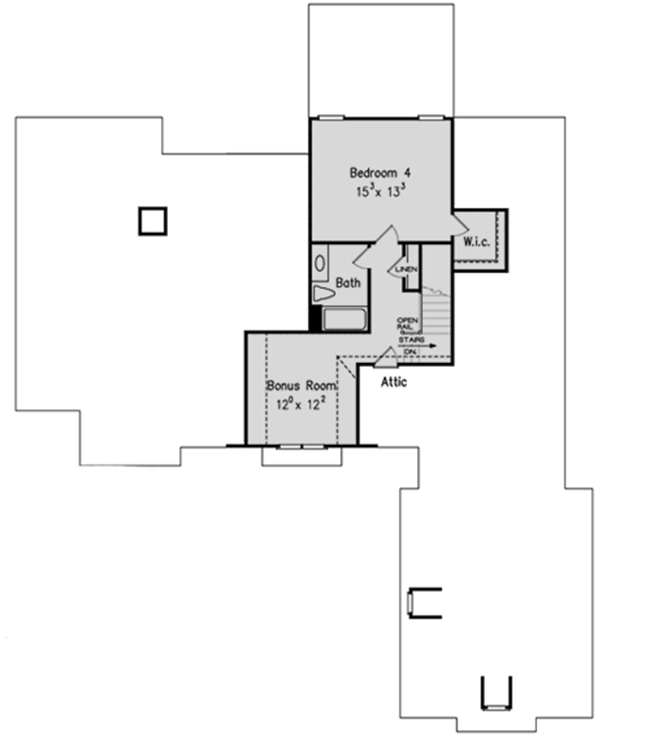

2nd Floor
floor plan image 2nd Floor
Plan Details
  • Exterior materials that complement each other is the key to an attractive elevation on this one-story house plan with a bonus upstairs.. The stone, cedar shake, and carriage garage doors come together to create a façade that is warm and street friendly.
  • Its floor plan is just as inviting, with a coffered ceiling providing a unique canopy over the family room. A large screened porch off the breakfast area provides the perfect spot for outdoor living.
  • The garage entry filters traffic through the mudroom, fully equipped with a coat closet, bench, wall hooks and access to the laundry room.
  • Finishing the optional second floor adds a bedroom, bath and bonus room to the design.
What's Included

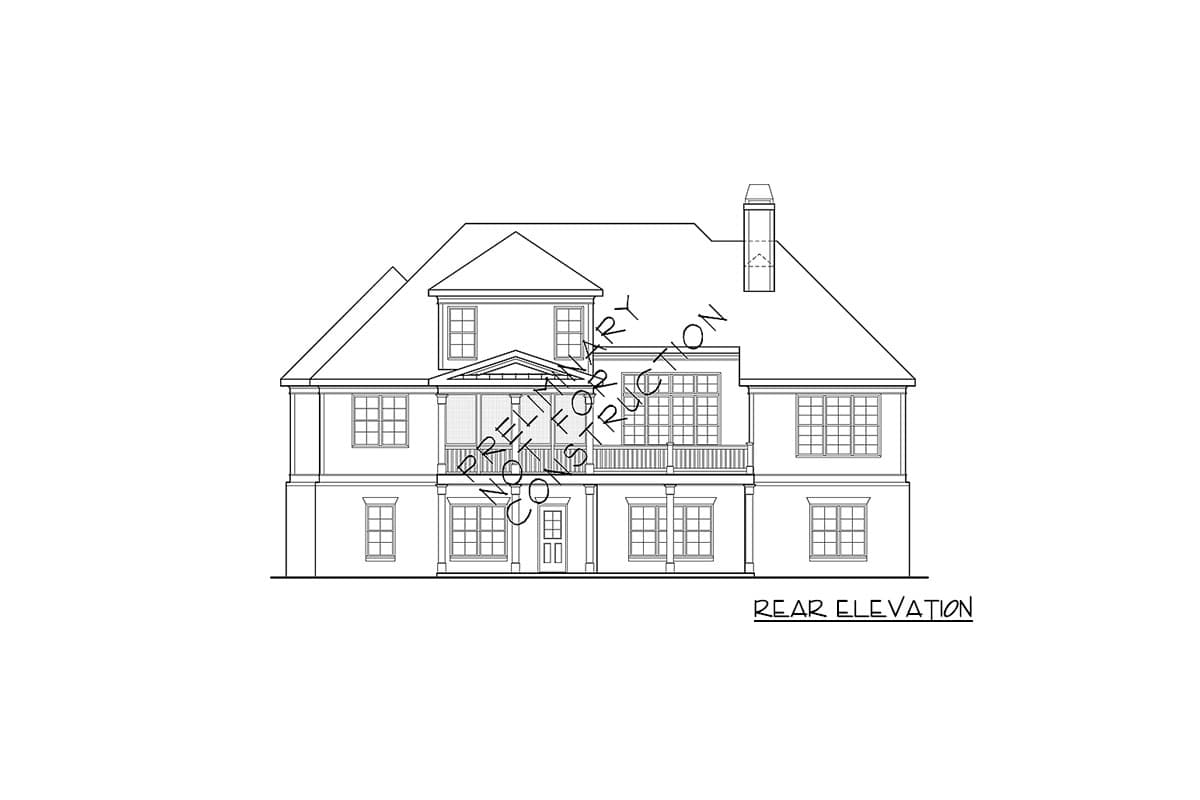

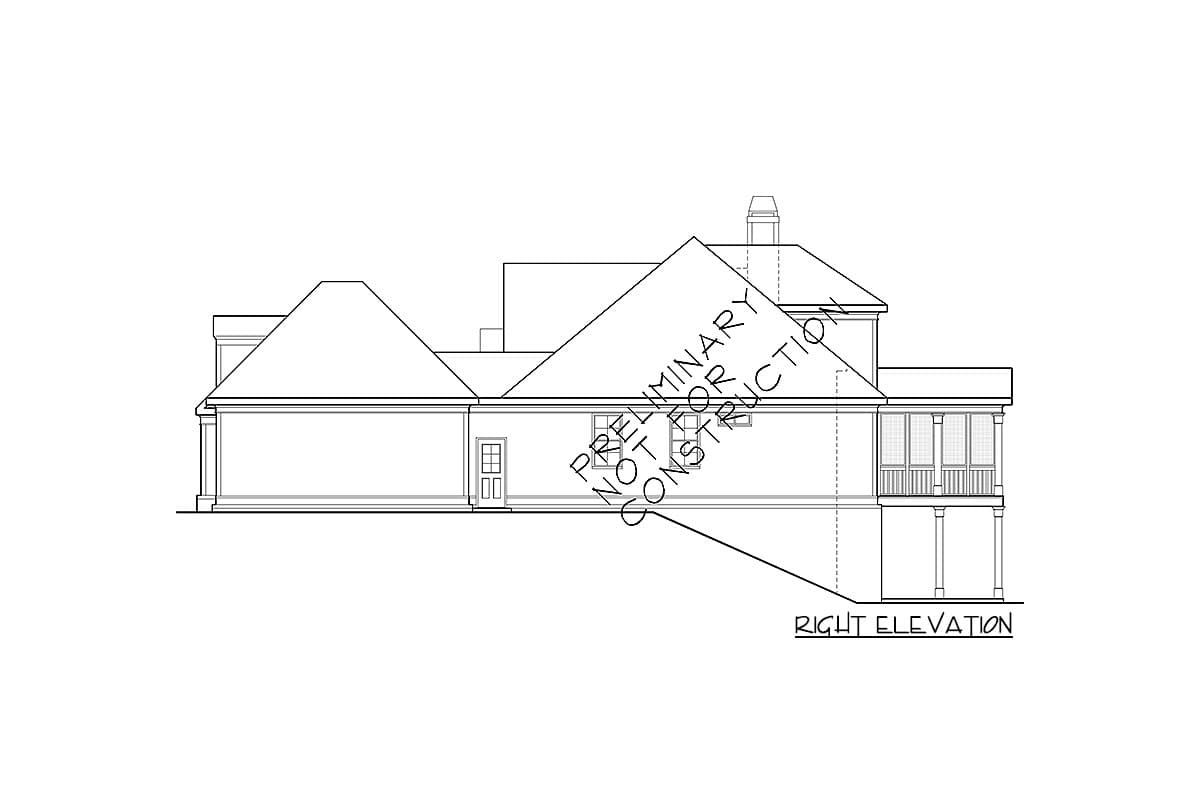

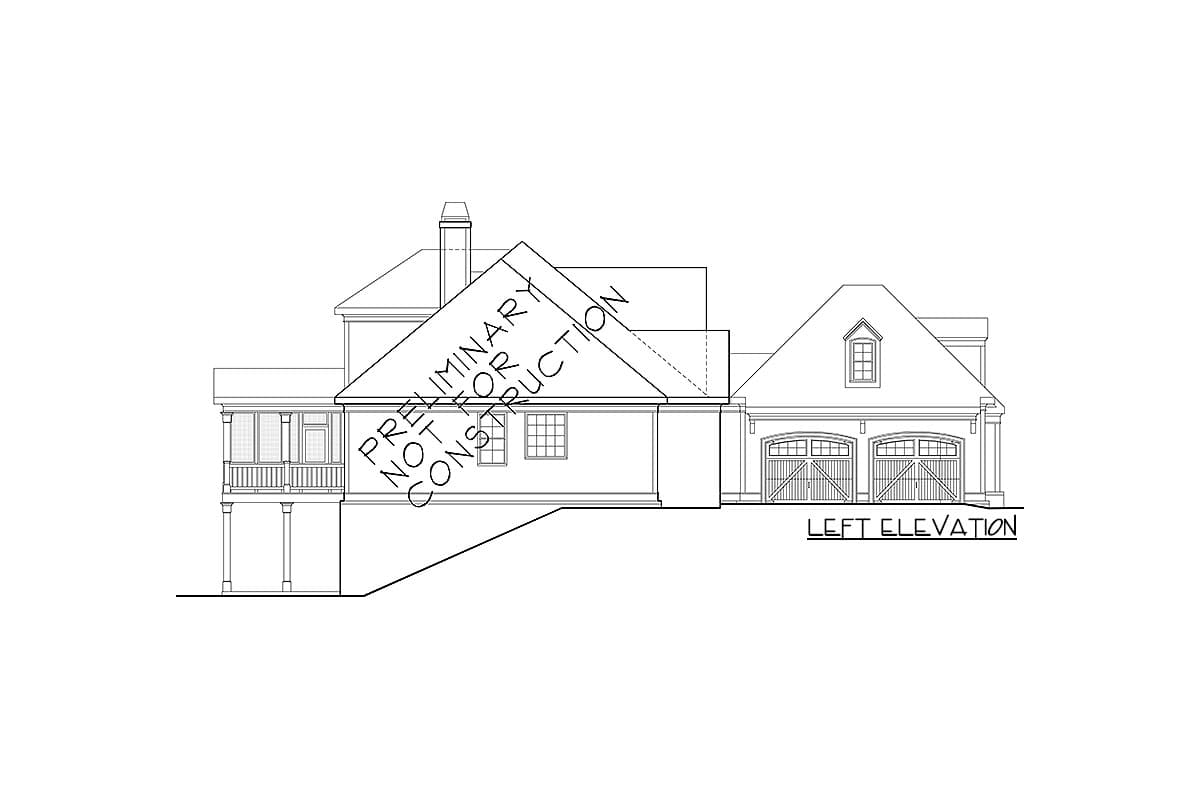

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.
What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations
  • Windows and Doors Schedules

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,066 sq. ft.

1st Floor

2,066 sq. ft.

Basement Unfinished

2,066 sq. ft.

Bonus

556 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

63' 0"

Depth

79' 4"

Max Ridge Height

25' 6"

Garage

Type

Attached

Area

610 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Southern

Traditional

Special Features

Bedrooms - Split

Bonus Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Split Level

Plan Collections

Photo Gallery

Split Level House Plans

Square Footage Breakdown

Total Heated Area

2,066 sq. ft.

1st Floor

2,066 sq. ft.

Basement Unfinished

2,066 sq. ft.

Bonus

556 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

63' 0"

Depth

79' 4"

Max Ridge Height

25' 6"

Garage

Type

Attached

Area

610 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Southern

Traditional

Special Features

Bedrooms - Split

Bonus Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Split Level

Plan Collections

Photo Gallery

Split Level House Plans
