Name: Plan 15853GE: One-Story House Plan with Flex Room and Vaulted Living Room - 1927 Sq Ft
SKU: 15853GE
Price: 1785.0 USD
Availability: InStock

Plan 15853GE

One-Story House Plan with Flex Room and Vaulted Living Room - 1927 Sq Ft

Heated S.F.

2,963

Beds

3 - 4

Baths

Stories

Cars

Floor Plan

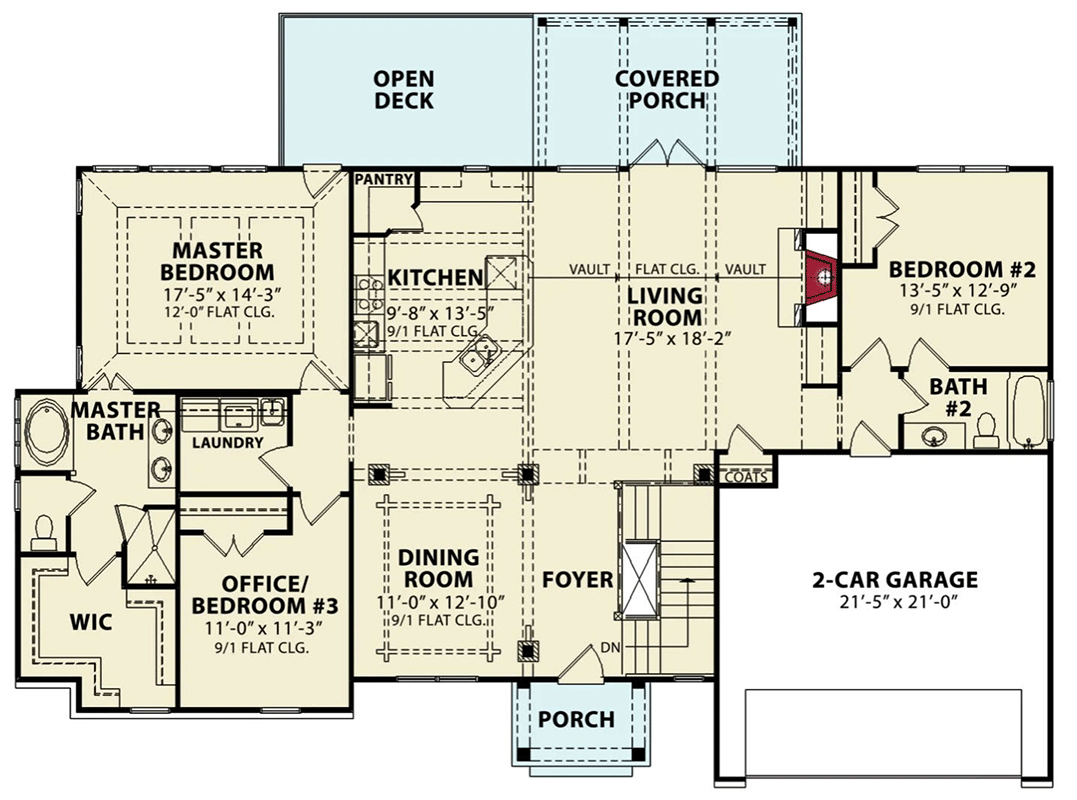

Main Level

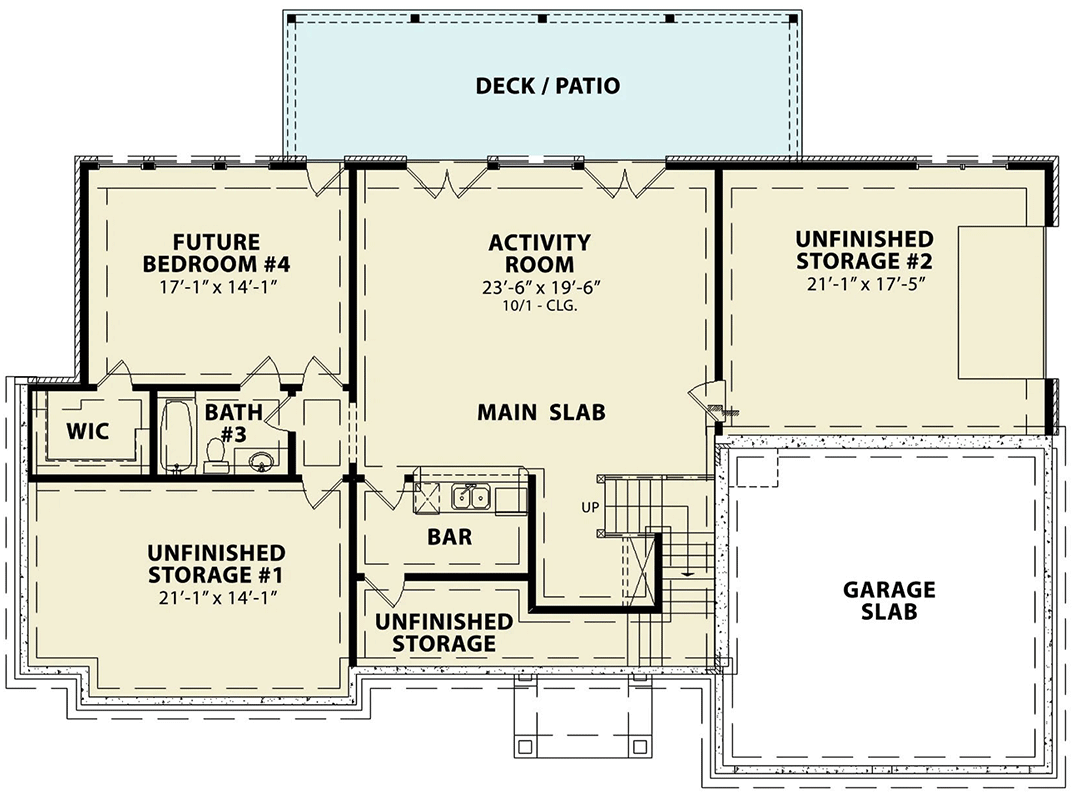

Lower Level

Plan Details

At the center of this Traditional style house plan, the kitchen opens to the dining room and the lodge room with a cozy fireplace and built-in cabinetry.
A beautiful master bedroom is highlighted with a coffered ceiling and private access to an open deck and a covered porch.
Two additional bedrooms and a two car garage round out the first floor.
The lower level consists of a bedroom and an activity room.

What's Included

Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
Interior Details: These drawings show the specific details and design of special interior features.
Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
Electrical: Electrical floor plan schematics for 1st and 2nd floors.
Plans include wall and cornice sections, general foundation sections and details.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Framing plans
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
