Plan 3971ST
One-Story House Plan with Grand Openings - 1860 Sq Ft
Heated S.F.
1,860
Beds
3
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 3971ST

Main Level
slide image 0
Lower Level
slide image 1

Plan 3971ST

1-800-854-7852

1-262-521-4596

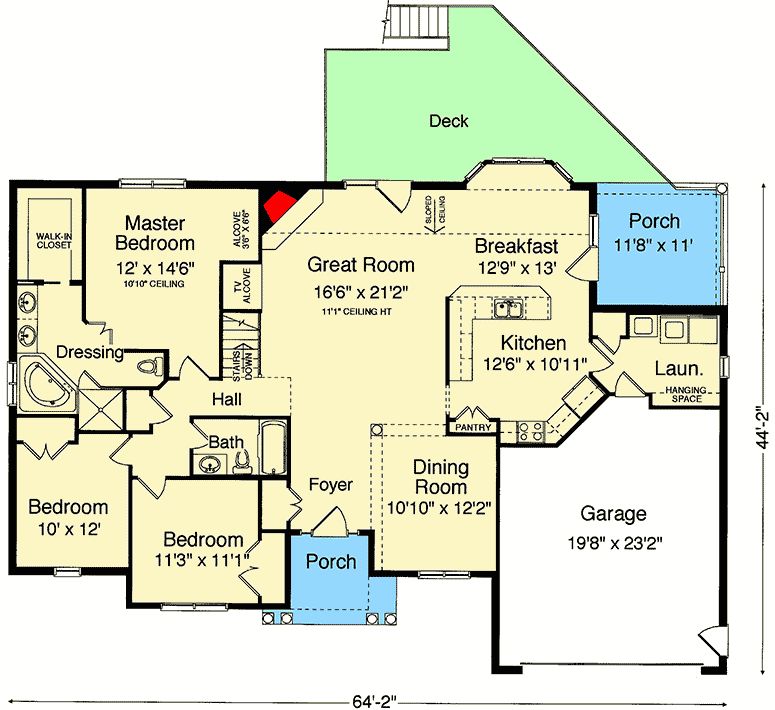

Main Level
floor plan image Main Level

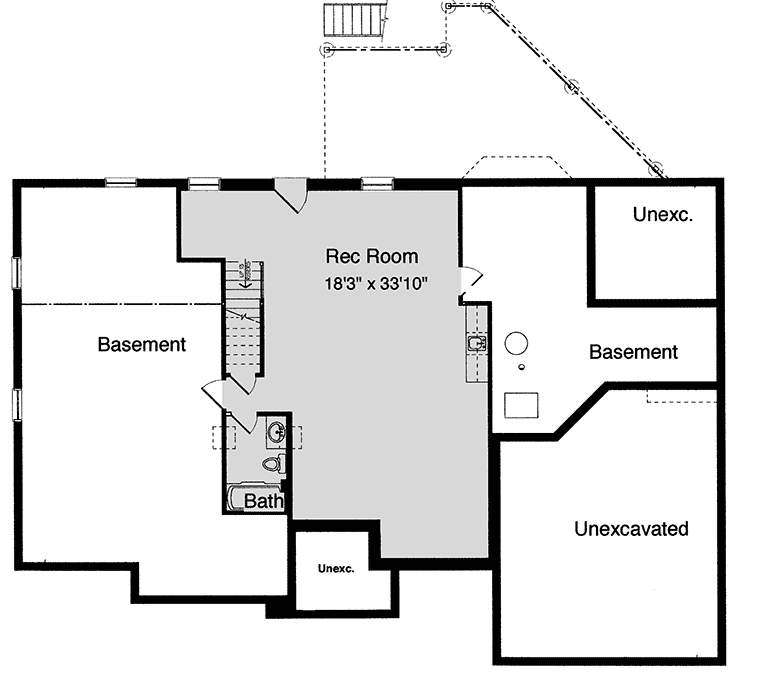

Lower Level
floor plan image Lower Level
Plan Details
  • A brick, stone and cedar shake fa'ade provide color and texture to the exterior of this delightful one level home plan. A spacious great room is decorated with a wood burning fireplace, high ceiling and French doors.
  • Grand openings to both the breakfast room and dining room offer expanded space for formal and informal gatherings. A breakfast bar offers additional seating and a comfortable gathering place.
  • A covered porch provides a pleasant retreat and is located for convenient access from the kitchen and breakfast area.
  • Alcoves in the great room and master bedroom are created for furniture placement, and an angled entry introduces a spectacular master bath with whirlpool tub and double bowl vanity.
  • A full basement can be accessed for additional square footage.
What's Included
  • General notes and specifications

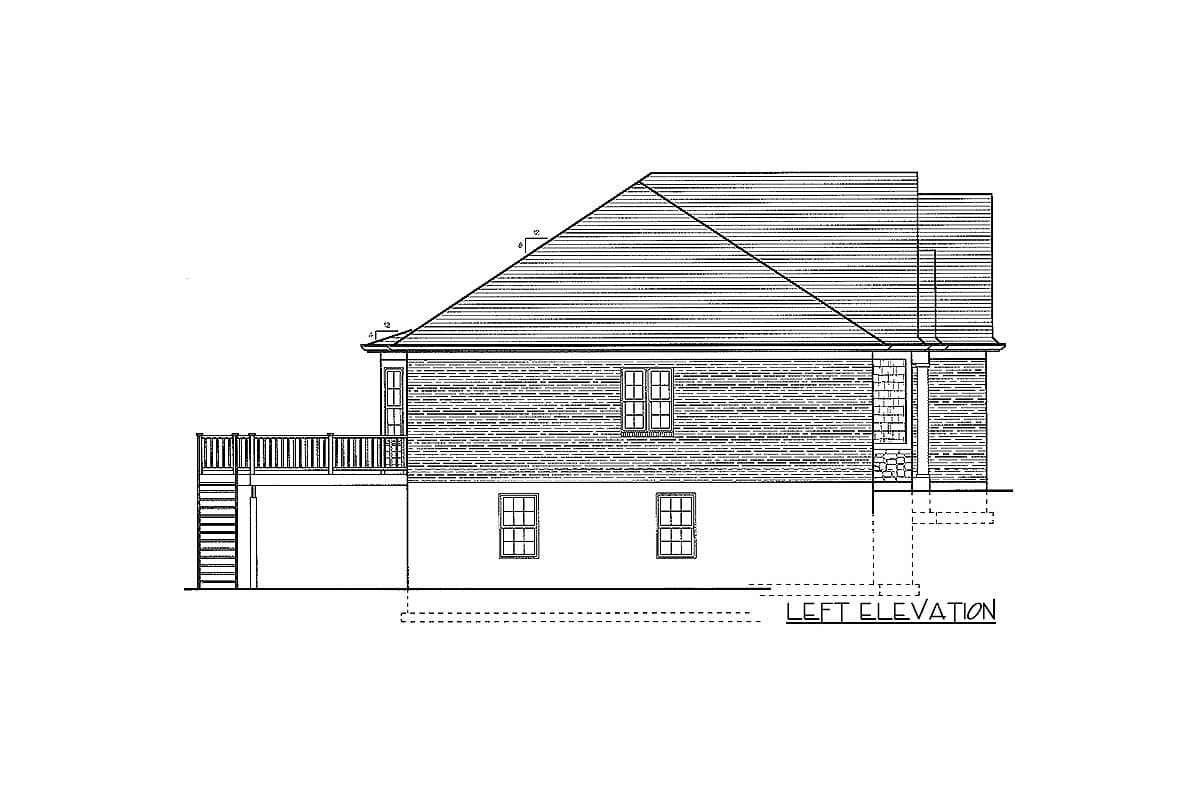

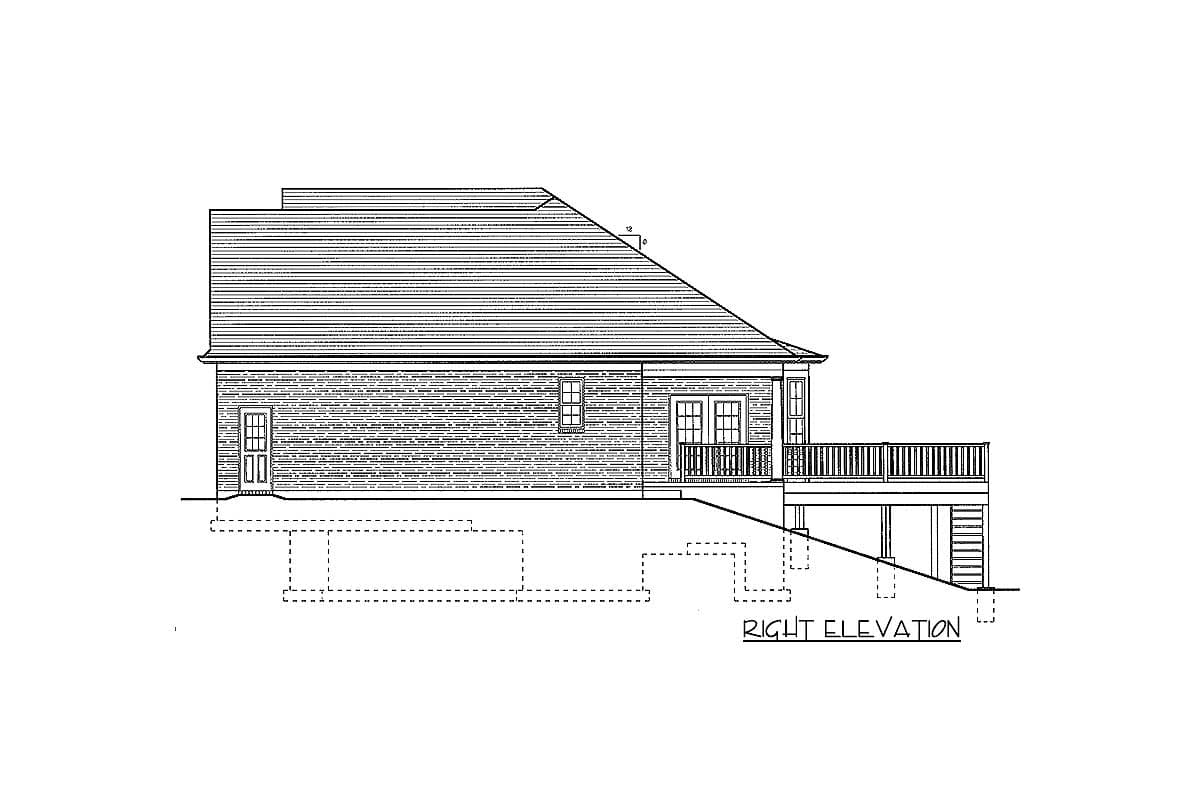

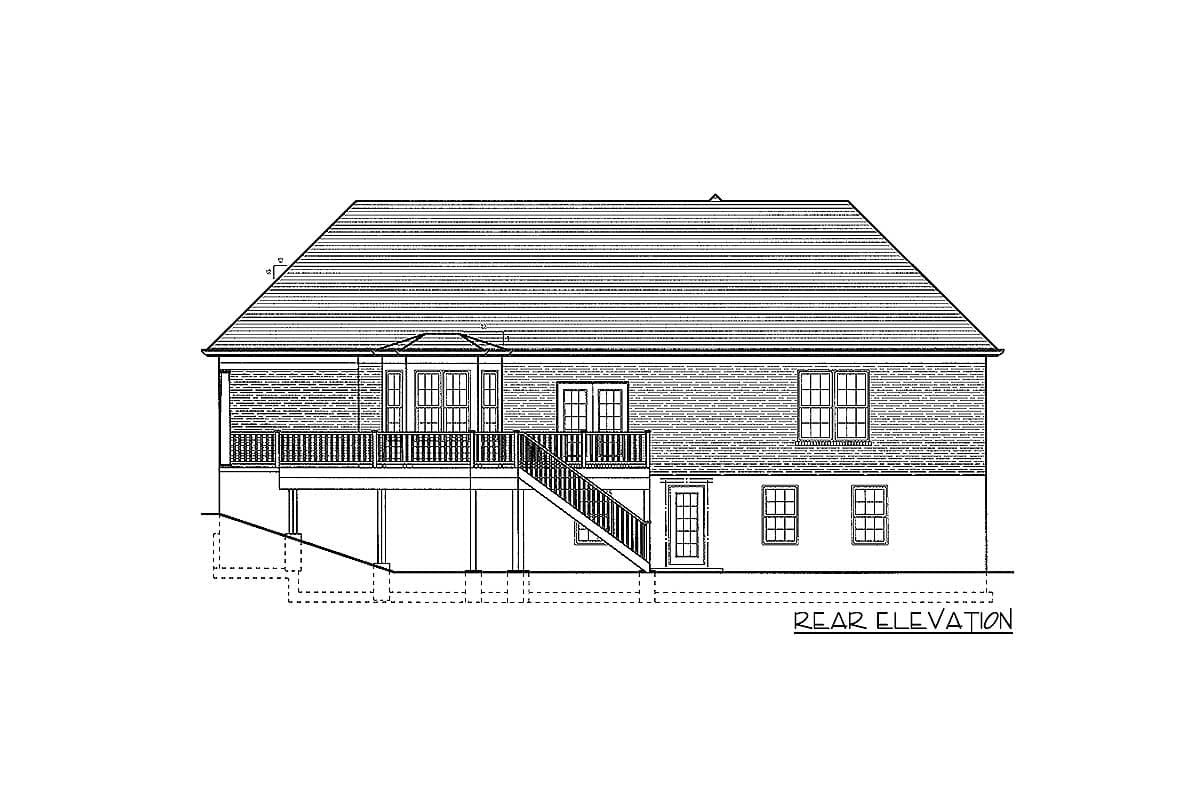

  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

1,860 sq. ft.

1st Floor

1,860 sq. ft.

Basement Unfinished

1,860 sq. ft.

Entry

69 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

64' 2"

Depth

44' 2"

Max Ridge Height

23' 0"

Garage

Type

Attached

Area

444 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Ranch

Southern

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Photo Gallery
