Plan 39033ST
One-Story Multi-Gabled House Plan with 3 Bedrooms - 1794 Sq Ft
Heated S.F.
1,794
Beds
3
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 39033ST

Main Level
slide image 0
Optional Lower Level
slide image 1

Plan 39033ST

1-800-854-7852

1-262-521-4596

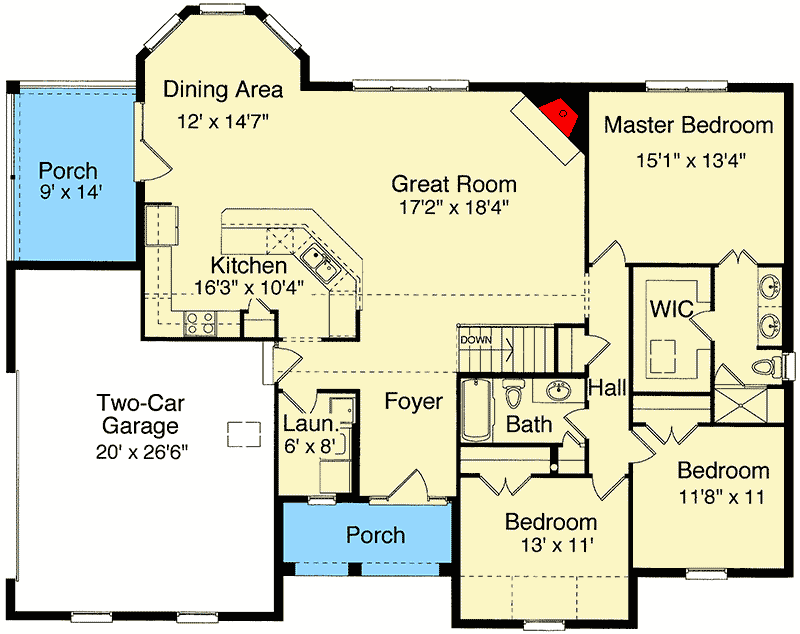

Main Level
floor plan image Main Level

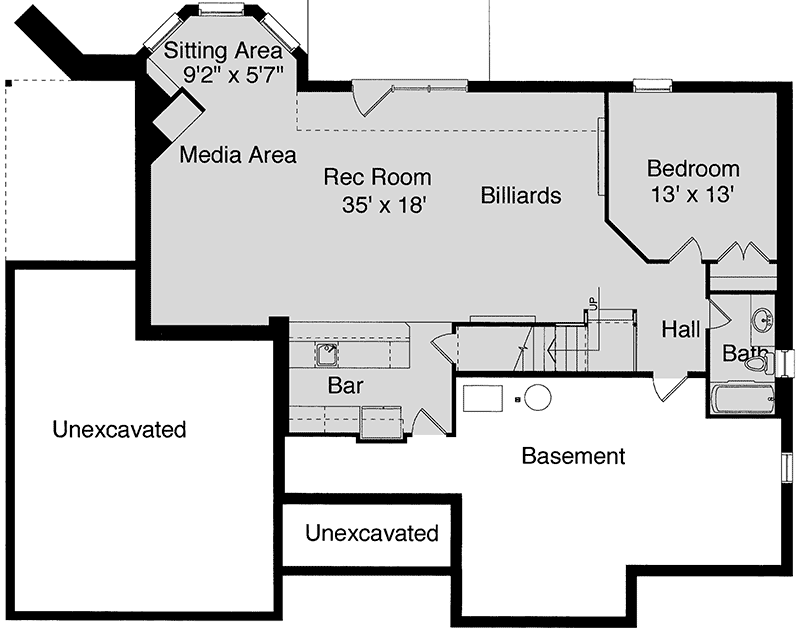

Optional Lower Level
floor plan image Optional Lower Level
Plan Details
  • Multiple gables and a brick and stone facade with wood trim and dormers decorate the exterior of this enchanting one-level home plan. An open floor plan allows the great room, with sloped ceiling and fireplace, to interact with the kitchen and dining area for everyday enjoyment.
  • Angles, seating at the snack bar, French doors to a covered porch and a 9' standard ceiling height combine to create spectacular surroundings.
  • The master bedroom enjoys a private bath with shower enclosure, double bowl vanity and walk-in closet.
  • An optional finished basement plan comes with these drawings adding 1,130 square feet. It includes a media area, billiards space, wet bar and 4th bedroom with bath.
  • All of these wonderful amenities create a home that is the perfect choice for the first time buyer, growing family, or empty-nester market.
  • Related Plan: Get a three-car garage with house plan 39034ST.
What's Included
  • General notes and specifications

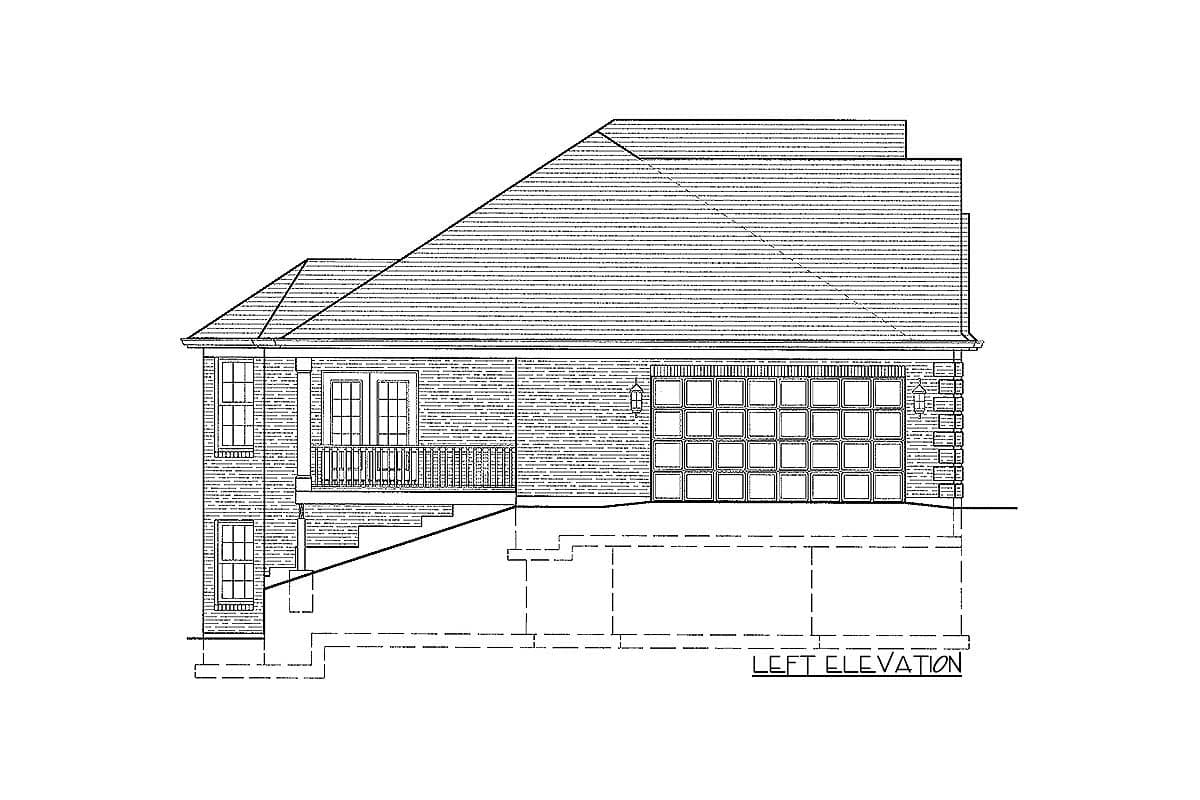

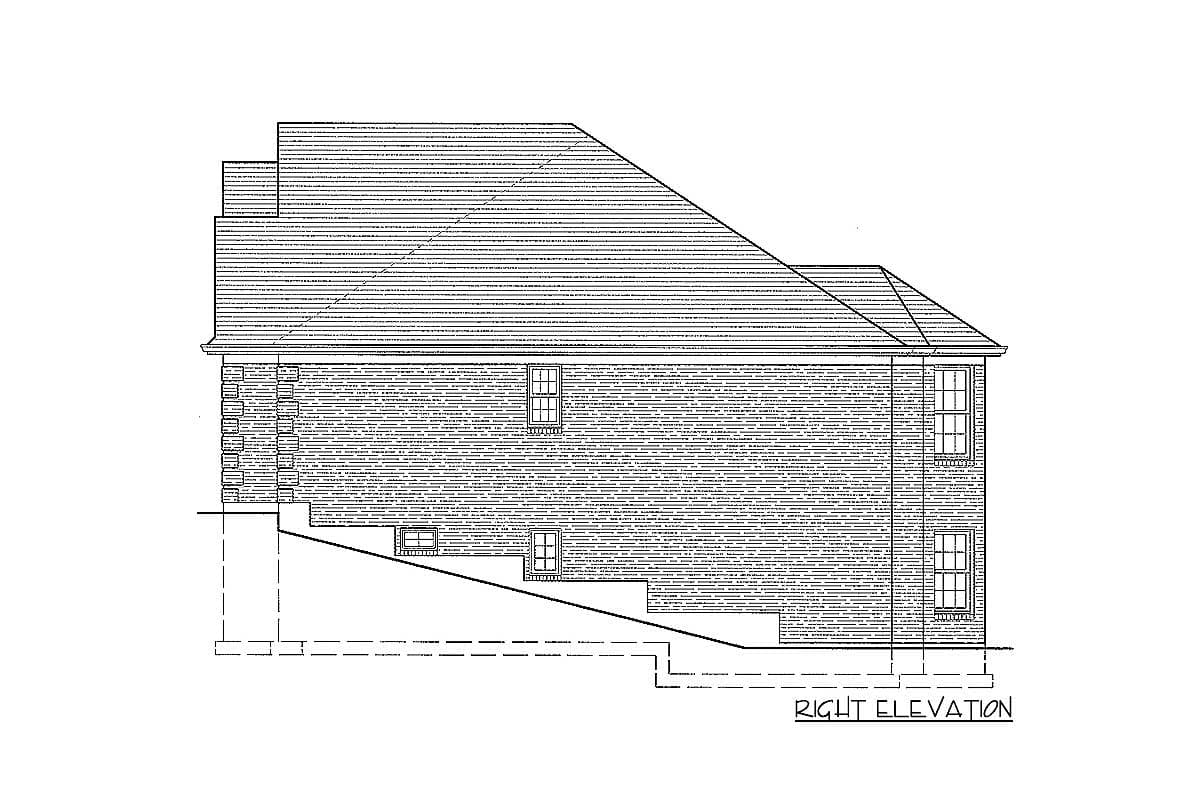

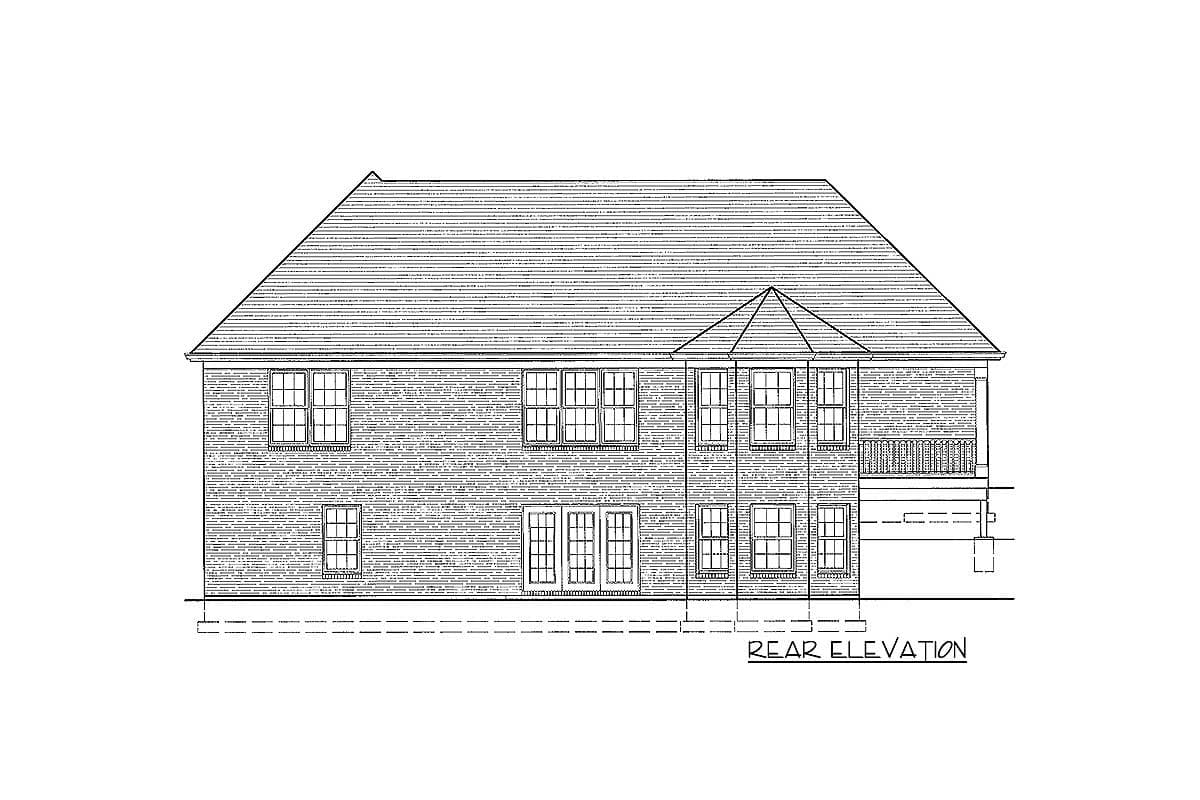

  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,794 sq. ft.

1st Floor

1,794 sq. ft.

Basement Unfinished

1,130 sq. ft.

Optional Lower Level

1,130 sq. ft.

Porch, Front

71 sq. ft.

Porch, Rear

137 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

60' 8"

Depth

48' 3"

Max Ridge Height

24' 0"

Garage

Type

Attached

Area

469 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Southern

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Wet Bar
