Plan 51833HZ
One-Story New American House Plan with Split Bedroom Layout - 1992 Sq Ft
Heated S.F.
1,992
Beds
4
Baths
2
Stories
1
Cars
2
TourPhotos
Floor Plan

Plan 51833HZ

Main Level
slide image 0

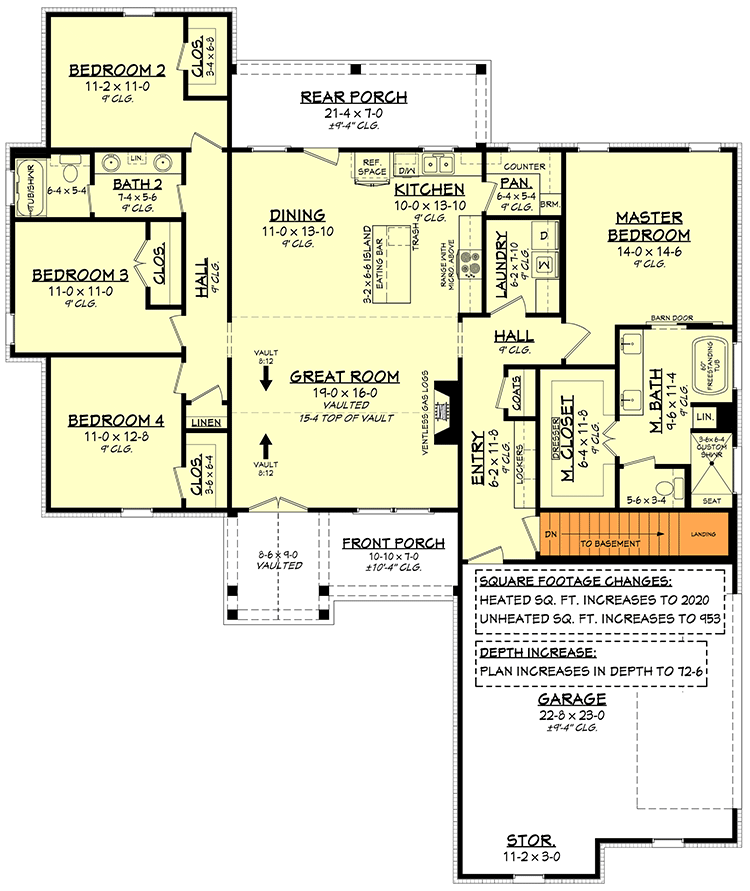

Basement Stairs Location
slide image 1

Plan 51833HZ

1-800-854-7852

1-262-521-4596

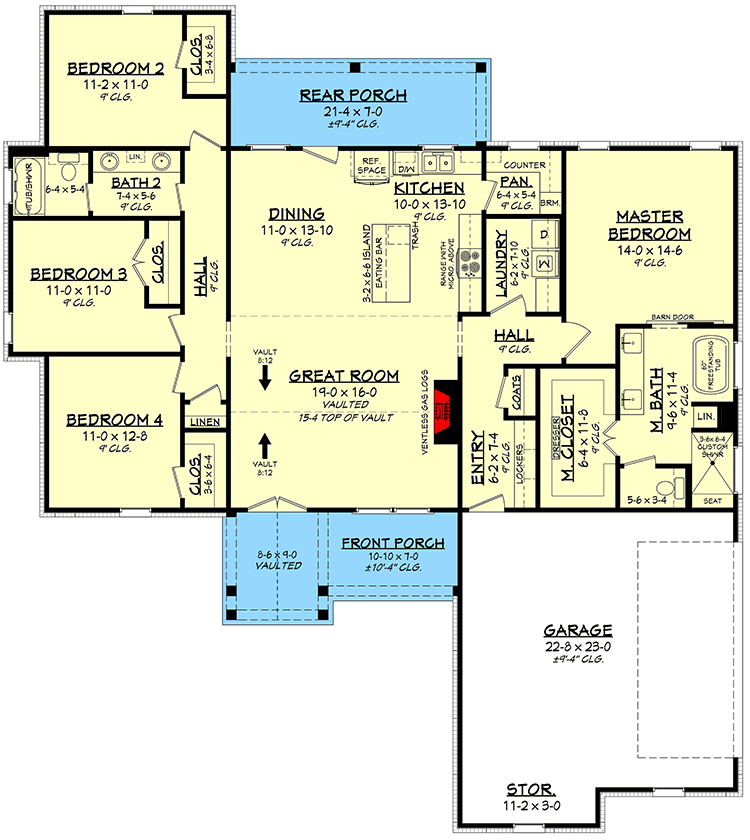

Main Level
floor plan image Main Level
Basement Stairs Location
floor plan image Basement Stairs Location
Plan Details
  • Board and batten siding combine with timbers around the covered vaulted entry to give this one-story, New American house plan great curb appeal.
  • Double doors part to welcome you inside, where a vaulted ceiling soars above the great room, centered over a warm fireplace. Clean sightlines into the eat-in kitchen are provided by the open floor plan.
  • An eating bar on the kitchen island bolsters conversation between family and friends, and a large pantry offers additional counter space and a broom closet. The rear porch is ideal for grilling or just relaxing outside.
  • For the utmost privacy, the master bedroom is set apart from the secondary bedrooms, and features a 5-fixture bath and walk-in closet. The laundry room is conveniently situated between the master bedroom and kitchen.
  • Three family bedrooms occupy the left side of the home, and share a compartmentalized bath with two vanities.
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.
build gallery item - House Plan 51833HZ Comes to Life in South Carolina

House Plan 51833HZ Comes to Life in South Carolina

13

Photos

What's Included
Page 1  Cover Sheet with abbreviations, rendering, sheet index
Page 2  Foundation Plan and Details
Page 3  Detailed floor plan(includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
Page 4  Front and rear exterior views with additional details

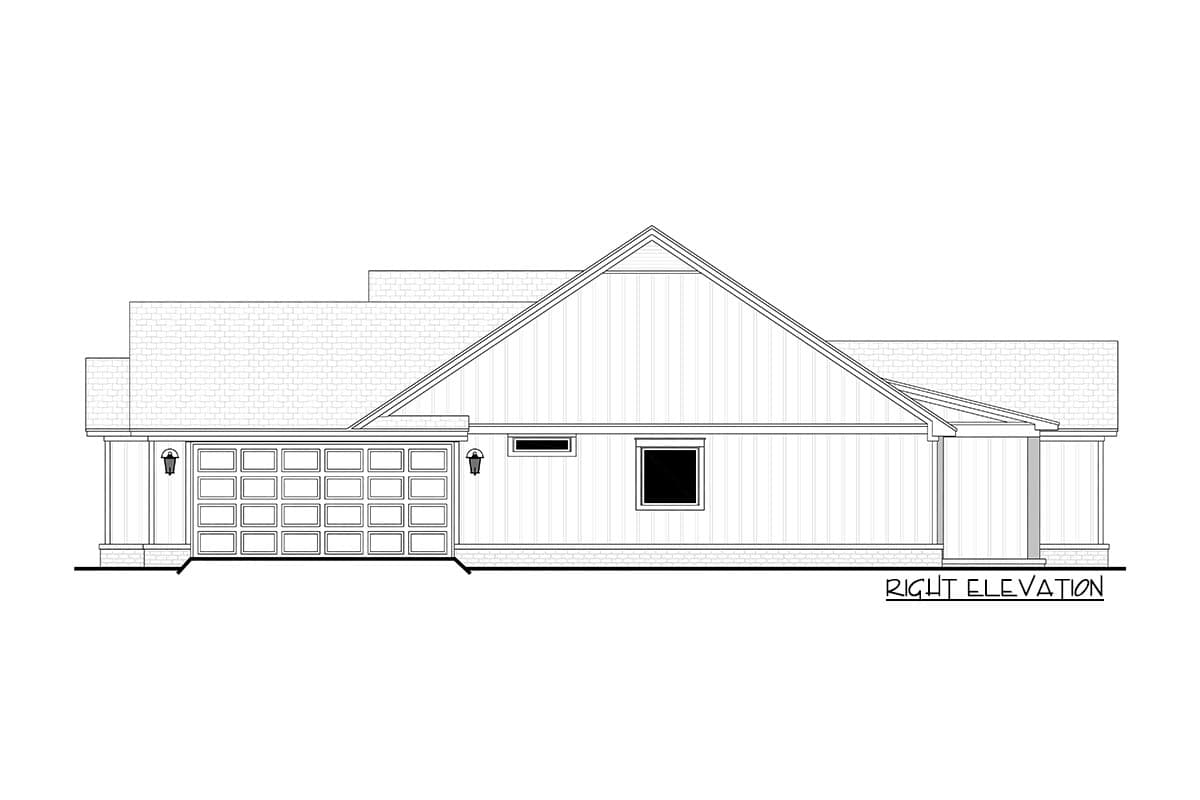

Page 5  Right and left exterior views with additional details
Page 6  Cross Section & kitchen cabinet views
Page 7  Roof plan and span charts with additional details
Page 8  Electrical plan & notes/ legend
Page N1 Code Information
Page N2 Code Information
Page N3 Code Information
Page N4 Energy Code Information
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,992 sq. ft.

1st Floor

1,992 sq. ft.

Porch, Front

149 sq. ft.

Porch, Rear

152 sq. ft.

Porch, Combined

301 sq. ft.

Storage

36 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

60' 10"

Depth

68' 2"

Max Ridge Height

23' 0"

Garage

Type

Attached

Area

544 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9' 4"

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Framing Type

Stick

Architectural Style

New American

Ranch

Southern

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

1,992 sq. ft.

1st Floor

1,992 sq. ft.

Porch, Front

149 sq. ft.

Porch, Rear

152 sq. ft.

Porch, Combined

301 sq. ft.

Storage

36 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

60' 10"

Depth

68' 2"

Max Ridge Height

23' 0"

Garage

Type

Attached

Area

544 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9' 4"

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Framing Type

Stick

Architectural Style

New American

Ranch

Southern

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Plan Collections

Photo Gallery
