Plan 72927DA
One-Story Prairie Ranch Home with Private Master Suite
Heated S.F.
2,221
Beds
3
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 72927DA

Main Level
slide image 0

Plan 72927DA

1-800-854-7852

1-262-521-4596

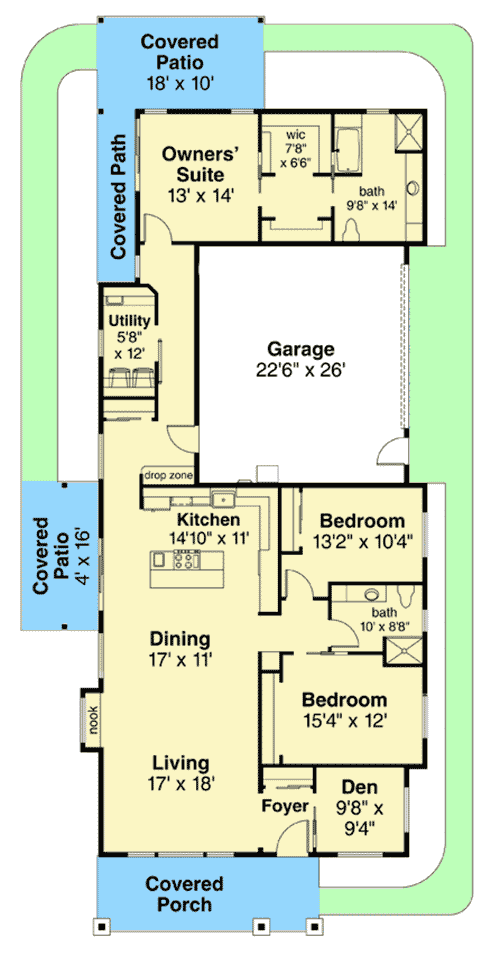

Main Level
floor plan image Main Level
Plan Details
  • This Prairie-style house plan is a unique design suited for a narrow corner lot. A covered porch welcomes guests into the home.
  • Through the entrance is a foyer with a convenient coat closet. To the right is a den, which could also be used as a home office. To the left, guests walk into an open style living area. The living and dining rooms are transitioned by a cozy reading nook.
  • The kitchen is designed for efficiency and style. The island holds the cooktop and prep-sink which face out to the living area so the chef can be included in a social gathering. Directly off the kitchen is a sliding glass door which leads out to a covered patio.
  • Down the hall at the back of the kitchen, there is a drop zone for the garage entrance and a utility room, closed off by a cute and stylish barn door.
  • The garage and utility room separates the owners' suite from the rest of the house, giving the owners' a private retreat.
  • The his-and-hers walk-in closets line the hall into the owners' bath, which has a relaxing soaking tub among the usual amenities.  A sliding glass door exits out of the owners' suite to a private covered patio, where a hot tub would fit nicely.
What's Included
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,221 sq. ft.

1st Floor

2,221 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

100' 0"

Max Ridge Height

15' 8"

Garage

Type

Attached

Area

598 sq. ft.

Count

2 Cars

Entry Location

Side

Roof Details

Primary Pitch

4 on 12

Architectural Style

Prairie

Ranch

Special Features

Bedrooms - Split

Breakfast Nook

Den

Home Office

Master Suite - 1st Floor

Plan Collections

Home Office

Square Footage Breakdown

Total Heated Area

2,221 sq. ft.

1st Floor

2,221 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

100' 0"

Max Ridge Height

15' 8"

Garage

Type

Attached

Area

598 sq. ft.

Count

2 Cars

Entry Location

Side

Roof Details

Primary Pitch

4 on 12

Architectural Style

Prairie

Ranch

Special Features

Bedrooms - Split

Breakfast Nook

Den

Home Office

Master Suite - 1st Floor

Plan Collections

Home Office
