Plan 710012BTZ
One-Story Split Bedroom Traditional House Plan with Bonus Expansion
Heated S.F.
1,949
Beds
3 - 4
Baths
2.5 - 3.5
Stories
1
Cars
2
Floor Plan

Plan 710012BTZ

Main Level
slide image 0
2nd Floor
slide image 1

Plan 710012BTZ

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • Red brick enhances the facade of this traditional one-story, split bedroom house plan and brings to mind a Colonial influence. Tall arched windows allow natural light into the foyer and formal dining room.
  • Family and guests will enjoy gathering in the open spaces of the living room, kitchen, and breakfast nook. A large deck accessible from the breakfast nook extends your entertaining to the outdoors.
  • The master suite is secluded from activity on the left side of the plan and features a bathroom with vaulted ceiling and a large walk-in closet. On the right side of the plan, two family bedrooms share a full bath.
  • Build out the bonus room provided with the plans and get a fourth bedroom or a space you can put to just about any use.
  • Related Plan: Get an alternate exterior with house plan 710011BTZ.
What's Included

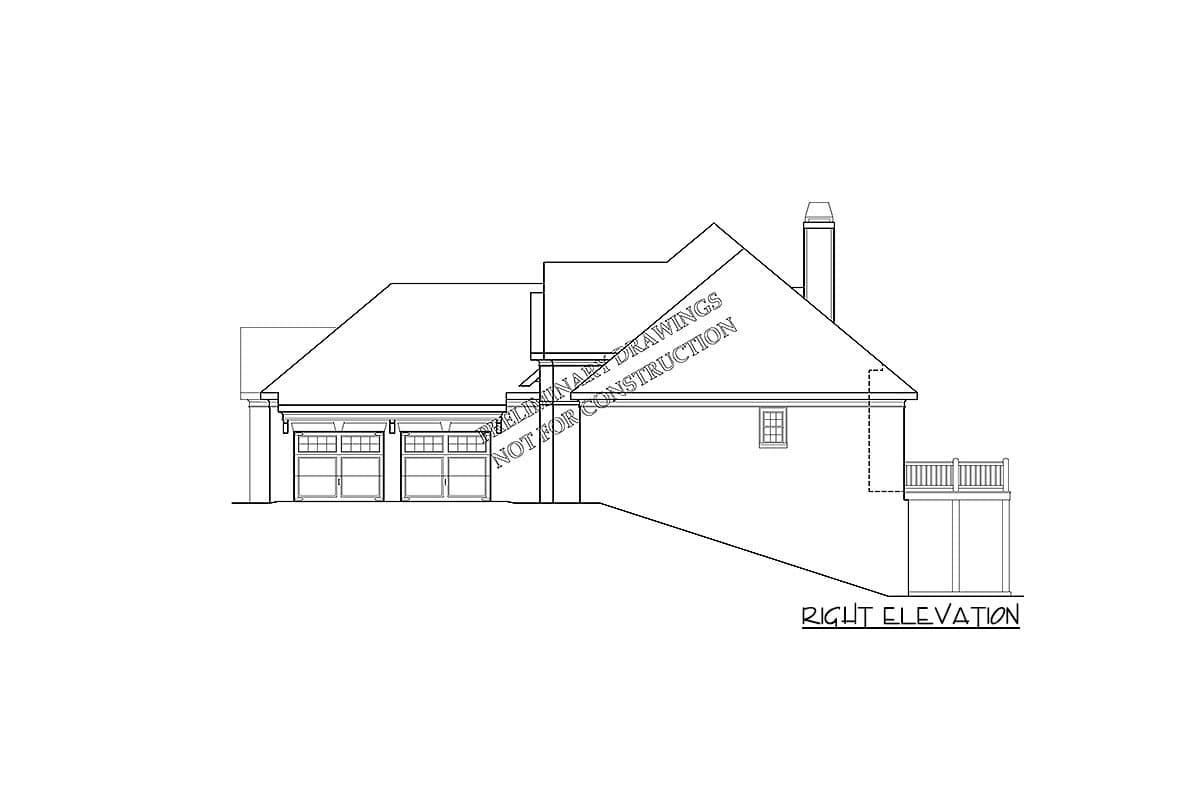

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.

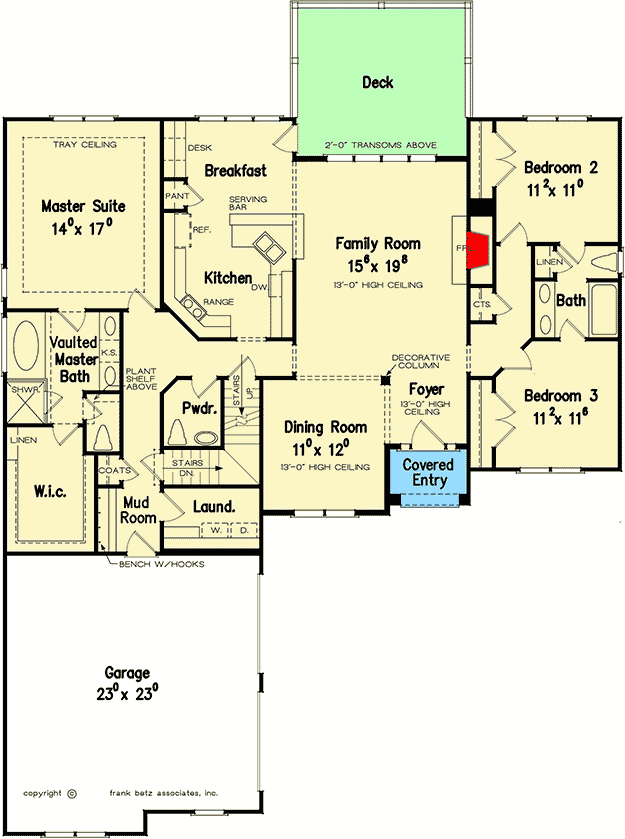

  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.
What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations
  • Windows and Doors Schedules

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,949 sq. ft.

1st Floor

1,949 sq. ft.

Basement Unfinished

1,949 sq. ft.

Bonus

398 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

56' 0"

Depth

65' 0"

Max Ridge Height

27' 0"

Garage

Type

Attached

Area

575 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Bedrooms - Split

Bonus Room

Breakfast Nook

Formal Dining

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

1,949 sq. ft.

1st Floor

1,949 sq. ft.

Basement Unfinished

1,949 sq. ft.

Bonus

398 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

56' 0"

Depth

65' 0"

Max Ridge Height

27' 0"

Garage

Type

Attached

Area

575 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Bedrooms - Split

Bonus Room

Breakfast Nook

Formal Dining

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Photo Gallery
